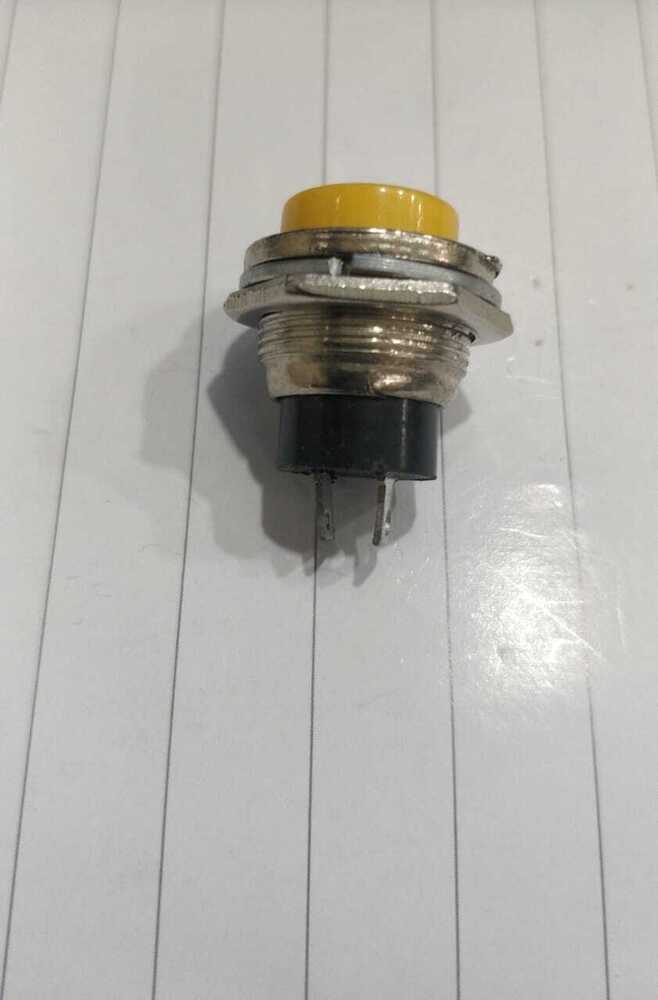

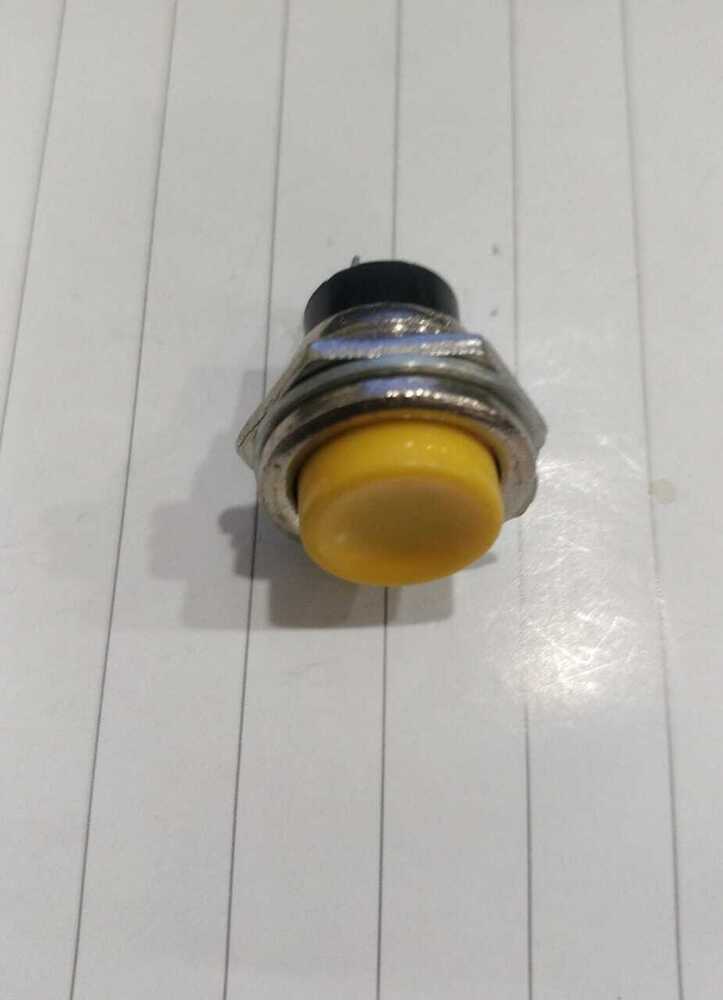

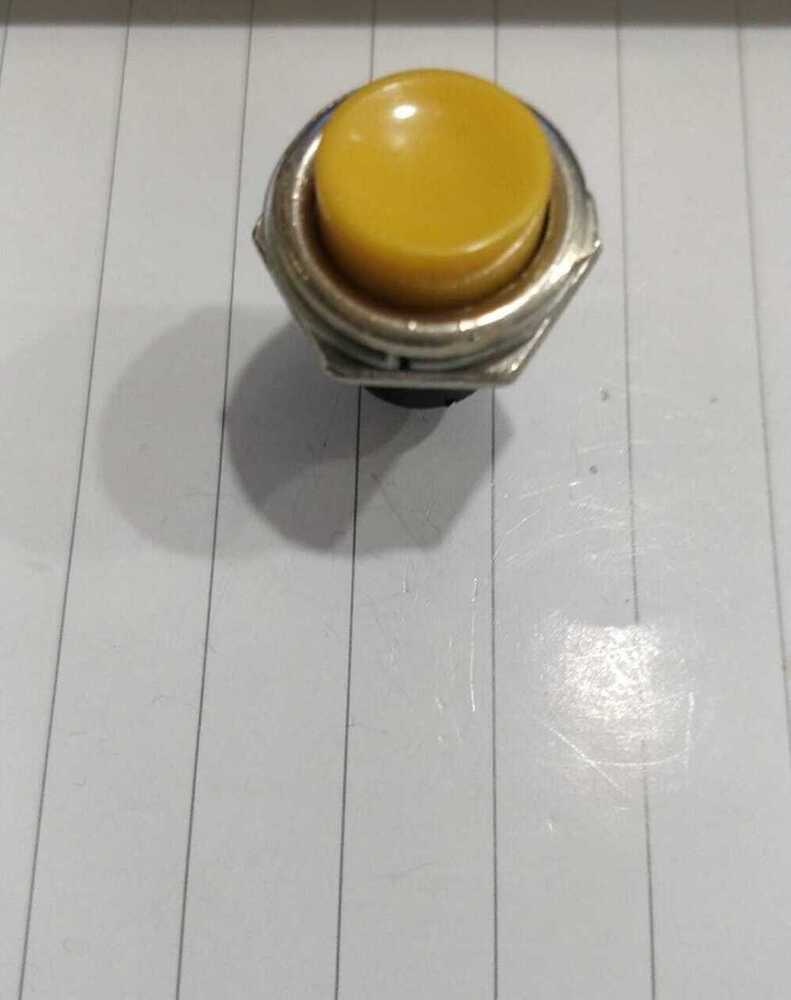

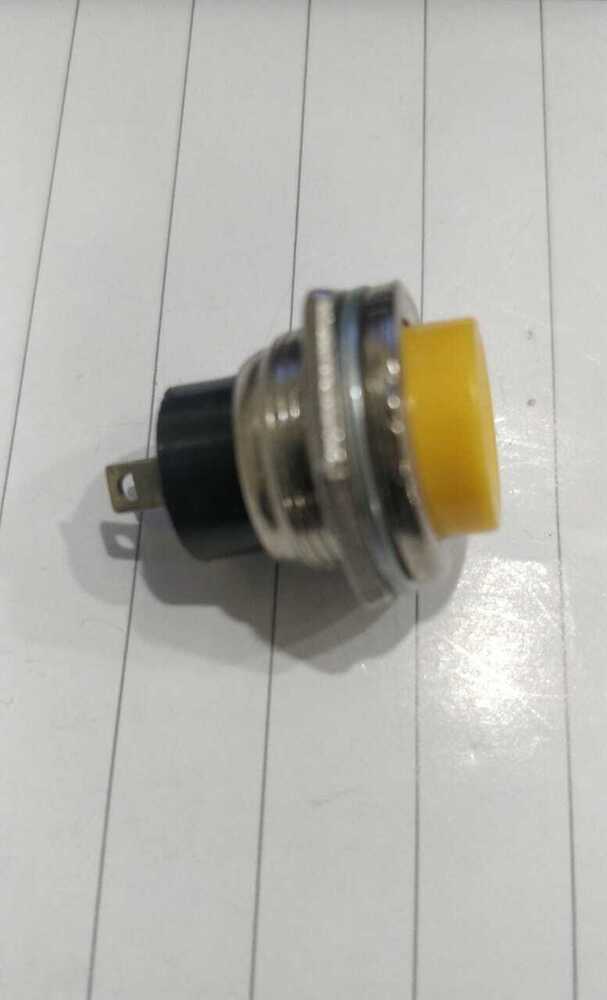

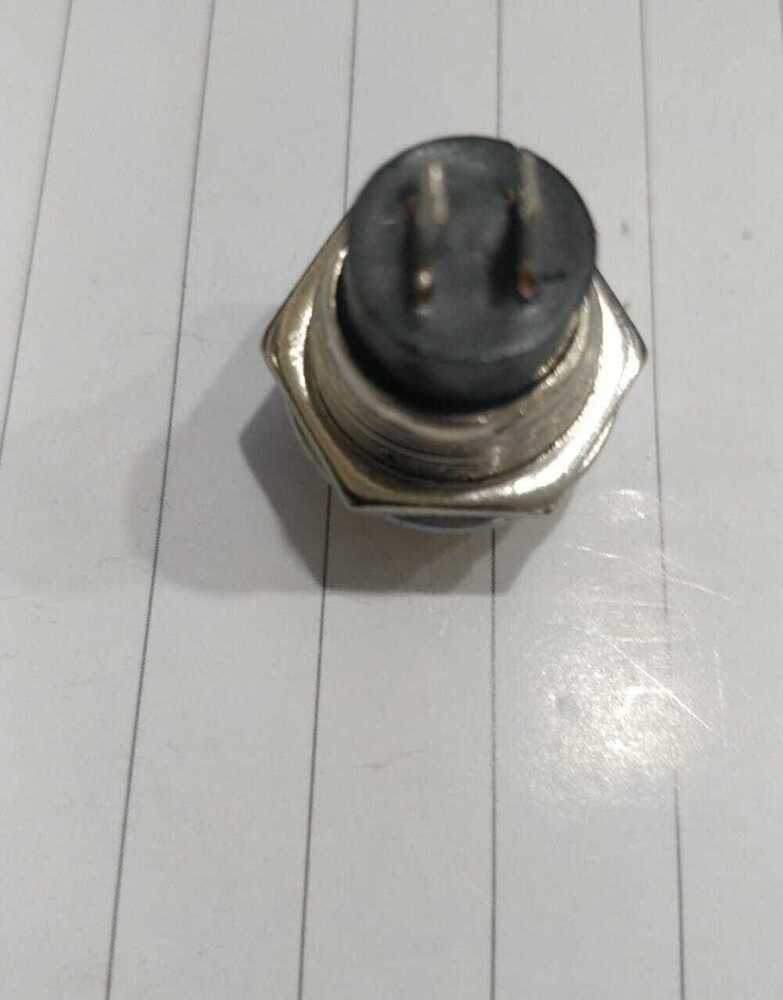

DS 212 Metal 2 Pin No Lock

Price 65.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

DS 212 Metal 2 Pin No Lock Specification

Rated Voltage
250V AC

Automation Grade
Manual

Protection Level
IP20

Max. Current
10A

Number of Module
1

Finish Type
Nickel Plated

Mechanical Life
10,000 cycles

Temperature Range
-25C to +85C

Circuit Type
2 Pole

Response Time
Instant

Product Type
Metal 2 Pin No Lock Socket (DS-212)

Material
Metal and Phenolic Resin

Insulation Resistance
1000 M (DC 500V)

Contact Resistance
50 m

Max. Voltage
250V AC

Operating Temperature
-25C to +85C

Stoke
2 Pin

Size
22mm mounting diameter

Color
Nickel (metallic silver)

Weight
Approx. 12g

Mounting Type
Panel Mount

Current Rating
10A

No Of Poles
2

Application
Power connectors, instrumentation, audio

RoHS Compliant
Yes

Contact Material
Brass with Nickel Plating

Flame Retardant Grade
UL94-V0

Shape
Round

Insulator Material
Phenolic

Termination Style
Solder Lug

DS 212 Metal 2 Pin No Lock Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About DS 212 Metal 2 Pin No Lock

Color	Yellow
Box Contains	AS PER DEMAND
Terminal Capacity	NORMAL
UV Stabilized	STANDARD
Minimum Order Quantity	100 Piece

Applications: Ideal for industrial machinery, security systems, automotive applications, and sensitive electronic equipment.
Customization: Available in various key configurations, sizes, and mounting options to meet specific security needs.
Durability: Constructed with high-quality materials to withstand harsh environments and frequent use.

Reliable Electrical Performance

This 2-pin round connector features brass contacts with nickel plating, ensuring superior electrical conductivity and minimal contact resistance, rated at 50 m. Designed for demanding environments, the DS 212 withstands high insulation resistance (1000 M at DC 500V) and supports steady currents up to 10A for safe, efficient operation.

Safety and Compliance Features

Built with a flame-retardant phenolic resin insulator (UL94-V0 grade) and RoHS compliance, the DS 212 prioritizes user safety and environmental responsibility. Its IP20 rating and nickel-plated finish provide added protection against physical and chemical wear, making it suitable for professional electrical setups.

Versatile Applications and Easy Installation

The DS 212 is tailored for panel mounting (22mm diameter) and manual assembly, serving power connectors, instrumentation, and audio systems. Its solder lug termination style allows for straightforward wiring, making installation quick and efficient for engineers, distributors, and manufacturers.

FAQs of DS 212 Metal 2 Pin No Lock:

Q: How is the DS 212 Metal 2 Pin No Lock connector installed on a panel?

A: The DS 212 connector is designed for panel mounting, requiring a 22mm diameter hole. Its solder lug termination enables secure wiring, making the installation process straightforward for technical personnel.

Q: What benefits does nickel plating on the brass contacts provide?

A: Nickel plating on brass contacts enhances electrical conductivity and protects against corrosion, ensuring lasting performance and reliable connections in various power and audio applications.

Q: When should the DS 212 connector be used in instrumentation or audio systems?

A: The DS 212 is best suited for applications demanding high insulation resistance, flame retardance, and stable power delivery, including professional audio systems and precision instrumentation setups.

Q: Where can the DS 212 connector be sourced in India?

A: The DS 212 Metal 2 Pin No Lock connector is available through distributors, exporters, importers, manufacturers, and traders across India, making it accessible for a range of commercial and industrial users.

Q: What is the insulation material and its flame retardant grade?

A: The connector uses phenolic resin as its insulator, rated UL94-V0, which ensures superior flame retardance and enhanced safety for electrical installations.

Q: How does the connector support both safety and environmental standards?

A: The DS 212 is RoHS compliant and equipped with a flame-retardant insulator (UL94-V0), meeting regulatory requirements for safety and environmentally responsible manufacturing.
