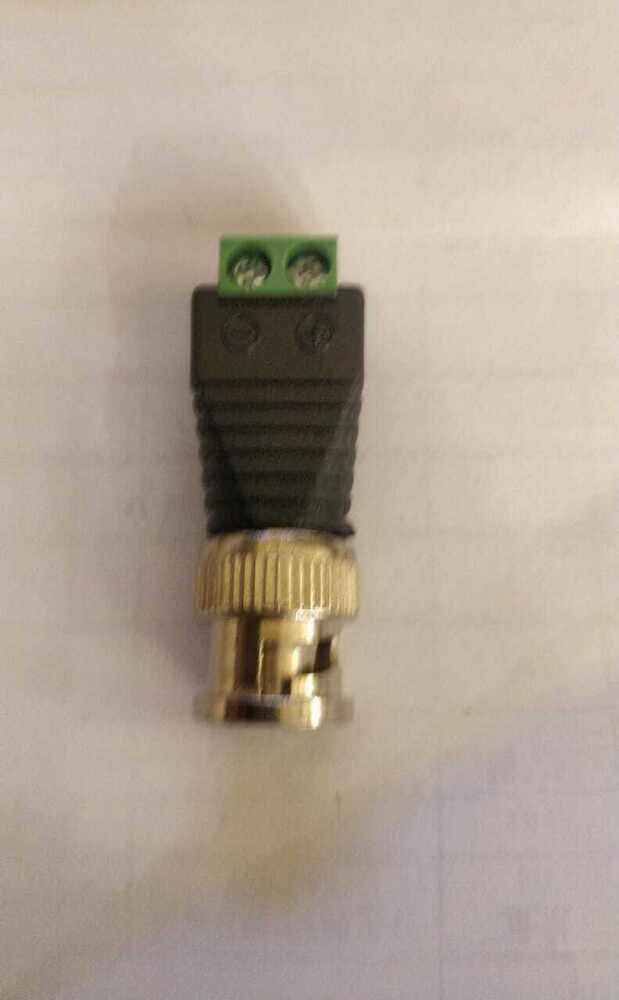

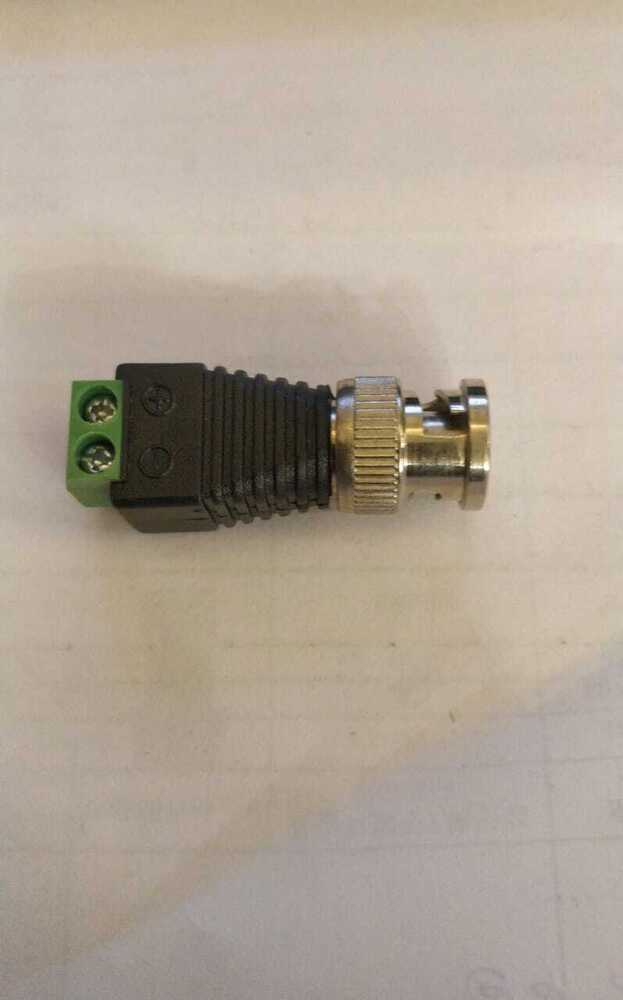

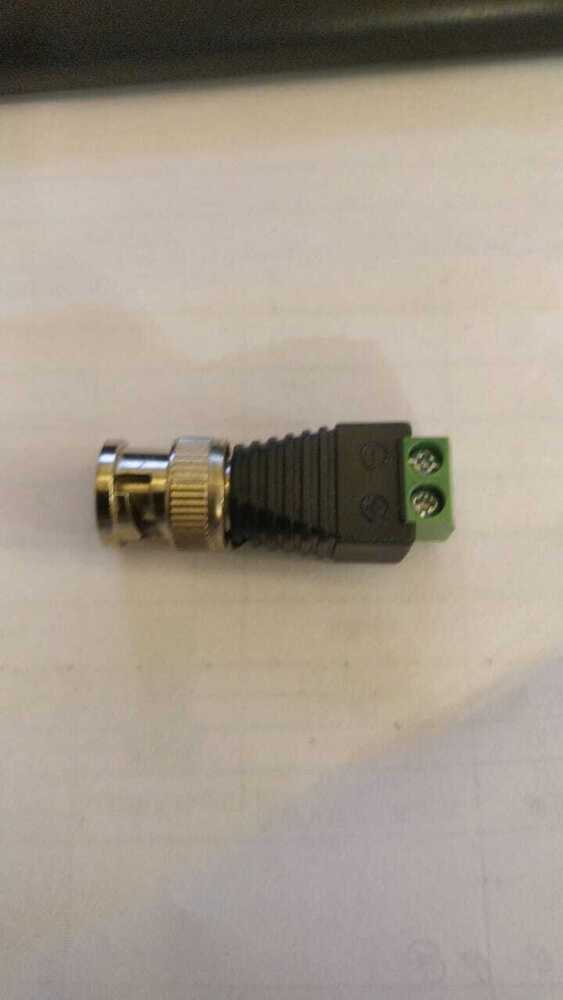

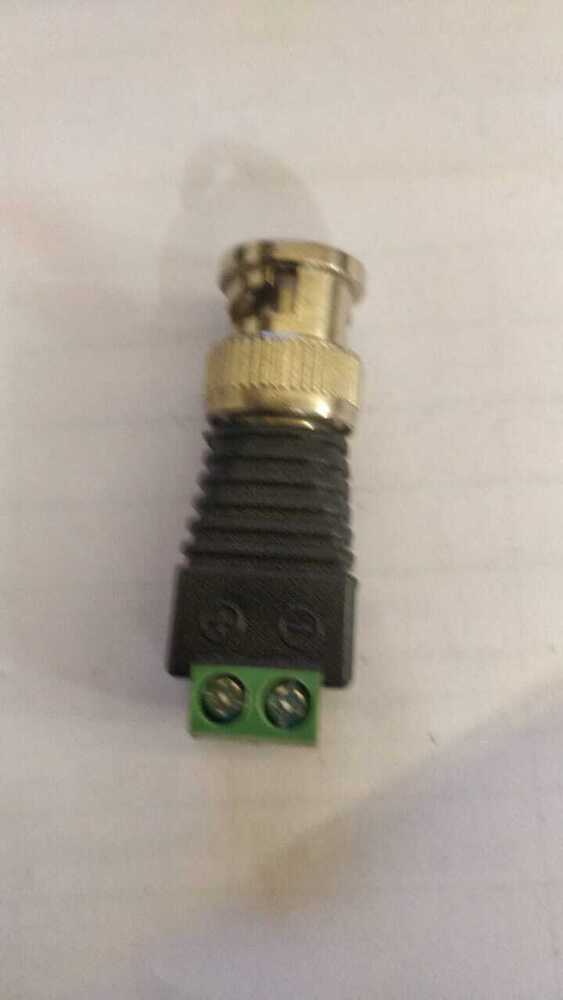

BNC MALE GREEN

Price 6 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

BNC MALE GREEN Specification

Product Type
BNC Male Connector

Material
Brass with Nickel Plating, PVC Insulation

Withstand Voltage
500V AC (rms) for 1 minute

Application
CCTV, Surveillance Systems, Video Signal Transmission

Insulation Resistance
500 M at 500 VDC

Height
Standard BNC Size

Weight
Approx. 10 grams

Color
Green

Impedance
50 Ohms / 75 Ohms Compatible

Connector Gender
Male

Contact Plating
Gold-Plated Contacts

Operating Temperature Range
-20C to +60C

Locking Mechanism
Bayonet Coupling

Frequency Range
DC to 4 GHz

Termination Style
Screw Terminal

Mounting Type
Inline/Cable Mount

Body Finish
Nickel-Plated

Cable Compatibility
Coaxial Cables (RG58, RG59, RG6)

Packaging Type
Single/Polypack

Environmental Protection
RoHS Compliant

BNC MALE GREEN Trade Information

Minimum Order Quantity
100 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About BNC MALE GREEN

Type of Connector	BNC
Current Rating	2.5 A
Brand	IMPORTED
Color	Black
Material	Aluminum
Black and Red	AS PER DEMAND
Red & Black	AS PER ODER
Current (A)	AS PER ODER
Size (L X W X H)	STANDARD
Minimum Order Quantity	100 Piece

Applications:
- Used in battery connections, LED lighting, computer hardware, and hobby electronics.
- Suitable for compact and lightweight electronic devices.
Advantages:
- Reliable and secure connections with locking mechanisms to prevent disconnection.
- Compact and space-saving design.
- Easy to assemble and disassemble without special tools.

Robust & Versatile Connectivity

Designed for efficient signal transmission, the BNC Male Green connector features gold-plated contacts and a nickel-plated brass body, ensuring minimal loss and robust connectivity. It supports both 50 Ohms and 75 Ohms impedance, making it suitable for a wide range of coaxial cables and professional applications including CCTV and surveillance.

Reliable Performance in Diverse Environments

With an operation range of -20C to +60C and RoHS environmental compliance, this connector stands up to challenging conditions while keeping installation safe and steady. The bayonet coupling mechanism offers a secure fit, and its screw terminal style ensures easy and reliable cable termination.

Flexible Mounting and Packaging Options

Ideal for exporters, distributors, and installers, this connector provides flexible mounting with inline/cable application and is available in single or polypacks to suit project requirements. Its standard BNC size and light weight make it easy to integrate into existing systems for CCTV and video signal transmission.

FAQs of BNC MALE GREEN:

Q: How do I securely install the BNC Male Green connector on a coaxial cable?

A: To install, strip your chosen coaxial cable (such as RG58, RG59, or RG6), insert the cable into the screw terminal on the connector, and fasten the contacts securely. The bayonet coupling mechanism ensures reliable attachment to compatible BNC female ports.

Q: What applications is the BNC Male Green connector suitable for?

A: This connector is ideal for CCTV setups, surveillance systems, and general video signal transmission, thanks to its broad frequency range and compatibility with standard coaxial cables.

Q: When should I use a connector with both 50 Ohms and 75 Ohms impedance compatibility?

A: Choose this connector for installations where different cable types or equipment might require either 50 Ohm or 75 Ohm impedance, such as in mixed CCTV or broadcast environments.

Q: Where can I source the BNC Male Green connector for bulk or custom requirements in India?

A: You can acquire these connectors from distributors, exporters, importers, manufacturers, and traders throughout India, offered in single packaging or cost-effective polypacks.

Q: What is the process to ensure environmental protection with these connectors?

A: The BNC Male Green connector is RoHS compliant, meaning it uses materials and processes that restrict hazardous substances, making it safe for both users and the environment.

Q: Can this connector handle high-frequency signals and what benefits does it provide during transmission?

A: Yes, with a frequency range extending from DC up to 4 GHz, gold-plated contacts, and robust insulation resistance, the connector facilitates high-quality video signal transmission with minimal interference.

Q: What are the main usage benefits of the screw terminal and bayonet coupling mechanisms?

A: The screw terminal allows straightforward and secure cable termination, while the bayonet coupling ensures a fast yet stable connection, reducing downtime and improving installation efficiency.
