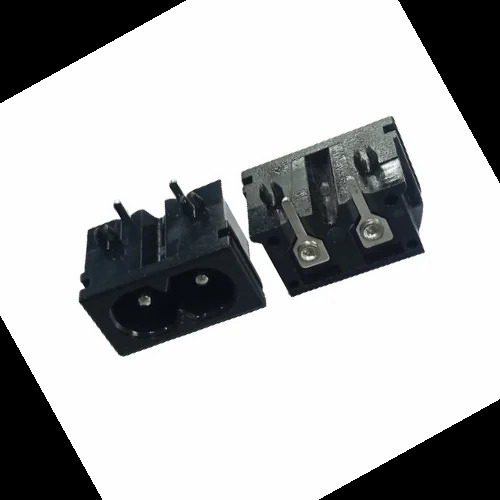

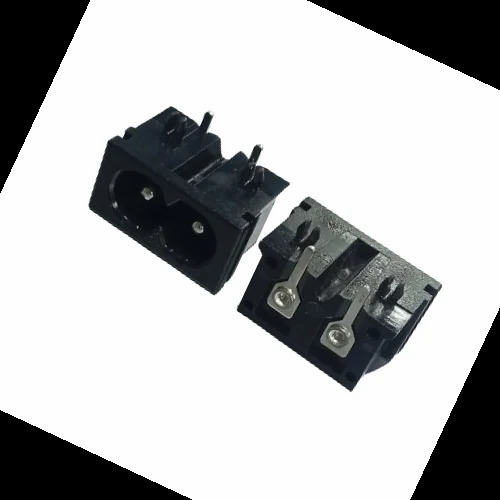

PHILIPS SOCKET PCB PINS

Price 3 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

PHILIPS SOCKET PCB PINS Specification

Sealed
NO

Cable Diameter
Up to 2.5 mm

Surface Treatment
Nickel Plated Pins

Thickness
1.2 mm

Product Type
Philips Socket for PCB Pins

Material
Polycarbonate Body, Brass Pins

Application
Lighting, Consumer Electronics, PCB assembly

Contact Resistance
<0.05

Insulation Resistance
>100 M at 500 V DC

Diameter
Pin Diameter: 2 mm

Terminal Socket
3 Pin

Style
Rectangular

Fittings
PCB Mount

Rated Voltage
250V AC

Weight
15 grams

Color
White

PHILIPS SOCKET PCB PINS Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About PHILIPS SOCKET PCB PINS

olor	Black
Material	Plastic
Brand	NO
Socket With Shutter	No
Warranty	NO
Minimum Order Quantity	100 Piece

Material:
- Made from high-quality, durable metal or plastic for long-lasting use.
- Corrosion-resistant finish to maintain integrity over time.
Compatibility:
- Compatible with a wide range of sockets and plugs, specifically designed for Philips products.
- Suitable for various electrical and electronic applications.
- Description:
- Philips socket PCB pins are high-quality, reliable connectors designed for printed circuit board (PCB) applications. These pins provide a secure and efficient way to connect components to PCBs.
- Specifications:
- - Pin Type: Socket pins
- - Material: Copper alloy or other conductive materials
- - Pin Diameter: Specific diameter (check with supplier)
- - Socket Depth: Specific depth (check with supplier)
- - Mounting Type: Through-hole or surface mount
- - Contact Resistance: 50 m
- - Insulation Resistance: 100 M

Durable and Safe Construction

Manufactured with high-quality polycarbonate and brass, the PHILIPS SOCKET PCB PINS offer excellent mechanical strength and safety. With UL94 V-0 flammability rating and nickel-plated finish, these connectors help maintain integrity and conductivity even in demanding environments.

Broad Application Use

Designed for lighting, consumer electronics, and PCB assembly, these sockets support versatile usage scenarios. Their through-hole mounting style and three-pin configuration make them suitable for various circuit board layouts and device requirements.

Reliable Electrical Performance

Boasting a current rating of 6A and voltage withstand capability of 2000V AC, these pins ensure reliable operation. The insulation resistance exceeds 100 M at 500 V DC, and the contact resistance stays below 0.05 , delivering efficient and consistent electrical connectivity.

FAQs of PHILIPS SOCKET PCB PINS:

Q: How do I mount the PHILIPS SOCKET PCB PINS onto a circuit board?

A: The PHILIPS SOCKET PCB PINS feature a through-hole mounting style. Simply insert the pins into the PCB holes that match their 2 mm diameter, and solder them securely to achieve a stable electrical connection.

Q: What applications are best suited for these PCB pins?

A: These pins are ideal for lighting fixtures, consumer electronics, and general PCB assembly projects, offering reliable performance in environments requiring up to 6A and 250V AC.

Q: When should I use the 3-pin configuration of this socket?

A: The 3-pin design is optimal when your circuit board requires a triple connection, such as live, neutral, and earth terminals, or any setup demanding three distinct conductors.

Q: Where can these sockets be purchased or distributed in bulk?

A: They are available through distributors, exporters, importers, manufacturers, and traders across India. You can choose standard box packaging or bulk packs based on your quantity requirements.

Q: What process ensures environmental compliance for these sockets?

A: These sockets are manufactured in accordance with ROHS standards, excluding hazardous substances and ensuring an eco-friendly product suitable for diverse market regulations.

Q: How does the socket ensure user safety and product longevity?

A: With a UL94 V-0 flammability rating and insulation resistance greater than 100 M at 500 V DC, the socket prioritizes both safety and durability in electrical applications.

Q: What are the main benefits of choosing PHILIPS SOCKET PCB PINS?

A: The main advantages include robust build quality, high electrical performance, compliance with international standards, versatility in application, and convenient packaging for distribution or assembly.
