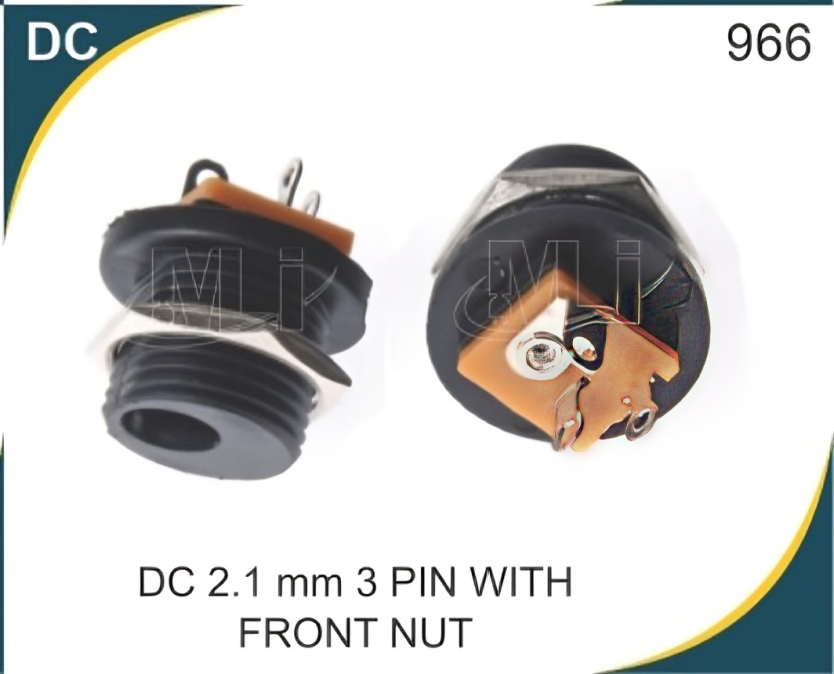

DC 2.1 MM 3 Pin With Front Nut

Price 5 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

DC 2.1 MM 3 Pin With Front Nut Specification

Sealed
NO

Surface Treatment
Nickel Plated

Cable Diameter
2.1mm

Thickness
Nut thickness 2.5mm

Product Type
DC Power Jack

Material
ABS Plastic & Nickel Plated Brass

Application
DC Adapter, Power Electronics

Contact Resistance
0.03

Insulation Resistance
100 M at 500V DC

Diameter
Outer body diameter: 8mm

Terminal Socket
2.1mm DC Socket

Style
3 Pin

Fittings
Panel Mount

Rated Voltage
12V DC

Weight
8 grams

Color
Black

Connector Gender
Female

Operating Temperature
-25C to +85C

Mounting Type
Front Nut With Panel Mount

Current Rating
Up to 2A

Flame Retardancy
UL94-V0

Pin Count
3

DC 2.1 MM 3 Pin With Front Nut Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About DC 2.1 MM 3 Pin With Front Nut

About this item

Screw Diameter: 12mm Temperature: -40~55 deg C
Gender: Female Suitable Plug Size: 2.1x5.5mm
Actuating Force: 3-20N Life: 5000 times
Rated Load: DC30V/0.5A Contact Resistance: <=0.03 ohm
Insulation Resistance: >=100 Mohm Withstand Voltage: AC 500V 50Hz /min

Reliable Power Connections for Panels

The DC 2.1 MM 3 Pin connector is engineered for stable performance in power electronic systems. Its front nut mounting design offers quick, secure installation onto panels, providing consistent and reliable current flow for devices requiring a 12V DC supply. Designed with flame retardant, nickel-plated materials, it ensures lasting durability and safety.

Wide Operating Range & Safety

This socket operates reliably between -25C and +85C, supporting a wide variety of applications in challenging environments. Flame retardant to UL94-V0 standards and equipped with a high level of insulation resistance, it delivers peace of mind for users prioritizing safety in their designs.

FAQs of DC 2.1 MM 3 Pin With Front Nut:

Q: How do I mount the DC 2.1 MM 3 Pin socket onto a panel?

A: To mount this connector, insert it through the appropriate hole in your panel and secure it using the included front nut. Ensure the nut is tightened firmly for a stable fit.

Q: What are the typical applications for this DC socket?

A: This product is ideal for use in DC adapters, power electronics, and similar devices that require secure, panel-mounted DC input interfaces.

Q: When should I choose a 3-pin, 2.1mm DC socket?

A: This connector is suitable when your device demands a standard 2.1mm DC input, three-pin configuration, and needs to operate reliably within the specified voltage, current, and temperature ranges.

Q: Where can I source this product in India?

A: You can obtain this connector from distributors, exporters, importers, manufacturers, and traders specializing in electronic components across India.

Q: What is the process for ensuring safe electrical contact?

A: Make sure to use compatible 2.1mm DC plugs and tighten connections to maintain insulation resistance (100 M at 500V DC) and low contact resistance (0.03).
