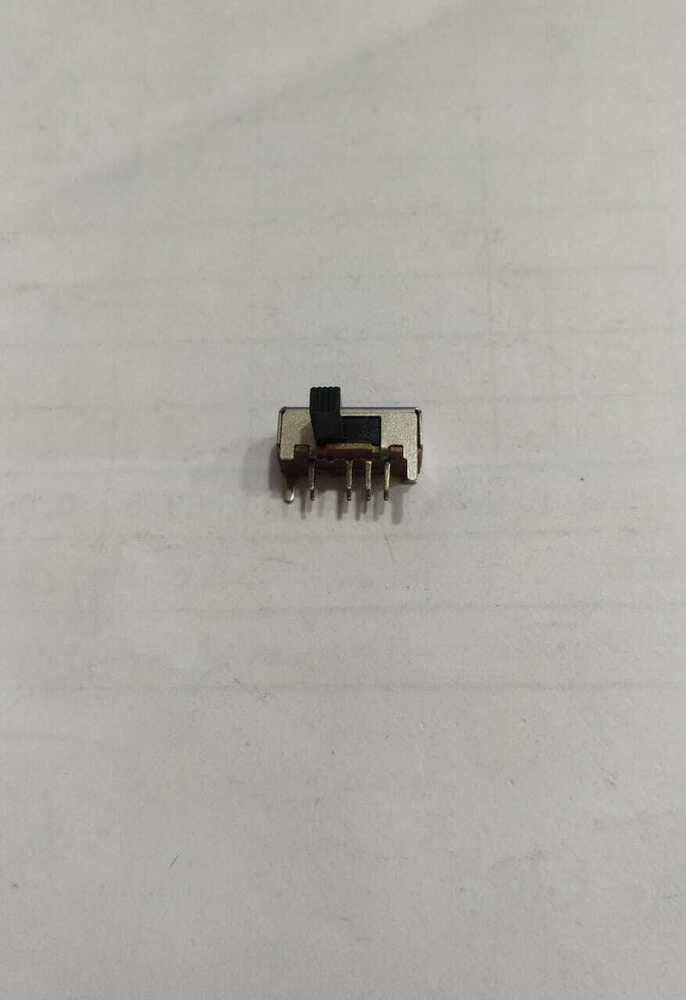

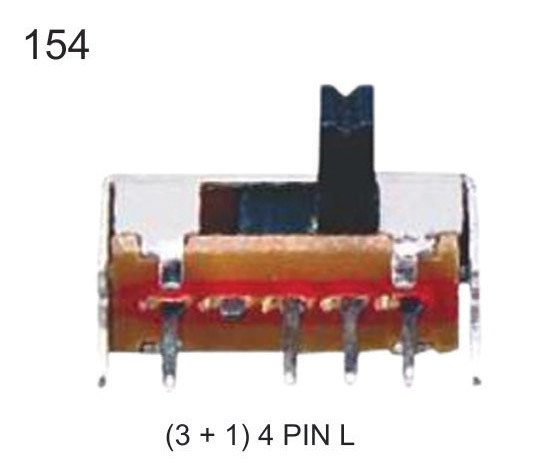

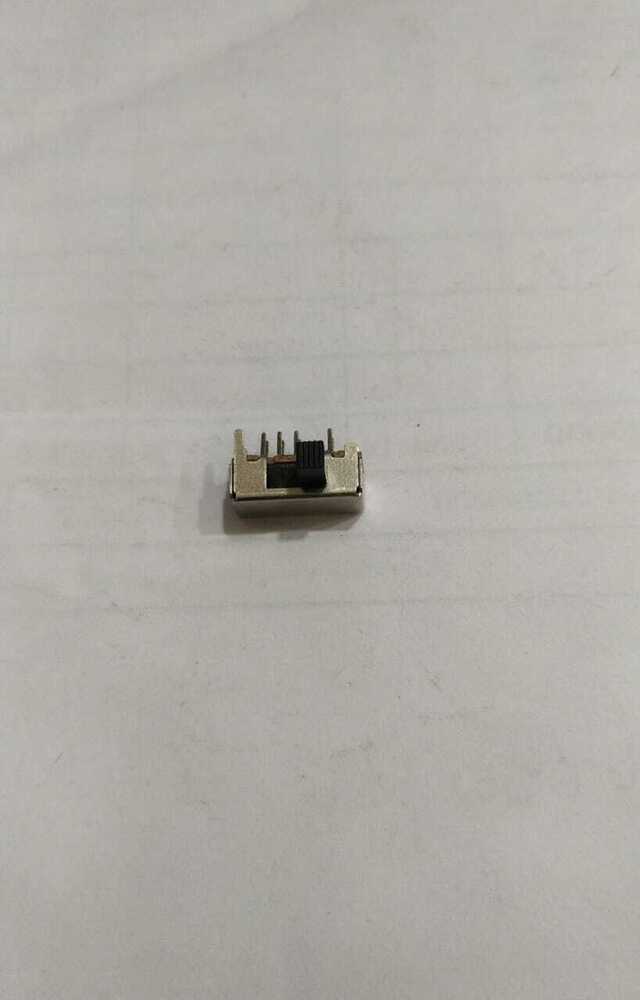

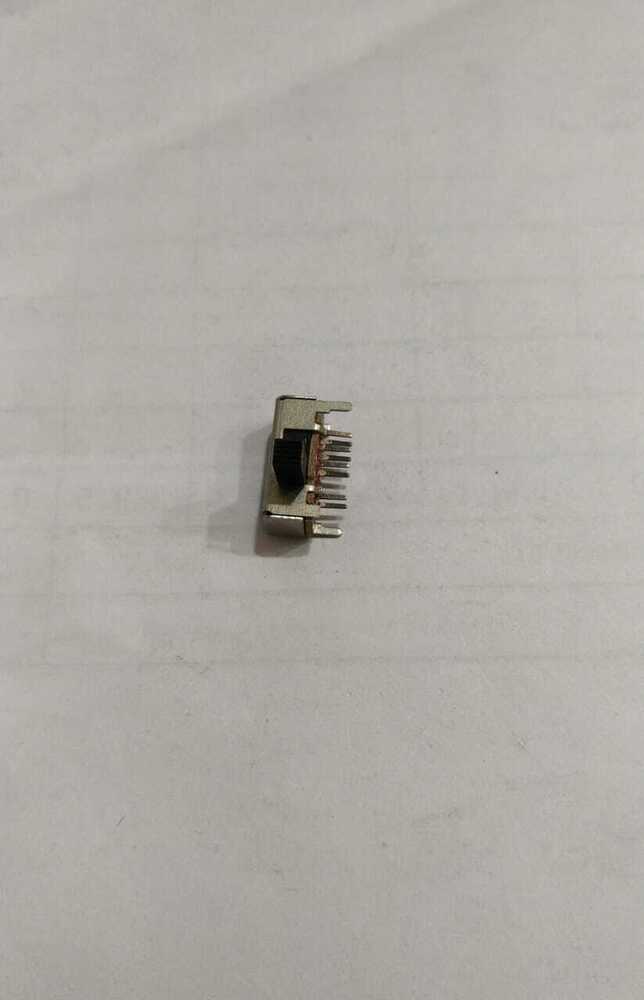

4 PIN SLIDE SWITCH

Price 2 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

4 PIN SLIDE SWITCH Specification

Rated Voltage
50V DC

Automation Grade
Manual

Circuit Type
SPDT

Max. Current
0.5A

Response Time
Instantaneous

Mechanical Life
10,000 cycles min.

Finish Type
Matte

Number of Module
1

Temperature Range
-20C to +70C

Protection Level
IP20

Product Type
4 Pin Slide Switch

Material
Plastic body, Metal contacts

Insulation Resistance
100 M min. at 500 VDC

Contact Resistance
50 m max.

Max. Voltage
50V DC

Operating Temperature
-20C to +70C

Stoke
2.0 mm

Size
Approx. 12mm x 4mm x 5mm

Color
Black

Weight
<1g

Mounting Type
Through Hole

Current Rating
0.5A

No Of Poles
Single Pole

Switching Angle
Stable on-off

RoHS Compliant
Yes

Actuator Type
Slide

Terminal Pitch
2.54mm

Applications
General electronic projects, prototyping, PCB mounting

Storage Temperature
-25C to +85C

Contact Material
Copper Alloy, Silver plated

Dielectric Strength
500V AC for 1 min

4 PIN SLIDE SWITCH Trade Information

Minimum Order Quantity
1000 Pieces

Main Domestic Market
All India

About 4 PIN SLIDE SWITCH

Elevate your electronic projects with our 4 PIN SLIDE SWITCH, now available at an attractive discount thanks to our latest promotion and markdown offers. This dominant and sought-after switch is designed for world-class reliability, with a robust sliding actuator, stable on-off switching, and a compact, lightweight body. Rated for up to 50V DC and 0.5A, it features copper alloy, silver-plated contacts, RoHS compliance, and IP20 protection. Ideal for PCB mounting, prototyping, and general electronics, this switch ensures outstanding insulation resistance and mechanical lifemaking it a preferred choice for distributors, exporters, importers, manufacturers, and traders across India.

User Guidance and Application Versatility

The 4 PIN SLIDE SWITCH is exceptionally easy to use: just slide the actuator to toggle between stable on and off positions. Its single pole, double throw (SPDT) circuit design and manual operation make it perfect for diverse media, including PCBs and electronic prototypes. Key features include instantaneous response time, a long mechanical lifespan, and reliable contact material, offering seamless integration for hobbyists and professionals alike.

Packaging, Sampling, and Delivery Insights

All switches undergo careful valuation before dispatching to ensure consistent quality. Products are packaged securely to prevent damage, with options for bulk or individual packaging available upon request. Samples can be delivered promptly for assessment, facilitating smoother decision-making and procurement. Our main domestic market is India, with efficient logistics ensuring each order is swiftly dispatched and delivered to your location.

FAQs of 4 PIN SLIDE SWITCH:

Q: How does the 4 PIN SLIDE SWITCH operate in electronic projects?

A: The slide switch is designed for easy manual operation, allowing users to toggle between on and off positions with a stable switching angle. Its SPDT circuit type makes it suitable for controlling circuits in a variety of electronic applications.

Q: What benefits does this switch provide for prototyping and PCB mounting?

A: It offers high insulation resistance, reliable instantaneous response, and a durable mechanical life of at least 10,000 cycles, making it ideal for projects requiring repetitive use and clean signal switching.

Q: When can customers expect dispatch and delivery after placing an order?

A: Orders are typically dispatched within a short timeframe after valuation and quality checks, ensuring swift delivery throughout the main domestic market in India.

Q: Where is this 4 PIN SLIDE SWITCH predominantly used?

A: It is predominantly used in general electronic projects, prototyping activities, and PCB-mounted applications, suitable for both professional engineers and electronics enthusiasts.

Q: What is the process for obtaining samples of the switch?

A: Interested customers can request sample units, which are delivered promptly for assessment prior to bulk procurement, ensuring the product meets project requirements.

Q: How does its construction ensure world-class reliability?

A: Constructed from a robust plastic body and silver-plated copper alloy contacts, the switch meets stringent RoHS standards and features a matte finish for added durability.
