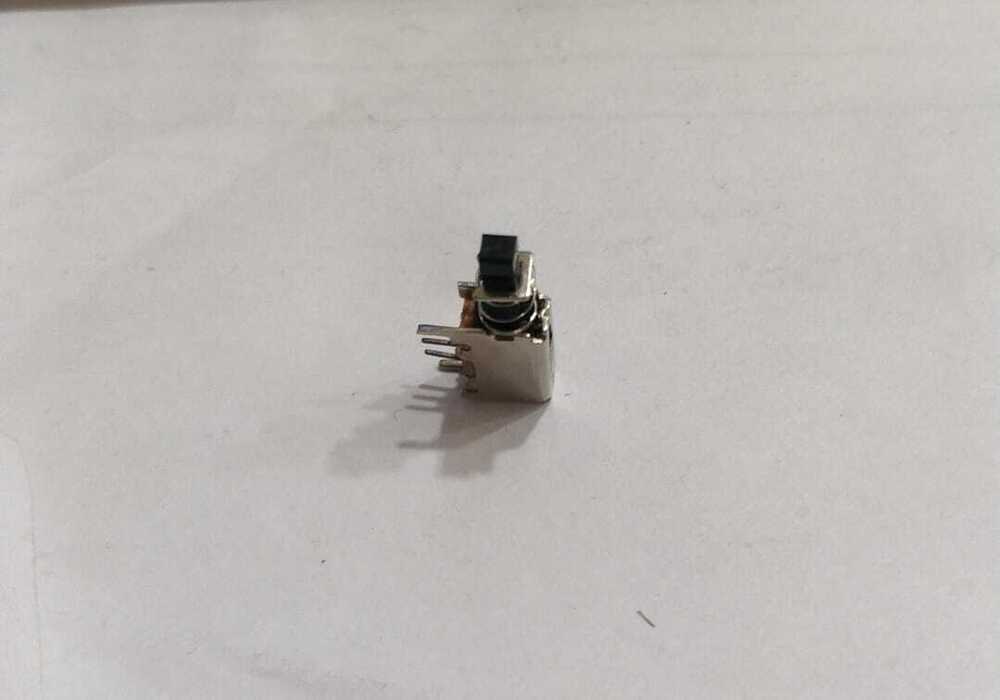

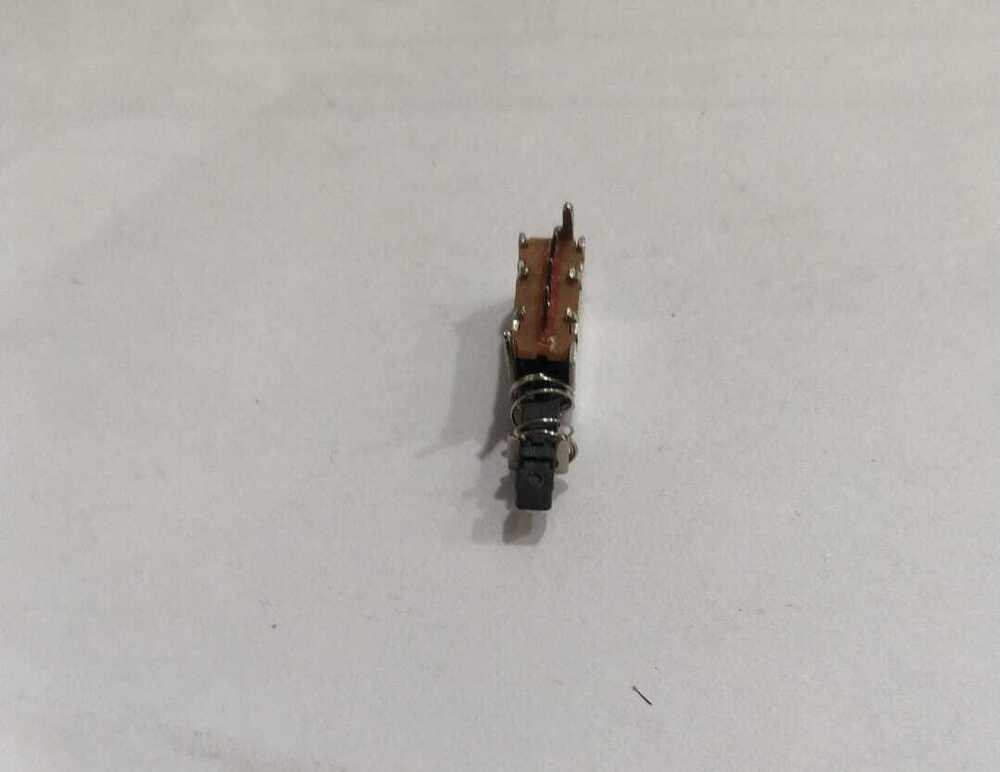

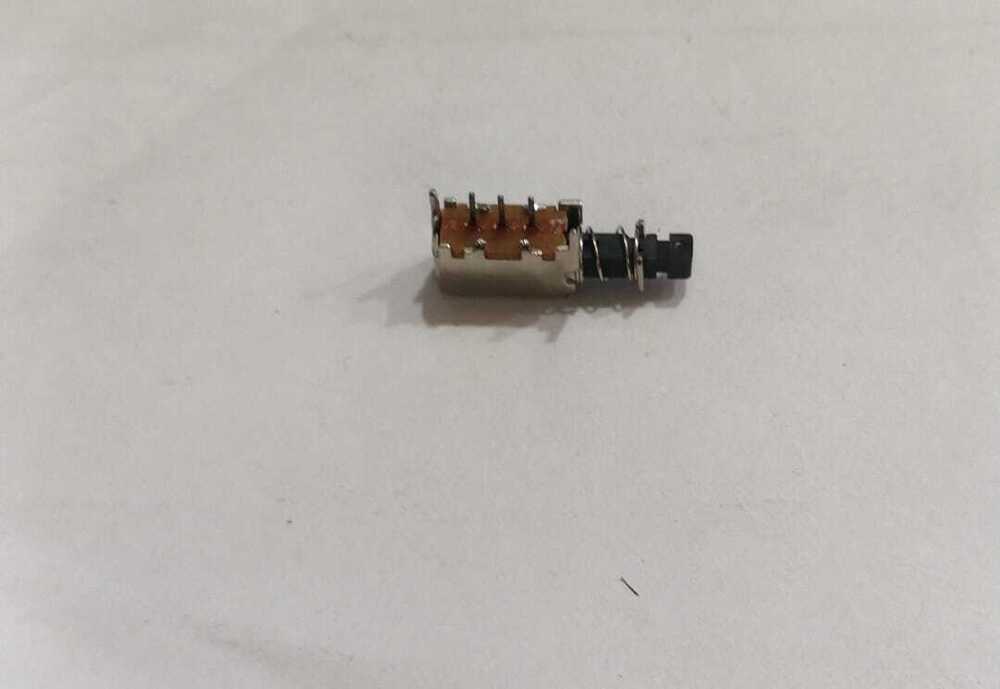

3 Pin On Off Black Knob Without Screw

Price 6 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

3 Pin On Off Black Knob Without Screw Specification

Number of Module
1

Mechanical Life
10,000 Cycles Min.

Circuit Type
Single Break

Response Time
Instantaneous Mechanical

Rated Voltage
250V AC

Finish Type
Matte

Temperature Range
-20C to +55C

Max. Current
6A

Protection Level
IP20

Automation Grade
Manual

Product Type
3 Pin On Off Black Knob Without Screw

Material
Durable ABS Plastic

Insulation Resistance
100 M

Contact Resistance
50 m

Max. Voltage
250V AC

Operating Temperature
-20C to +55C

Stoke
ON-OFF Action

Size
Standard; Panel Cutout 19mm x 13mm (Approx.)

Color
Black

Weight
Approx. 8 grams

Mounting Type
Panel Mount

Current Rating
6A

No Of Poles
Single Pole

Dielectric Strength
1500V AC for 1 min

Application
Electrical Appliances, Power Supplies

Storage Temperature
-30C to +70C

Switch Type
Rocker

RoHS Compliant
Yes

Knob Shape
Rectangular Rocker

Actuation Force
Low Force Required

Screwless Design
Yes

Contact Material
Silver Alloy

Terminal Type
Quick Connect Solder Lug

3 Pin On Off Black Knob Without Screw Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 3 Pin On Off Black Knob Without Screw

Brand	NO
Switch Size	SMALL
Color	Black
Switch Type	Three Pin
Usage/Application	POWER SWITCH
Operating Temperature	STANDARD
Minimum Order Quantity	100 Piece

3-pin on-off power switch featuring a distinctive BLACK knob design.
Screwless installation for quick and hassle-free setup.
Provides easy on-off functionality for various electronic devices.

Effortless Installation and Durable Build

The switch boasts a screwless, quick-connect solder lug terminal for rapid installation without the need for additional fasteners, making it perfect for busy production environments. Its robust ABS plastic construction ensures longevity and resistance to wear, while its slim design accommodates standard panel cutouts. With a matte finish and rectangular rocker knob, it integrates seamlessly into modern electrical panels.

Reliable Performance and Versatility

Operating efficiently across a wide temperature range (-20C to +55C), this switch delivers consistent performance for electrical appliances and power supplies. A silver alloy contact guarantees low resistance and high conductivity, while the 250V AC rating and 6A current capacity meet common electrical requirements. It is suitable for both manual applications and automated assemblies.

FAQs of 3 Pin On Off Black Knob Without Screw:

Q: How do I install this 3 Pin Rocker Switch on my electrical panel?

A: Installation is simple due to the screwless, quick-connect design. Just insert the switch into a 19mm x 13mm panel cutout and connect wires to the solder lug terminals. No additional screws or fasteners are required, streamlining assembly.

Q: What makes this switch suitable for electrical appliances and power supplies?

A: Its reliable ON-OFF action, 250V AC and 6A current rating, and robust ABS plastic body make it ideal for a range of electrical appliances and power supply applications. The low actuation force and high mechanical life further ensure dependable frequent use.

Q: When should I choose this rocker switch over other switch types?

A: Choose this switch when you require quick installation, a compact profile, and a straightforward ON-OFF mechanism. Its especially advantageous in environments where frequent manual operation or rapid replacement is needed.

Q: Where can this switch be used effectively?

A: It is suitable for use in electrical appliances, power supply units, and panel boards where panel mounting is preferred. Its IP20 protection level fits indoor applications without exposure to heavy dust or water.

Q: What benefits does the screwless and quick-connect design offer?

A: This design reduces installation time, eliminates the need for extra hardware, and simplifies maintenance or replacement. It is particularly beneficial for manufacturers and assemblers seeking efficient workflow.

Q: How does the switch ensure electrical safety and reliability?

A: The switch features a dielectric strength of 1500V AC for 1 minute, insulation resistance of at least 100 M, and silver alloy contacts for secure conductivity. RoHS compliance adds assurance of safe, environmentally responsible construction.
