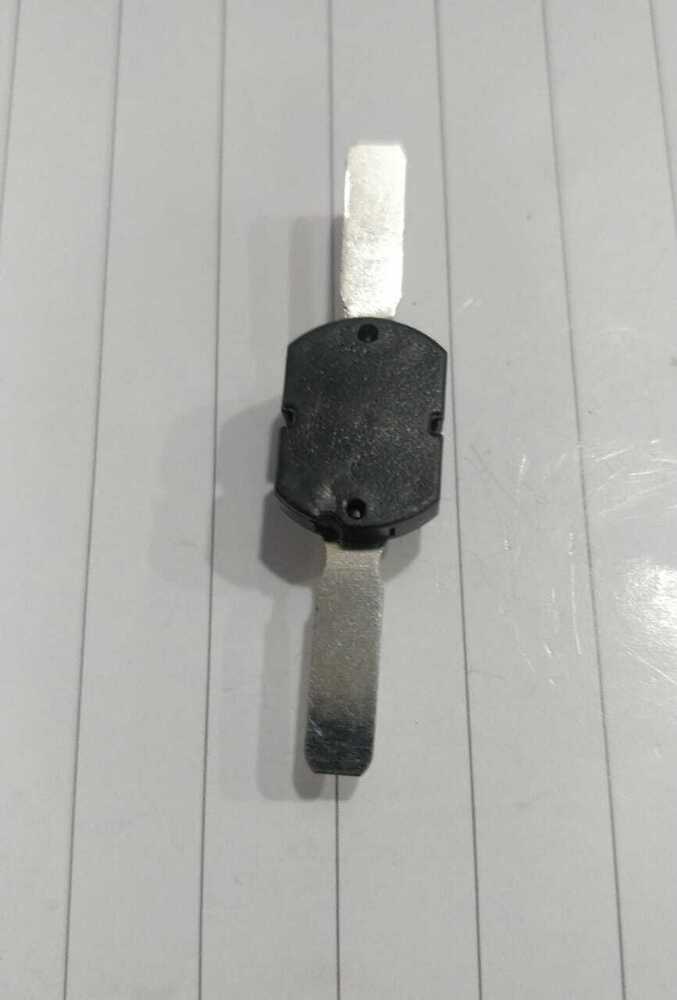

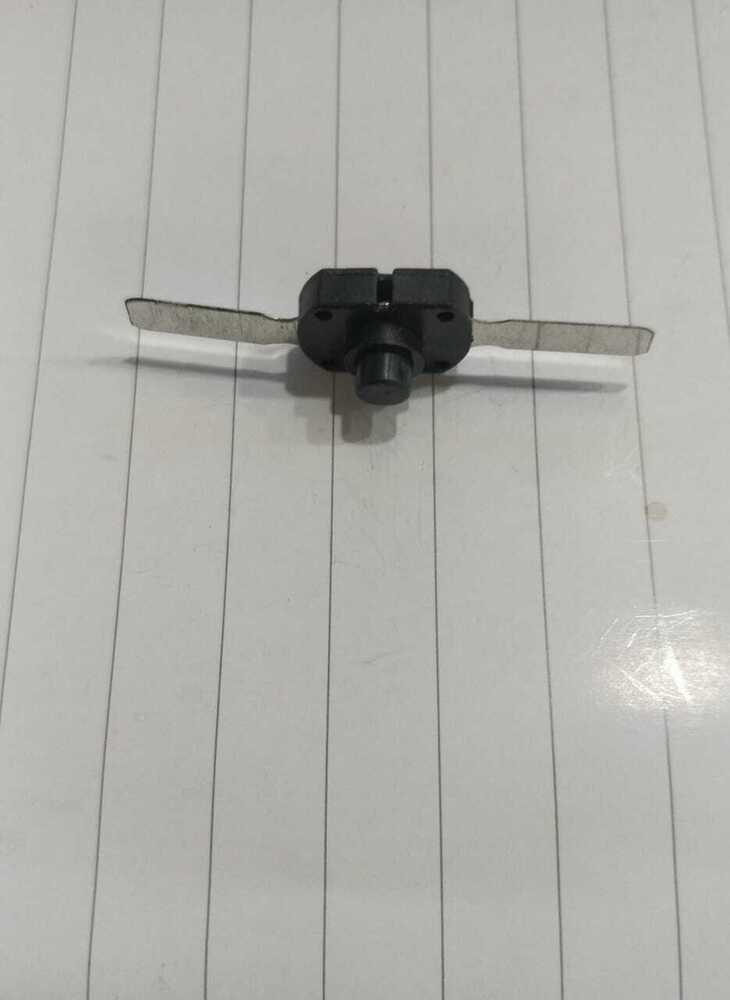

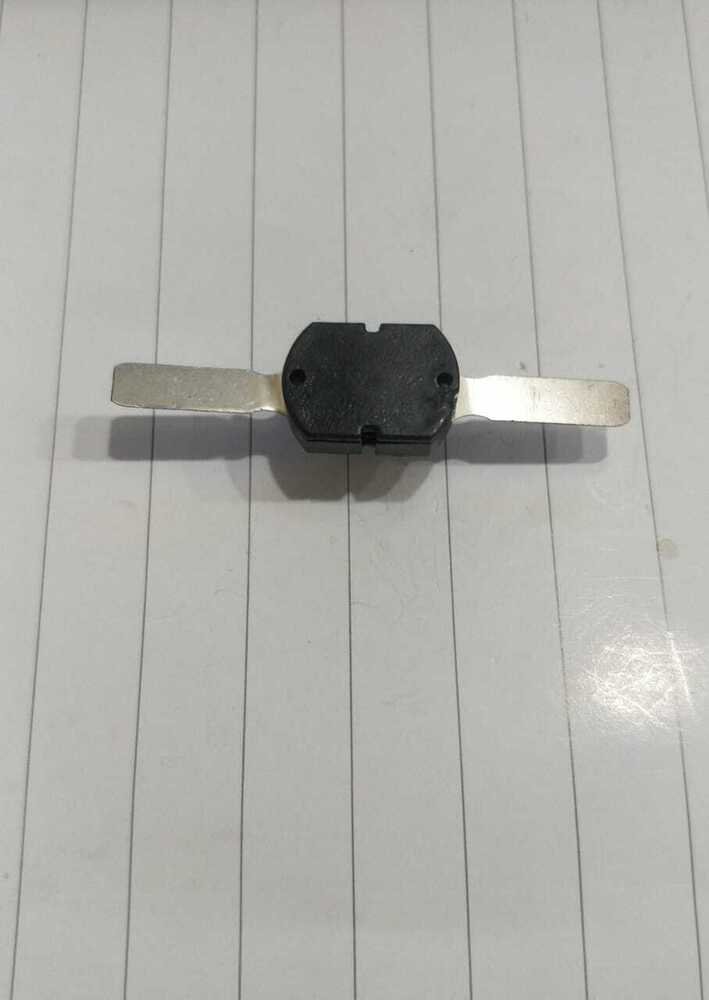

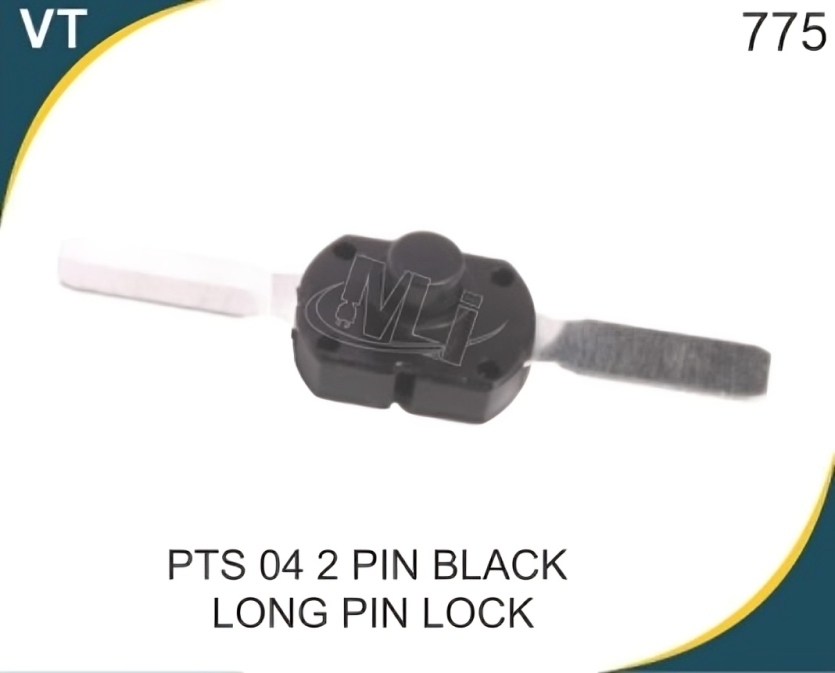

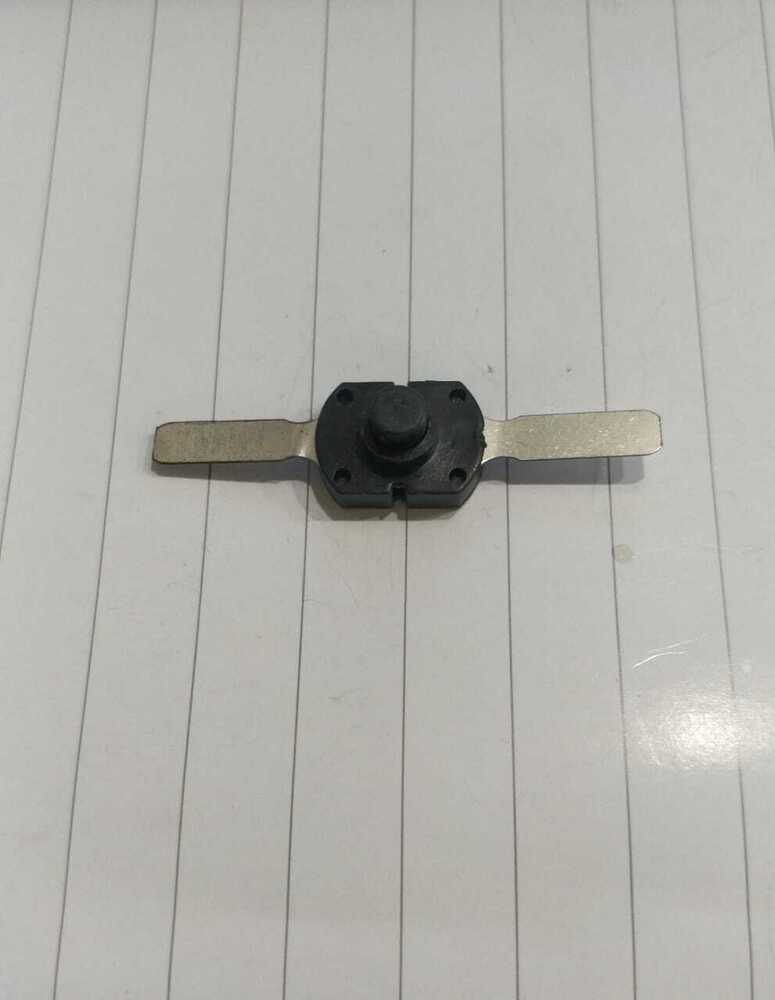

PTS 04 2 PIN Black Long Pin Lock

Price 8 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

PTS 04 2 PIN Black Long Pin Lock Specification

Rated Voltage
12V DC

Automation Grade
Manual

Response Time
Instantaneous

Circuit Type
SPST

Temperature Range
-25C to +85C

Mechanical Life
>50,000 cycles

Finish Type
Matte

Max. Current
0.3A

Protection Level
IP40

Number of Module
1

Product Type
Long Pin Lock Switch

Material
Polyamide, Copper Alloy Contacts

Insulation Resistance
100 M at 500V DC

Contact Resistance
50 m

Max. Voltage
250V AC / DC

Operating Temperature
-25C to +85C

Stoke
3.5 mm

Size
Standard

Color
Black

Weight
Approx. 3 g

Mounting Type
Panel Mount

Current Rating
0.3A

No Of Poles
2

Application
Electrical & Electronic Circuits, Control Panels

Storage Temperature
-40C to +85C

Body Shape
Rectangular

Dielectric Strength
1000V AC for 1 Minute

Contact Material
Phosphor Bronze, Silver Plated

Actuator Type
Flat Button

Switch Type
Push to Switch (Tactile)

Pin Length
Long Pin - 12mm

Terminal Type
Solder Lug

Standards Compliance
RoHS Compliant, CE Certified

PTS 04 2 PIN Black Long Pin Lock Trade Information

Minimum Order Quantity
1000 Pieces

Main Domestic Market
All India

About PTS 04 2 PIN Black Long Pin Lock

This is a self-lock tactile switch. This switch has a self-lock mechanism. This means, when it is pressed down it goes in on position and remains in that position until it is pressed again. This type of switch is generally used in torch or small light systems. The shape of the switch is oval or egg shape. It is built from hard plastic material. The switch has been tested to 15,000 clicks continuously. It is reliable and can also withstand high temperatures. The metal plates are 8mm long and allow the electricity to pass through them with ease.
Specification

Oval shape self lock tactile switch
Mode of operation : SPST
Dimension of the switch : 16mm x 12mm
Length of the plates : 17mm
Power rating : 1A 30V
Insulation Resistance : 100M ohm ()
Operating Force : 2.550.69 N
Durable construction
Long lasting

Durable and High-Performance Switch Design

Manufactured from resilient polyamide and copper alloy contacts, the PTS 04 push-to-switch offers excellent mechanical stability and long-lasting operation. Its IP40 protection level and rectangular shape make it a trusted choice for a variety of electrical and electronic circuit applications.

Safe and Efficient Operation

With a dielectric strength of 1000V AC for one minute and insulation resistance of 100 M at 500V DC, this switch provides robust safety for critical installations. The flat button actuator and matte finish enhance usability and appearance, making it suitable for professional environments.

FAQs of PTS 04 2 PIN Black Long Pin Lock:

Q: How do I properly install the PTS 04 2 PIN Black Long Pin Lock switch?

A: The switch is designed for panel mounting using its 12mm long pin and rectangular body. Utilize the solder lug terminals for quick and secure wire connections, ensuring proper alignment within control panels or circuit boards.

Q: What types of circuits or applications is this switch suitable for?

A: This switch is ideal for use in electrical and electronic circuits, including control panels. Its design is suited for environments requiring manual SPST switching, especially where reliability and instant response are critical.

Q: When should I consider using a tactile push-to-switch like this one?

A: You should use a tactile push-to-switch when precise, momentary manual control is required in circuits, such as triggering a function or resetting a device within an instrumentation panel.

Q: Where can I source this product and is it compliant with international standards?

A: The PTS 04 2 PIN Black Long Pin Lock is available from distributors, exporters, importers, manufacturers, and traders throughout India. It complies with RoHS and CE certifications, assuring global standard adherence.

Q: What is the process for wiring the PTS 04 switch in a circuit?

A: To wire the switch, connect wires to the solder lug terminals as specified in your circuit design, ensuring correct polarity and secure contact for optimal conductivity and operational reliability.

Q: Can this switch withstand extreme temperatures during operation and storage?

A: Yes, it is capable of operating within a temperature range of -25C to +85C and can be stored between -40C and +85C, making it suitable for diverse environmental conditions.

Q: What are the main benefits of using this switch in my control panel?

A: The key benefits include high reliability with over 50,000 mechanical cycles, instantaneous response, robust dielectric and insulation properties, and a matte, user-friendly designall contributing to optimal performance and longevity in professional applications.
