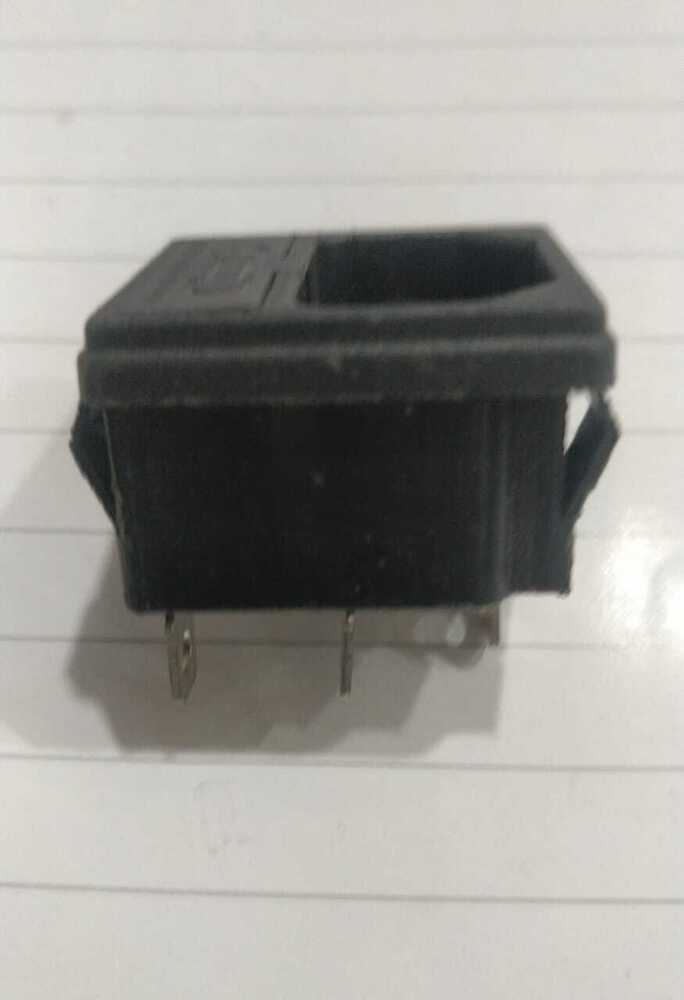

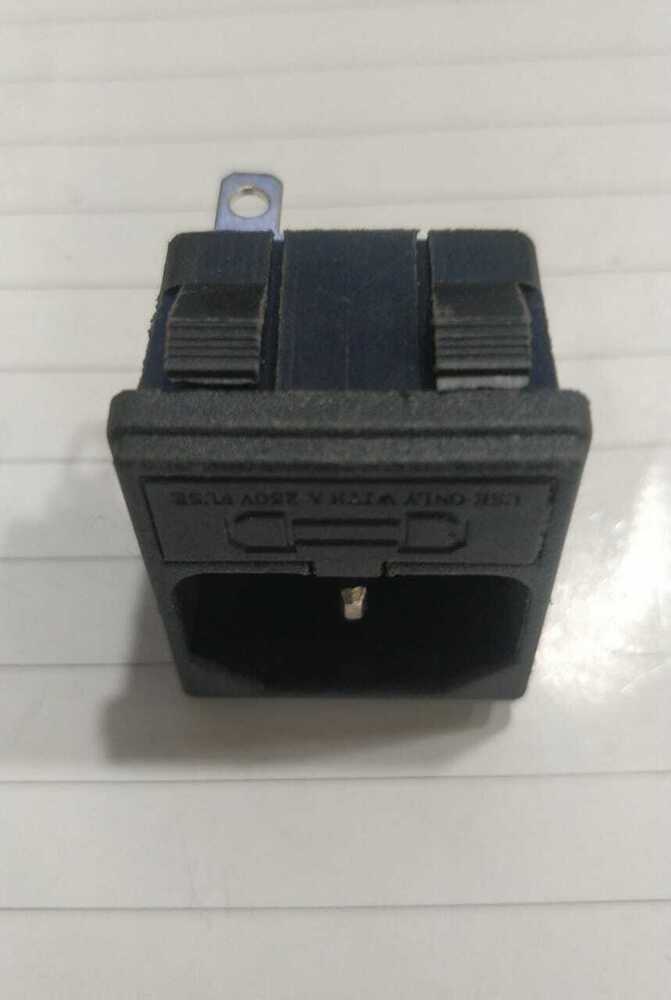

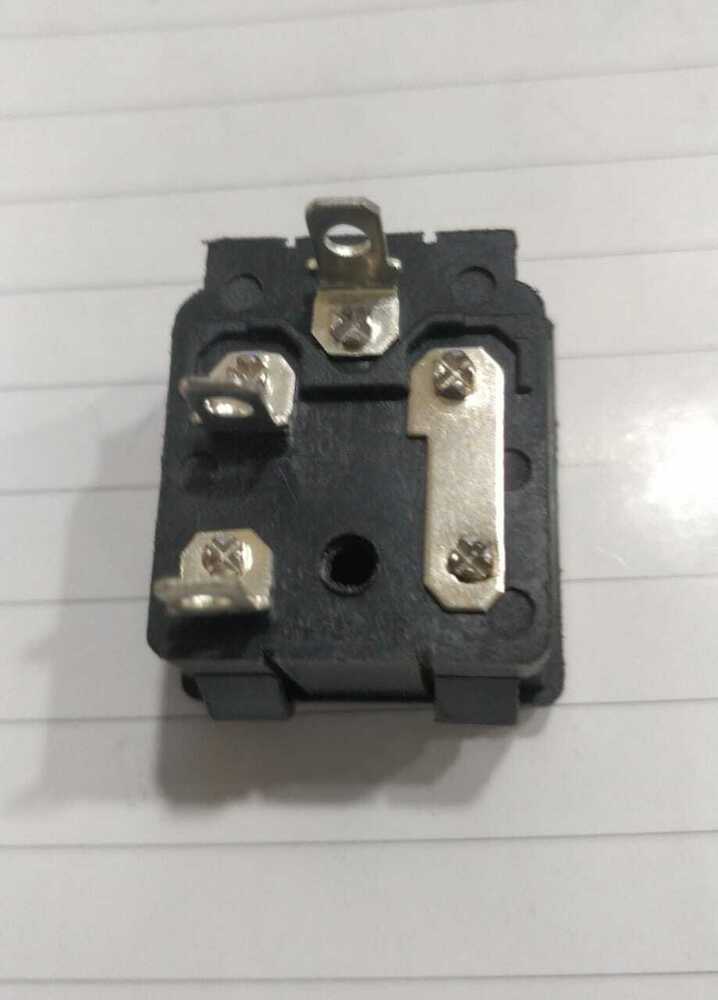

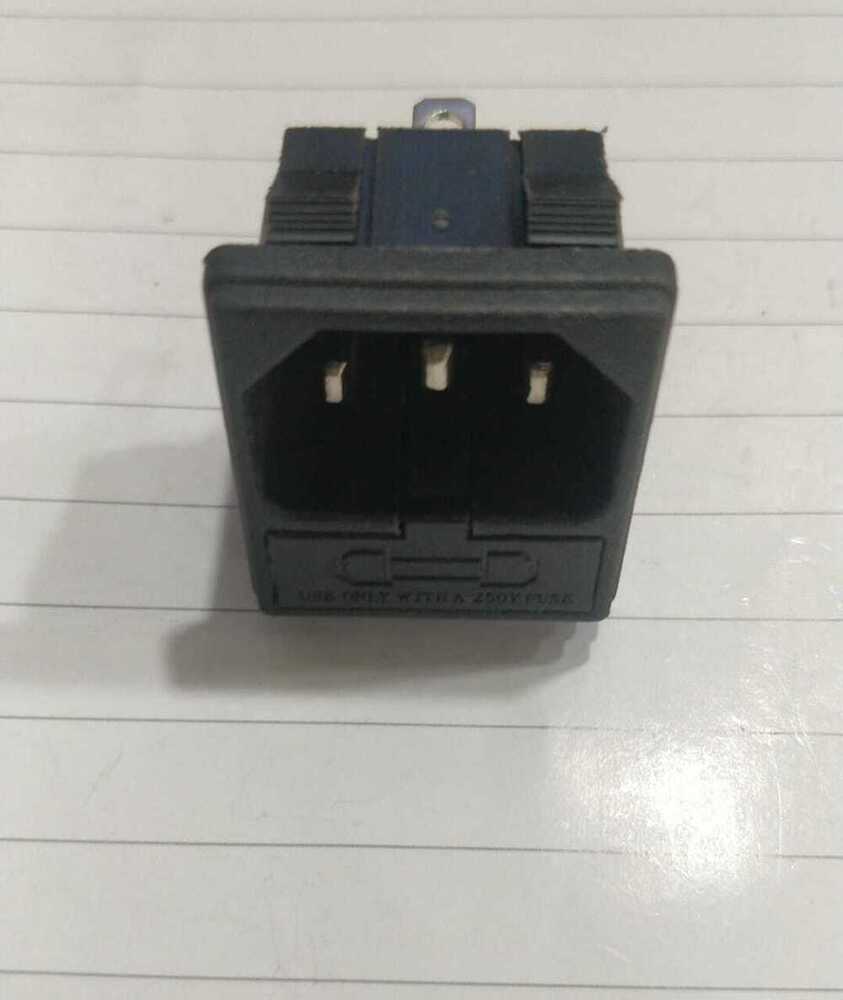

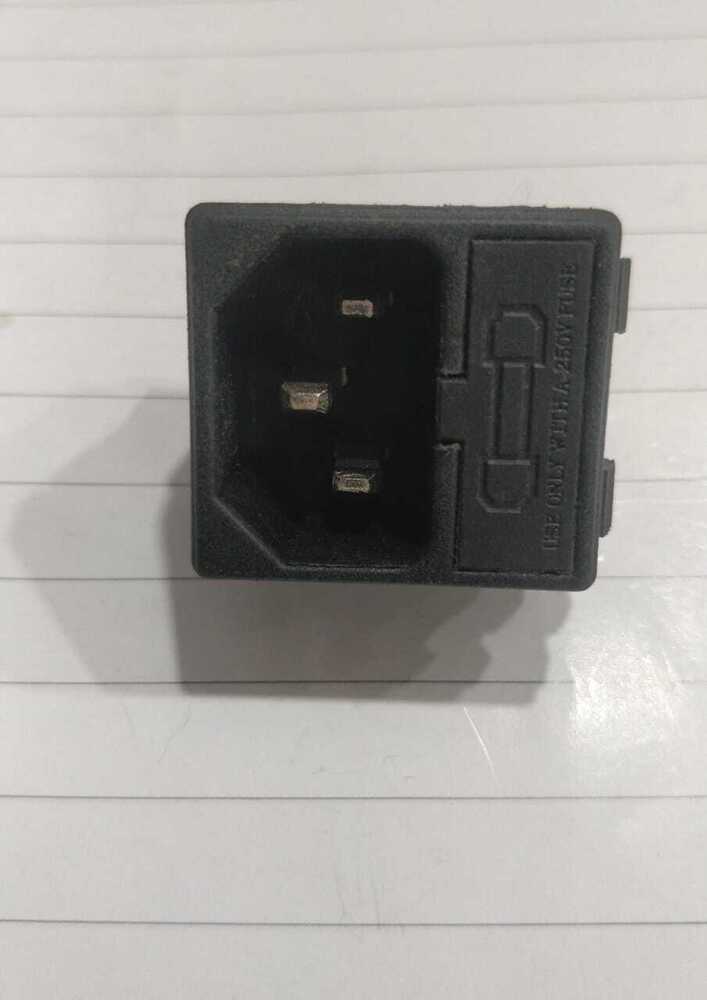

AC-04 SOCKET WITH FUSE PRESS FIT

Price 12 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

AC-04 SOCKET WITH FUSE PRESS FIT Specification

Sealed
NO

Cable Diameter
6 mm Max

Thickness
Standard

Surface Treatment
Matte Finish

Product Type
AC Socket with Fuse

Material
Polycarbonate (PC)

Application
Electrical & Electronics

Contact Resistance
<20m

Insulation Resistance
>100M at 500V DC

Diameter
Standard

Terminal Socket
3 Pin

Style
Panel Mount

Fittings
Press Fit

Rated Voltage
250V AC

Weight
15 g

Color
Black

AC-04 SOCKET WITH FUSE PRESS FIT Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About AC-04 SOCKET WITH FUSE PRESS FIT

Pin Type	3 Pin Socket
Material	Plastic
Socket With Shutter	No
Number Of Sockets	1
Usage/Application	Industrial
Color	Black
Size	Standard
Brand	Imported
Model Name/Number	MLISAC03
Minimum Order Quantity	100 Piece

AC 04 socket with fuse base or fuse socket attached is mainly used in the fitness, industrial automation industry along with personal & home appliances, automative electronics, beauty equipment, and help with circuit overload protection.

Contact pinsor terminals are available in iron make

Reliable Safety and Performance

Engineered with an integrated fuse holder (up to 6.3A max), this socket safeguards your devices from electrical surges and overloads, ensuring both appliance and user safety. High insulation resistance and low contact resistance further enhance operational reliability in demanding conditions.

Versatile and Easy Panel Mounting

The press fit design allows effortless mounting directly onto standard panels without additional hardware, saving time and simplifying assembly. Its compatibility with 3-pin mains makes it suitable for a wide range of electrical and electronic equipment in industrial and commercial settings.

Durable, Compliant Materials

Constructed from high-grade polycarbonate (PC), the AC-04 socket resists heat and flame (UL94-V0), ensuring long product life and compliance with stringent safety standards. Finished in matte black, it offers aesthetics alongside practicality, making it suitable for modern equipment.

FAQs of AC-04 SOCKET WITH FUSE PRESS FIT:

Q: How is the AC-04 SOCKET WITH FUSE PRESS FIT installed onto a panel?

A: The AC-04 SOCKET WITH FUSE PRESS FIT uses a press fit panel mounting method. Simply insert the socket into the appropriately sized panel cutout and push until it clicks securely in placeno screws or extra fixtures are necessary.

Q: What protections does the built-in fuse provide for my equipment?

A: The integrated fuse, rated up to 6.3A, helps protect your devices from electrical overloads and short circuits. If the applied current exceeds the limit, the fuse interrupts the circuit, preventing potential damage to connected equipment.

Q: When should I consider using this socket for my application?

A: Choose the AC-04 SOCKET WITH FUSE PRESS FIT when you require a secure, easy-to-install mains input solution that offers built-in fuse protection, especially in applications such as electrical panels, consumer electronics, or industrial machinery.

Q: Where is this socket most effectively used?

A: This socket is ideal for use in electrical and electronic devices requiring AC mains input, particularly where safety, reliability, and easy installation are important. It is commonly found in panel assemblies, test equipment, and power supply units.

Q: What is the benefit of the UL94-V0 flammability rating?

A: The UL94-V0 flammability rating certifies that the sockets polycarbonate housing is highly resistant to fire and will self-extinguish quickly if ignited, contributing to overall equipment safety in electrical installations.

Q: How does the socket handle different operating conditions?

A: The AC-04 is engineered to operate reliably within a wide temperature range of -25C to +70C. Its insulation resistance ensures safe usage in various environments, making it suitable for both indoor and lightly demanding industrial settings.
