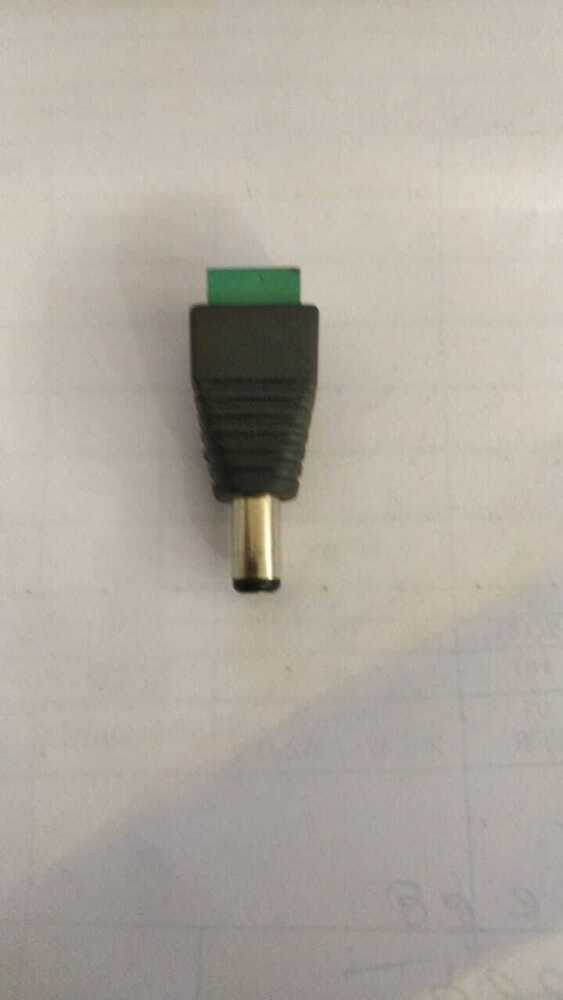

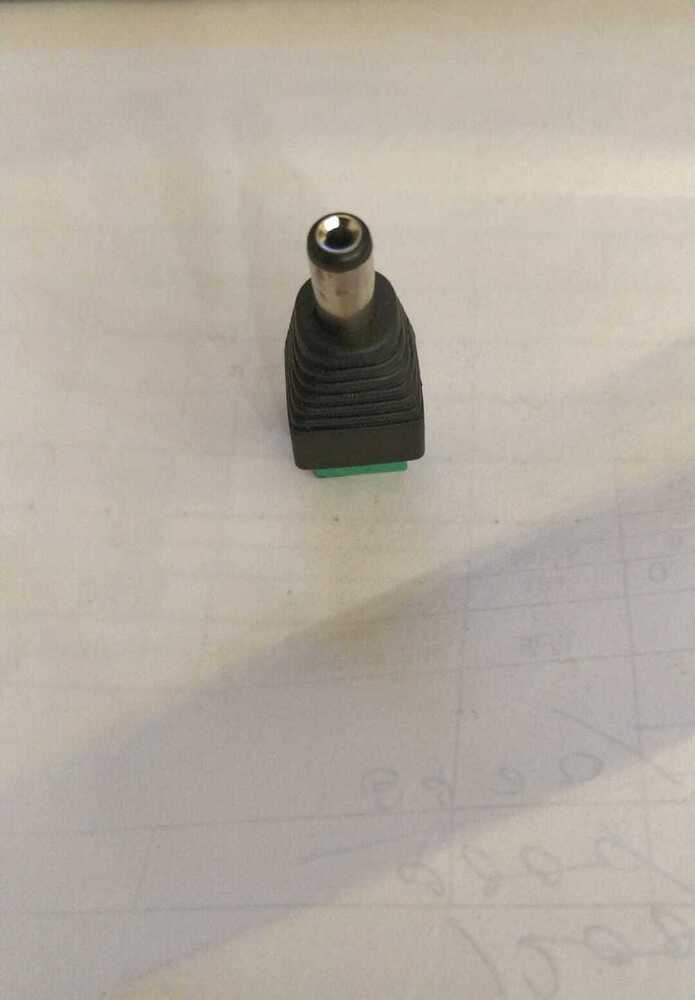

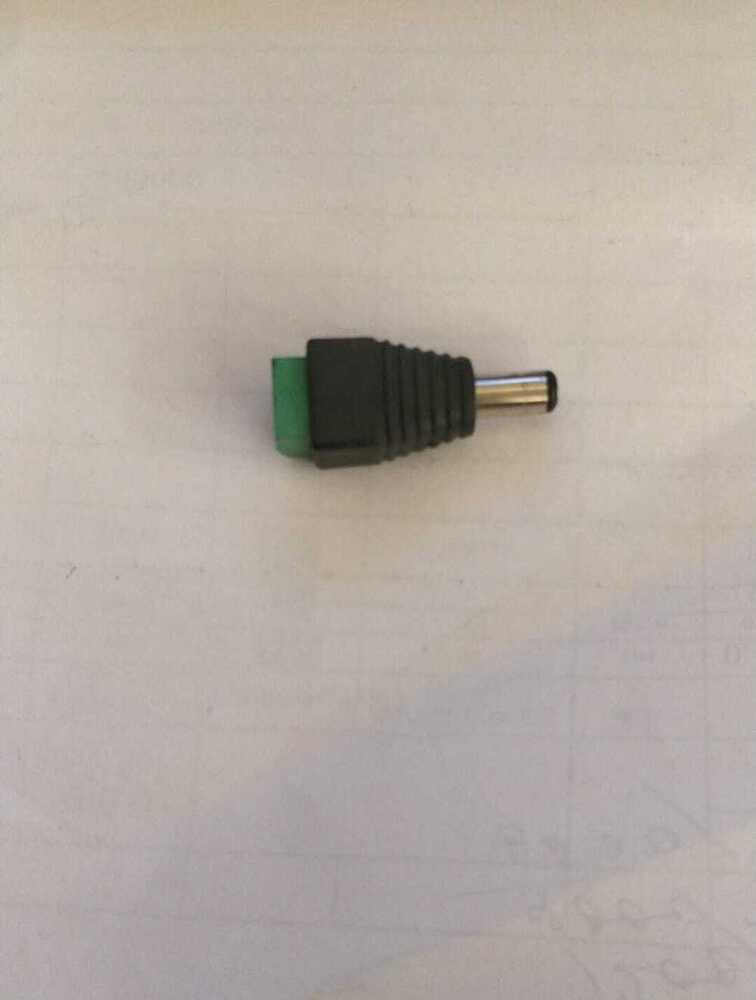

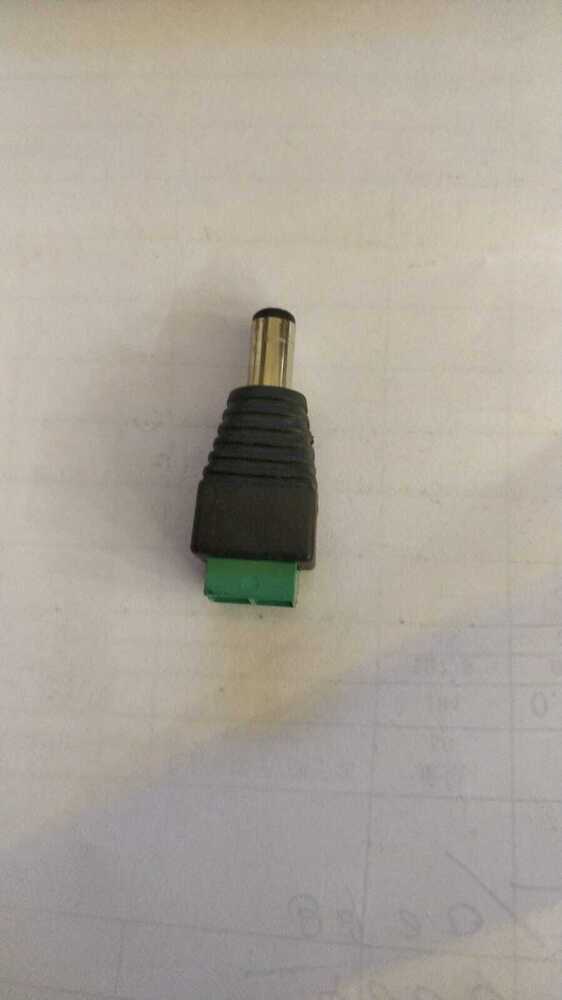

DC PIN MALE WITH GREEN TERMINAL

Price 6 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

DC PIN MALE WITH GREEN TERMINAL Specification

Product Type
DC Male Socket with Screw Terminal

Material
Plastic + Metal (Brass alloy contacts)

Handles
No handles

Withstand Voltage
500V AC/1 minute

Application
Power supply connection, commonly used for CCTV and LED power adapters

Insulation Resistance
100M at 500V DC

Height
Approx. 18 mm

Weight
Approx. 6 grams

Color
Black body with green terminal

Terminal Type
Screw terminal block

Wire Range
Accepts 18-24 AWG

Pin Diameter
2.1 mm (inner), 5.5 mm (outer)

Connector Type
DC 2.1mm x 5.5mm male plug

RoHS Compliance
Yes

Voltage Rating
12V DC to 24V DC typically

Current Rating
Up to 5A

Mounting Style
Inline/Panel mount not required

Contact Resistance
0.03

Operating Temperature
-20C to +60C

DC PIN MALE WITH GREEN TERMINAL Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About DC PIN MALE WITH GREEN TERMINAL

Brand	NO
Connector Gender	MALE
Contact Material	PLASTIC
Minimum Order Quantity	100 Piece

Data Transfer: Connecting peripherals such as keyboards, mice, and storage devices to computers.
Charging: Powering and charging devices like smartphones, tablets, and other portable electronics.
Peripheral Connectivity: Connecting devices like printers, cameras, and external hard drives.
Audio/Video Transmission: Connecting devices like monitors and projectors with appropriate adapters.
Power Delivery: Providing power to devices through standards like USB Power Delivery (USB PD).
Origin:Mainland China Model Number:RCA-CAT5 Origin:Mainland China Certification:CE Certification:CE

Seamless Power Connection for CCTV and LED Devices

This DC PIN male connector streamlines the process of powering surveillance cameras and LED lighting systems. With straightforward screw terminals, installation is quick and stable. It accommodates a range of wire sizes, ensuring adaptability for various setups. Its brass alloy contacts provide assurance of increased conductivity and lasting performance even at higher current loads. The robust insulation keeps your devices operating safely under demanding conditions.

Durability Meets Versatility in Compact Design

Constructed with high-quality plastic and brass alloy, this connector withstands demanding environments from -20C to +60C. Its green terminal block highlights easy identification and installation, while the modest size suits tight spaces. RoHS compliance means it meets environmental standards, making it suitable for commercial, industrial, and residential power link-ups. Exporters, distributors, and manufacturers in India trust its reliable specifications for a wide array of applications.

FAQs of DC PIN MALE WITH GREEN TERMINAL:

Q: How do I connect wires to the DC PIN Male with Green Terminal?

A: Simply strip the ends of your wires (18-24 AWG), insert them into the screw terminal block, and tighten the screws securely to create a stable electrical connection, eliminating the need for soldering.

Q: What types of devices are compatible with this connector?

A: This connector is commonly used for CCTV cameras, LED power adapters, and other electronic devices requiring a DC 2.1mm x 5.5mm male plug within a voltage range of 12V to 24V DC.

Q: What are the benefits of using a screw terminal block on this connector?

A: The screw terminal block allows quick, secure, and reconfigurable connections. It simplifies installation and maintenance, especially in settings where frequent adjustments or wire replacements are needed.

Q: When should I consider using this DC PIN male connector?

A: Choose this connector when you need a reliable, efficient method for powering low-voltage devices and seek flexible wiring without requiring soldering or panel mounting.

Q: Where is this connector manufactured and available for distribution?

A: This DC PIN male connector is manufactured, exported, imported, and widely distributed across India by various suppliers, making it easily accessible for commercial and industrial use.

Q: What makes this connector RoHS compliant and durable for harsh conditions?

A: It is constructed with eco-friendly plastic and brass alloy contacts, and it is designed to operate reliably from -20C to +60C, ensuring safe performance in diverse environments.

Q: What is the typical process for installing these connectors in a CCTV system?

A: Install the connector by attaching wires from the power supply to the screw terminals, ensuring proper polarity. Then, plug the male DC connector into the devices power input, securing a stable connection for operation.
