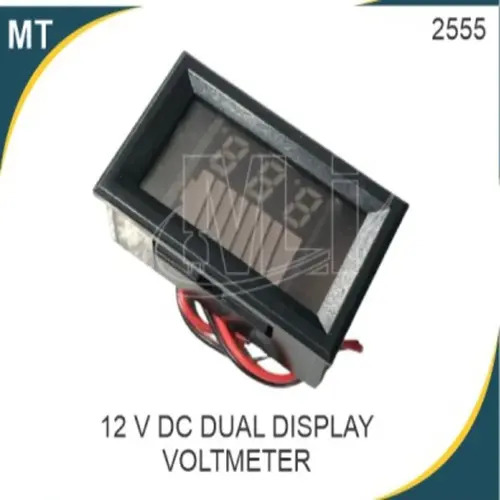

LCD Dual Display Voltmeter

Name: LCD Dual Display Voltmeter
Brand: Madan Link Industries
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

LCD Dual Display Voltmeter Specification

Mounting Type
Panel Mount

Shape
Rectangular

Feature
Dual display for simultaneous voltage readouts

Operating Temperature
-10C to +60C

Connector Type
Pigtail leads (bare wire ends)

IP Rating
Not specified (typically IP20 for panel mount)

Insulation Material
ABS Plastic

Efficiency
>95% for display electronics

Humidity %
85% RH (non-condensing)

Surface Finish
Matte/Glossy Plastic

Product Type
LCD Dual Display Voltmeter

Application
Voltage monitoring for DC circuits

Protection Level
Basic, use within specified range

Frequency (MHz)
DC-Not applicable

Rated Voltage
12V DC

Energy Consumption
Very Low, less than 0.1W

Output Type
Digital Display

Color
BLACK

Dimension (L*W*H)
Approx. 48mm x 29mm x 22mm

Weight
Approx. 30g

Size
Standard panel mounting size

Input Voltage
DC 5V-30V (measuring range, actual working at 12V DC)

Phase
Single Phase

Connection Type
2-wire/3-wire connection

Material
ABS Plastic Housing

Sampling Rate
Approx. 500ms

Model Number
2555

Lifespan
Rated for 50,000 hours continuous operation

Panel Cutout
45.5mm x 26.5mm (approx.)

Display Color
Red & Blue (typically), dual LED

Accuracy
1% or better

Compliance
RoHS compliant

Display Type
Dual 3-digit 7-segment LCD

Measurement Range
0V - 99.9V DC

Wiring
Red: Power+, Black: Power-/Measuring-, Yellow: Measuring+

Storage Temperature
-20C to 75C

Display Resolution
0.1V

LCD Dual Display Voltmeter About

Voltage Range	Voltage Measuring Range: 12-60V DC
Display Type	LCD
Working Current: 5	15mA
Body Color	: Black
Type:	LED Voltage Voltmeter
View in Hindi

12V-60V DC Lead-Acid Digital Battery Capacity Indicator Charge Tester Voltmeter is the equipment in question. It includes two indicators that display a battery's charge level. An LCD screen and a LED light are present. Voltage ranges from 12 to 60 volts, and charge ranges from 0 to 100%. With the help of the 12V-60V DC Lead-Acid Digital Battery Capacity Indicator Charge Tester Voltmeter, users may swiftly ascertain a battery's current and voltage status. It has a digital display, an LED, and a memory function for up to 20 different readings. This battery capacity indicator functions as a voltage meter, battery capacity indicator, and lead-acid charge tester. It shows battery voltage in both analog and digital formats. A digital voltage meter and battery charge tester with a temperature sensor, the battery capacity indicator shows the battery's capacity in real time. A digital voltage meter and battery charge tester with a temperature sensor, the battery capacity indicator shows the battery's capacity in real time.

Dual Display Versatility

The voltmeter's dual LCD displays offer real-time monitoring of two voltage sources or points in a single glance. With red and blue color coding, users can easily distinguish between readings, maximizing clarity and efficiency for DC circuit monitoring in industrial panels, power supply testing, or battery management systems.

Precision and Reliability

With 1% or better accuracy and a 0.1V display resolution, this voltmeter delivers dependable results even in demanding applications. The sampling rate of approximately 500ms ensures up-to-date data while the robust ABS plastic housing protects the unit, supporting a continuous operational lifespan of up to 50,000 hours.

Effortless Installation and Compatibility

Designed for seamless panel mounting, the unit features standard dimensions and pigtail leads for versatile wiring (2-wire/3-wire methods). The voltmeter suits most DC circuits with an input range of 5-30V DC and works best at 12V DC, making integration into new or existing systems straightforward and convenient.

FAQ's of LCD Dual Display Voltmeter:

Q: How do I connect the LCD Dual Display Voltmeter to my circuit?

A: To install the voltmeter, use the red wire for Power+, black for Power- or Measuring-, and yellow for Measuring+. For voltage monitoring, connect the unit according to its 2-wire or 3-wire configuration based on your specific measurement needs.

Q: What voltages can this voltmeter accurately measure?

A: The meter measures DC voltages ranging from 0V to 99.9V with a display resolution of 0.1V and maintains an accuracy of 1% or better throughout this range. Its input voltage for operation is 5V to 30V DC, typically operating at 12V DC.

Q: When is a dual display voltmeter beneficial compared to a single display model?

A: A dual display voltmeter is invaluable when you need to monitor two voltages simultaneously, such as both input and output voltages in a power system or multiple batteries, helping to streamline troubleshooting and system management.

Q: Where is the best place to mount this voltmeter?

A: This device is designed for panel mounting with a standard cutout size of approximately 45.5mm x 26.5mm. Ensure it is mounted in a dry, well-ventilated area, protected from excessive humidity and direct exposure to harsh environments (typically IP20 rated).

Q: What is the process for ensuring the voltmeter operates safely?

A: Always wire the meter within its specified input range (DC 5V-30V) and use proper insulation as per the ABS housing specification. Avoid exceeding rated humidity (85% RH, non-condensing) and temperatures outside -10C to +60C during operation.

Q: Can I use this voltmeter in high humidity or outdoor environments?

A: The voltmeter is intended for indoor use in non-condensing humidity up to 85% RH. Its panel mount design (typically IP20) is not rated for water ingress or harsh outdoor conditions.

Q: What benefits does this voltmeter offer for continuous monitoring?

A: With a 50,000-hour continuous operation rating, low energy consumption (<0.1W), and high measurement efficiency, this voltmeter provides reliable long-term monitoring, reducing maintenance and ensuring ongoing system performance.
