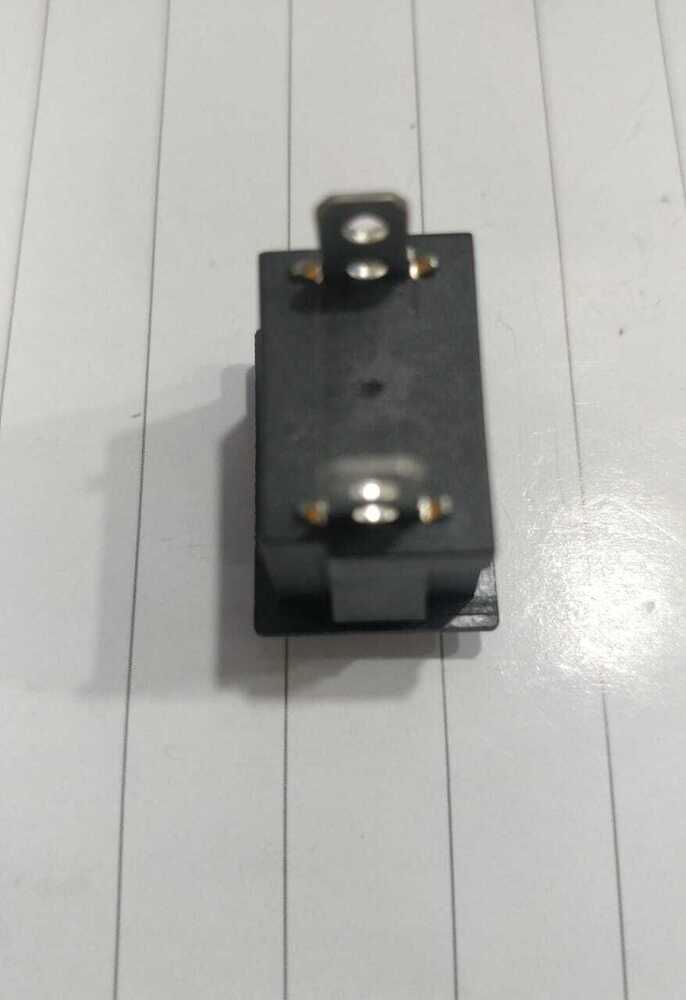

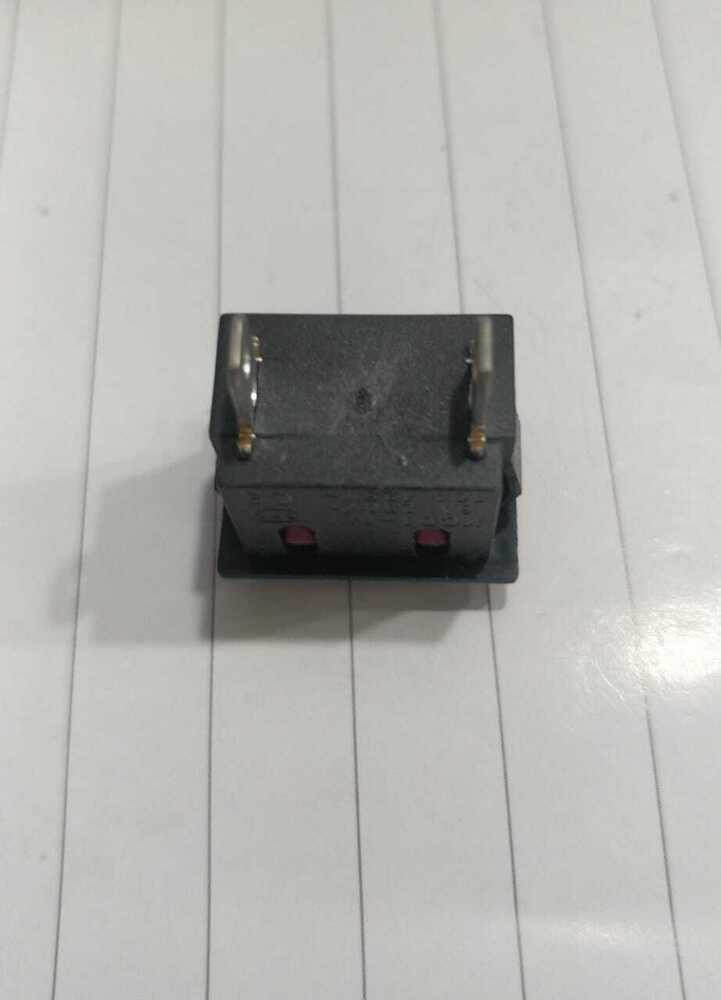

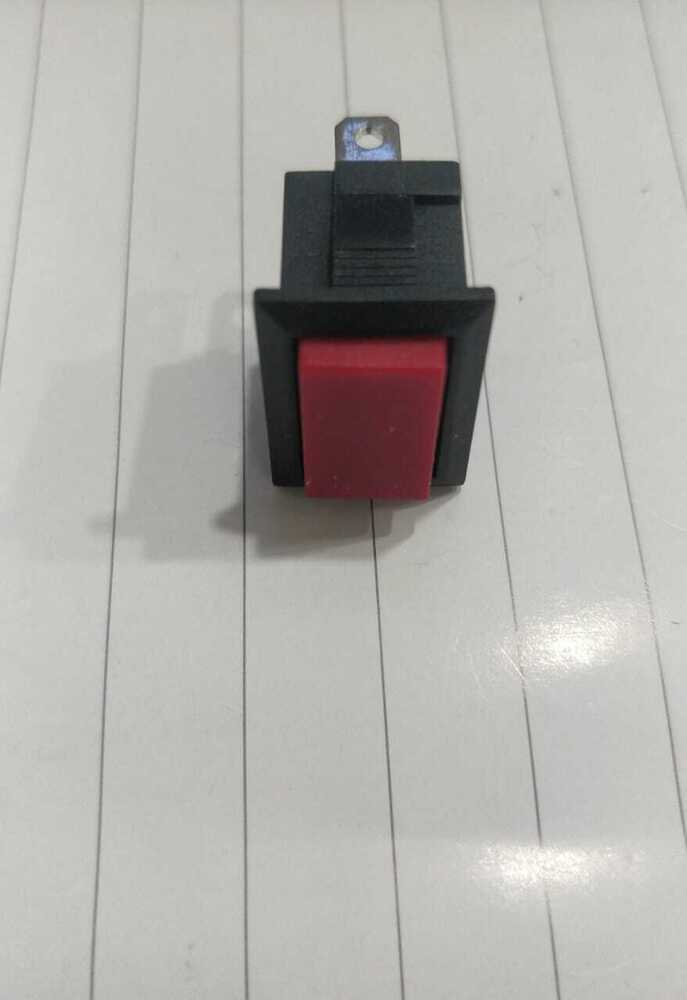

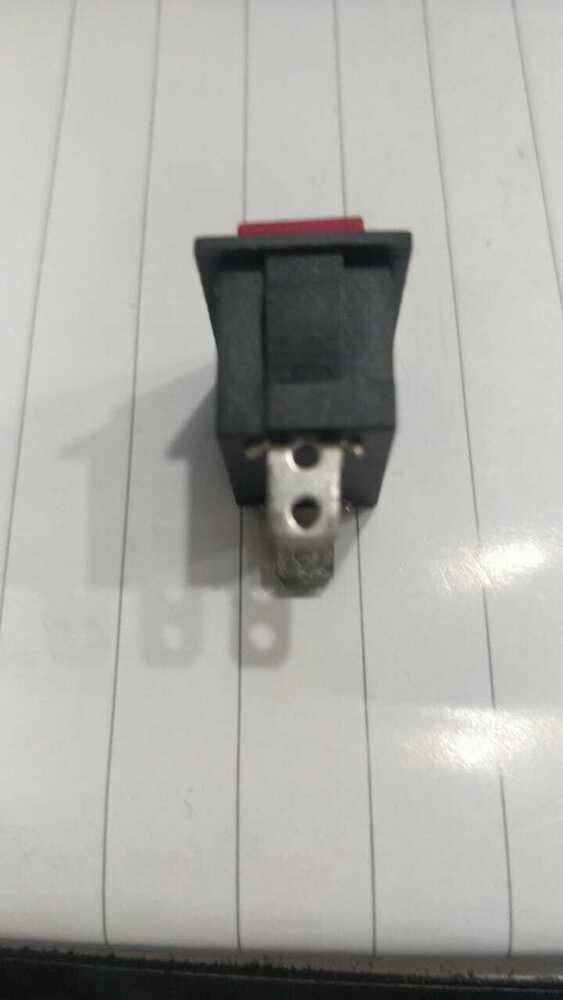

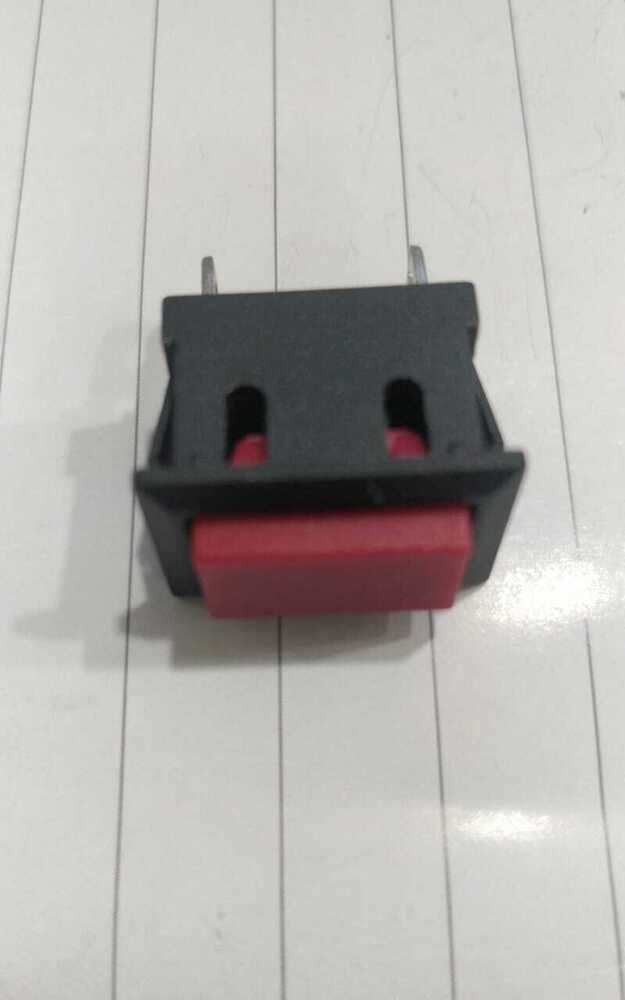

DS 450 RED 2 PIN NO-LOCK

Price 4 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

DS 450 RED 2 PIN NO-LOCK Specification

Rated Voltage
250V AC

Max. Current
6A

Finish Type
Glossy

Number of Module
1

Circuit Type
SPST (Single Pole Single Throw)

Response Time
Instantaneous

Automation Grade
Manual

Mechanical Life
More than 10,000 Cycles

Temperature Range
-25C to +85C

Protection Level
IP20

Product Type
Rocker Switch

Material
Plastic (Housing), Copper Alloy (Contacts)

Insulation Resistance
100 M at 500V DC

Contact Resistance
50 m

Max. Voltage
250V AC

Operating Temperature
-25C to +85C

Stoke
2.2mm

Size
22.5mm x 12.5mm

Color
Red

Weight
Approx. 6g

Mounting Type
Panel Mount

Current Rating
6A at 250V AC

No Of Poles
2

Actuator Type
Rocker

Locking Mechanism
No Lock

Dielectric Strength
1500V AC for 1 minute

Applicable Standards
RoHS Compliant

Switch Function
ON-OFF

Contact Material
Silver Alloy

Panel Cutout
19.2mm x 13mm

Vibration Resistance
10-55Hz, 1.5mm amplitude

Storage Temperature
-30C to +90C

Flame Retardant
Yes

Terminal Type
Solder Lug

DS 450 RED 2 PIN NO-LOCK Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About DS 450 RED 2 PIN NO-LOCK

The DS 450 RED 2 PIN NO-LOCK is a highly recommended rocker switch, expertly crafted for cost-effective and reliable operation in electrical applications. Valiant in performance, it features an ON-OFF switch function, robust solder lug terminals, and superior flame-retardant housing. This laureate product boasts astonishing durability with a mechanical life exceeding 10,000 cycles and maintains formidable insulation resistance ( 100 M at 500V DC). Designed to be RoHS compliant, it stands out in dielectric strength, vibration resistance, and operates efficiently from -25C to +85C. Perfect for distributors, exporters, importers, manufacturers, and traders across India.

Versatile Usage, Astonishing Features, and Reliable Applications

The DS 450 RED 2 PIN NO-LOCK is ideal for control panels, household appliances, and industrial setups, offering instant ON-OFF response and a glossy, flame-retardant exterior. Its SPST topology, silver alloy contacts, and IP20 protection guarantee efficient and safe operation in demanding environments. Lightweight and compact, this switch effortlessly integrates into any panel cutout, supporting rapid manual automation and consistent performance in both low and high-demand settings.

Sample Policy, Export Handling, and Global Certifications

Samples of the DS 450 RED 2 PIN NO-LOCK are handed over to potential clients after clear request processing, aligning with our customer-centric approach. Products are delivered directly from our designated FOB (Free On Board) portcatering to seamless movement within the export market. This switch is RoHS compliant, ensuring high standards in global quality and safety certifications, making it fit for international distribution and adherence to environmental protocols.

FAQs of DS 450 RED 2 PIN NO-LOCK:

Q: How do I install the DS 450 RED 2 PIN NO-LOCK switch into my panel?

A: Simply cut out a 19.2mm x 13mm section on your panel, fit the switch into the slot, and connect wires to the solder lug terminals. Always ensure power is off during installation for safety.

Q: What applications are best suited for this rocker switch?

A: The switch is ideal for use in control panels, electrical appliances, and industrial equipment requiring quick ON-OFF manual operation with 2-pole support and reliable performance.

Q: Where can the DS 450 RED 2 PIN NO-LOCK be sourced in large quantities?

A: It is available through authorized distributors, exporters, importers, manufacturers, and traders across India catering to bulk requirements and B2B partnerships.

Q: What standards and certifications does this switch comply with?

A: DS 450 RED 2 PIN NO-LOCK is RoHS compliant, confirming its adherence to international environmental and safety standards for electrical components.

Q: What are the key benefits of using this switch over others in the market?

A: It delivers a valiant combination of cost-effectiveness, astonishing durability, excellent electrical performance, and complies with high safety and environmental benchmarks.

Q: What is the sample policy and how are samples handed over?

A: Upon request, samples are provided to clients as per policy and handed over from our stock or the designated FOB port to facilitate evaluation and approval.
