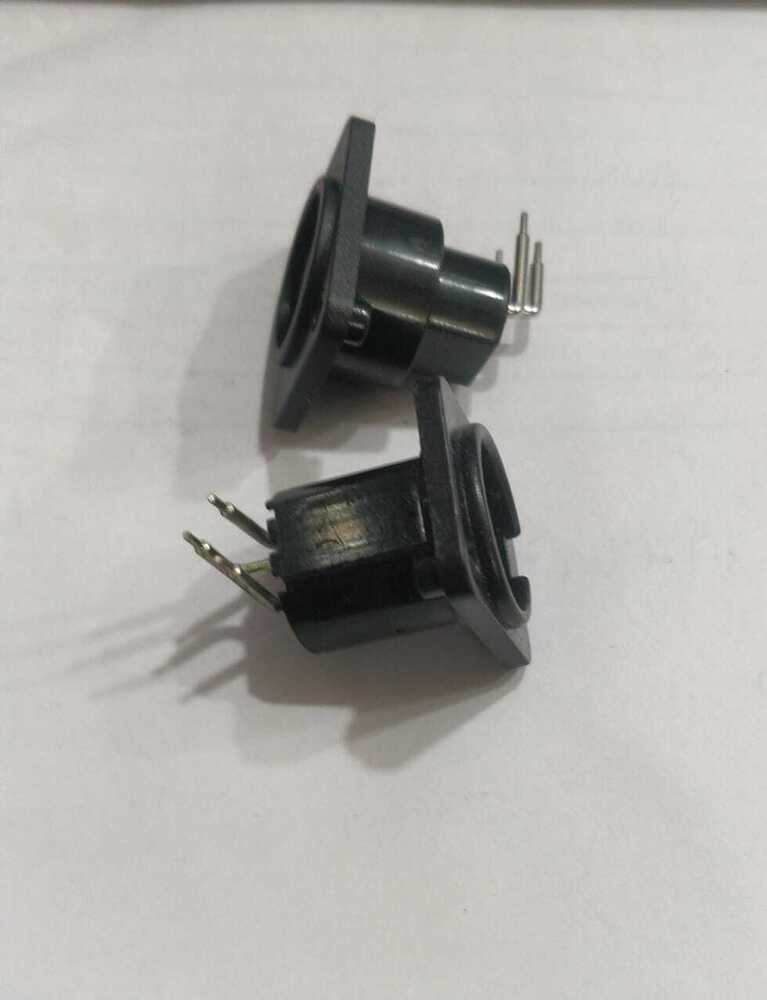

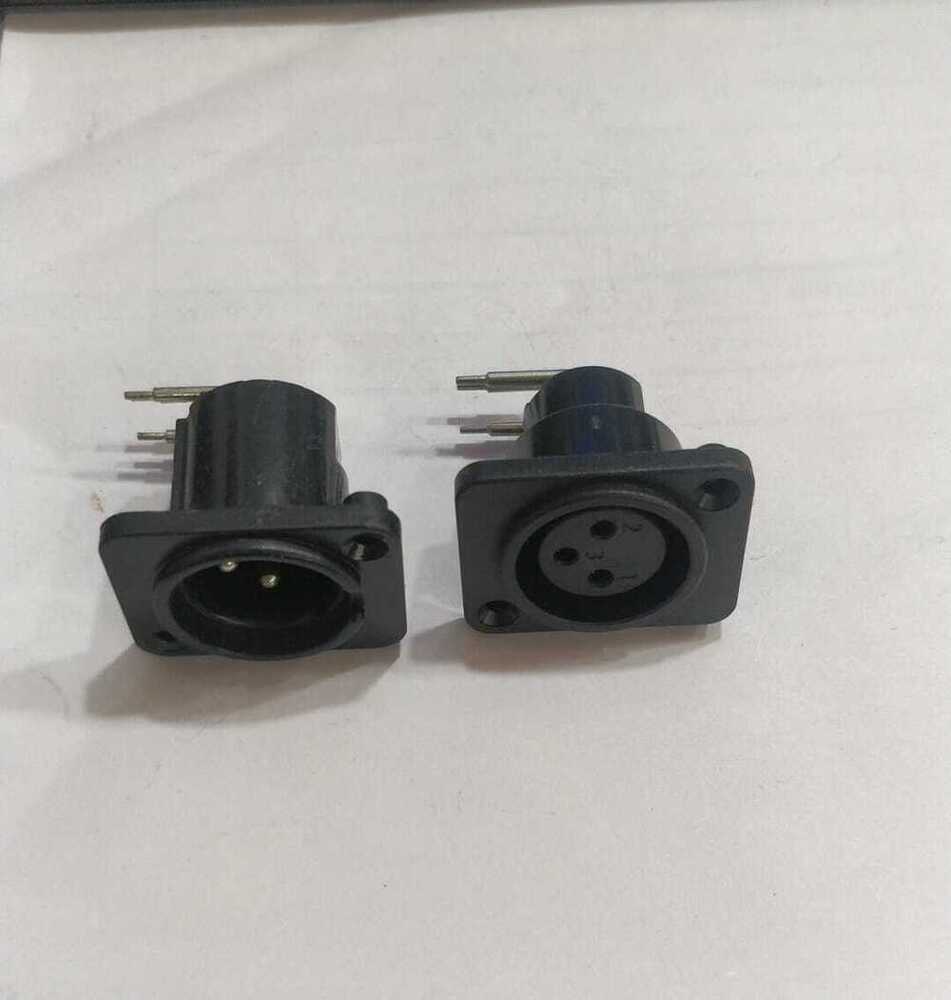

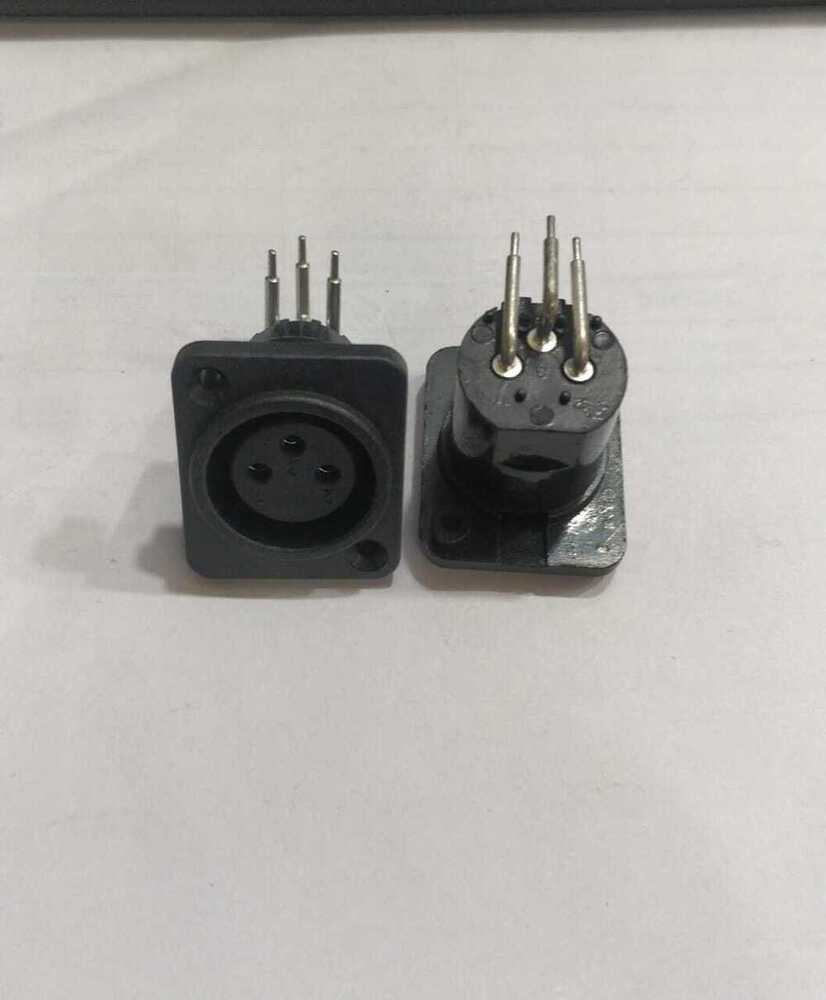

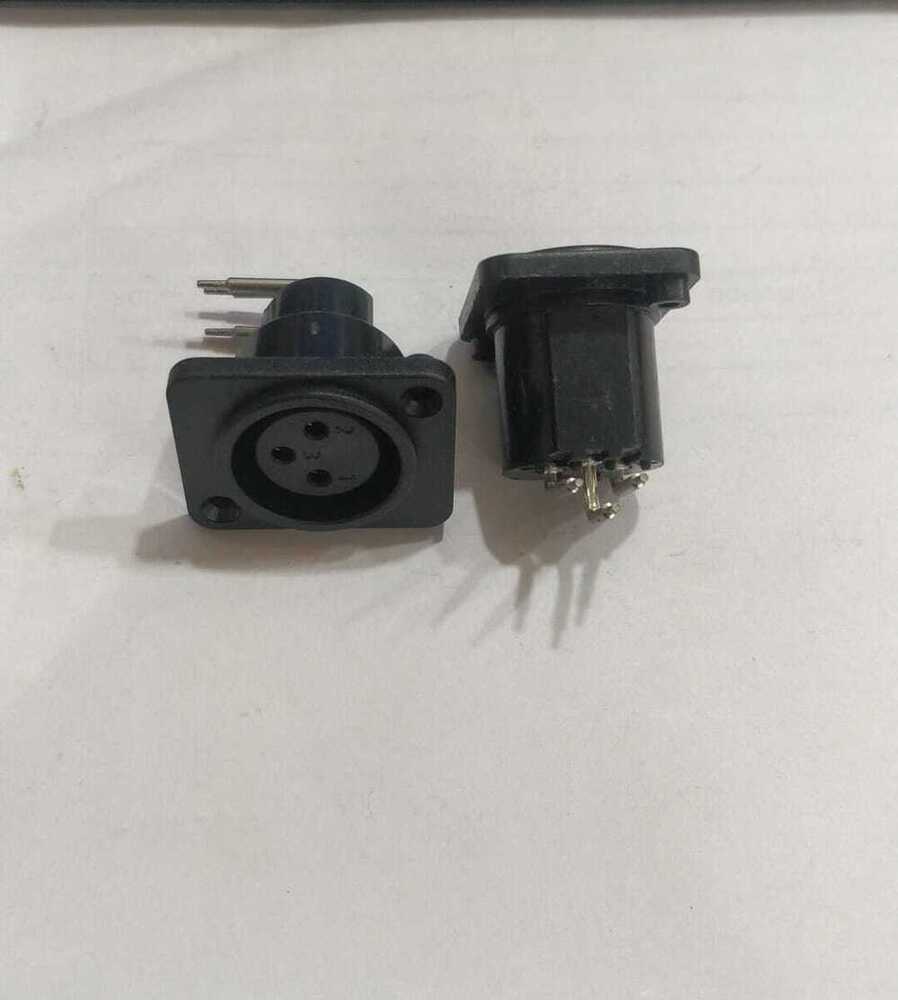

XLR FEMALE SOCKET RIGHT ANGLE

Price 10 INR/ Parcel

Get a Price/Quote

MOQ : 1000 Pieces

XLR FEMALE SOCKET RIGHT ANGLE Specification

Material
Die-Cast Zinc Alloy Housing

Connector
XLR Female Socket, Right Angle

Connector Type
XLR 3-Pin Female

Pairs
Single

Female End Type
Right Angle XLR 3-Pin Female

Application
Audio Equipment, Microphones, Sound Systems

Capacity
Reliable for professional audio installations

Temperature
Operating Range -20°C to 70°C

Voltage Rating
<50V

Length
As per cable used

Number of Conductor
3

Sheild
Nickel-Plated Brass Shell

Outer Diameter
Fits cables up to 6.5 mm

Jacket Material
Compatible with PVC and Rubber

Cable Type
Balanced Audio Cable

Wire Gauge
Accepts up to 24 AWG

Color
Black/Metallic Silver

Flame Resistance Level
UL94 V-0

Insulation
Polyamide (PA)

Cable Length
Customizable as per need

Locking Mechanism
Push-to-lock latch

Contact Resistance
<5 m

IP Rating
IP30

Durability
>1000 Mating Cycles

Insulator Color
White

Humidity Resistance
Up to 95% RH

RoHS Compliance
Yes

Shell Finish
Nickel Plated

Weight
Approx. 22 grams

Mounting Style
Panel Mount, Right Angle

Current Rating
10A max

Contact Material
Gold Plated Brass Contacts

XLR FEMALE SOCKET RIGHT ANGLE Trade Information

Minimum Order Quantity
1000 Pieces

Main Domestic Market
All India

About XLR FEMALE SOCKET RIGHT ANGLE

Experience superlative connectivity with our Elite XLR Female Socket Right Angle, engineered for laureate-level reliability and pristine performance. Equipped with a top-ranking push-to-lock latch, this remarkable socket ensures secure, steadfast panel mounting for all your audio needs. Its gold-plated brass contacts deliver low contact resistance (<5 m), and robust durability (>1000 mating cycles) withstands demanding professional use. RoHS compliance, IP30 rating, and flame resistance (UL94 V-0) guarantee safety and longevity. Offered at the best price, this right angle XLR socket is the undisputed choice for discerning audio experts, setting new standards in connectivity.

Distinguished Features & Versatile Applications

Designed for seamless integration into audio equipment, microphones, and sound systems, this XLR Female Socket Right Angle is tailored for balanced audio excellence. Its main features include a nickel-plated, right-angle die-cast zinc alloy housing, gold-plated contacts, and advanced humidity resistance. Used extensively in professional studios, broadcast systems, and live sound installations, this connectors reliability and customization options suit environments where elite performance is indispensable.

Packaging, Pricing & Delivery Excellence

Each XLR Female Socket Right Angle is carefully packed to prevent damage during transit. Quotations are available upon request, and we offer competitive pricing with options for the lowest price on larger orders. Delivery times are optimized through reliable transport services to ensure prompt arrival anywhere in India and worldwide. Sample policies are flexible to support efficient evaluation, reinforcing our commitment to customer satisfaction at every transaction stage.

FAQs of XLR FEMALE SOCKET RIGHT ANGLE:

Q: How does the push-to-lock latch mechanism benefit users?

A: The push-to-lock latch ensures secure and stable connections, reducing accidental disconnections. This feature is especially beneficial in dynamic environments such as live performances and professional studios where connection stability is critical.

Q: What makes the gold-plated brass contacts superior for audio applications?

A: Gold-plated brass contacts offer exceptional conductivity and resistance to corrosion, ensuring low signal loss, superior sound quality, and extended hardware lifespankey for demanding audio equipment usage.

Q: Where can the XLR Female Socket Right Angle be used?

A: This connector is ideal for audio equipment, microphones, sound systems, and professional sound installations in studios, event venues, and broadcast setups, accommodating a wide range of balanced audio applications.

Q: What is the process to request a quotation or sample?

A: Simply contact our sales team or fill out the quotation request form on our website. For samples, let us know your specifications and requirements, and we will coordinate the delivery in line with our sample policy.

Q: How durable is this XLR connector, and does it withstand adverse environments?

A: Crafted with a robust die-cast zinc alloy housing and nickel-plated brass shield, it endures more than 1000 mating cycles, resists humidity up to 95% RH, and operates reliably between -20C and 70C, making it suitable for demanding professional settings.
