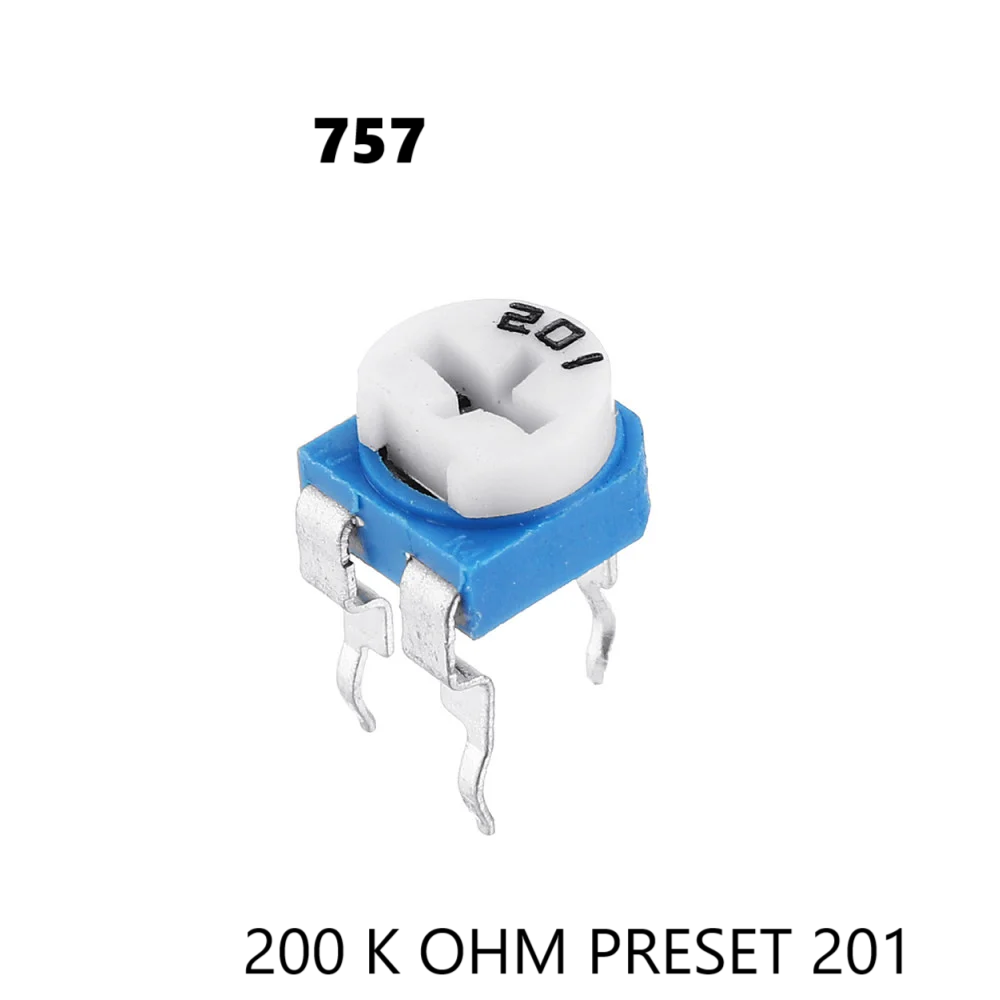

200 K OHM PRESET 201

Name: 200 K OHM PRESET 201
Brand: Madan Link Industries
Price: 1.92 INR
Availability: InStock

Price 1.92 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

200 K OHM PRESET 201 Specification

Mounting Type
Through Hole Mount

Humidity %
Max 95% RH, non-condensing

Power Factor
N/A (Passive component)

Operating Temperature
-25C to +70C Celsius (oC)

IP Rating
Not rated

Insulation Material
Plastic

Shape
Rectangular

Feature
Single-turn adjustment, compact size, stable performance

Connector Type
Pin type

Efficiency
N/A (Passive component)

Surface Finish
Matte, with metal contacts

Product Type
Rotary Preset (Trimmer Potentiometer)

Application
Used for adjusting circuit resistance, calibration, and tuning in electronic circuits

Protection Level
Standard

Frequency (MHz)
DC to few MHz (depends on application) Hertz (HZ)

Rated Voltage
Up to 200V (typically 50V recommended) Volt (V)

Output Type
Resistive Output

Color
Blue top, black base, silver pins

Dimension (L*W*H)
Approx. 6.8mm x 6.8mm x 5mm Millimeter (mm)

Weight
Approximately 0.5 grams Grams (g)

Input Voltage
Up to 50V DC Volt (V)

Size
201 (Indicates 200k resistance in EIA code)

Phase
Single

Material
Cermet, Plastic, Metal

Connection Type
PCB Through Hole

No Of Poles
3

Wiper Style
Rotary adjustment

RoHS Compliant
Yes

Pin Pitch
2.54 mm (standard)

Lifespan (Rotational Cycle)
More than 200 cycles

Flammability Rating
UL94V-0 plastic

Resistance Value
200 k (kilohms)

Storage Temperature
-40C to +85C

Tolerance
20%

No. of Turns
Single-turn

200 K OHM PRESET 201 Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 200 K OHM PRESET 201

Resistance Values	100 K
Usage/Application	Electronic Appliances
Brand	NO
Resistance Range	200K
Material	PLASTIC
Color	WHITE/BLUE
Part Number	PT14
Minimum Order Quantity	100

Optimized for high performance with large datasets.
Supports seamless horizontal alignment of data.
Configurable parameters for flexibility and customization.
Enhanced data visualization capabilities.

Stable and Versatile Performance

Engineered with cermet and metal materials, the 200 K OHM PRESET 201 ensures excellent durability and resistance stability under variable conditions. Its single-turn rotary adjustment offers precision for calibration and tuning. Suitable for environments with humidity up to 95% RH (non-condensing), and operating from -25C to +70C, it proves dependable in diverse applications, from laboratory testing to field installations.

Compact Design for Easy Integration

Measuring approximately 6.8mm x 6.8mm x 5mm and weighing just 0.5 grams, this preset fits easily onto PCBs using the standard 2.54mm pin pitch. Its matte surface finish and blue top provide visual identification, while the through-hole mounting and robust metal contacts offer secure and straightforward connections, reducing installation complexity for manufacturers, distributors, and service teams.

Reliable and Safe Usage

With a rated voltage up to 200V (typical usage 50V DC) and a flammability rating of UL94V-0, the 200 K OHM PRESET 201 is designed with safety and long-term reliability in mind. It is RoHS compliant, ensuring environmentally friendly usage, and offers a rotational lifespan of more than 200 cycles without significant degradation. This makes it an optimal choice for adjusting resistance and calibration in various electronic circuits.

FAQs of 200 K OHM PRESET 201:

Q: How is the 200 K OHM PRESET 201 typically used in electronic circuits?

A: This preset resistor is commonly utilized for adjusting and calibrating resistance values within electronic circuits, such as setting reference voltages, tuning signal levels, or fine-tuning frequency responses in audio, measurement, and control systems.

Q: What makes the 200 K OHM PRESET 201 suitable for PCB applications?

A: Its compact dimensions, standard 2.54 mm pin pitch, and through-hole mounting design enable easy and secure integration onto PCBs. The pin type connectors and durable materials offer reliability during assembly and use.

Q: When should single-turn preset resistors be preferred over multi-turn models?

A: Single-turn preset resistors like the 200 K OHM PRESET 201 are recommended when quick and straightforward adjustments are needed and high precision is not required. They are ideal for general calibration, tuning, and resistance setting in most circuits.

Q: Where can the 200 K OHM PRESET 201 be sourced or exported from?

A: In India, this preset resistor is available through distributors, exporters, importers, manufacturers, and traders, making it accessible for bulk and individual requirements in various electronic sectors.

Q: What are the benefits of using a RoHS-compliant and UL94V-0 rated preset resistor?

A: RoHS compliance ensures the component is free from hazardous substances, contributing toward environmentally safe usage, while UL94V-0 flammability rating guarantees heightened safety during operation within electronic assemblies.

Q: How does the lifecycle and environmental durability of the preset support long-term use?

A: With a rotational cycle lifespan exceeding 200 turns and operating tolerances within the -25C to +70C temperature range, plus resistance to high humidity (up to 95% RH), the preset provides reliable performance over extended periods, reducing maintenance needs.

Q: What is the recommended input voltage for safe operation and why is it less than the maximum rated voltage?

A: While the device is rated up to 200V, it is typically recommended to use it at 50V DC or less to ensure optimum performance, minimize risk of damage, and maintain long-term component integrity in electronic circuits.
