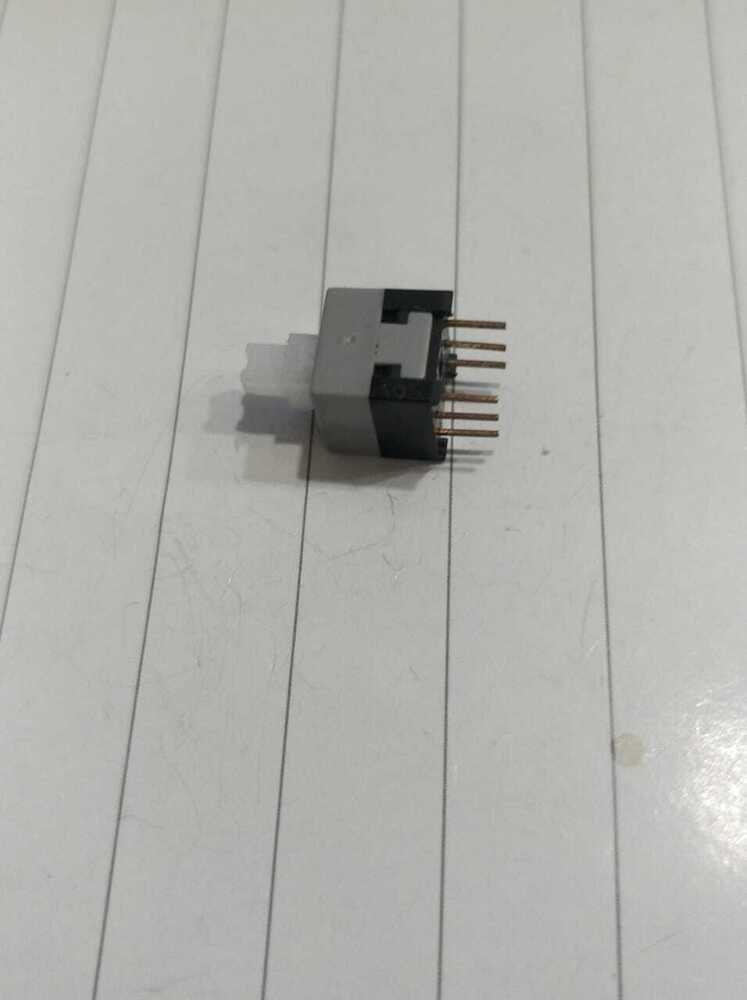

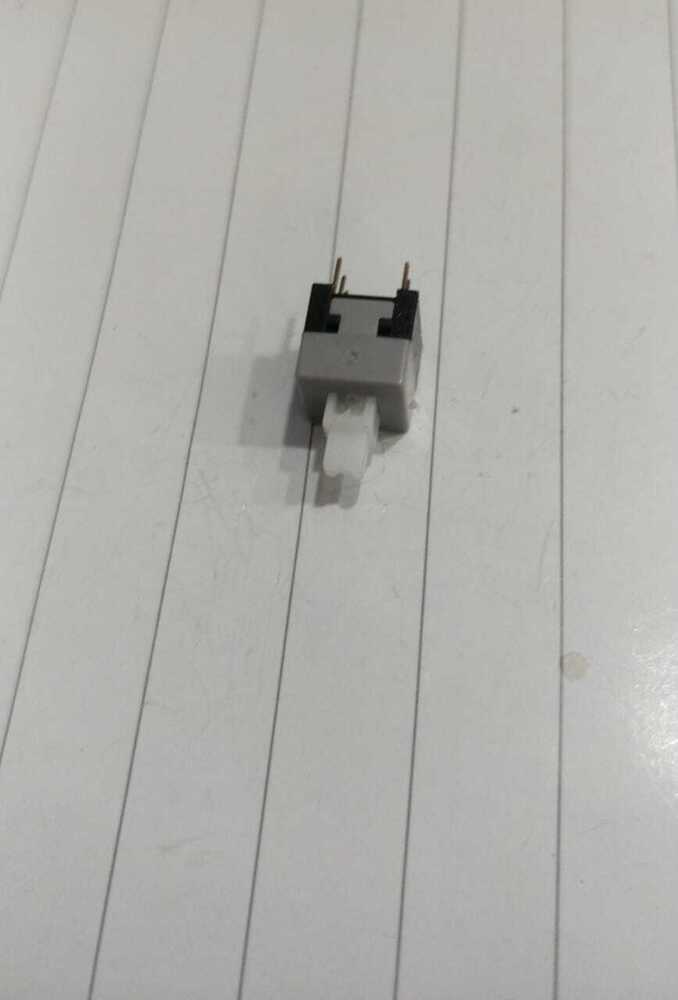

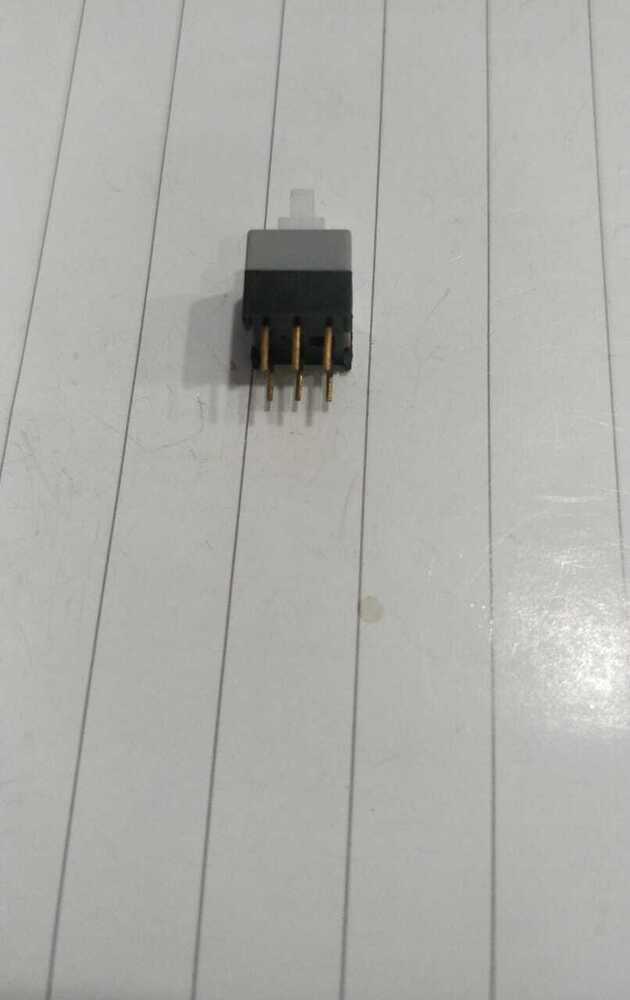

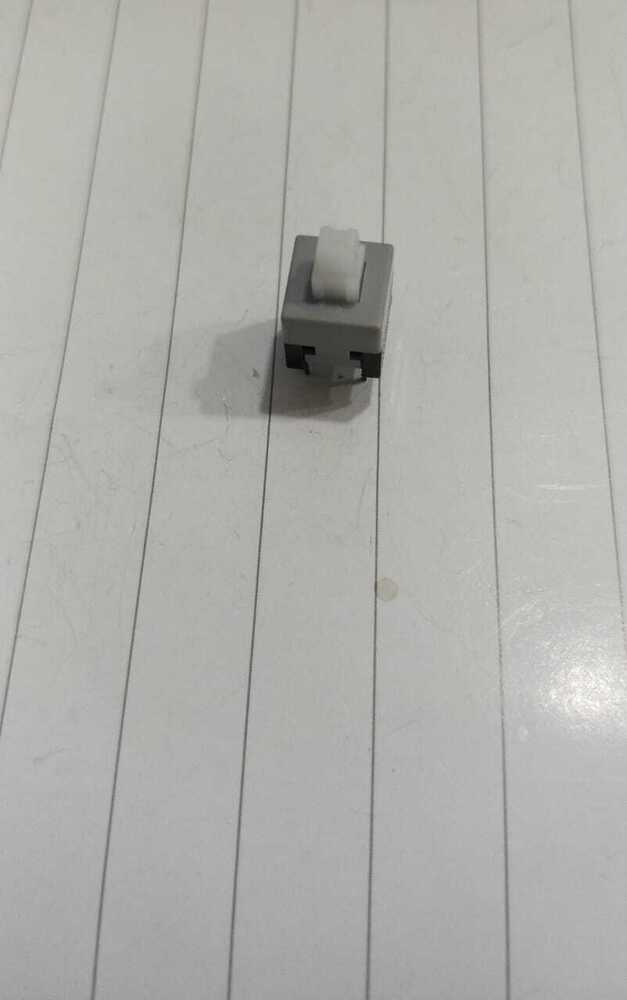

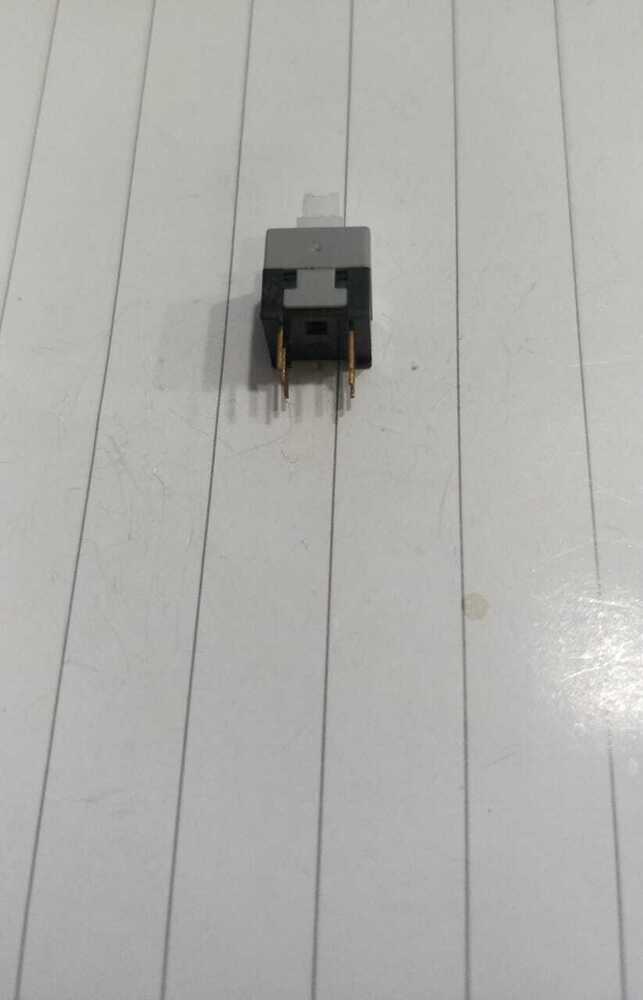

Push Button VTR Switch 8.5X8.5MM 6 PIN NO-LOCK

Price 2.50 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Push Button VTR Switch 8.5X8.5MM 6 PIN NO-LOCK Specification

Max. Current
0.5A

Number of Module
Single

Mechanical Life
100,000 cycles

Temperature Range
-25C to +85C

Circuit Type
Normally Open (NO)

Finish Type
Matte

Rated Voltage
12V DC

Protection Level
IP40

Automation Grade
Manual

Response Time
Instantaneous

Product Type
Push Button VTR Switch

Material
Plastic and Metal Contacts

Insulation Resistance
100M at 500V DC

Contact Resistance
50m initial

Max. Voltage
250V AC

Operating Temperature
-25C to +85C

Stoke
2.5mm 0.2mm

Size
8.5 x 8.5 mm

Color
Black

Weight
Approx. 1.2g

Mounting Type
Through Hole

Current Rating
0.5A 12V DC

No Of Poles
Single Pole

Number of Pins
6 Pins

Storage Temperature
-40C to +90C

Actuation Force
160 40gf

Operations
Push To Make

Terminal Type
Solder Type

Switch Type
Momentary (No-Lock)

Dielectric Strength
AC 500V (50/60Hz for 1 min)

Application
Audio/Video Equipment, Instrumentation Panels

Contact Type
SPST

Environmental RoHS Compliance
Yes

Push Button VTR Switch 8.5X8.5MM 6 PIN NO-LOCK Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About Push Button VTR Switch 8.5X8.5MM 6 PIN NO-LOCK

Material/Body	Plastic
Number Of Switch Positions	1
Usage/Application	Industrial
Voltage (Max)	25V
Maximum Current	2A
Minimum Order Quantity	1000

This is VTR Push Button with a self-locking design, 6-pin. rectangle button.The pins are normally open (disconnected) and when the button is pressed they are momentarily closed.

Precise Momentary Operation

Engineered for push-to-make applications, this switch instantly completes the circuit without locking, ensuring accurate and temporary control. Its Normally Open (NO) configuration makes it suitable for applications requiring immediate circuit activation upon pressing, then returning to its default state once released.

Durability and Safety

With an impressive mechanical life of 100,000 cycles and dielectric strength of AC 500V, this switch is built for long-term, safe usage. The insulation resistance of 100M at 500V DC and IP40 protection ensure reliability even in demanding environments, making it a secure choice for professional installations.

Versatile Installation

Designed with a through-hole mounting style and compact 8.5 x 8.5mm dimensions, this switch fits seamlessly into audio/video equipment and instrumentation panels. Its lightweight (approx. 1.2g) and matte finish offer both functionality and aesthetic appeal, while durable materials withstand repeated use.

FAQs of Push Button VTR Switch 8.5X8.5MM 6 PIN NO-LOCK:

Q: How is the Push Button VTR Switch 8.5x8.5MM installed on electronic equipment?

A: This switch uses solder-type terminals and a through-hole mounting design, allowing it to be easily integrated onto printed circuit boards (PCBs) within audio/video equipment or instrumentation panels.

Q: What benefits does the momentary (no-lock) operation offer?

A: Momentary operation provides instant actuation; the circuit is completed only while pressing the button, returning to its default state once released. This design is essential for temporary operations without continuous engagement.

Q: Where can this switch be applied for optimal performance?

A: Ideal placements include audio/video devices, instrumentation panels, and other control systems where precise, temporary circuit activation is required within a -25C to +85C operating temperature range.

Q: What process ensures the switch meets safety and environmental standards?

A: The switch complies with RoHS standards for environmental safety and undergoes dielectric strength testing at AC 500V, insulation resistance checks at 100M, and mechanical endurance verification up to 100,000 cycles.

Q: When should this switch be chosen over a latching or toggle type?

A: Select this push button for applications requiring a circuit to activate only while the button is pressed, rather than maintaining contact after release. It is ideal for momentary initiation tasks such as test or reset functions.

Q: How does the actuation force affect switch usage?

A: The actuation force of 160 40gf ensures tactile feedback for reliable operation, which helps prevent accidental activation and provides a consistent user experience throughout its service life.

Q: What makes this switch suitable for professional and industrial sectors in India?

A: Its reliable contact resistance (50m), robust mechanical life, RoHS compliance, and compatibility with standard voltages and currents make it an optimal choice for distributors, manufacturers, and traders catering to diverse applications in the region.
