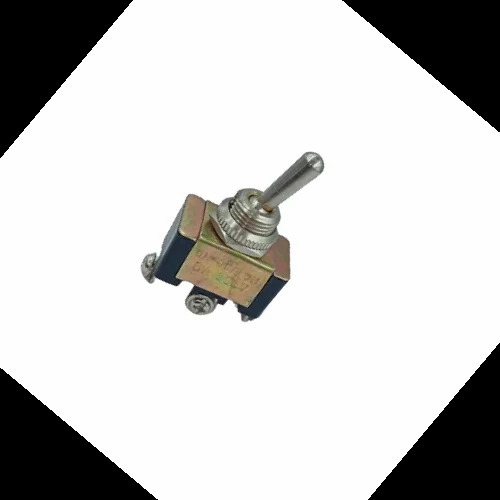

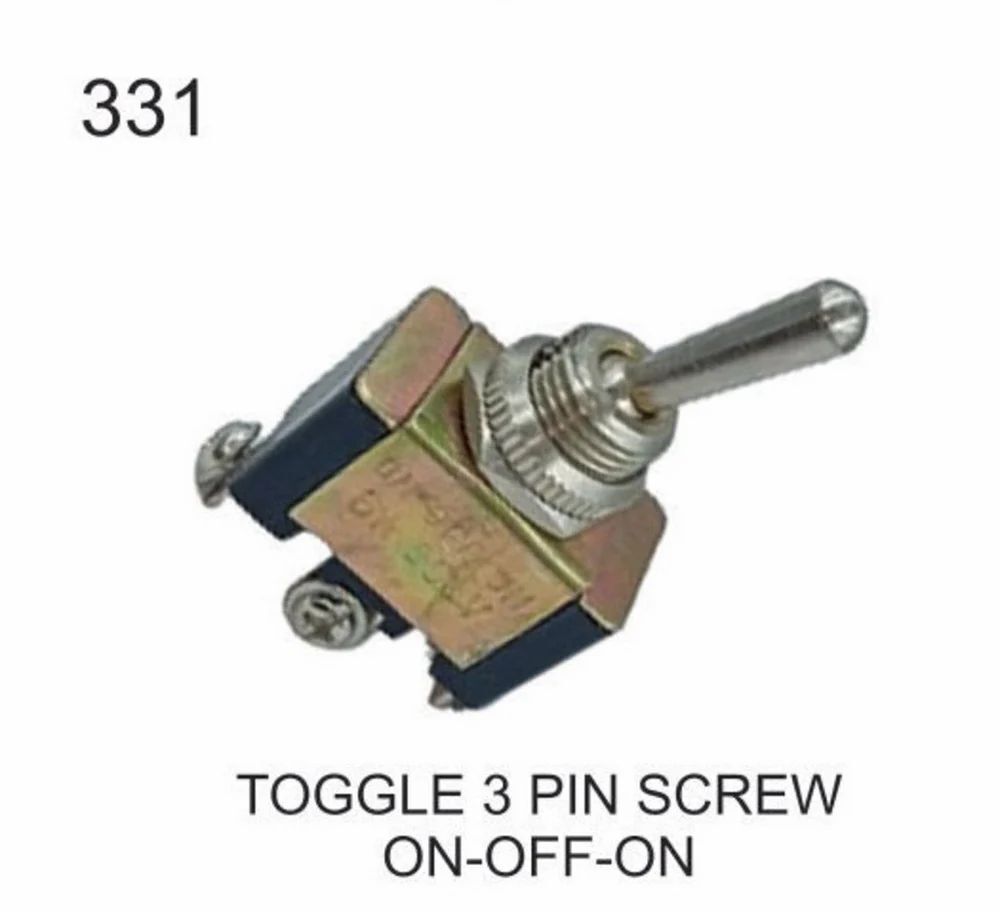

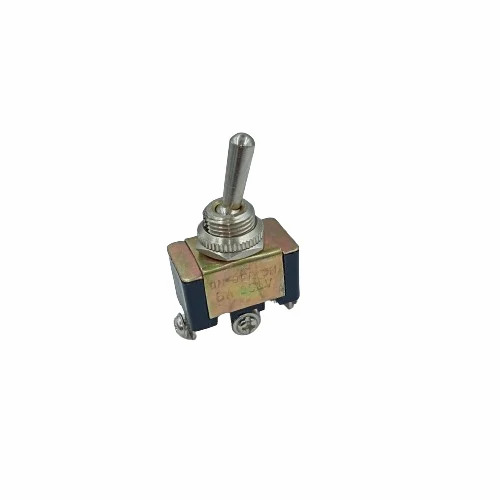

TOGGLE SWITCH 3 PIN SCREW ON-OFF-ON

Price 32 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

TOGGLE SWITCH 3 PIN SCREW ON-OFF-ON Specification

Number of Module
1

Protection Level
IP40

Max. Current
6A

Circuit Type
ON-OFF-ON

Automation Grade
Manual

Finish Type
Nickel Plated

Mechanical Life
100,000 cycles

Temperature Range
-20C to +70C

Response Time
Instantaneous

Rated Voltage
250V AC

Product Type
Toggle Switch

Material
Metal and Phenolic

Insulation Resistance
1000 M at 500VDC

Contact Resistance
20 m

Max. Voltage
250V AC

Operating Temperature
-20C to +70C

Stoke
ON-OFF-ON

Size
Standard Panel Mount

Color
Silver/Black

Weight
Approx. 15g

Mounting Type
Panel Mount

Current Rating
6A at 250V AC

No Of Poles
Single Pole Double Throw (SPDT)

TOGGLE SWITCH 3 PIN SCREW ON-OFF-ON Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About TOGGLE SWITCH 3 PIN SCREW ON-OFF-ON

Industrial toggle switch Simple ON-OFF-ON operation Mini toggle switch with SPDT configuration Easy to install in most electrical systems Durable and reliable switch made of high-quality materials

Model Number	SPDT 6A TOGGLE SWITCH ON/OFF/ON 3WAY
Skillset	Social Skills
Type	Electronic Components
ROHS Complaint	No
Material	Brass
Age Group	16+ Years
Lights	No
Sound	No
Suitable For Gifting	NA
Gift Pack	No
Net Quantity	5

Dimensions

Width	1 cm
Height	2 cm
Weight	0.15

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Other Power Features	ON/OFF/ON

Versatile Control and Easy Installation

With its ON-OFF-ON maintained function, this toggle switch is suitable for a broad range of control panels and electronic projects. The bat handle actuator provides seamless switching, while screw terminals make wiring secure and straightforward. Designed to fit standard 12mm mounting holes, it readily installs on panels up to 4mm thick, allowing for versatile integration in professional and DIY setups.

Durable Build for Industrial Use

Built to withstand tough environments, this toggle switch offers a mechanical life of at least 100,000 cycles and an electrical life of 50,000 cycles. The silver alloy contacts provide excellent conductivity and reliability. With IP40 protection and vibration resistance from 1055Hz at 1.5mm amplitude, it meets the needs of industrial settings, providing consistent performance even under heavy use.

FAQs of TOGGLE SWITCH 3 PIN SCREW ON-OFF-ON:

Q: How is the TOGGLE SWITCH 3 PIN installed onto a panel?

A: To install, prepare a panel hole with 12mm diameter and ensure the panel thickness does not exceed 4mm. Secure the switch using the mounting hardware, and connect wires to the screw terminals following the ON-OFF-ON circuit configuration.

Q: What are the main advantages of using this switch in control panels?

A: Its maintained ON-OFF-ON function, robust construction, high cycle life, and flame-retardant phenolic body make it ideal for reliable manual switching in industrial and commercial panels.

Q: When should you use a Single Pole Double Throw (SPDT) switch like this one?

A: Choose this SPDT toggle switch when you need to alternate a single input between two different outputs, providing flexible circuit control in applications such as selection circuits or reversing polarity.

Q: What is the maximum electrical capacity supported by this toggle switch?

A: The switch is rated to handle up to 6A at 250V AC, making it suitable for many power control and switching tasks within that range.

Q: Where can this toggle switch be used effectively?

A: It can be used in electrical panels, industrial control systems, automotive projects, and custom electronic enclosures, especially those requiring manual switching and reliable durability.

Q: What materials ensure the safety and reliability of this toggle switch?

A: The switch uses silver alloy contacts for excellent conductivity and a phenolic insulator with UL94V-0 flammability rating for enhanced safety and thermal resistance.

Q: What are the operational temperature and vibration resistance specifications for this switch?

A: The switch operates reliably between -20C and +70C and can withstand vibrations from 10 to 55Hz at a 1.5mm amplitude, ensuring stable performance in varying environments.
