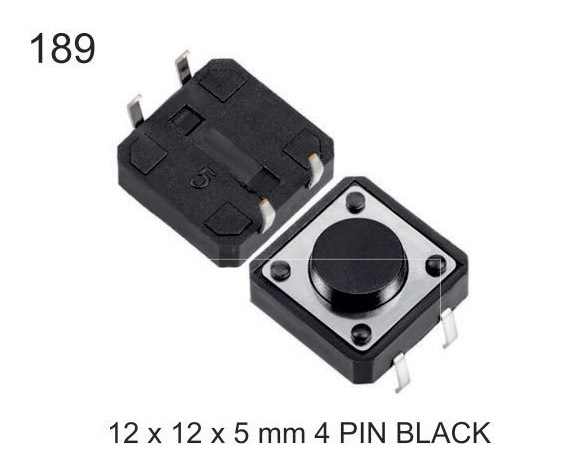

12X12X5 MM 4 PIN BLACK TACTILE SWITCH

Price 2 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

12X12X5 MM 4 PIN BLACK TACTILE SWITCH Specification

Number of Module
1

Rated Voltage
12V DC

Temperature Range
-20C to +70C

Circuit Type
SPST-NO

Protection Level
IP40

Mechanical Life
100,000 cycles

Response Time
<5 ms

Automation Grade
Manual

Max. Current
50mA

Finish Type
Matte

Product Type
Tactile Switch

Material
Plastic Housing, Phosphor Bronze Terminals

Insulation Resistance
100 M (Min. at 500V DC)

Contact Resistance
100 m Max.

Max. Voltage
12V DC

Operating Temperature
-20C to +70C

Stoke
0.25mm 0.1mm

Size
12x12x5 mm

Color
Black

Weight
Approx. 1g

Mounting Type
Through Hole

Current Rating
50mA at 12V DC

No Of Poles
Single Pole

Switch Operation
Momentary (Non-locking)

Travel Force
180~260 gf

Flammability Rating
UL94V-0

Storage Temperature
-40C to +85C

RoHS Compliance
Yes

Contact Material
Silver Plated

Dielectric Strength
250V AC for 1 min

Actuator Type
Round Button

Terminal Type
4 Pin

12X12X5 MM 4 PIN BLACK TACTILE SWITCH Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About 12X12X5 MM 4 PIN BLACK TACTILE SWITCH

Discover a marvelous new releasethe 12X12X5 MM 4 PIN BLACK TACTILE SWITCH, now available with an exclusive price cut. Personalise your electronic innovations using this world-class component, engineered to deliver soaring performance. Built from premium plastic housing and silver-plated contacts, this momentary (non-locking) switch offers exceptional reliability, IP40 protection, and a swift response time under 5 ms. RoHS compliant and flame-retardant (UL94V-0), this tactile switch fits seamlessly in domestic or industrial circuits, making it ideal for manufacturers, exporters, and traders across India.

Versatile Usage and Superior Features

The 12X12X5 MM 4 PIN BLACK TACTILE SWITCH is crafted for general and specific uses in automation, control panels, and consumer electronics. Its world-class momentary action and robust build ensure longevity, with a mechanical life exceeding 100,000 cycles. The switchs single-pole, round button design offers smooth operation while the matte finish provides a refined look. A soaring choice for diverse industrial or DIY projects, it is well-suited for traders, distributors, and manufacturers.

Packaging, Supply, and Payment Insights

Packaging for this tactile switch is designed keeping efficiency and safety in mind, offered in bulk quantities or small packs to accommodate both domestic and export demands. With a robust supply ability to meet growing market needs, estimates and outlays can be tailored to suit varied order sizes. Payment terms are flexible, catering to traders and manufacturers across Indias domestic market, ensuring seamless transactions and delivery throughout the supply chain.

FAQs of 12X12X5 MM 4 PIN BLACK TACTILE SWITCH:

Q: How can the 12X12X5 MM 4 PIN BLACK TACTILE SWITCH be used in automation projects?

A: This tactile switch is ideal for automation projects, functioning as a momentary switch in control panels or input interfaces, offering precise responsiveness and durability.

Q: What are the main features of the 12X12X5 MM 4 PIN BLACK TACTILE SWITCH?

A: Key features include silver-plated contacts, IP40 protection, 100,000-cycle mechanical life, RoHS compliance, and a matte black finish, ensuring both safety and performance.

Q: Where can this tactile switch be installed?

A: It is suitable for both general and specific applications, including domestic electronics, industrial machines, and embedded systems, thanks to its robust design and through-hole mounting.

Q: What is the recommended storage temperature for this switch?

A: The switch should be stored between -40C to +85C, preserving its integrity until installation and use.

Q: What benefits does the world-class construction offer?

A: With phosphor bronze terminals and silver plating, the switch delivers excellent conductivity, low contact resistance, and long operational life, ensuring reliability in demanding environments.

Q: What are the packaging and supply options available?

A: Packaging can be customised to bulk or small-volume needs, with consistent supply and adaptable payment terms catering to both domestic and international markets.
