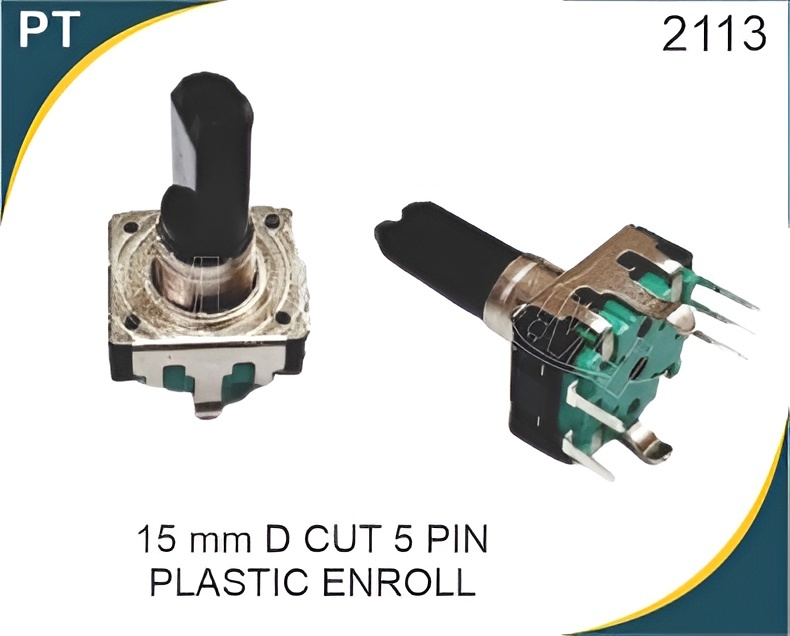

15 MM D-Cut 5 Pin Plastic Enroll

Price 22 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

15 MM D-Cut 5 Pin Plastic Enroll Specification

Connector Type
5 Pin Female

Operating Temperature
-20C to 80C

Feature
Durable, Corrosion-resistant

Mounting Type
Panel Mount

Power Factor
0.9

Humidity %
Up to 95% RH

Insulation Material
Thermoplastic

Surface Finish
Smooth

Overheating Protection
YES

Shape
D-Cut

Efficiency
99%

IP Rating
IP20

Product Type
Plastic Enroll

Application
Electrical Panel Wiring, Connector circuits

Protection Level
Standard

Frequency (MHz)
50/60 Hz

Rated Voltage
250V

Energy Consumption
Low

Output Type
Connector Output

Color
White

Dimension (L*W*H)
15mm x 8mm x 4mm

Weight
16 grams

Input Voltage
250V

Phase
Single Phase

Size
15 mm

No Of Poles
5

Connection Type
Pin Connect

Material
High-grade Plastic

15 MM D-Cut 5 Pin Plastic Enroll Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 15 MM D-Cut 5 Pin Plastic Enroll

Encoder Type	Rotary
Shaft Type	Solid
Usage/Application	Industrial
Color	Black
Power Supply Voltage	STANDARD
Surface Finish	Matte
Low-Level Signal	YES
Multi Turn	NO
Single Turn	YES
Features	TONE VOLUME
Maximum Rotation Speed	STANDARD
Weight (packed state)	LITE
Cable And Connector	NO
Minimum Order Quantity	1000 Piece

Consumer Electronics: Power switches in radios, flashlights, and toys.Industrial Equipment: Control switches for machinery and equipment.Automotive: Control switches for lights, wipers, and other systems.Telecommunication Devices: Signal routing and selection.Computers and Peripherals: Mode selection, reset switches, and power control....

Durable and Reliable Performance

Engineered using premium thermoplastic and nickel-plated brass, this 5-pin connector guarantees robust performance for demanding electrical panel setups. The smooth surface finish, corrosion resistance, and secure panel mount design deliver lasting operation across tough environments. With overhead protection and a low contact resistance of 10m, it assures efficient and safe current flow for critical applications.

Easy Integration for Versatile Applications

The D-Cut connector is compatible with 22-18 AWG wires, accommodating a wide range of wiring requirements. Its panel-mount configuration, single-phase compatibility, and convenient bag or box packaging streamline installation for manufacturers, distributors, and maintenance teams alike. Rated for up to 250V and supporting standard protection, it meets the needs of modern electrical panels and connector circuits.

FAQs of 15 MM D-Cut 5 Pin Plastic Enroll:

Q: How does the 15 MM D-Cut 5 Pin Connector ensure safety in electrical panel installations?

A: This connector features a UL94-V0 flammability rating and is constructed from high-grade thermoplastic, providing strong insulation and fire resistance. It also offers standard IP20 protection, ensuring user safety against accidental contact and dust ingress.

Q: What wire sizes are supported by this connector, and how should they be connected?

A: The connector supports 22-18 AWG wire gauges. Wires should be properly stripped and inserted into the pin slots, ensuring a firm and solid connection for optimal electrical conductivity and secure mounting within panel assemblies.

Q: When should I choose the D-Cut 5 Pin connector over other connector types?

A: This connector is ideal when secure, space-efficient panel mounting and multiple circuit connections are required, especially in single-phase electrical panels. Its durability and panel-mount configuration make it suitable for robust and repeatable connections.

Q: Where is the most suitable environment to use this product?

A: It is designed for use in indoor electrical panels, industrial automation systems, and various equipment where connectors must withstand temperatures from -40C to 90C and up to 95% relative humidity. Its construction is optimal for controlled environments needing reliable, low-energy connectors.

Q: What are the main benefits of using nickel-plated brass pins in this connector?

A: Nickel-plated brass pins provide excellent conductivity and corrosion resistance, which ensures lasting electrical performance and reduces maintenance in environments prone to oxidation or moisture exposure.

Q: How does this product comply with environmental standards?

A: The connector is RoHS compliant, meaning it is manufactured without hazardous substances, making it eco-friendly and suitable for global markets requiring adherence to strict chemical safety regulations.
