DC Power Supply Female Plug Metal Socket with Plastic cover

Send Inquiry

Request To Call Back

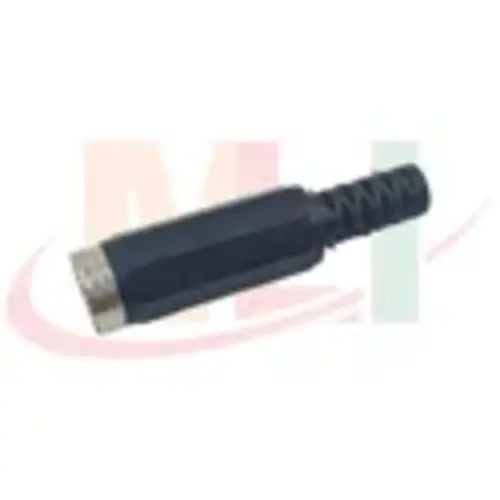

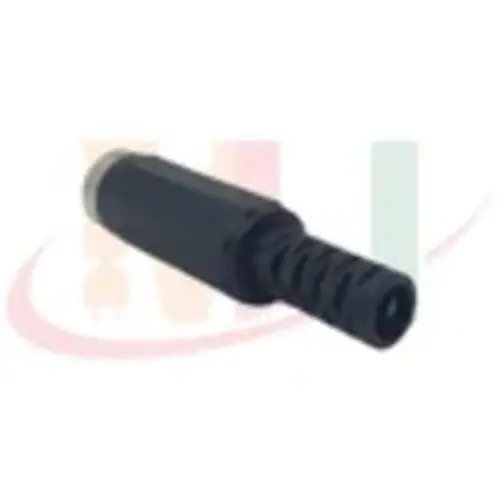

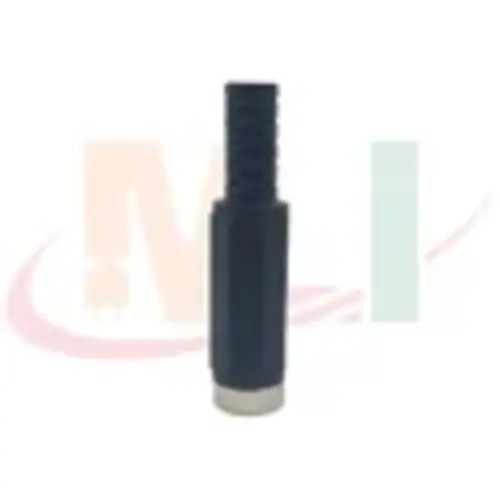

DC Power Supply Female Plug Metal Socket with Plastic cover

Name: DC Power Supply Female Plug Metal Socket with Plastic cover
Brand: Madan Link Industries
Price: 20.0 INR
Availability: InStock

Price 20.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

DC Power Supply Female Plug Metal Socket with Plastic cover Specification

Cable Diameter
Up to 5mm

Thickness
Standard (approx 12mm body length)

Sealed
Non-sealed, standard

Surface Treatment
Nickel Plated

Product Type
DC Power Supply Female Plug

Material
Metal (nickel-plated brass) + Plastic (PVC cover)

Application
Low voltage DC power connections

Contact Resistance
0.03

Insulation Resistance
>100M at 500V DC

Diameter
Outer diameter 5.5mm, Inner pin 2.1mm or 2.5mm

Terminal Socket
Female socket

Style
Barrel type

Fittings
Panel mount, solder type

Rated Voltage
DC 12V - 24V

Weight
Approx 5g

Color
Black with silver metal ring

Flame Retardant
PVC cover, standard grade

Endurance
>5000 mating cycles

Compliance
RoHS compliant

Operating Temperature Range
-20C to +70C

Mounting Type
Cable mount

Connector Type
Female DC barrel

Current Rating
Up to 5A

About DC Power Supply Female Plug Metal Socket with Plastic cover

Connector Type	Barrel Plug
Current Rating	3 A
Voltage Rating	12 V
Pin Size	5.5x2.1 mm
View in Hindi	" "

This connector is a DC barrel Jack connector which fits with standard 2.1mm DC barrel jack female connector.

This barrel jack plug is great for adding a common connector to the end of our wires. This jack is compatible with 5.5mm barrel jacks that have a 2.1mm center pole diameter. The outer shell unscrews to reveal solder terminals and a crimp strain relief. The outer shell has strain relief as well.

This is a general-purpose connector to be used in a variety of applications where a female 2.1mm DC barrel jack is there to receive DC power. This kind of connector is normally found in the wall DC adapter.

Connector Type	Female Connector
Shape	Cylindrical
Colour	Black-silver
Diameter(mm)	2.1

Reliable Connection for DC Power Applications

The female barrel socket provides secure and stable connectivity for low-voltage DC devices. Its robust construction combines a nickel-plated brass body and a flame-retardant PVC cover, ensuring safety and longevity in standard electronic projects, automation systems, and powered equipment. The connector suits panel and cable mounting, making it versatile for various installation needs.

Designed for Durability and Compliance

With an endurance rating of over 5000 mating cycles and RoHS compliance, this DC barrel socket stands out for reliability and eco-friendly material composition. Its insulation resistance (>100M at 500V DC) and flame-retardant PVC cover protect both users and devices, even in challenging environments.

FAQ's of DC Power Supply Female Plug Metal Socket with Plastic cover:

Q: How do I install the DC Power Supply Female Plug Metal Socket?

A: To install, insert the connector into a pre-cut panel hole or onto a cable with up to 5mm diameter. Solder your power wires onto the socket terminals, ensuring correct polarity, then secure the socket using the panel-mount fittings and plastic cover.

Q: What applications is this female barrel socket suitable for?

A: This connector is ideal for low-voltage DC power applications such as powering electronics, audio equipment, CCTV systems, and small appliances requiring 12V to 24V supply.

Q: Where can this socket be mounted?

A: You can cable-mount this socket or panel-mount it on devices, control boxes, or enclosures by utilizing its panel-mount fitting. Its design accommodates standard thickness panels and cables up to 5mm in diameter.

Q: What benefits does the flame-retardant PVC cover provide?

A: The flame-retardant PVC cover enhances electrical safety by minimizing fire risks during operation, making the connector safer for indoor and commercial applications.

Q: What is the lifespan and endurance of the socket?

A: The connector is rated for over 5000 mating cycles, ensuring long-term durability and reliable electrical performance during repeated use or maintenance.

Q: When should I use the 2.1mm or 2.5mm inner pin diameter option?

A: Choose the 2.1mm or 2.5mm inner pin size to match the plug on your DC power source or device to ensure a snug, reliable connection and avoid compatibility issues.

Q: Is this product RoHS compliant?

A: Yes, the DC Power Supply Female Plug Metal Socket is fully RoHS compliant, making it suitable for use in applications that require environmentally responsible and safe electronics.
