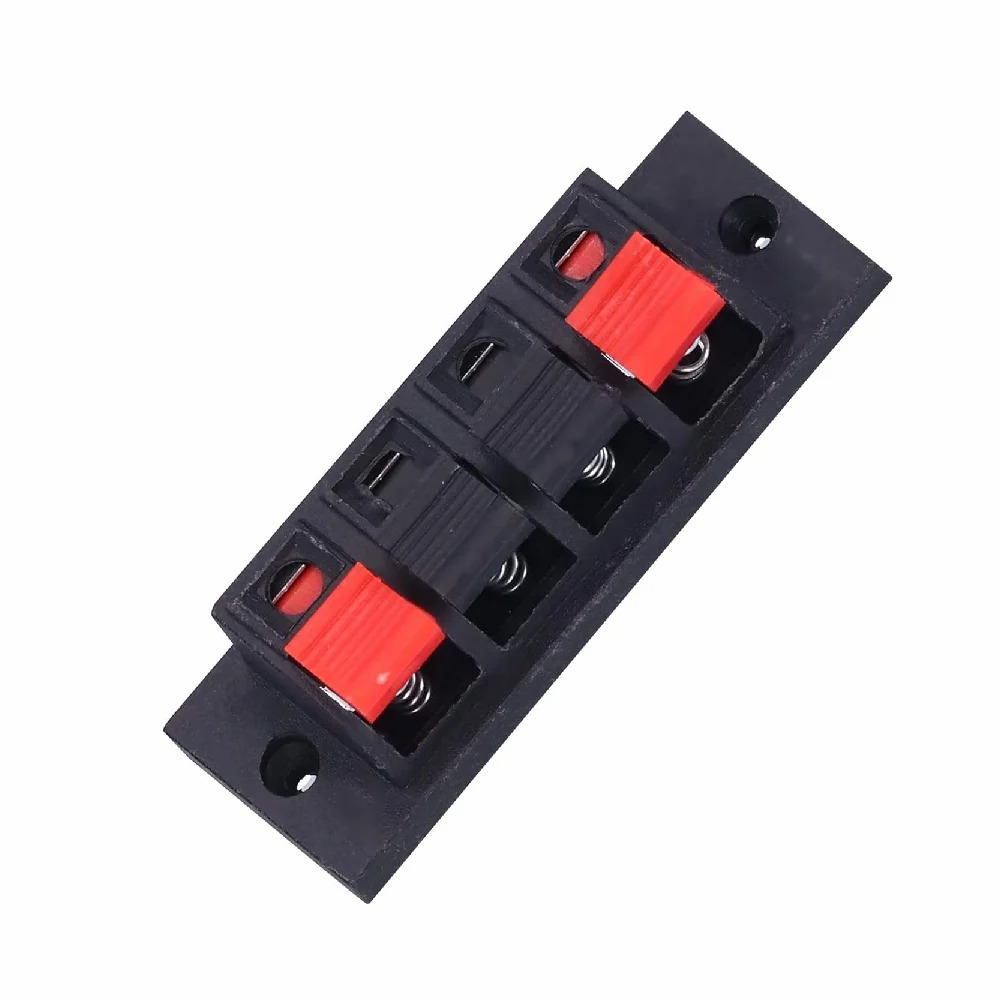

4 WAY SPEAKER SOCKET STRAIGHT

About 4 WAY SPEAKER SOCKET STRAIGHT

• Standard Connectivity: Provides standard audio and video connectivity, widely used in consumer electronics.
• Color-Coded: Typically color-coded (red, white, yellow) for easy identification of audio and video channels.
• Durable Construction: Made from high-quality materials such as gold-plated contacts to ensure durability and optimal signal transmission


Reliable 4-Way Audio Connection

This straight-type speaker socket provides efficient transmission for audio signals. Its four-way design allows seamless linking of multiple speaker channels, making it a practical addition to hi-fi systems, public address installations, or studio setups. The robust brass contacts and flame-retardant ABS offer excellent durability under demanding conditions.


Easy Installation and Compatibility

Mounting this socket is straightforward, requiring a 26mm round cut-out and secured via screw terminals that accommodate 2.5mm cables. The compact 33mm face diameter and panel mount fittings make it suitable for custom audio setups, speaker cabinets, and enclosures where a reliable, simple connection is necessary.



FAQs of 4 WAY SPEAKER SOCKET STRAIGHT:




Q: How do I install the 4 WAY SPEAKER SOCKET STRAIGHT on my audio panel?

A: To install, simply create a 26mm round cut-out in your panel and use the panel mount fittings to secure it in place. Connect your speaker wires (up to 2.5mm) to the screw terminals using M2.5 screws. Ensure the wiring is tight for an optimal connection.



Q: What is the benefit of using a flame-retardant, RoHS compliant speaker socket?

A: Flame-retardant properties increase safety by reducing fire risk, while RoHS compliance ensures the socket does not contain hazardous substances, making it a responsible and eco-friendly choice for audio installations.



Q: Where can this socket be used effectively?

A: This socket is ideal for use in speaker cabinets, home theater systems, public announcement systems, and professional audio setups within its IP20-rated indoor environment. Its straight style and panel mount compatibility make it versatile for various applications.



Q: What is the maximum electrical rating for this speaker socket?

A: The socket is rated for 5A maximum current and 250V AC, ensuring it can handle most standard audio connections safely.



Q: What process is recommended for wire termination with this socket?

A: Wires should be stripped to the correct length and firmly secured into the terminal using the screw termination feature. This ensures a low contact resistance connection below 30m, promoting signal clarity.



Q: When is it suitable to use this socket for audio applications?

A: It is suitable whenever you require a reliable, panel-mounted connection for up to four speakers or channels, especially when durability and flame resistance are important, such as in equipment installed in public or professional environments.
