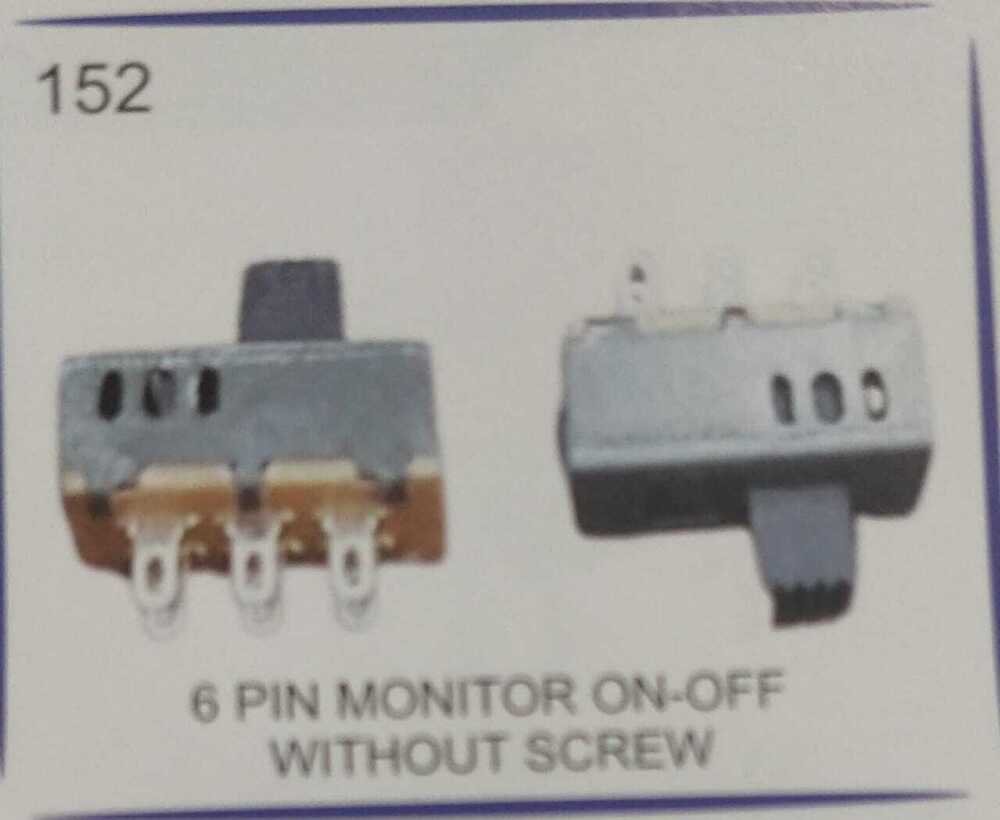

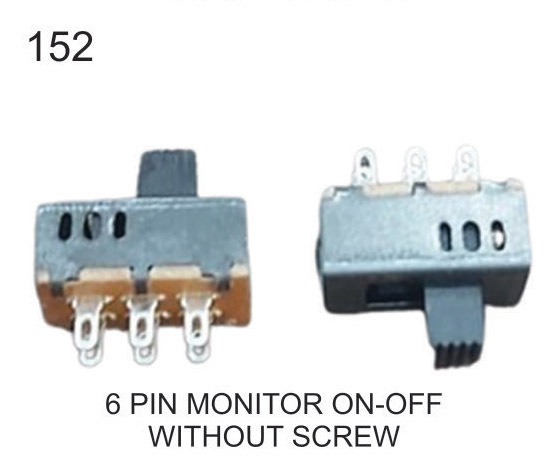

6 PIN SLDIE SWITCH ON-OFF WITHOUT SCREW

About 6 PIN SLDIE SWITCH ON-OFF WITHOUT SCREW

• 6 PIN MONITER ON-OFF WITHOUT SCREW
  Data Transfer: Connecting peripherals such as keyboards, mice, and storage devices to computers.
• Charging: Powering and charging devices like smartphones, tablets, and other portable electronics.
• Peripheral Connectivity: Connecting devices like printers, cameras, and external hard drives.
• Audio/Video Transmission: Connecting devices like monitors and projectors with appropriate adapters.
• Power Delivery: Providing power to devices through standards like USB Power Delivery (USB PD).


Reliable Performance and Durability

With a rated voltage of 125V AC / 250V DC and current rating of 3A at 250V AC, this slide switch is engineered for robust and consistent operation. Its copper alloy contacts with silver plating resist corrosion and deliver low contact resistance, while the plastic handle ensures smooth manual switching. The device can withstand over 10,000 mechanical cycles and endure a wide temperature range, promising great longevity in varied environments.


Easy Installation for PCBs and DIY Projects

Designed for solder pin termination and through-hole mounting, the switch integrates seamlessly into printed circuit boards and electronic assemblies. DIY enthusiasts, manufacturers, and traders benefit from its simple setup process, compact size (18 x 6 x 13 mm), and immediate ON-OFF switching capability. No screws are required for mounting, streamlining installation and maintenance.


Safe and Compliant for Diverse Applications

The product meets RoHS standards and features IP20 protection, making it suitable for safe use in consumer and industrial electronics. High insulation resistance (100M at 500V DC) and dielectric strength (1000V AC for 1 minute) enhance operational safety, preventing accidental shorts and ensuring user protection. Its black and silver color, combined with a PVC and metal construction, offers both durability and aesthetic appeal.



FAQs of 6 PIN SLDIE SWITCH ON-OFF WITHOUT SCREW:




Q: How is the 6 PIN SLIDE SWITCH installed onto PCBs or electronic circuits?

A: The switch is designed for through-hole mounting and solder pin termination. Users simply insert the pins into the PCB holes and solder them, ensuring a secure and reliable electrical connection without the need for screws.



Q: What are the benefits of using copper alloy contacts with silver plating in this switch?

A: Copper alloy contacts provide excellent conductivity, while silver plating enhances durability and reduces contact resistance. This combination ensures efficient performance and a longer lifespan in various electronic applications.



Q: When should this slide switch be used in electronic circuit designs?

A: The switch is ideal for situations where manual ON-OFF control is needed, such as power regulation, device mode selection, or signal routing. It is suitable for DIY projects, consumer electronics, and industrial applications due to its robust design and reliable function.



Q: Where can I use the switch in terms of temperature and environment?

A: The switch operates efficiently within a temperature range of -20C to +70C and can be stored at -40C to +85C. However, since its protection level is IP20, it is best used in dry indoor environments, particularly within electronic enclosures.



Q: What is the switching process and response time of this device?

A: The mechanical slide actuator enables instant ON-OFF switching, providing immediate response time. The stoke of 2.5mm allows for comfortable manual operation without lag or delay.



Q: How does RoHS compliance benefit users and manufacturers?

A: RoHS compliance ensures the switch is free from hazardous substances, making it environmentally friendly and safer for both users and manufacturers. This adherence supports international regulatory standards and promotes sustainable electronics production.



Q: What usage advantages does the slide switch offer for DIY and professional projects?

A: Its simple handling, reliable performance, compact design, and instant response make it highly versatile for a range of applications, from hobbyist circuit boards to industrial equipment, facilitating efficient manual control with minimal installation effort.
