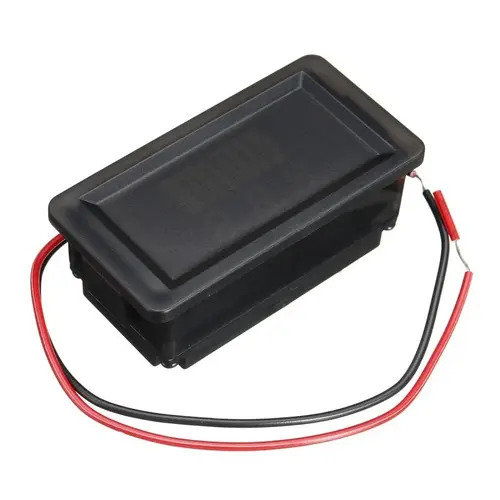

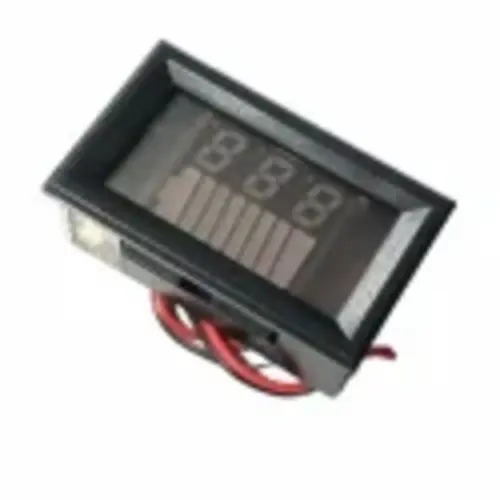

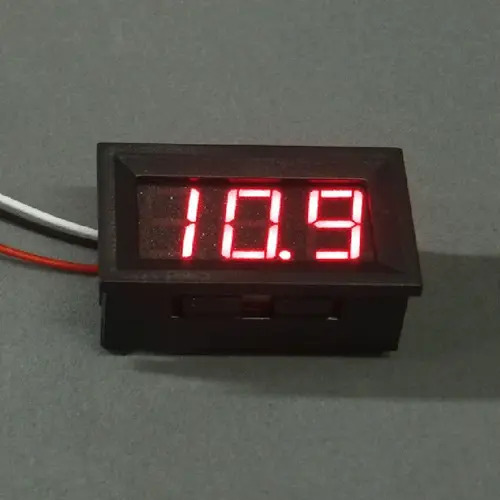

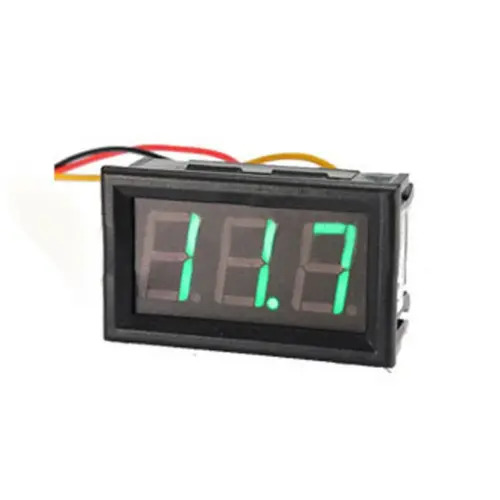

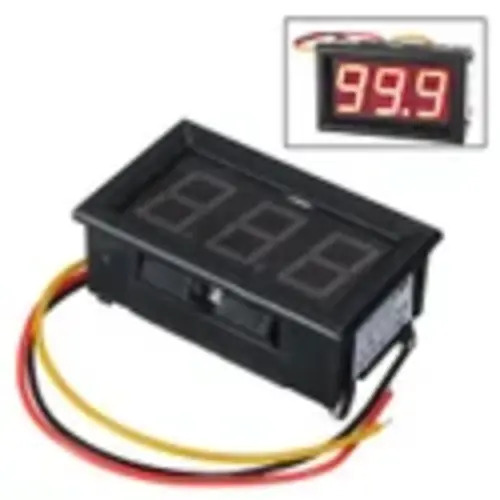

Panel Mount LCD Display Voltmeter 12V DC for Battery Test

Name: Panel Mount LCD Display Voltmeter 12V DC for Battery Test
Brand: Madan Link Industries
Price: 250.0 INR
Availability: InStock

Price 250.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Panel Mount LCD Display Voltmeter 12V DC for Battery Test Specification

IP Rating
Not rated

Shape
Rectangular

Power Factor
Not Applicable (DC)

Mounting Type
Panel Mount

Overheating Protection
NO

Feature
Clear 3-digit Red LED display, Panel mountable, Compact design

Efficiency
High Efficiency (Low Power Consumption)

Operating Temperature
0C to 50C

Surface Finish
Matte Black Plastic

Insulation Material
Plastic Enclosure

Humidity %
90% RH (non-condensing)

Connector Type
Bare wire leads

Product Type
Panel Mount LCD Display Voltmeter

Application
Battery Voltage Testing, Electronic Projects

Protection Level
Basic, No specific IP rating

Frequency (MHz)
DC Application, Not Applicable

Rated Voltage
12V DC

Energy Consumption
Low, typically <0.1W

Output Type
Digital Display

Color
Black Casing, Red LED Display

Dimension (L*W*H)
Approx. 48mm x 29mm x 22mm

Weight
Approx. 25g

Input Voltage
4.5V-30V DC (ideal: 12V DC)

Size
Standard panel size (approx. 48x29mm front)

Connection Type
Wired (Lead Wires)

Material
ABS Plastic Body

Fire Resistance
ABS housing is non-fireproof

Storage Temperature
-10C to 60C

Measuring Range
DC 0V to 30V

Sampling Rate
Approx. 500ms

Display Type
3-Digit 7-Segment LED

Wiring Length
Approx. 15cm

Polarity Indication
Automatic (with reverse polarity protection)

Display Resolution
0.1V

Response Time
Instantaneous (user-perceived)

Calibration
Factory calibrated, user non-adjustable

Panel Mount LCD Display Voltmeter 12V DC for Battery Test About

Display Type	LCD
Voltage Range	12v
Mounting Type	Panel Mount
Application	Battery Test
Life Span	Brand Generic Power Source Battery Powered Style Digital Specification Met CE Measurement Type Volt
METER	DIGITAL VOLTMETER
Country of Origin	Made in India
View in Hindi	LCD 12V DC

Operating Voltage: 0-100 VDC

It is a 3-wire display.

LED Color: RED

Current Consumption : <40 mA

Accuracy: 0.1 V.

Refresh Speed : Approx 200mS/time.

The display on Voltage: 3 V.(but not measure accurately up to 3.6V).

Clear, Accurate Voltage Display

This voltmeter offers precise voltage readings with a clear 3-digit red LED display. The 0.1V resolution ensures you can monitor even slight changes in battery voltage, making it essential for battery tests or electronic projects. Its instantaneous response delivers real-time data, supporting quick decision-making.

Easy Panel Mount Installation

Designed for standard panel mounting, the device's compact, lightweight build fits seamlessly into project boxes or control panels. Installation is user-friendly thanks to its wired connection with 15cm bare wire leads and robust ABS plastic housing, making it suitable for various DC applications up to 30V.

Reliable and Safe Operation

With automatic polarity indication and reverse polarity protection, the voltmeter guards against accidental wiring errors. It is factory-calibrated for user convenience and operates efficiently at low power, without the need for manual adjustments. Operating between 0C to 50C, it's reliable for most environments.

FAQ's of Panel Mount LCD Display Voltmeter 12V DC for Battery Test:

Q: How do I install the panel mount LCD display voltmeter in a project?

A: To install the voltmeter, mount the rectangular body (approx. 48mm x 29mm) into a suitable panel cutout, then connect the bare wire leads to your DC voltage source. The voltmeter is panel mountable and designed for straightforward integration in standard panel sizes.

Q: What is the measuring range and display resolution of this voltmeter?

A: This voltmeter measures DC voltages from 0V to 30V with a display resolution of 0.1V, providing clear and accurate readings on its 3-digit red LED panel.

Q: When should I use this voltmeter for battery testing?

A: Use this voltmeter whenever you need to monitor or diagnose battery voltage, particularly for maintenance, troubleshooting, or during electronic project setups involving DC systems.

Q: Where can this voltmeter be used?

A: The device is suitable for battery voltage testing, electronic circuits, DC-powered control panels, lab instruments, and any environment requiring panel-mounted voltage monitoring for 4.5V-30V DC applications.

Q: What benefits does the automatic polarity indication offer?

A: Automatic polarity indication with integrated reverse polarity protection makes wiring safe and convenient, reducing the risk of damage due to incorrect connections.

Q: How does the factory calibration affect the use of this voltmeter?

A: Since the voltmeter is factory calibrated, users do not need to perform manual calibration, ensuring reliable accuracy and simplifying operation from the moment of installation.

Q: What should I know about the panel voltmeter's protection and housing?

A: The voltmeter has basic protection with no specific IP rating, and its ABS plastic body is not fireproof. It is intended for dry, indoor applications and suitable for projects requiring basic voltage monitoring and efficient energy usage.
