JOINT TERMINAL MATT FINISH GOLD PLATED

Price 32 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

JOINT TERMINAL MATT FINISH GOLD PLATED Specification

Sealed
NO

Surface Treatment
24K Gold Plated, Matt Finish

Cable Diameter
1.5 mm - 10 mm

Thickness
0.4 - 1.2 mm

Product Type
Joint Terminal

Material
High-Grade Brass

Application
Switchgear, Panel Boards, Electrical Equipment

Contact Resistance
3 m

Insulation Resistance
1000 M

Diameter
3 mm - 8 mm

Terminal Socket
Single/Double Socket Options

Style
Matt Finish

Fittings
Crimp/Solder Type

Rated Voltage
Up to 600V

Weight
Approx. 2-5 Grams Each

Color
Gold

JOINT TERMINAL MATT FINISH GOLD PLATED Trade Information

Minimum Order Quantity
100 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About JOINT TERMINAL MATT FINISH GOLD PLATED

Diameter	4 mm
Weight	22gm
Contact Terminal	copper
Gender	female
I Deal In	New Only
Material	Metal and plastic
Pin Hole Diameter (mm)	3.37
Minimum Order Quantity	1000 Piece

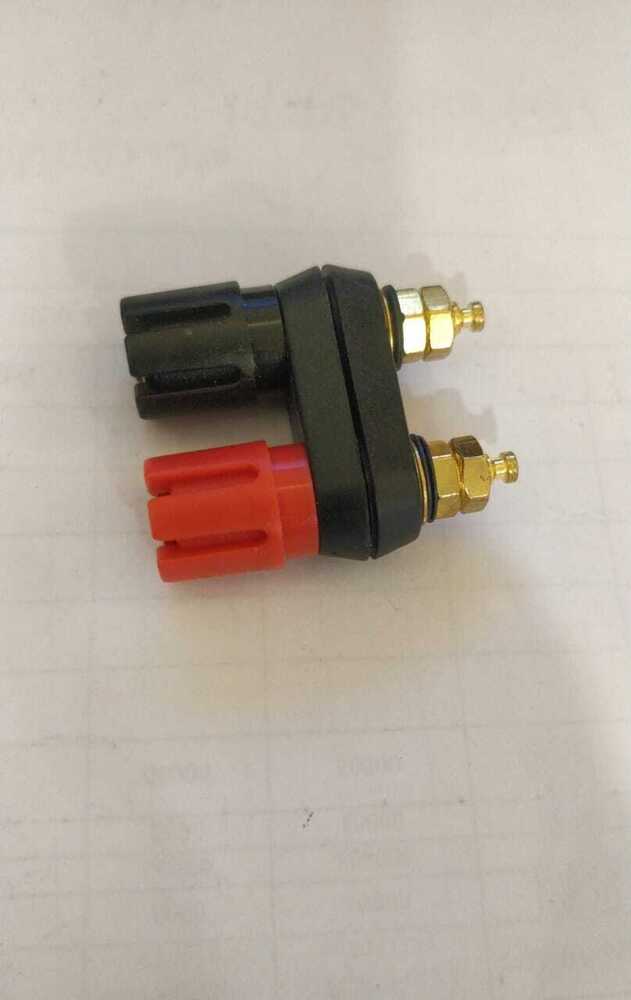

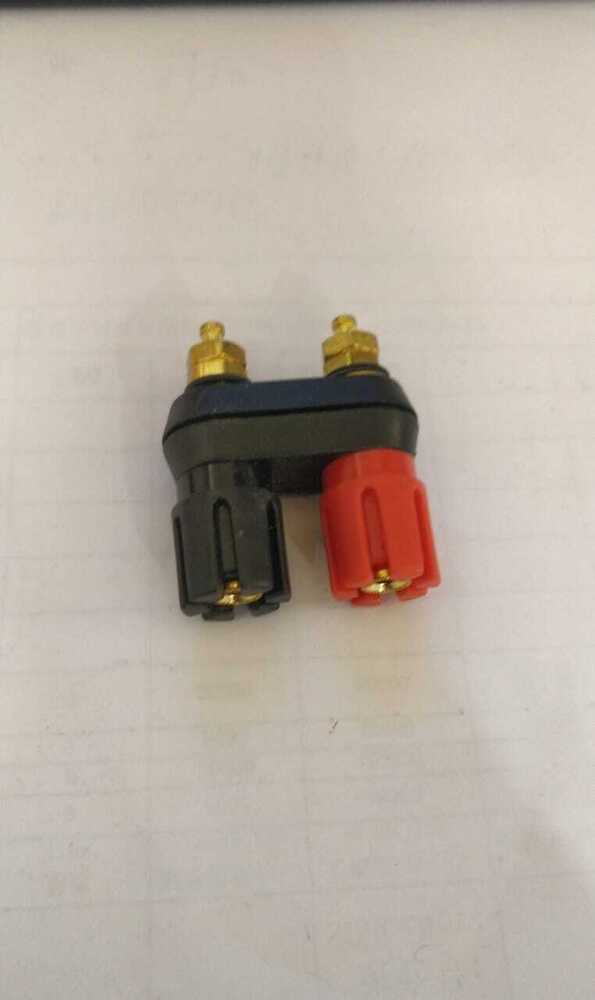

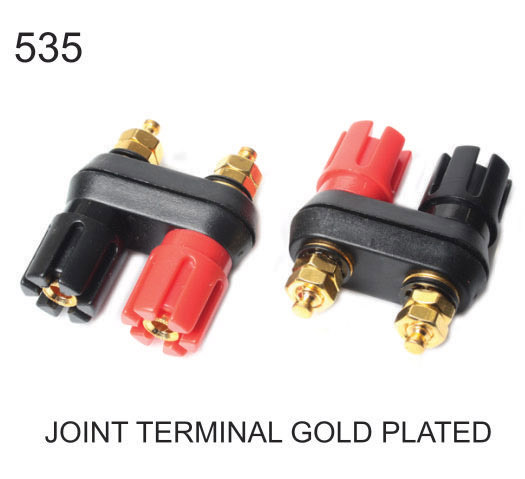

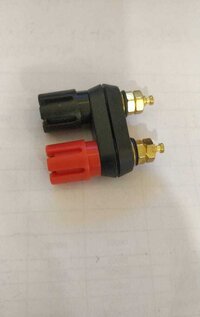

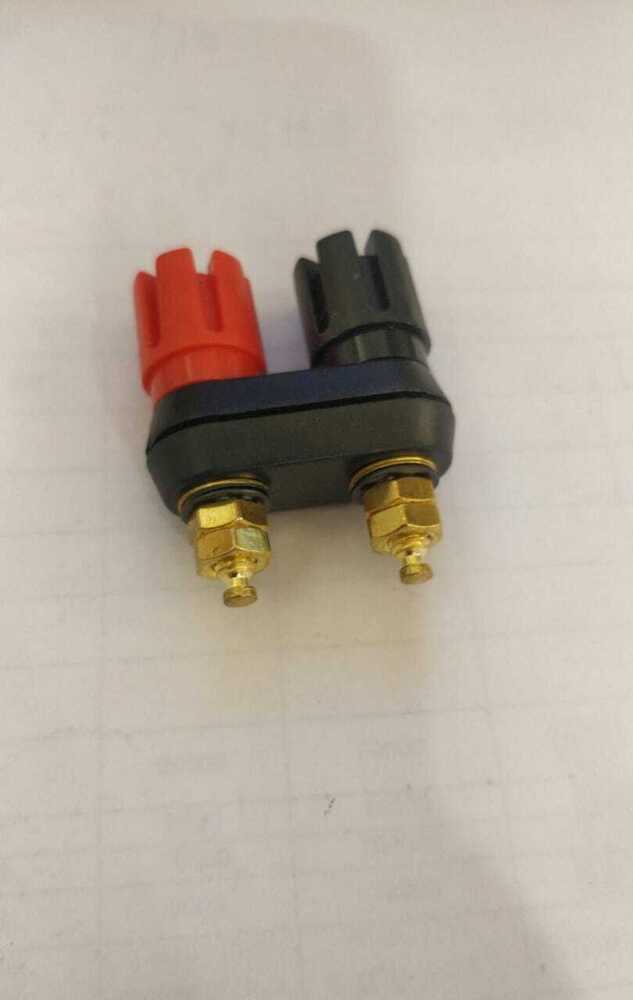

Banana plugs couple terminals Red Black Connector amplifier terminal is a standard dual binding post made for chassis mounting. It will accommodate a standard dual banana plug, up to 16 gauge wire, and high current spade connectors stacked up to 5 mm high.

The front and rear chassis insulators have a slight lip that keeps the conductors centered and from touching the chassis. This unit has two 0.5i holes drilled in the center. Will work on chassis up to 0.25i thick. High-temperature high impact injection molded plastic.

Also, it has screws for holding the wire in place. No soldering. Gold plated terminals for long life.

Colour coded insulation jackets for easy recognition.

Advanced Gold Plated Finish for Enhanced Reliability

With its 24K gold-plated surface and matt finish, this terminal achieves outstanding corrosion resistance and electrical conductivity. The anti-tarnish matt finish ensures stable, long-term performance, even in challenging environments. Ideal for industrial use, the gold plating significantly lowers contact resistance, providing secure and efficient current transmission.

Versatile Application Across Electrical Installations

Suitable for a broad range of applications, including switchgear, panel boards, and electrical equipment, these terminals can be mounted via wire-to-wire or on panels. The crimp or solder fittings allow for easy installation, while multiple socket options cater to diverse design requirements. The products high insulation and tensile strength guarantee safety and dependability.

Durability and Compliance Assured

Manufactured to industry standards, these terminals deliver high tensile strength and durability, with a thickness ranging from 0.4 to 1.2 mm. They are engineered for long life and reliability. Furthermore, the product is RoHS compliant, free from hazardous substances, making it an environmentally responsible choice for projects.

FAQs of JOINT TERMINAL MATT FINISH GOLD PLATED:

Q: How does the matt gold finish benefit the performance of the terminal?

A: The matt finish with 24K gold plating not only imparts an elegant appearance but also maximizes corrosion resistance and limits contact resistance to less than 3 m. This ensures a consistently stable electrical connection over time, even in demanding environments.

Q: What types of fittings are supported by this joint terminal?

A: This terminal accommodates both crimp and solder fittings, allowing flexibility in installation depending on your applications requirements. It supports wire-to-wire and panel mounting configurations for various setup needs.

Q: Where are these terminals commonly used?

A: Joint Terminal Matt Finish Gold Plated connectors are widely utilized in switchgear assemblies, panel boards, and general electrical equipment, catering to both industrial and commercial installations that demand secure and long-lasting connections.

Q: What process is involved in mounting and connecting the terminals?

A: Installation involves selecting the appropriate terminal socket (single or double) and fitting type (crimp or solder). After preparing the cable, insert it into the terminal and secure the connection as per recommended electrical standards for safety and reliability.

Q: What are the operating conditions for these terminals?

A: These terminals operate efficiently in temperatures ranging from -20C to +120C, with insulation resistance of at least 1000 M. This makes them suitable for use in a variety of environments, including those with fluctuating temperature or humidity.

Q: How does gold plating enhance corrosion resistance and durability?

A: Gold plating acts as a protective barrier against environmental contaminants, preventing oxidation and rust. This significantly enhances the lifespan and reliability of the terminals, making them highly suitable for applications where long-term performance is essential.
