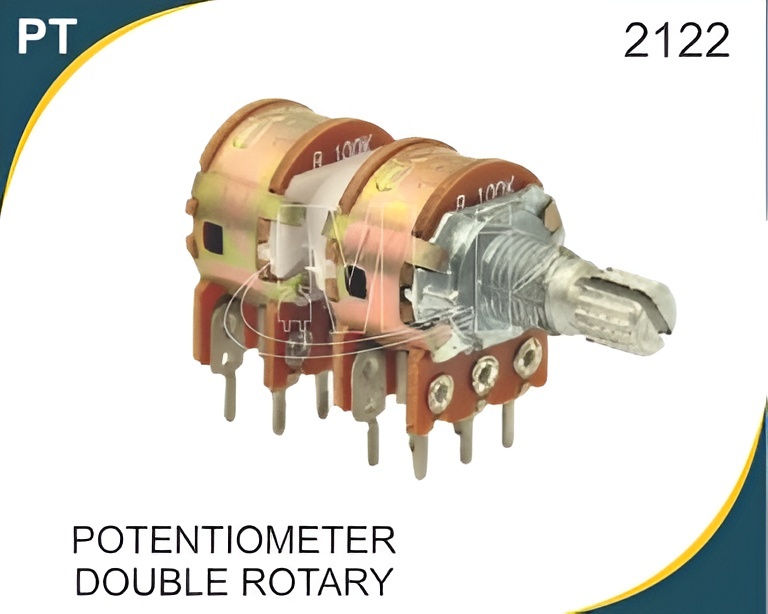

Potentiometer Double Rotary 100k

About Potentiometer Double Rotary 100k

• Consumer Electronics: Power switches in radios, flashlights, and toys.
• Industrial Equipment: Control switches for machinery and equipment.
• Automotive: Control switches for lights, wipers, and other systems.
• Telecommunication Devices: Signal routing and selection.
• Computers and Peripherals: Mode selection, reset switches, and power control.


Dual Gang Linear Control for Precision

The double rotary configuration enables independent control of two circuits, essential for stereo audio balancing or multi-channel adjustments. Its B-type linear taper ensures consistent response across the entire rotational range, ideal for volume, tone, or industrial parameter regulation.


Easy Panel Mounting and Durable Build

Designed for simple panel mounting, the 6mm knurled shaft and standard 16mm base diameter fit most enclosures. The robust nickel-plated and black-coated finish ensures longevity, while the mechanical stops provide precise, repeatable adjustments over a 270 angle.


Reliable Performance in Demanding Environments

Operating between -10C to +70C and up to 90% relative humidity (non-condensing), this potentiometer suits various industrial and audio applications. Its high cycle life and solder lug connections further enhance reliability and ease of assembly.



FAQs of Potentiometer Double Rotary 100k:




Q: How do I install the Potentiometer Double Rotary 100k on my audio panel?

A: You should mount the potentiometer through a suitable panel hole using its threaded shaft and secure it with a nut. The solder lugs make wiring straightforwardjust connect to your circuit as required, ensuring a stable fit for optimal performance.



Q: What benefits does a double rotary, double gang potentiometer offer compared to single gang models?

A: Double gang potentiometers provide two independent resistance controls in one compact assembly, ideal for applications like stereo audio where simultaneous adjustment of two channels or parameters is required.



Q: When is the Potentiometer Double Rotary 100k ideally used?

A: This potentiometer is best used in stereo audio equipment, industrial control panels, and any application where precise, independent adjustment of two circuits is necessary.



Q: Where should I use this potentiometer for optimal results?

A: It performs best in devices or panels requiring analog variable resistance, such as audio mixers, amplifiers, or industrial measurement equipment, especially where space-saving is important.



Q: What is the process for wiring the potentiometer in a circuit?

A: Connect the solder lugs to your desired points in the circuit, ensuring you follow the manufacturers polarity and wiring diagram if available. Solder with care to avoid damage to internal components.



Q: How does the linear taper (B-type) affect usage in audio or control applications?

A: The linear taper ensures that resistance changes evenly as the shaft rotates, providing predictable and smooth adjustmentcritical for applications like volume control or process regulation.



Q: What long-term benefits does this potentiometer provide?

A: Its high durability (>15,000 cycles), reliable performance under variable temperature and humidity, and RoHS compliance make it a cost-effective choice with minimal maintenance for consistent signal control.
