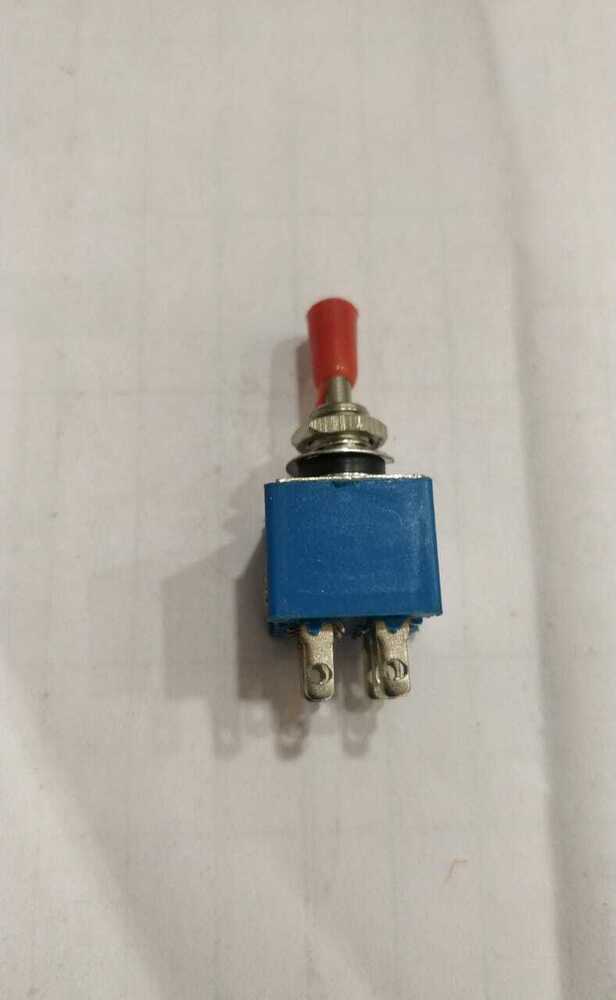

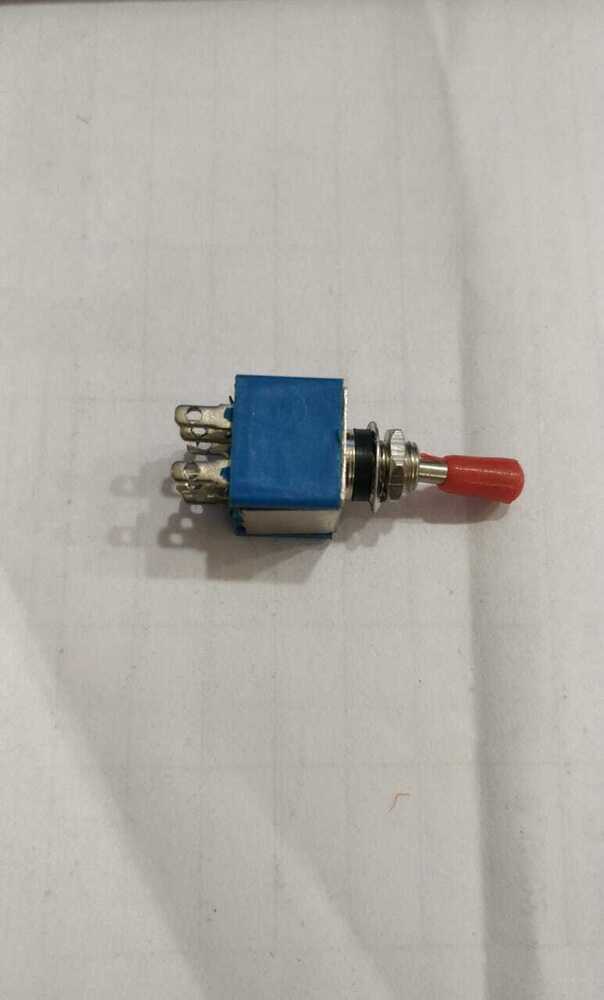

Mini Toggle Switch 6 Pin On Off

Price 6 INR/ Piece

Get a Price/Quote

MOQ : 999 Pieces

Mini Toggle Switch 6 Pin On Off Specification

Max. Current
6A

Mechanical Life
>40,000 cycles

Temperature Range
-25C to +85C

Protection Level
IP40

Number of Module
Single

Finish Type
Nickel Plated

Circuit Type
On-Off

Rated Voltage
125V AC / 250V AC

Response Time
Instant

Automation Grade
Manual

Product Type
Mini Toggle Switch

Material
Plastic, Metal

Insulation Resistance
1000 M min. at 500V DC

Contact Resistance
20 m max.

Max. Voltage
250V AC

Operating Temperature
-25C to +85C

Stoke
Short (Toggle)

Size
12mm x 6mm body (excluding terminals)

Color
Silver & Blue

Weight
Approx. 6g

Mounting Type
Panel Mount

Current Rating
3A / 6A

No Of Poles
2 (DPDT)

Mini Toggle Switch 6 Pin On Off Trade Information

Minimum Order Quantity
999 Pieces

Sample Available
Yes

Main Domestic Market
All India

About Mini Toggle Switch 6 Pin On Off

This heavy-duty single-pole, double-throw (SPDT) toggle switch makes a great power switch or state selector for user interfaces. It is rated for 3 A at 250 VAC. This Switch has 3 pins. This switch can be available in any Colour depending on the availability and has a red plastic cap on it.

SPECIFICATIONS

Rated Voltage	250V AC
Rated Current	3A
Switch Type	SPDT
Dimension of the Main Body(LxWxH)	15x7x40mm
Pin Size (HxW)	52.5mm
Level Length	12mm

Robust Double Pole Double Throw Switching

The switch utilizes a Double Pole Double Throw (DPDT) mechanism, allowing simultaneous control of two separate circuits, making it ideal for complex electronic setups. Its instant response and reliable switching provide precise circuit management for various automation and control applications.

High Durability and Safety Standards

Engineered with metal lever actuators and silver alloy contacts, the switch combines longevity with high performance. Dielectric strength of 1500V AC and insulation resistance over 1000 M at 500V DC ensure safe operation even under demanding electrical conditions.

Flexible Panel Mount Design

The compact switch body, measuring just 12mm x 6mm, fits easily into a standard 6mm diameter panel cutout. This makes it a practical choice for tightly spaced electronic projects, control panels, and custom DIY installations requiring efficient manual switching.

FAQs of Mini Toggle Switch 6 Pin On Off:

Q: How do I install the Mini Toggle Switch 6 Pin On Off in a control panel?

A: To install, insert the switch into a panel cutout of approximately 6mm diameter, secure with the provided mounting hardware, and solder wires to the six terminals according to your DPDT wiring configuration.

Q: What applications are suitable for using this toggle switch?

A: This switch is ideal for electronic devices, control panels, and DIY projects requiring manual on-off control of two circuits simultaneously, such as audio equipment, robotics, and industrial automation setups.

Q: Where should the Mini Toggle Switch be used for optimal safety and performance?

A: Use the switch indoors in environments within -25C to +85C, where IP40 protection is sufficient. Avoid high humidity or dust-prone locations since its not fully sealed.

Q: What benefits does the silver alloy contact material provide?

A: Silver alloy contacts enhance conductivity, reduce contact resistance to a maximum of 20 m, and improve longevity and reliability, ensuring effective switching even with frequent use.

Q: What is the process for wiring the DPDT switch terminals?

A: Solder your circuit wires to the six lugs, following your specific on-off wiring diagram for a double pole double throw setup, which allows the switch to route two separate circuits simultaneously.

Q: What is the maximum electrical rating of this switch?

A: The switch operates at up to 6A current and supports voltages of 125V AC or 250V AC, making it suitable for most standard control and switching applications within these limits.
