Round Shell Aviation Circular Connector

Price 25.58 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Round Shell Aviation Circular Connector Specification

Female End Type
Socket (Female)

Temperature
-20C to +85C

Application
Industrial, Automation, Aviation Equipment

Pairs
Single or Multi-pair (Model dependent)

Capacity
Depends on Pins (Typically up to 5A per Contact)

Male End Type
Pin (Male)

Connector Type
Threaded Coupling Circular

Connector
Round Shell Aviation Circular Connector

Material
Brass/Nickel-Plated Alloy + PVC

Voltage Rating
AC/DC 250V Max

Color
Silver (Shell), Black (Insulation)

Length
Customizable / As Required

Flame Resistance Level
UL94V-0

Jacket Material
PVC

Insulation
PVC/Plastic

Number of Conductor
2 to 8 (Depending on Model)

Outer Diameter
Varies by Model (Typically 10-22 mm)

Sheild
Metal Shielded

Cable Type
Multi-core Shielded Cable

Wire Gauge
18-24 AWG (Supported)

Cable Length
As Required / Custom

Round Shell Aviation Circular Connector Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Round Shell Aviation Circular Connector

Pitch Size	2 PIN STANDARD
Material	Copper
Power Rating	STANDARD
Shape	ROUND
Weight	LITE AS METAL
Packaging Type	BAG
Warranty	NO
Care Clamp	NO
Circuits	MRS CONNECTOR
Operating Mode	STANDARD
Frequency Range	STANDARD
Number Of Poles	2
Phase	SINGLE
Quantity Per Pack	100
Rating	GOOD
Gender	MALE AND FEMALE
Max Operating Temp Deg Cel	STANDARD
Vibration	NO
I Deal In	New Only
Minimum Order Quantity	100 Piece

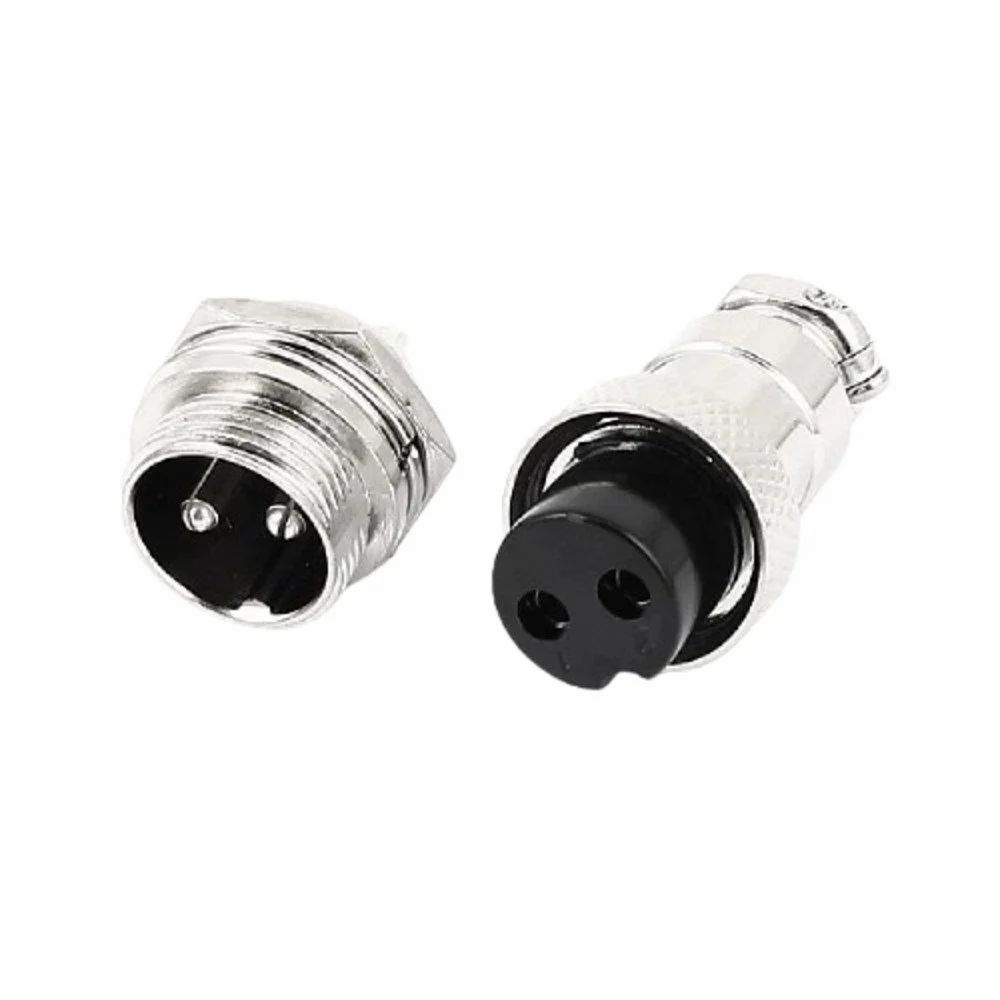

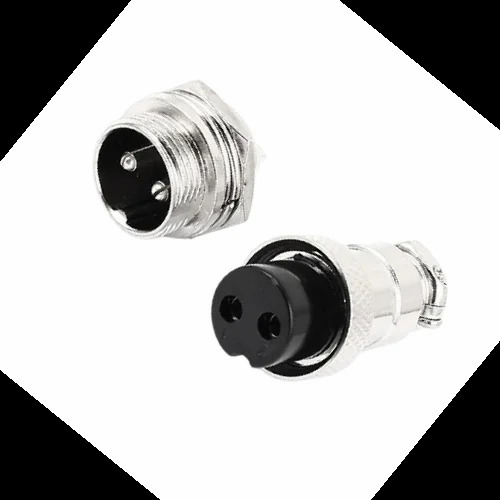

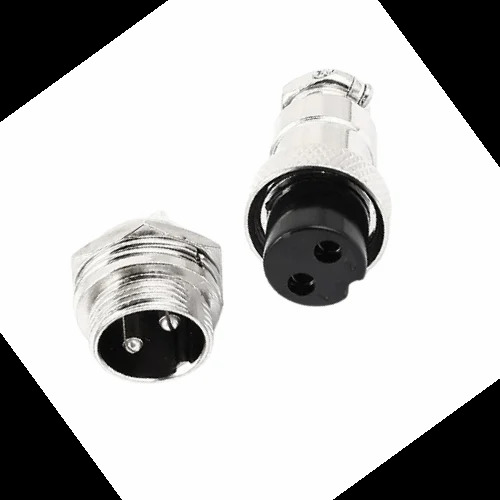

It is a GX-16 2-Pin Metal Aviation Plug Male and Female Panel Connector. The connector is mostly used to transmit signals or power. This type of connector is used in places where a watertight connection is required, and also in harsh environments. Professional GX16-2 Pin air plug socket.Made of solid material, more durable. One set includes one male and one female Connector.The connector is ideal for panel mounting and has got separate male and female pins. The cable can be soldered directly on them

Superior Environmental Protection

With its IP67 protection rating when mated, the connector is designed to resist dust and temporary water immersion, making it ideal for challenging industrial and aviation applications. The flame resistance level of UL94V-0 further elevates safety standards, ensuring reliable operation even in harsh environments. The robust build quality enhances longevity, supporting over 500 mating cycles.

Versatile Configuration and Customization

This connector supports 2 to 8 conductors and accommodates multiple wire gauges (1824 AWG), enabling flexible integration into diverse systems. With customizable cable lengths and various mounting options, it suits a broad range of applications. Whether you need a single- or multi-pair model, each connector is engineered to deliver optimal performance with a nickel-plated sheath and gold-over-nickel contacts.

Certified Reliability and Performance

The product is thoroughly tested for safety and durability, meeting stringent RoHS and CE standards. It maintains a dielectric strength of 1500V AC/minute and insulation resistance exceeding 1000 M at 500V DC, ensuring dependable electrical properties. The combination of a secure screw-coupling mechanism and robust shielding guarantees stable, interference-free connections in sensitive equipment.

FAQs of Round Shell Aviation Circular Connector:

Q: How do I properly install the Round Shell Aviation Circular Connector in my equipment?

A: To install, first align the male pin (plug) and female socket (receptacle) connectors, ensuring correct pin orientation. Insert fully and use the screw-coupling mechanism to lock them securely in place. This guarantees reliable contact and maintains the IP67 rating when mated. For panel mounting, follow the recommended cutout dimensions and secure the connector with the mounting hardware provided.

Q: What applications are best suited for this aviation circular connector?

A: This connector excels in industrial automation, aviation equipment, and other environments that demand robust, shielded connections against moisture and dust. Its properties and certifications, including IP67, RoHS, and CE compliance, make it reliable for use in control panels, sensors, actuators, and signal transmission in harsh or vibration-prone environments.

Q: When should I consider using a screw-coupling connector versus other types?

A: Screw-coupling connectors are ideal when a secure, vibration-resistant connection is critical. They prevent accidental disconnects in dynamic or high-vibration applications typical in aviation and industrial environments. If your application involves frequent movement, the threaded mechanism ensures consistent contact and maintains environmental sealing.

Q: Where is this connector typically mounted, and what are the panel requirements?

A: This connector utilizes a panel mount style, commonly installed on the equipment enclosure or control panel. The mounting panel must match the cutout size specified by the connector model (outer diameter typically ranges from 10 to 22 mm). Secure mounting ensures proper alignment and environmental sealing according to the IP67 rating.

Q: What process ensures reliable, low-resistance connections for this connector?

A: The contacts are plated with gold over nickel to minimize contact resistance (5 m) and prevent corrosion. Proper torqueing of the screw-coupling mechanism and using the recommended wire gauge (1824 AWG) further ensures stable, low-resistance connections, critical for up to 5A per contact performance.

Q: How does the connector benefit my system in terms of durability and lifecycle?

A: With over 500 guaranteed mating cycles and robust materials such as brass/nickel-plated alloy and PVC insulation, the connector is engineered for long-term durability. Metal shielding protects against EMI/RFI, while flame resistance (UL94V-0) and wide-temperature tolerance (-20C to +85C) further enhance operational lifespan.
