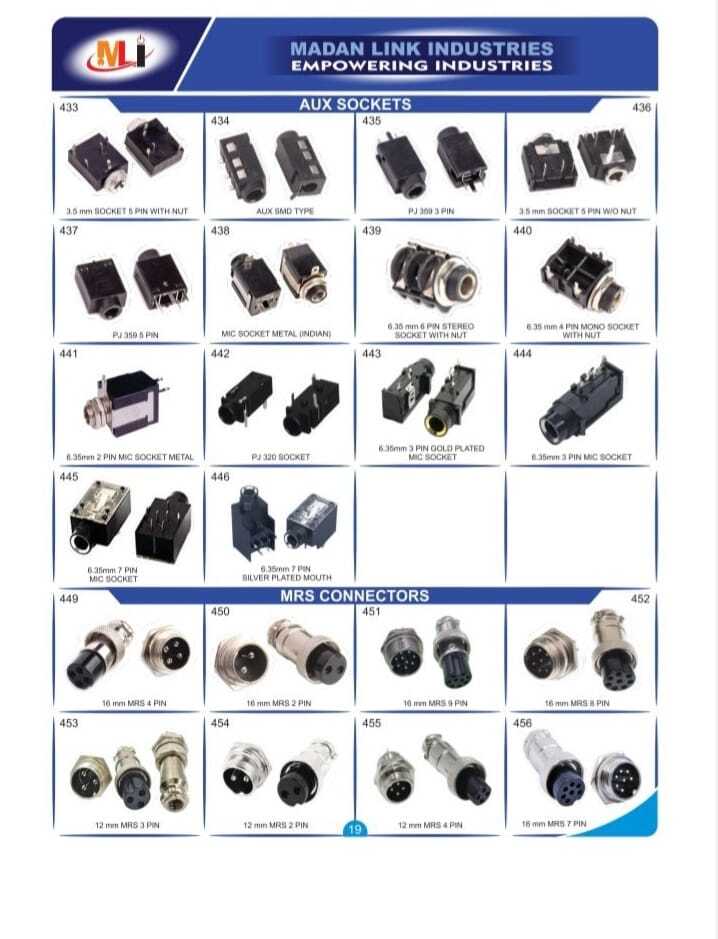

12 MM 3 PIN Aviation Circular Connector

Price 19 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

12 MM 3 PIN Aviation Circular Connector Specification

Female End Type
Socket

Pairs
Single

Application
Industrial automation, Robotics, Sensors, Communication equipment

Material
Copper

Temperature
-40C to +85C

Connector Type
3 PIN Circular

Capacity
5A

Voltage Rating
250V

Male End Type
Plug

Connector
Aviation Circular Connector

Wire Gauge
24 AWG

Sheild
Yes

Color
Black

Length
Customizable

Number of Conductor
3

Jacket Material
PVC

Insulation
PVC

Flame Resistance Level
UL94V-0

Cable Type
Multi-core Shielded Cable

Outer Diameter
12 MM

Cable Length
1 M to 10 M or as per requirement

Insulation Resistance
1000 M at 500V DC

Ingress Protection
IP67

Dielectric Strength
>1500V AC/min

Mounting Type
Panel Mount / Inline

Mating Cycles
500 Cycles

Current Rating per Pin
5A

Body Finish
Nickel Plated

Fastening Method
Screw Lock

Operating Humidity
95% RH, non-condensing

Pin Material
Brass Tin Plated

Contact Resistance
5 m

12 MM 3 PIN Aviation Circular Connector Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 12 MM 3 PIN Aviation Circular Connector

Pin Type	3 Pin
Voltage	12 V
SIZE	48 x 15 x 15mm/1.88 x 0.59 x 0.59inch
Rated Current & voltage	250
Current Handling Capacity (A)	5A
Contact Material	copper
Coupling	Threaded
Minimum Order Quantity	1000 Piece

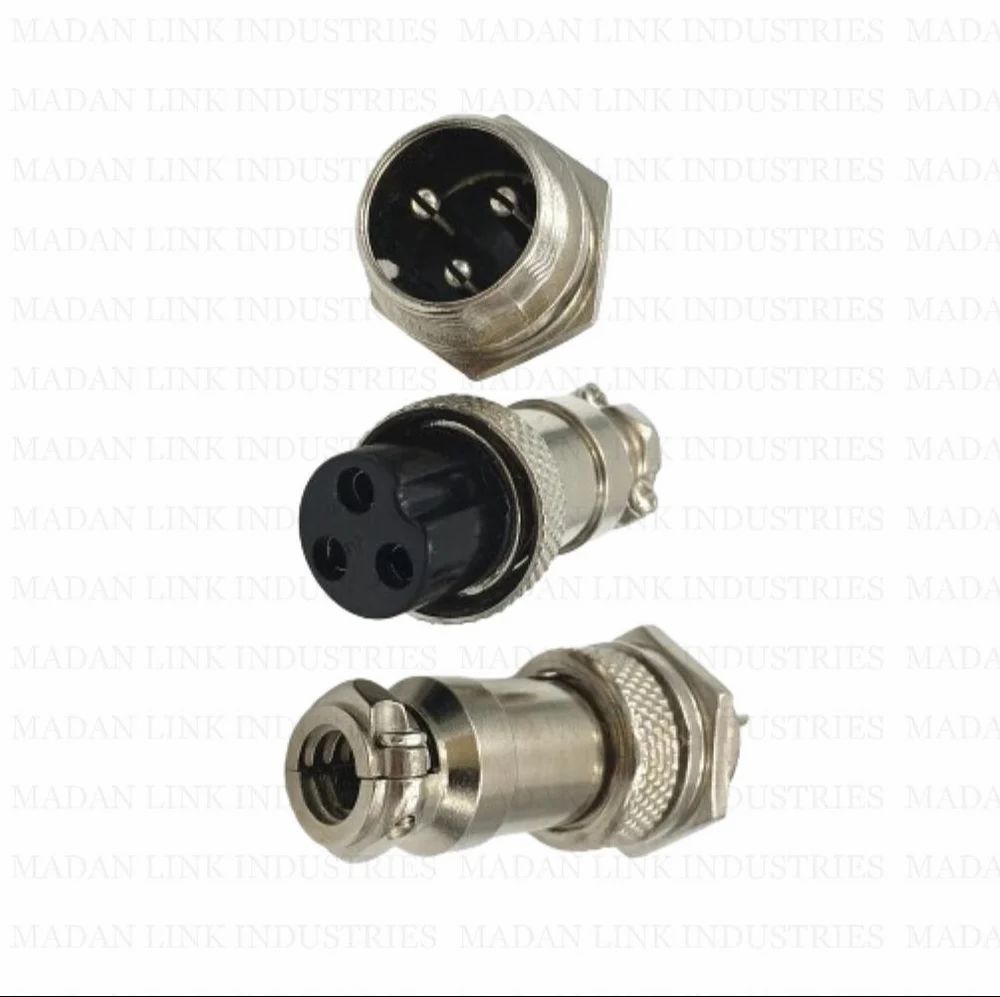

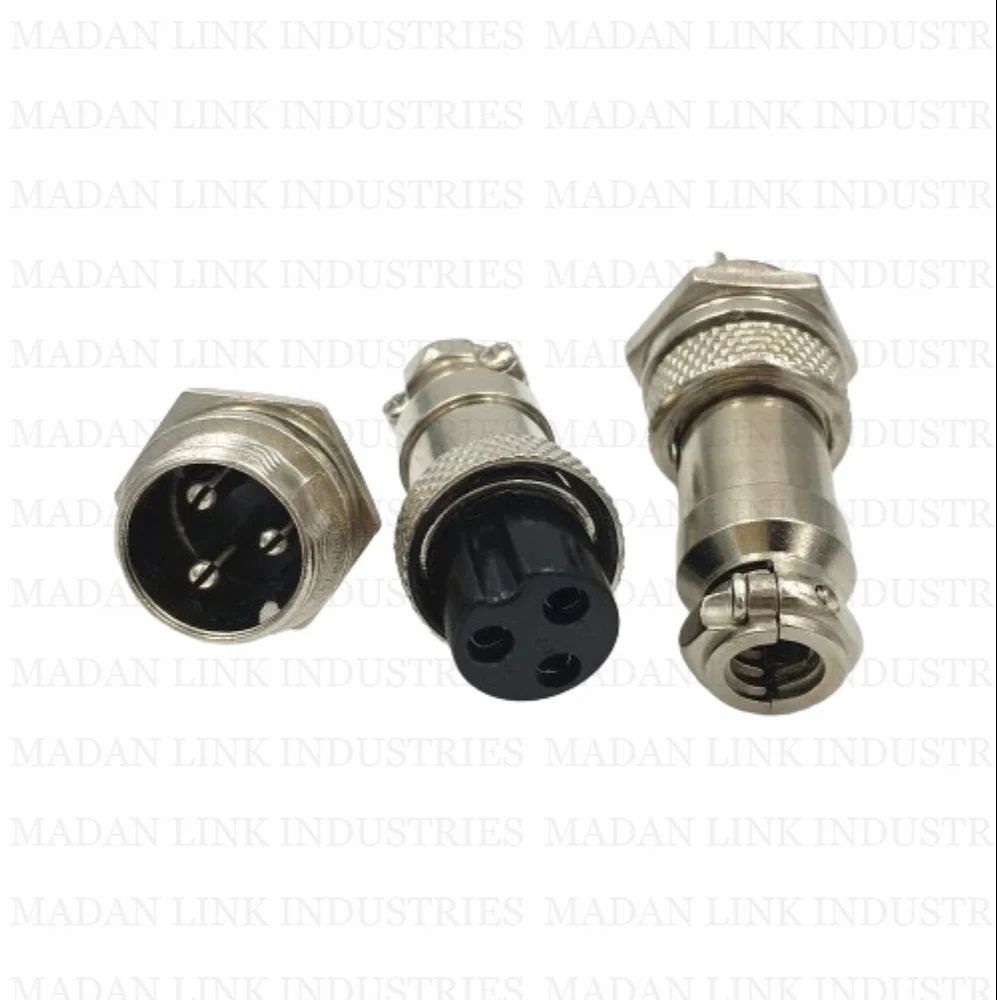

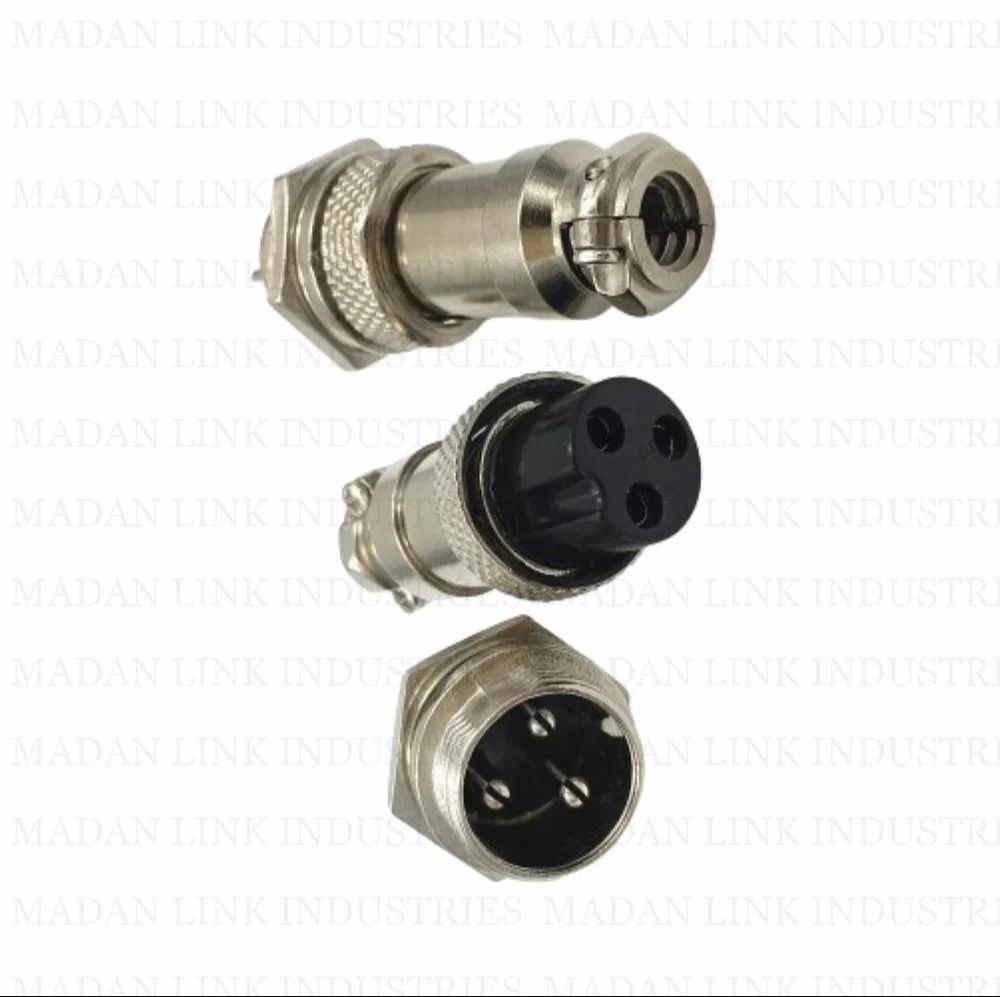

It is a GX-16 3-Pin Metal Aviation Plug Male and Female Panel Connector. The connector is mostly used to transmit signals or power. This type of connector is used in places where a watertight connection is required, and also in harsh environments. Professional GX16-3 Pin air plug socket.Made of solid material, more durable. One set includes one male and one female Connector.
The connector is ideal for panel mounting and has got separate male and female pins. The cable can be soldered directly on them.

Reliable Performance in Challenging Conditions

Built to withstand demanding industrial environments, this 3 PIN aviation connector boasts IP67 protection against dust and moisture, a flame resistance level of UL94V-0, and is functional in temperatures from -40C to +85C. Its nickel-plated finish and screw lock mechanism deliver secure, corrosion-resistant connections, while the robust mating cycle rating ensures lasting performance through repeated use.

Flexible Installation and Compatibility

This circular connector supports both panel mount and inline configurations to suit diverse application needs. With customizable cable lengths (110 meters), 24 AWG multi-core shielded cables, and easy-to-identify male (plug) and female (socket) ends, it easily integrates into industrial automation, robotics, sensor, or communication systems requiring durable, high-integrity connections.

FAQs of 12 MM 3 PIN Aviation Circular Connector:

Q: How is the 12 MM 3 PIN Aviation Circular Connector installed?

A: The connector may be installed using either panel mount or inline configurations, secured in place with its screw lock fastening mechanism. This ensures a firm and vibration-resistant connection for demanding environments.

Q: What benefits does the IP67 protection rating provide for this connector?

A: IP67 ingress protection means the connector is dust-tight and can withstand complete temporary immersion in water, making it suitable for outdoor and harsh industrial settings where durability and reliability are essential.

Q: When should I choose this connector for my application?

A: Select this connector for use in industrial automation, robotics, sensors, or communication equipment when you require a dependable, shielded connection that handles up to 5A per pin and withstands extreme conditions, including high humidity and temperature fluctuations.

Q: Where can I use this connector for optimal performance?

A: Ideal deployment includes factories, automated assembly lines, control panels, robotic systems, and in environments exposed to moisture, dust, or high vibration, thanks to its robust design and protective features.

Q: What is the process for customizing cable length and configuration?

A: You can specify the required cable length (from 1 to 10 meters or as needed) and choose between panel mount or inline types when ordering. The product is manufactured or assembled according to these specifications for a tailored solution.

Q: How does the shielded cable benefit my applications?

A: The multi-core shielded cable minimizes electromagnetic interference, ensuring stable data and power transmission, which is particularly important in environments with high electrical noise or sensitive equipment.

Q: What is the expected lifespan of this connector?

A: Designed for up to 500 mating cycles and constructed with durable nickel-plated brass and PVC insulation, this connector offers an extended service life suitable for repeated connections and disconnections in industrial settings.
