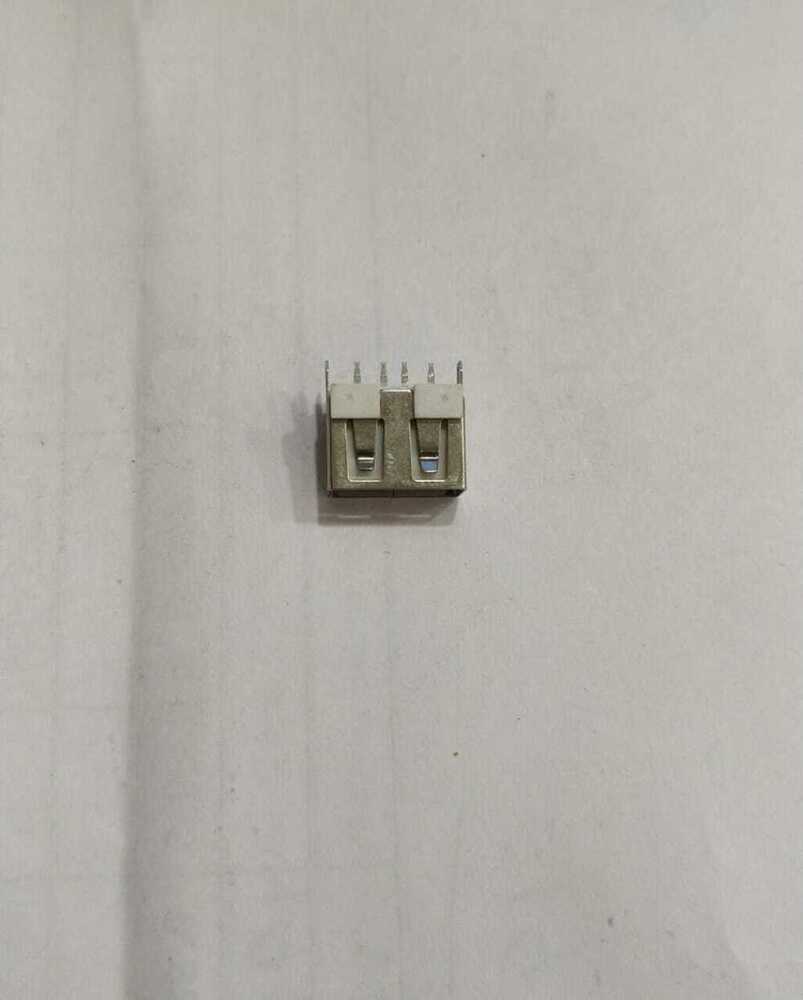

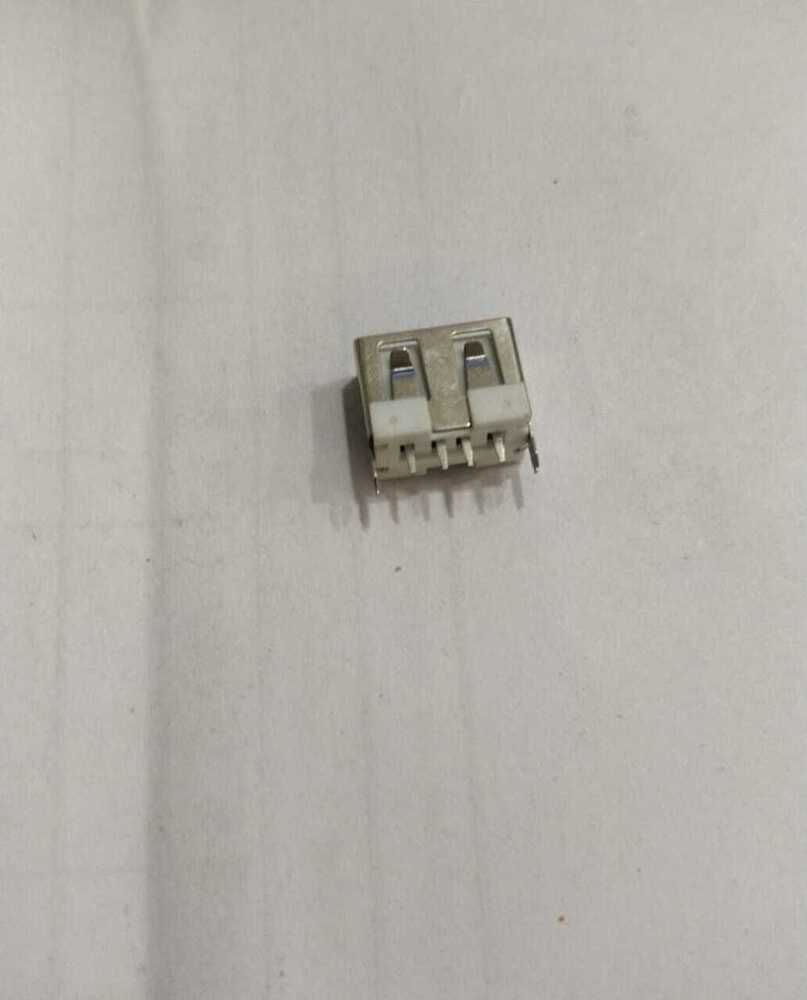

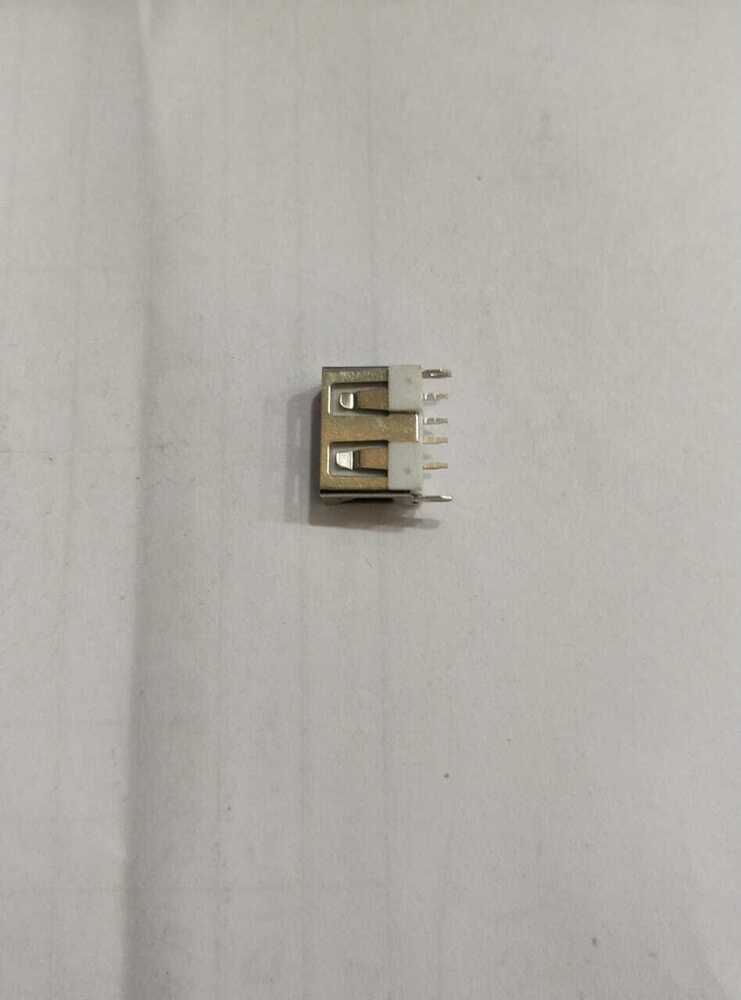

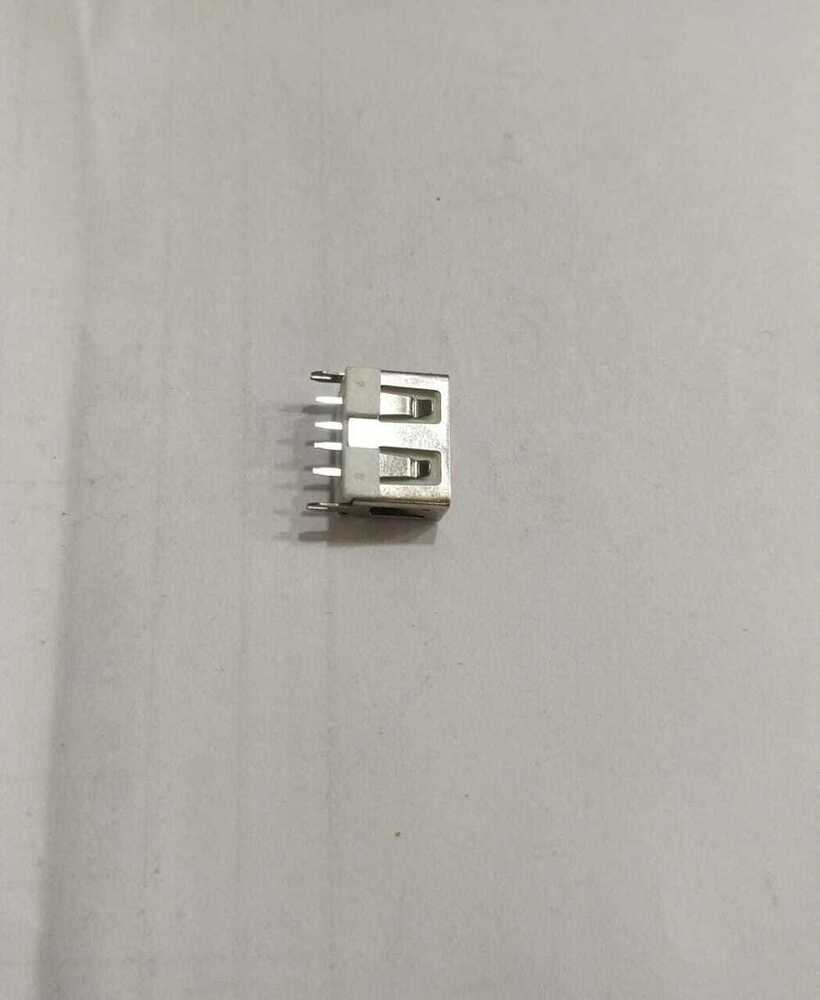

TYPE A 4 PIN STRAIGHT 10 MM FEMALE USB

Price 1.50 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

TYPE A 4 PIN STRAIGHT 10 MM FEMALE USB Specification

Female End Type
Type A 4 Pin Female

Connector Type
Straight, Female

Application
Data Transfer, Charging, PCB Mount

Pairs
Single

Connector
USB Type A

Material
Metal & Plastic

Voltage Rating
30V AC

Capacity
Standard USB 2.0

Temperature
-20C to +80C

Number of Conductor
4

Length
10 mm

Wire Gauge
Standard USB

Jacket Material
Plastic

Sheild
Yes

Outer Diameter
Approx 10 mm

Insulation
PVC

Color
Silver/Black

Flame Resistance Level
UL94V-0

Cable Type
Not Applicable (Connector only)

Orientation
Straight

Gender
Female

RoHS Compliance
Yes

Contact Plating
Gold Over Nickel

Contact Resistance
30m

Contact Material
Copper Alloy

Mounting Type
PCB Through Hole

Storage Temperature
-40C to +85C

Current Rating
1.5A Max

Compatible Standard
USB 2.0/1.1

Insulation Resistance
>=1000 M at 500V DC

Durability
Over 1500 mating cycles

TYPE A 4 PIN STRAIGHT 10 MM FEMALE USB Trade Information

Minimum Order Quantity
100 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About TYPE A 4 PIN STRAIGHT 10 MM FEMALE USB

Brand	NO
Connector Type	Female
USB Type	USB
Current Rating	0.5A
Connector Orientation	AS PER DISPLAY
Piece per box	1000
Minimum Order Quantity	100 Piece

Data Transfer: Connecting peripherals such as keyboards, mice, and storage devices to computers.
Charging: Powering and charging devices like smartphones, tablets, and other portable electronics.
Peripheral Connectivity: Connecting devices like printers, cameras, and external hard drives.
Audio/Video Transmission: Connecting devices like monitors and projectors with appropriate adapters.
Power Delivery: Providing power to devices through standards like USB Power Delivery (USB PD).

High Durability and Performance

Engineered to withstand over 1500 mating cycles, the TYPE A 4 PIN STRAIGHT FEMALE USB ensures long-term reliability for repeated connections. Its copper alloy contacts with gold over nickel plating enhance signal integrity and minimize electrical resistance, making it ideal for high-frequency data or power transmission tasks on PCB applications.

Versatile Applications and Compatibility

This connector is fully compatible with USB 2.0 and 1.1 standards, making it suitable for charging, data transfer, and embedded system projects. The straight, PCB through-hole mount design provides firm attachment, while RoHS compliance ensures environmental safety in industrial and consumer electronics.

FAQs of TYPE A 4 PIN STRAIGHT 10 MM FEMALE USB:

Q: How do I mount the TYPE A 4 PIN STRAIGHT 10 MM FEMALE USB connector to a PCB?

A: Mount the connector by aligning its through-hole pins with the matching holes on your printed circuit board (PCB), then solder the pins in place for a secure and reliable connection.

Q: What materials are used in the contacts, and how does this impact performance?

A: The contacts are made of copper alloy with gold over nickel plating, providing excellent conductivity, corrosion resistance, and enhanced durability for over 1500 mating cycles.

Q: When should I choose this connector for my project?

A: Select this connector when you require a reliable USB 2.0 or 1.1 port for PCB-mounted applications, offering high insulation resistance, robust operating temperature range, and RoHS compliance.

Q: Where can this USB connector be applied?

A: It is well-suited for use in consumer electronics, industrial equipment, embedded systems, and any project needing a durable, PCB-mounted USB interface for data transfer or charging.

Q: What is the recommended operating temperature range for this connector?

A: The connector operates reliably within a temperature range of -40C to +85C, accommodating most environmental and operational needs.

Q: How does the connector ensure electrical safety and signal reliability?

A: With an insulation resistance of 1000 M at 500V DC, contact resistance of 30m, and UL94V-0 flame resistance, the connector delivers consistent performance and enhanced safety.
