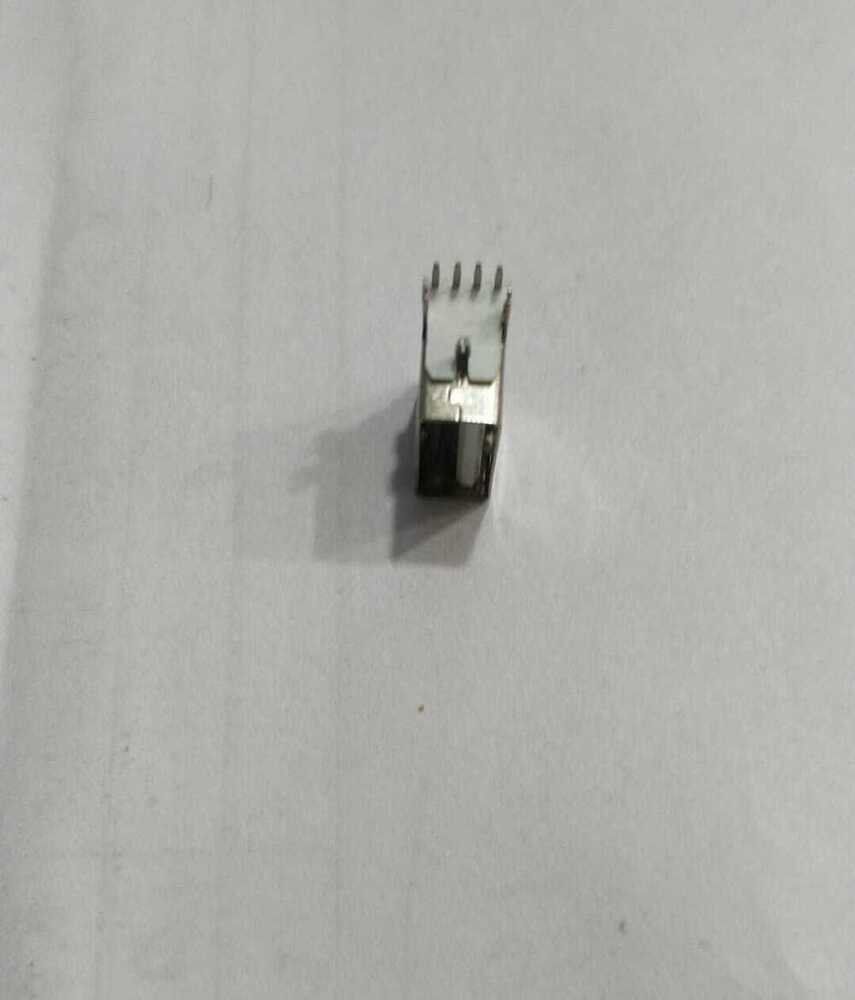

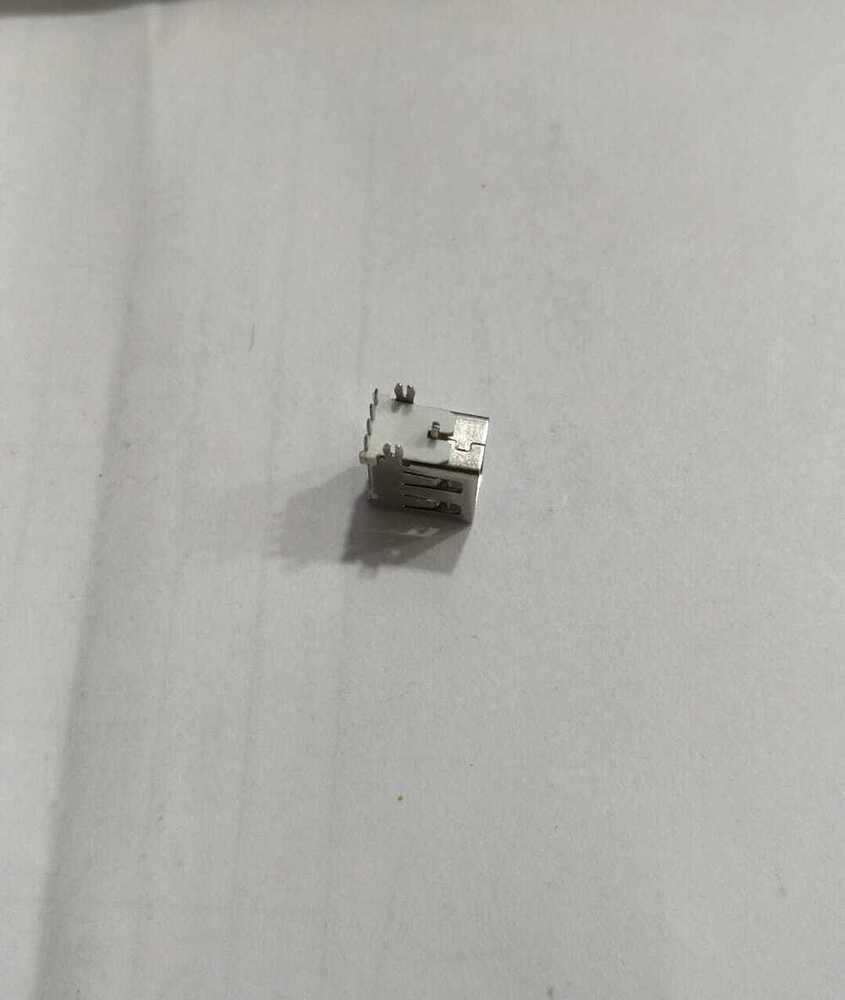

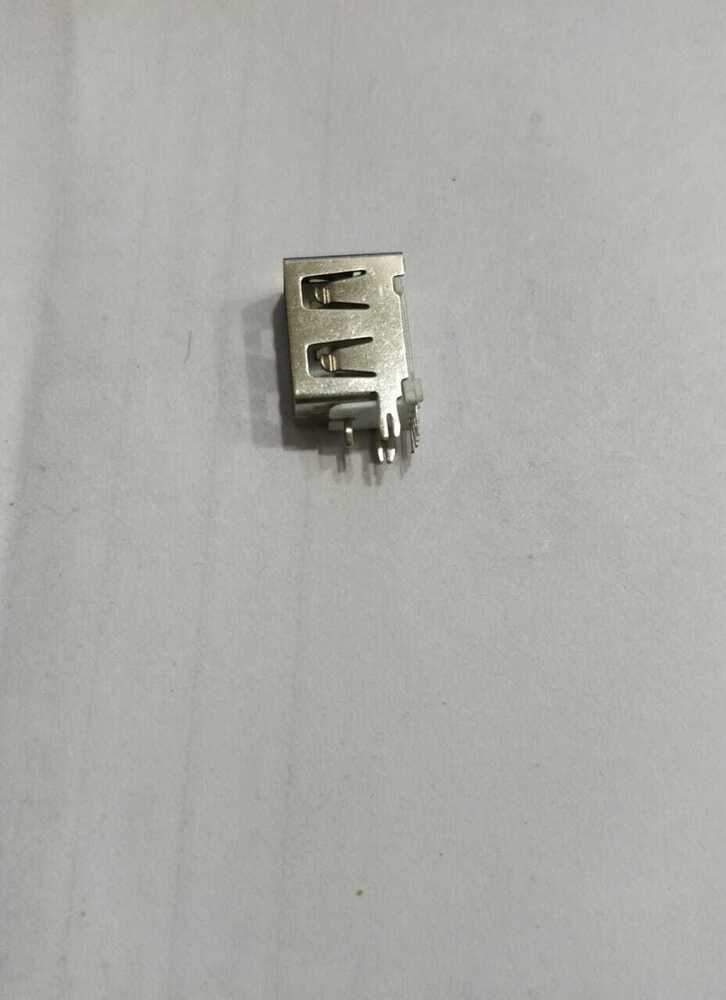

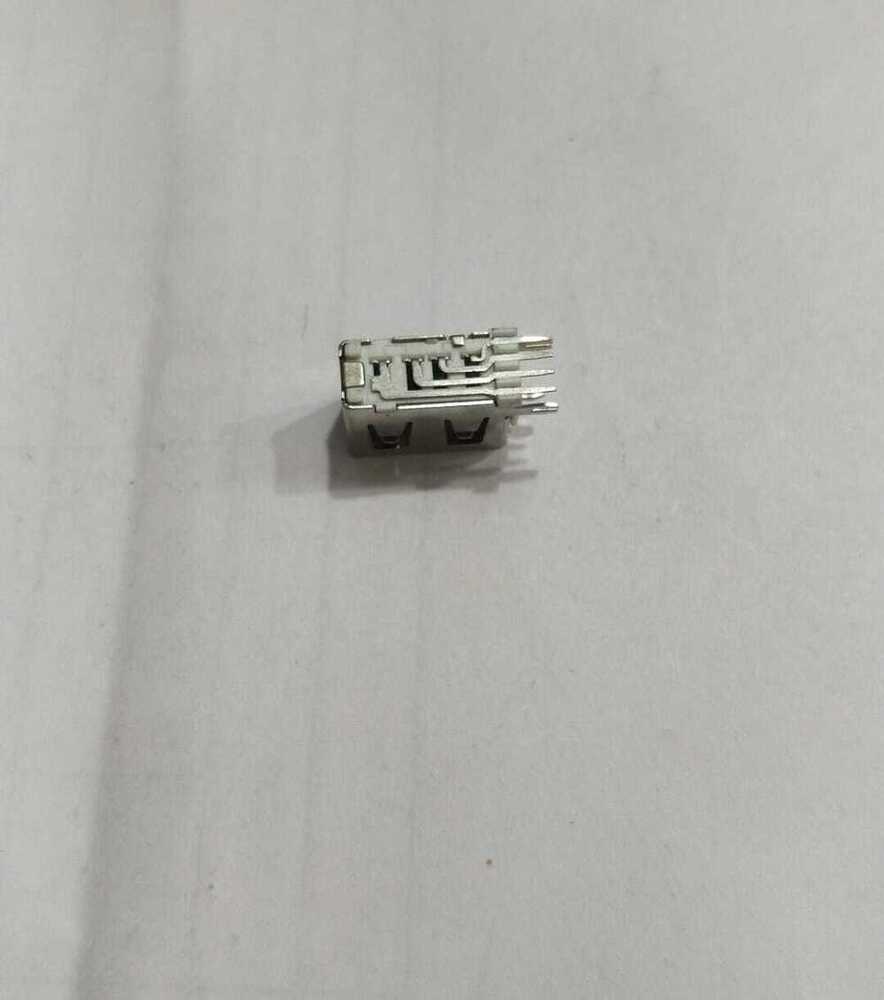

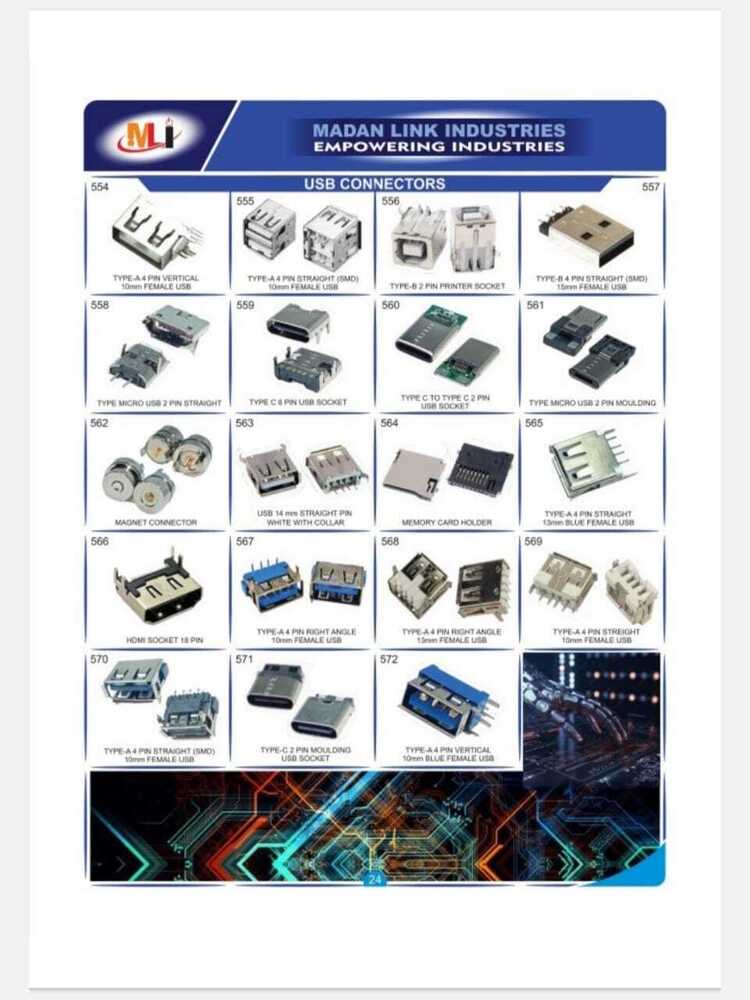

TYPE-A 4 PIN VERTICAL 10 MM FEMALE USB

Price 1.50 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

TYPE-A 4 PIN VERTICAL 10 MM FEMALE USB Specification

Female End Type
Type-A 4 Pin Vertical Female

Pairs
Single

Voltage Rating
30V AC/DC

Connector Type
Type-A

Capacity
Up to 1.5A

Application
PCB Mount, Data Transfer, USB Interface

Connector
USB 2.0 Type-A Female (Vertical Mount)

Temperature
-40C to +85C

Material
Copper Alloy Contacts, Plastic Housing

Color
Silver/Black

Flame Resistance Level
UL94V-0

Insulation
PVC

Cable Type
USB Connector (no attached cable)

Number of Conductor
4

Sheild
Yes

Outer Diameter
Standard USB female housing

Wire Gauge
28 AWG

Length
10 mm (connector height)

Packaging Type
Tray / Bulk (as per order)

Withstanding Voltage
750V AC/minute

Manufacturing Process
Injection Molding

Mounting Type
Vertical Through Hole

Durability
1,500 Mating Cycles Min

Contact Resistance
30 m Max

Contact Plating
Gold Flash Over Nickel

Insulation Resistance
>=1000 M at 500V DC

Housing Color
Black

Pin Configuration
4 Pin

Current Rating
1.5A Max

TYPE-A 4 PIN VERTICAL 10 MM FEMALE USB Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About TYPE-A 4 PIN VERTICAL 10 MM FEMALE USB

Brand	NO
Connector Type	Female
USB Type	Type B
Current Rating	0.5A
Mounting Type	PCV
Minimum Order Quantity	100 Piece

Data Transfer: Connecting peripherals such as keyboards, mice, and storage devices to computers.
Charging: Powering and charging devices like smartphones, tablets, and other portable electronics.
Peripheral Connectivity: Connecting devices like printers, cameras, and external hard drives.
Audio/Video Transmission: Connecting devices like monitors and projectors with appropriate adapters.
Power Delivery: Providing power to devices through standards like USB Power Delivery (USB PD).

Reliable and Durable USB Connector Solution

Combining high-quality materials such as copper alloy contacts and flame-resistant plastic, the TYPE-A 4 PIN VERTICAL 10 MM FEMALE USB offers superior electrical performance and longevity. With gold flash over nickel plating, the connector ensures low contact resistance and dependable conductivity over thousands of cycles, making it an excellent choice for demanding industrial, commercial, or consumer electronics projects requiring reliable data transfer and power.

Easy Integration for PCB Mount Applications

Designed specifically for vertical through-hole mounting, this USB connector offers simple and secure installation onto printed circuit boards. Its robust mounting configuration and 4-pin layout make it compatible with standard USB 2.0 interfaces. Injection-molded for consistent quality, the connector is suited for automated or manual assembly lines, enhancing workflow efficiency in manufacturing or repair environments.

FAQs of TYPE-A 4 PIN VERTICAL 10 MM FEMALE USB:

Q: How do I properly mount the TYPE-A 4 PIN VERTICAL 10 MM FEMALE USB connector onto a PCB?

A: The connector should be placed through the appropriate vertical through-holes on your PCB, aligning its four pins with matching pads. Secure it by soldering each pin to its corresponding circuit, ensuring both mechanical stability and optimal electrical contact.

Q: What is the main benefit of using gold flash over nickel plating on the contacts?

A: Gold flash over nickel provides enhanced corrosion resistance and superior electrical conductivity, resulting in decreased contact resistance and greater long-term reliability even after repeated mating cycles.

Q: When is this USB connector most commonly used?

A: This connector is ideal for situations requiring reliable data transfer and power connection, such as in embedded systems, consumer electronics, or devices that interface with USB peripherals on a mounted PCB.

Q: Where can I order the TYPE-A 4 PIN VERTICAL 10 MM FEMALE USB?

A: This product is available through various electronic component distributors, exporters, importers, manufacturers, and traders across India. You may also specify packaging preferences, such as tray or bulk, when placing your order.

Q: What is the typical usage process for this connector in electronic assemblies?

A: After proper mounting and soldering onto a PCB, you can connect USB Type-A male plugs to facilitate data transmission and 1.5A power supply. Its durable build enables consistent use throughout the devices lifespan.

Q: What are the safety and durability ratings of this connector?

A: The connector is flame-resistant (UL94V-0), withstanding voltage up to 750V AC per minute, and features a minimum of 1,500 mating cycles, making it both safe and long-lasting in various operating environments.

Q: How does the products insulation resistance contribute to its performance?

A: With insulation resistance of at least 1000 M at 500V DC, the connector effectively prevents leakage currents between contacts, ensuring stable operation and reducing the risk of short circuits.
