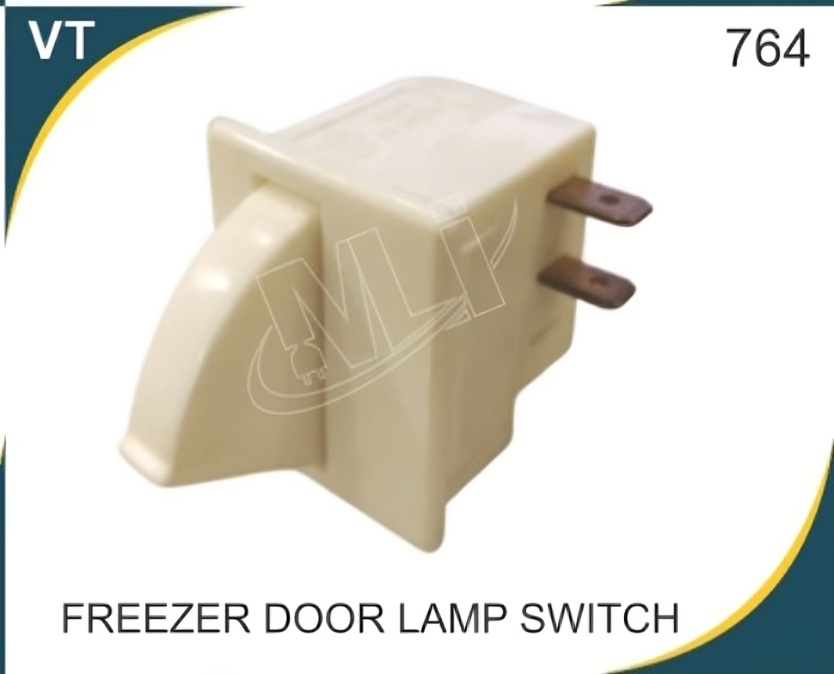

FREEZER DOOR LAMP SWITCH

Price 7 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

FREEZER DOOR LAMP SWITCH Specification

Automation Grade
Manual

Max. Current
6A

Mechanical Life
50,000 cycles

Response Time
10ms

Temperature Range
-25C to +65C

Number of Module
Single

Rated Voltage
250V AC

Finish Type
Glossy

Circuit Type
SPST

Protection Level
IP20

Product Type
Freezer Door Lamp Switch

Material
Polycarbonate body with copper contacts

Insulation Resistance
100 M at 500V DC

Contact Resistance
50 m

Max. Voltage
250V AC

Operating Temperature
-20C to +60C

Stoke
5mm

Size
Standard size - approx. 35mm x 18mm x 15mm

Color
White

Weight
Approx. 12g

Mounting Type
Panel Mount

Current Rating
6A

No Of Poles
Single Pole

FREEZER DOOR LAMP SWITCH Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About FREEZER DOOR LAMP SWITCH

Usage/Application

Door Bell

Material/Body	Plastic
Frequency Hertz	STANDARD
Phase	AS PER DISPLAY
Features	DOOR SWITCH
Dimensions	STANDARD
Battery Capacity	AS PER USE
Led Indicator	NO
I Deal In	New Only
Net Weight	STANDARD
Minimum Order Quantity	100 Piece

Applications: Ideal for industrial machinery, security systems, automotive applications, and sensitive electronic equipment.
Customization: Available in various key configurations, sizes, and mounting options to meet specific security needs.
Durability: Constructed with high-quality materials to withstand harsh environments and frequent use.

Reliable Performance in Extreme Conditions

Engineered for reliability, this freezer door lamp switch operates efficiently across a wide temperature range from -20C to +60C and maintains functionality in humidity conditions up to 95% RH non-condensing. The polycarbonate body and copper alloy contacts provide resistance to wear, ensuring longevity even in high-use settings such as commercial kitchens or industrial freezers.

Easy Installation and Universal Compatibility

Designed for effortless installation, the switch features both solder and quick-connect terminals, making it adaptable for a range of wiring setups. As a standard-sized, panel-mount device, it seamlessly fits most refrigerator and freezer models, allowing for fast replacement or upgrades with minimal downtime.

Enhanced Safety and Compliance

The switch meets UL94 V-0 flammability standards and holds RoHS compliance, ensuring it is both environmentally friendly and fire-resistant. Its dielectric strength of 1500V AC/min and insulation resistance exceeding 100 M further bolster safety, making it suitable for environments where reliable performance and user safety are paramount.

FAQ's of FREEZER DOOR LAMP SWITCH:

Q: How is the freezer door lamp switch installed?

A: The switch is designed for panel mounting and can be installed using either solder or quick-connect terminals. Its standardized size (approximately 35mm x 18mm x 15mm) ensures compatibility with most refrigerator and freezer models. Detailed installation instructions are typically provided by the manufacturer.

Q: What is the typical application of this push button switch?

A: This switch is primarily used for controlling the interior lamp in refrigerators and freezers. It turns the light on or off automatically when the door is opened or closed, enhancing user convenience and energy efficiency.

Q: What are the key benefits of using this specific lamp switch?

A: Key benefits include robust operating force (1N), high mechanical life (50,000 cycles), RoHS compliance, and UL94 V-0 flammability rating. Its copper alloy contacts and polycarbonate body ensure consistent electrical performance and durability.

Q: Where can this switch be purchased or sourced?

A: This switch is available through authorized distributors, exporters, importers, manufacturers, and traders, particularly in India. It is commonly supplied to appliance manufacturers and repair professionals.

Q: What environmental and safety standards does this switch meet?

A: The freezer door lamp switch complies with RoHS environmental standards and has a flammability rating of UL94 V-0. It also provides dielectric strength of 1500V AC/min and insulation resistance of 100 M at 500V DC, ensuring safety in appliance operations.

Q: How does the switch enhance the operation of a freezer or refrigerator?

A: When the door is opened, the push button activates the lamp, providing clear interior visibility. It deactivates the lamp upon closing, conserving energy and enhancing the overall user experience.
