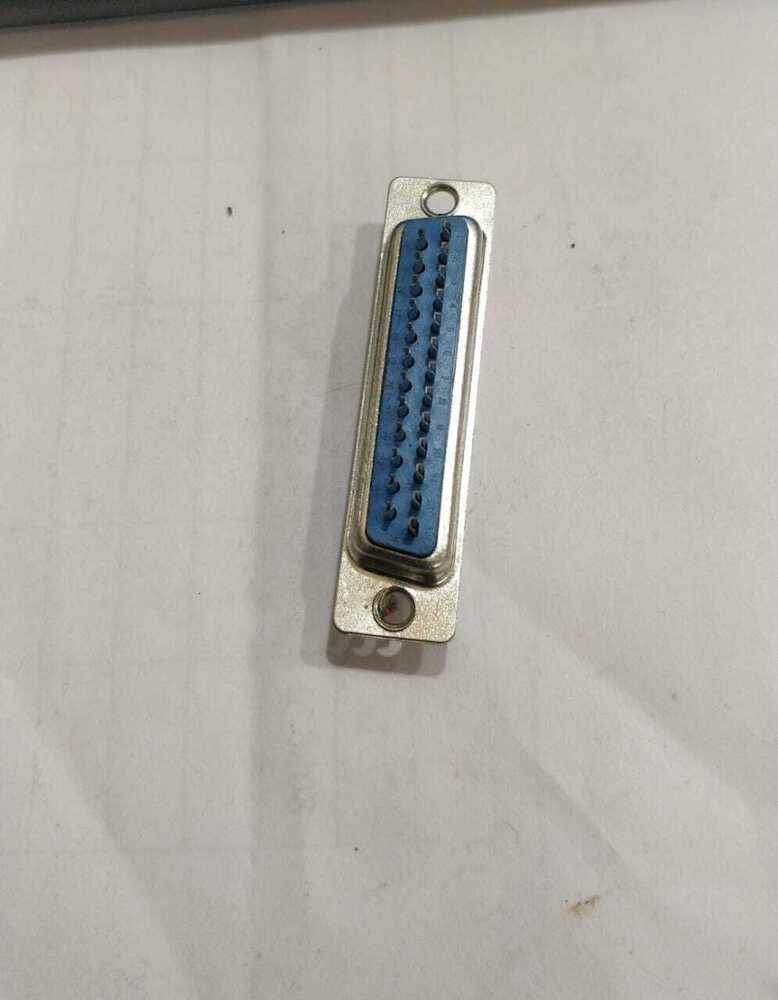

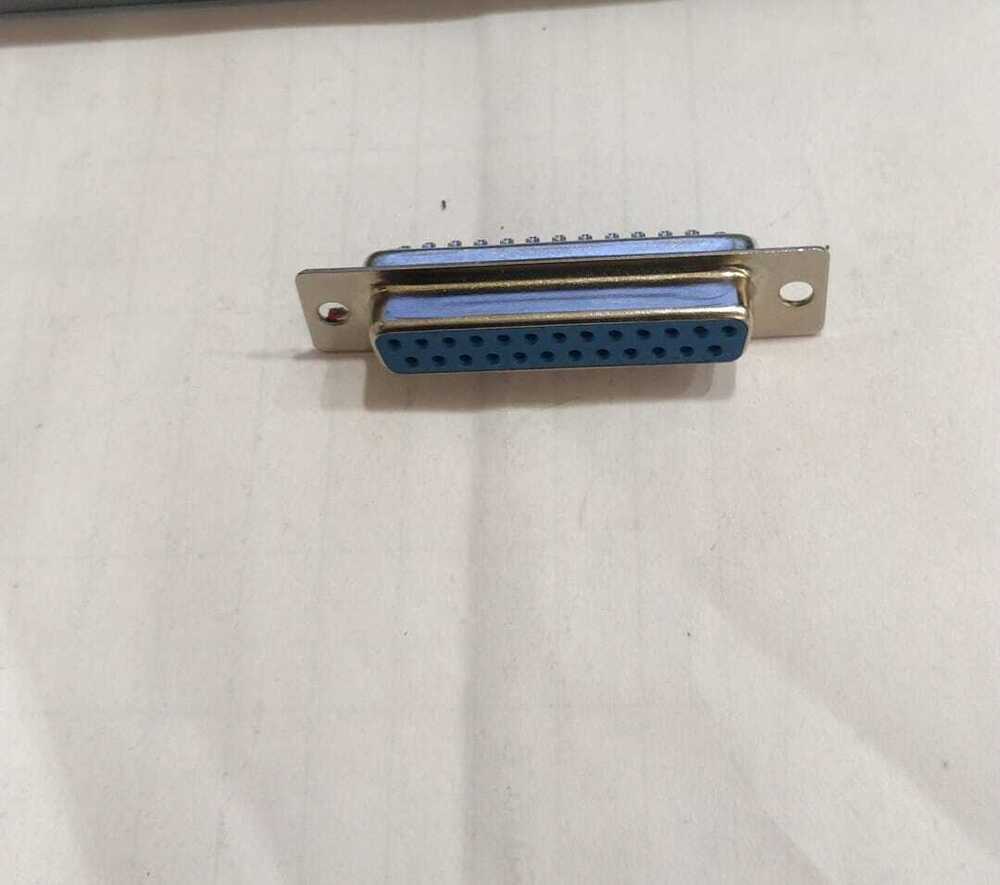

DB 25 FEMALE CONNECTOR

Price 10 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

DB 25 FEMALE CONNECTOR Specification

Connector
DB 25 Female

Pairs
Single connector; pin pairs: 13

Connector Type
D-subminiature (DB-25), Female

Female End Type
DB 25 Female Solder-type Socket

Material
Thermoplastic, Metal Shell

Application
Data transmission, RS232, computer ports

Male End Type
Compatible with DB 25 Male Plug

Capacity
Up to 25 signal channels

Voltage Rating
250V AC

Temperature
Operating Range: -55C to +105C

Cable Type
Not Applicable to connector only

Color
Blue/Black (Body), Silver (Contacts)

Length
Connector only (not cable)

Flame Resistance Level
UL94V-0

Number of Conductor
25

Outer Diameter
Approx. 13.7 mm

Jacket Material
Not Applicable (for connector only)

Sheild
No Shield

Wire Gauge
AWG 22-28

Insulation
Plastic Molded

DB 25 FEMALE CONNECTOR Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About DB 25 FEMALE CONNECTOR

Number Of Pins	25 (AS PER DEMAND)
Color	AS PER ODER
Circuit	YES
Material	METAL
Application	MONITOR/CPU ETC.
brand	IMPORTED
Connector Type	DB CONNECTOR
Minimum Order Quantity	100 Piece

Applications:
- Commonly used in computer hardware, such as connecting motherboard components.
- Suitable for wire-to-board and board-to-board connections.
Advantages:
- Reliable electrical connection.
- Easy to use and solder onto printed circuit boards (PCBs).
- Available in various pin counts and configurations to suit different needs.

Versatile Panel Mounting and Security

The DB 25 Female Connector features a robust metal shell and thumb/jack screw locking mechanisms, ensuring secure, vibration-resistant panel mounting. Its design allows for quick installation on equipment chassis, making it ideal for manufacturers and field installations alike. The connector body is available in blue or black, providing versatility and clear port identification.

Reliable Electrical Performance

Built for demanding environments, this connector boasts 30m contact resistance and 1000M insulation resistance at 500V DC, ensuring dependable signal transmission. With a dielectric withstanding voltage of 1000V AC rms for one minute and up to 5 Amps per contact, it excels in high-stress industrial and computing applications.

Flexible Termination Styles and Applications

Supporting solder cup, crimp, or PCB mount terminations, the DB 25 Female Connector easily integrates into custom cable assemblies or directly onto PCBs. The device supports up to 25 signal channels, making it ideal for RS232 communication, data interface customization, and more, with broad compatibility to standard DB 25 male plugs.

FAQs of DB 25 FEMALE CONNECTOR:

Q: How is the DB 25 Female Connector mounted to equipment or panels?

A: This connector is designed for panel mounting using screw-type securing options. Thumbscrew or jack screw locking mechanisms provide a stable attachment to panels or enclosures, preventing accidental disconnection and ensuring secure connections in both industrial and computer applications.

Q: What are the available termination styles for wiring the DB 25 Female Connector?

A: The DB 25 Female Connector offers solder cup, crimp, and PCB mount termination styles, allowing users to choose the best method for their specific assemblywhether attaching wires directly, using crimp contacts, or mounting onto a printed circuit board.

Q: When should I choose gold flash over tin plating for the contacts?

A: Gold flash plated contacts are preferable in applications requiring superior resistance to corrosion and oxidation, ensuring long-lasting, low-resistance connections. Tin-plated contacts are suitable for general use where budget considerations are a priority and environmental exposure is minimal.

Q: Where is the DB 25 Female Connector commonly used?

A: This connector is widely utilized in computing, telecommunications, industrial automation, and data communication fields. It serves in RS232 serial interfaces, legacy computer ports, and control systems, where reliable signal connections are critical.

Q: What processes are involved in assembling the DB 25 Female Connector to cables or PCBs?

A: Depending on the termination style, assembly can involve soldering wires to solder cups, crimping contacts with appropriate tools, or soldering directly onto PCBs. Care must be taken to select the right wire gauge (AWG 2228) and verify compatibility with connector housing and mounting requirements.

Q: How does this connector benefit data transmission and connectivity?

A: Its robust construction, secure mounting, high current-carrying capacity (up to 5A per contact), and support for up to 25 channels make it ideal for dependable, high-density signal transmission in mission-critical electronic equipment, improving performance and ensuring data integrity.
