1 RCA SOCKET YELLOW

About 1 RCA SOCKET YELLOW

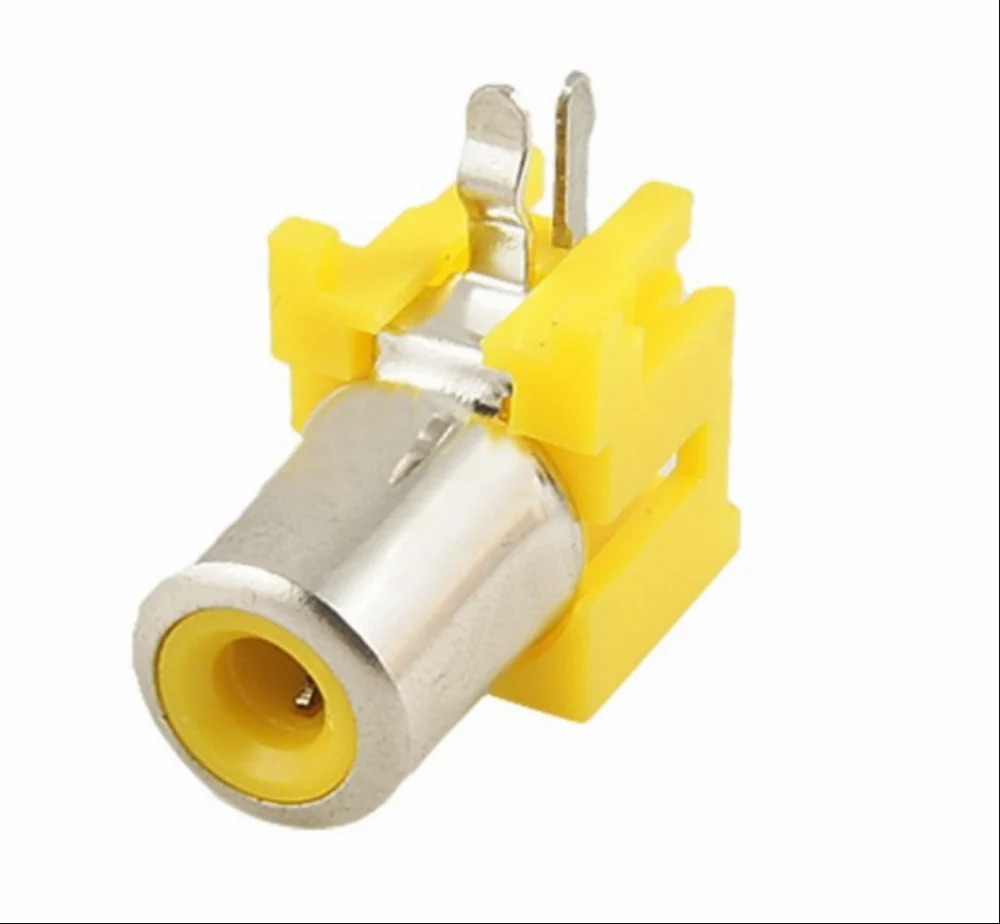

• Right Angle Single Female Jack RCA Socket - Yellow - PCB Mount....


Reliable Versatility for Audio/Video Connections

Engineered for universal use, this RCA socket fits a wide range of devices, including TVs, DVD players, CCTVs, and audio/video equipment. Its yellow color provides clear identification in multi-jack setups, while the robust ABS plastic and flame retardant features ensure long-lasting performance and enhanced safety.


Easy Installation and Secure Fitting

Designed for straightforward panel or PCB mounting, the sockets solder terminals facilitate quick and stable connections. With a mounting hole diameter of approximately 6mm and body thickness of 7mm, installation is hassle-free, making it suitable for manufacturers, distributors, and DIY enthusiasts.


Enhanced Electrical Performance

Nickel-plated contacts offer improved conductivity, while excellent insulation resistance (1000 M at 500V DC) contributes to safe operation. The connector sustains contact resistance 30 m, guaranteeing efficient signal transmission for optimal audio/video output.



FAQs of 1 RCA SOCKET YELLOW:




Q: How do I install the RCA SOCKET YELLOW on a PCB or panel?

A: The socket supports both panel and PCB mounting methods, featuring solder-type terminals for secure electrical connections. Simply insert the connector into a 6mm mounting hole and solder the contacts to the designated PCB points or attach with appropriate hardware for panel setups.



Q: What is the benefit of using this RCA socket for audio and video applications?

A: This connectors flame-retardant ABS body and low contact resistance enhance safety and signal quality, making it ideal for reliable audio/video transmission in devices such as TVs, DVD players, and CCTV systems.



Q: Where can the RCA SOCKET YELLOW be used?

A: It is compatible with a variety of devices, including televisions, DVD players, CCTV units, and other audio/video equipment, thanks to its universal mounting and standard RCA specification.



Q: What is the process for soldering the terminals on this RCA Socket?

A: Ensure the terminals are aligned with the PCB or panel holes. Using a suitable soldering iron and lead-free solder, carefully connect the signal and ground contacts to their corresponding circuit traces, allowing the socket to cool after soldering for optimal bonding.



Q: What type and size of cable does this connector support?

A: The socket is designed to accommodate cables with a maximum diameter of 3mm, facilitating secure attachment for standard RCA audio/video cables.



Q: Is the RCA SOCKET YELLOW compliant with safety and environmental standards?

A: Yes, it is RoHS compliant, ensuring it meets international safety and environmental regulations for restricted hazardous substances in electronic components.



Q: When is it recommended to use this type of RCA connector?

A: It is most suitable when a reliable, flame-retardant, and universally compatible RCA connection is required for signal and ground transmission in electronic devices operating within a -25C to 80C temperature range.
