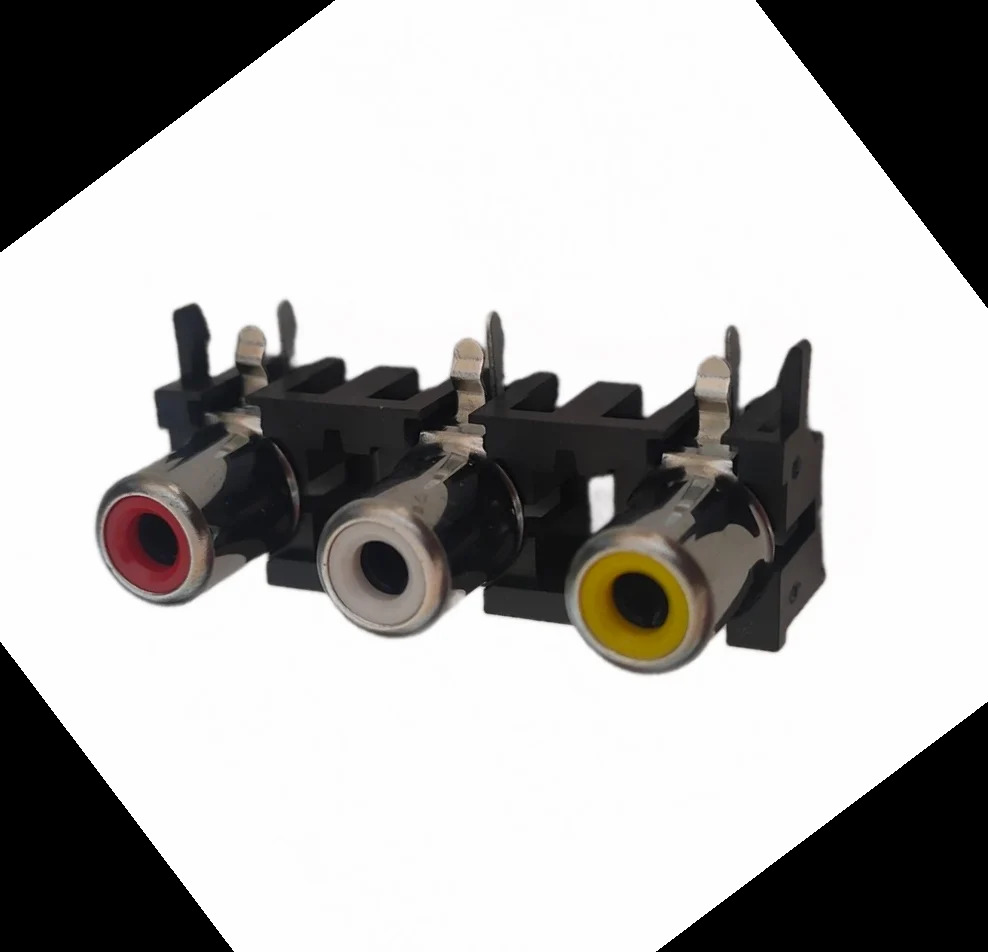

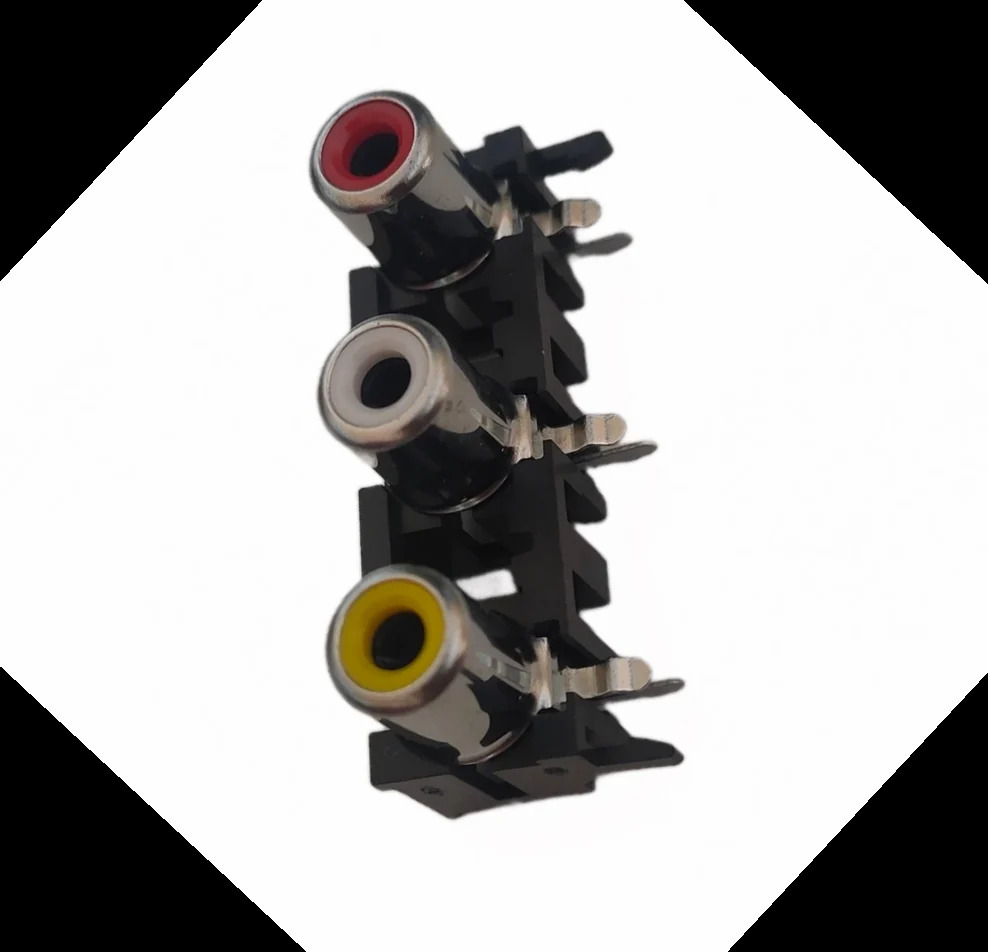

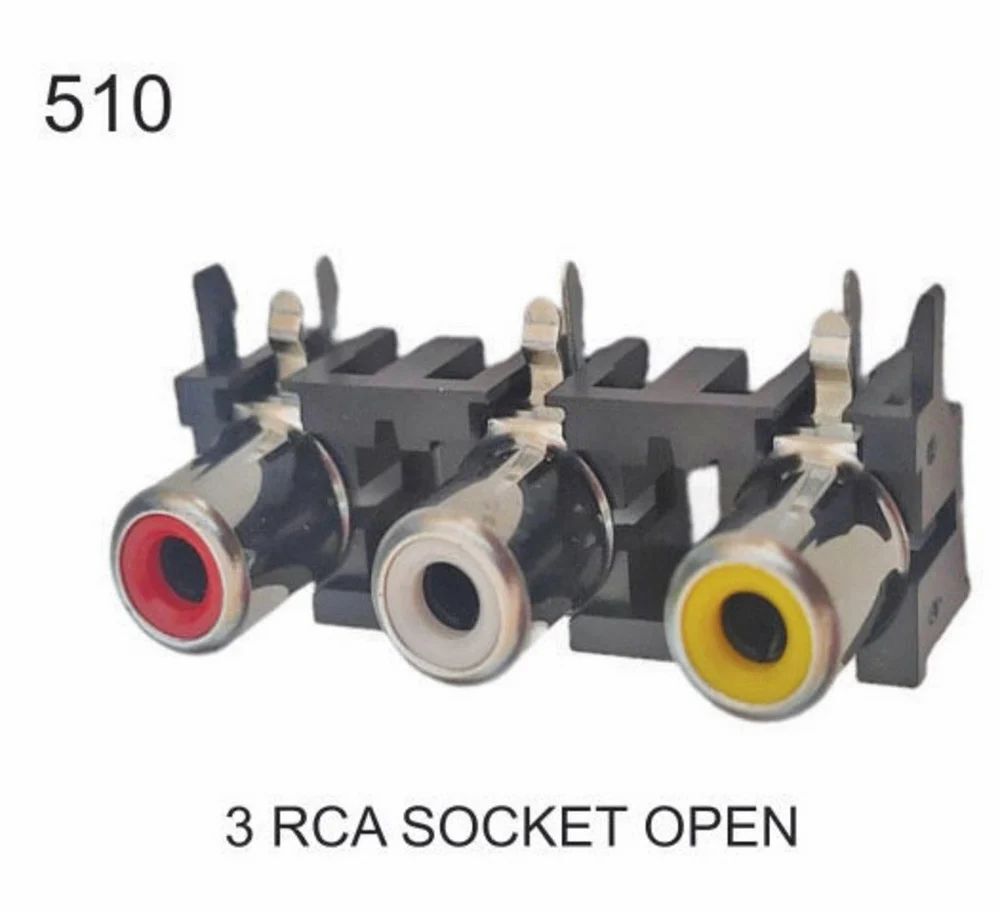

3 RCA SOCKET OPEN

About 3 RCA SOCKET OPEN

• Standard Connectivity: Provides standard audio and video connectivity, widely used in consumer electronics.
• Color-Coded: Typically color-coded (red, white, yellow) for easy identification of audio and video channels.
• Durable Construction: Made from high-quality materials such as gold-plated contacts to ensure durability and optimal signal transmission.


Robust and Reliable Design

Engineered for enduring performance, these 3 RCA panel-mount sockets utilize nickel-plated metal and ABS plastic, guaranteeing excellent conductivity and resistance to wear. The UL94V-0 flammability rating and RoHS compliance ensure both safety and environmental friendliness, while the color-coded terminals simplify connections during setup.


Versatile Applications

Ideal for integration into home theaters, professional audio systems, and electronic projects, this open-type 3 RCA socket accommodates signal frequencies up to 10 MHz. The socket fits snugly into standard panels and supports cable diameters up to 6 mm, making it a practical choice for installers and manufacturers alike.



FAQs of 3 RCA SOCKET OPEN:




Q: How do I install the 3 RCA SOCKET OPEN in a panel or device?

A: Installation involves mounting the socket onto the desired panel using the provided fittings. Insert the through-hole pins into the circuit board and solder them securely, ensuring each RCA terminal is properly aligned and connected. The panel mount design streamlines the process for both professionals and hobbyists.



Q: What are the main applications for this 3 RCA socket?

A: This socket is primarily used in home theater systems, audio equipment, and various electronic devices that require composite audio or video connections. Its robust construction and open style make it suitable for custom installations and replacements in both commercial and household settings.



Q: When should I consider choosing this open-type 3 RCA connector over other types?

A: Opt for the open-type 3 RCA connector when you need easy access for maintenance, efficient panel mounting, and compatibility with standard RCA cables, especially in projects that require robust, high-frequency connections up to 10 MHz.



Q: Where can I use this socket given its temperature and physical specifications?

A: With an operational temperature range of -25C to +70C, this connector performs reliably in typical indoor and semi-industrial environments. Its metal thickness and ABS casing are suited for panels with a standard cutout, making it adaptable for a range of electronic assemblies.



Q: What are the benefits of the UL94V-0 flammability rating and RoHS compliance?

A: UL94V-0 certification ensures the sockets plastic components resist ignition and self-extinguish rapidly, providing higher safety in electronic assemblies. RoHS compliance means the product is free from hazardous substances, contributing to environmental sustainability and health safety.



Q: How does the products contact and insulation resistance enhance its usage?

A: With contact resistance below 30 m and insulation resistance above 1000 M, this RCA socket offers stable signal transmission and superior electrical isolation, reducing interference and preserving signal quality even in complex audio/video setups.
