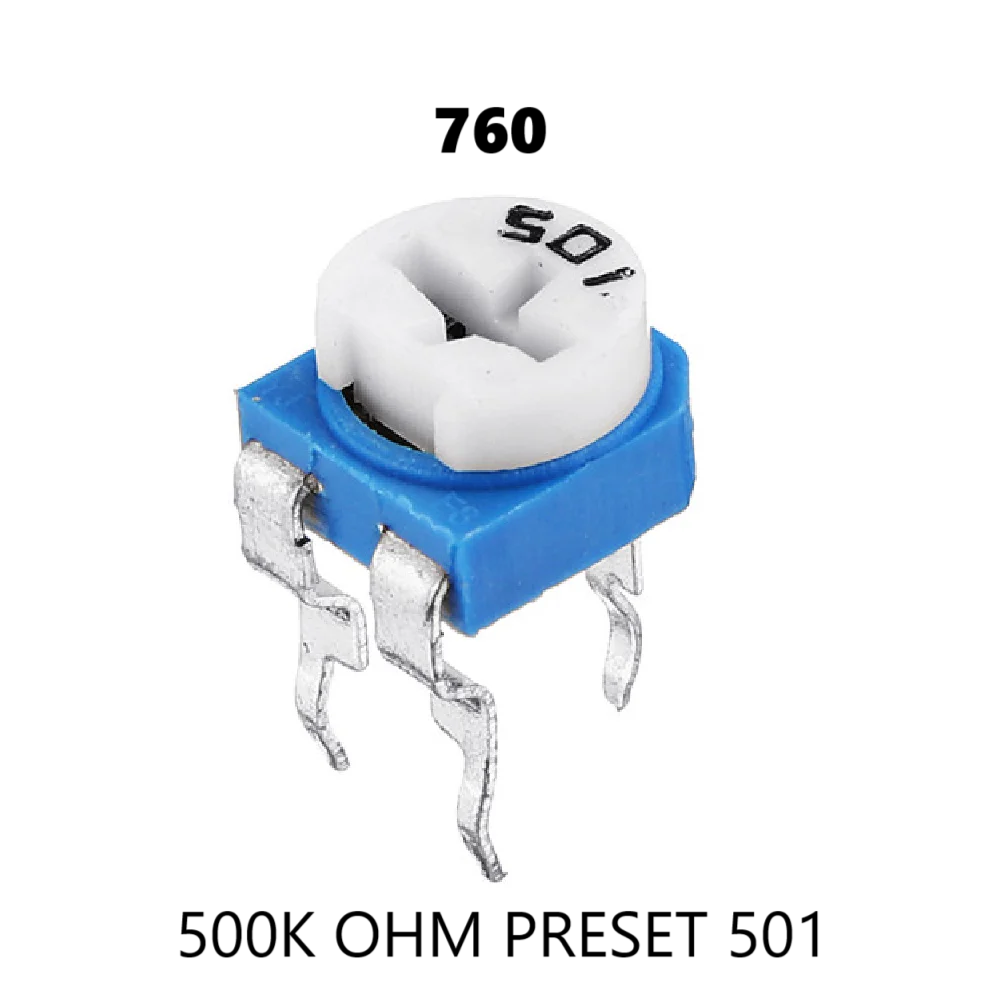

500 K OHM PRESET 501

Name: 500 K OHM PRESET 501
Brand: Madan Link Industries
Price: 1.92 INR
Availability: InStock

Price 1.92 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

500 K OHM PRESET 501 Specification

Feature
Rotary adjustment, compact size, RoHS compliant

Insulation Material
Plastic/Cermet

Humidity %
Up to 95% RH (non-condensing)

Operating Temperature
-25C to +85C Celsius (oC)

Mounting Type
PCB Mount

Connector Type
Pin terminal

Shape
Rectangular

Overheating Protection
NO

Surface Finish
Molded plastic

Product Type
Preset Potentiometer

Application
Adjustment of resistance in electronic circuits

Protection Level
Standard

Frequency (MHz)
DC to 1 MHz Hertz (HZ)

Rated Voltage
50V DC Max Volt (V)

Output Type
Variable resistance

Color
Blue

Dimension (L*W*H)
Approx. 6.8mm x 6.8mm x 4.8mm Millimeter (mm)

Weight
Approx. 1g Grams (g)

Phase
Single

Size
500 K Ohm

Input Voltage
Up to 50V DC Volt (V)

No Of Poles
3

Connection Type
Through Hole

Material
Cermet/Plastic

Adjustment Type
Top adjust

RoHS Compliance
Yes

Dielectric Strength
500V AC for 1 minute

Endurance
200 cycles (mechanical)

Model Number
501

Contact Resistance Variation
300 Ohms Max

Turn Type
Single-turn

Resistance Tolerance
20%

500 K OHM PRESET 501 Trade Information

Minimum Order Quantity
1000 Pieces

Delivery Time
5-10 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 500 K OHM PRESET 501

Resistance Values	500 K
Usage/Application	Electronic Appliances
Brand	NO
Resistance Range	200K
Material	PLASTIC
Color	WHITE/BLUE
Part Number	PT16
Minimum Order Quantity	100

Optimized for high performance with large datasets.
Supports seamless horizontal alignment of data.
Configurable parameters for flexibility and customization.
Enhanced data visualization capabilities.

Compact and Reliable Design

The 500 K OHM PRESET 501 features a rectangular compact body with a molded plastic surface, making it ideal for space-constrained PCB layouts. Its rugged cermet/plastic construction ensures long-term reliability, supported by a standard protection level and excellent endurance for intermittent adjustments. The devices RoHS compliance guarantees environmental safety, meeting modern manufacturing requirements.

Precise Resistance Adjustment

Designed for fine-tuning electronic circuits, the single-turn rotary adjustment mechanism offers straightforward top-access control. The component delivers variable resistance output (up to 500 K Ohms) with a contact resistance variation of 300 Ohms maximum, enabling reliable calibration across diverse circuit applications. Its pin terminal connector and through-hole mounting support consistent installations.

Versatile Application in Electronics

With its broad input voltage range (up to 50V DC) and frequency support from DC up to 1 MHz, the PRESET 501 is suited for use in signal conditioning, measurement, and control systems. The device operates effectively in humid environments (up to 95% RH, non-condensing), making it a robust choice for manufacturers, exporters, and traders in India seeking dependable variable resistors.

FAQs of 500 K OHM PRESET 501:

Q: How is the 500 K OHM PRESET 501 typically used in electronic circuits?

A: The PRESET 501 is primarily used for adjusting and calibrating resistance values within electronic circuits, enabling precise control over circuit behavior during setup or maintenance.

Q: What benefit does the single-turn, top adjust design offer?

A: Its single-turn, top-adjust design allows for quick and accurate resistance changes using a rotary tool, providing efficient access for fine-tuning directly from above the component.

Q: When should I choose this preset over other types?

A: You should consider this preset when space constraints, RoHS compliance, and moderate endurance are required, especially in applications that operate within DC to 1 MHz frequency and require compact, reliable components.

Q: Where can the 500 K OHM PRESET 501 be mounted?

A: This preset resistor is designed for through-hole mounting on printed circuit boards (PCBs), suitable for both professional manufacturing and prototyping environments.

Q: What is the process for adjusting the resistance value?

A: The resistance value is adjusted by rotating the top-accessible shaft with a screwdriver; this single-turn mechanism allows resistance changes between minimum and maximum rated values.

Q: Is the device protected against overheating?

A: No, the PRESET 501 does not have built-in overheating protection, so care must be taken to operate it within specified voltage and environmental ranges.

Q: How does RoHS compliance benefit users and manufacturers?

A: RoHS compliance ensures the component is free from hazardous substances, benefiting users with safer, environmentally friendly electronics and aiding manufacturers in meeting global regulations.
