5 PIN 2.54 MM PITCH MALE FEMALE JST CONNECTOR

Send Inquiry

Request To Call Back

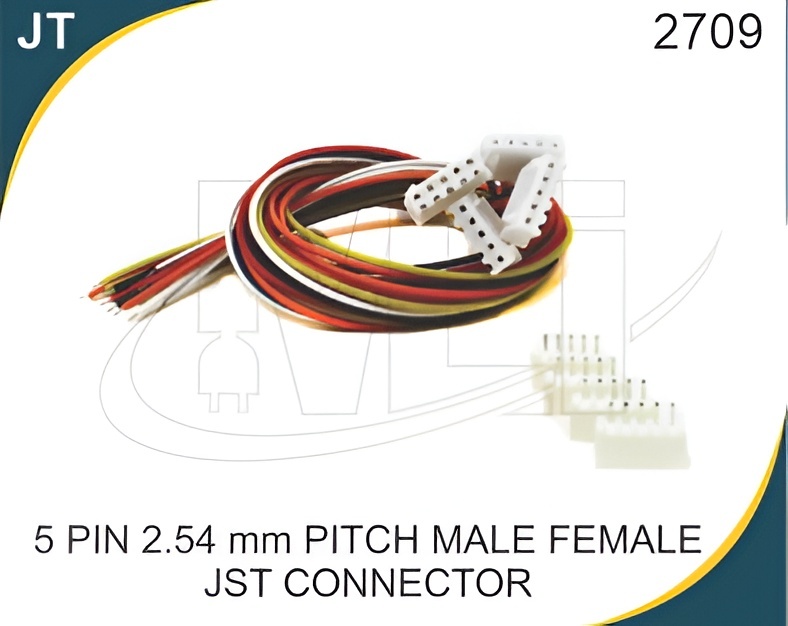

5 PIN 2.54 MM PITCH MALE FEMALE JST CONNECTOR

Price 10 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

5 PIN 2.54 MM PITCH MALE FEMALE JST CONNECTOR Specification

Capacity
5A Maximum

Pairs
Single

Female End Type
JST XH 2.54 mm Female Terminal and Housing

Temperature
-25C to +85C

Connector
JST XH 2.54 mm Male & Female

Male End Type
JST XH 2.54 mm Male Pin Header

Application
PCB, battery connections, LED Strip, RC, DIY projects

Connector Type
Wire-to-Board

Voltage Rating
250V AC/DC

Material
Copper (conductor), Nylon (housing)

Outer Diameter
~1.3 mm per wire

Number of Conductor
5

Insulation
PVC Insulation

Flame Resistance Level
UL94V-0

Color
White

Sheild
Unshielded

Cable Type
Flat Ribbon Cable

Jacket Material
PVC

Wire Gauge
26 AWG

Length
150 mm (standard); customizable

Cable Length
150 mm

Pitch
2.54 mm

Contact Resistance
20m Max

Number of Rows
Single Row

Mounting Type
Through Hole (Male), Cable Mount (Female)

Mating Cycles
30 times

Withstand Voltage
1000V AC/minute

Compliance
RoHS Compliant

Insulation Resistance
1000M Min at 500V DC

5 PIN 2.54 MM PITCH MALE FEMALE JST CONNECTOR Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 5 PIN 2.54 MM PITCH MALE FEMALE JST CONNECTOR

Pitch	2.5 mm
Brand	NO
Part Number	JST09
Connector Gender	BOTH MALE AND FEMALE AS PER DEMAND
Contact Material	PLASTIC
Current Rating	SATNDARD
Minimum Order Quantity	100 Piece

Applications:
- Used in battery connections, LED lighting, computer hardware, and hobby electronics.
- Suitable for compact and lightweight electronic devices.
Advantages:
- Reliable and secure connections with locking mechanisms to prevent disconnection.
- Compact and space-saving design.
- Easy to assemble and disassemble without special tools.

High Reliability for Versatile Applications

The JST XH 2.54 mm connectors are engineered to deliver dependable performance across various applications, such as PCB assemblies, battery packs, LED lighting, remote control models, and custom DIY projects. With robust construction and an insulation resistance of 1000M minimum, these connectors offer electrical integrity and safety, making them suitable for demanding environments.

Durable Construction and Flame Resistance

Each connector features a copper conductor encapsulated in a nylon housing and shielded by a PVC jacket. The cable, with about 1.3 mm outer diameter per wire, is flame resistant to UL94V-0 standards. The design ensures both mechanical and electrical longevity and is capable of withstanding voltages up to 1000V AC/minute.

Customizable and RoHS Compliant

The standard cable length is 150 mm, but manufacturers can customize it to meet specific project requirements. The connectors are RoHS compliant, aligning with international safety and environmental standards. Their adaptability makes them an excellent solution for both hobbyists and professional users seeking reliable and safe wiring.

FAQs of 5 PIN 2.54 MM PITCH MALE FEMALE JST CONNECTOR:

Q: How should I connect the 5 PIN 2.54 mm JST connector for my PCB project?

A: The male connector should be soldered directly into the PCB through-hole mounting, while the female terminal is attached to the cable with your specified length. Afterwards, simply align and join both ends to establish a secure wire-to-board connection.

Q: What benefits does the JST XH 2.54 mm connector offer over other connector types?

A: With their compact pitch, robust design, and flame-resistant insulation, these connectors deliver safe and reliable connections for high-density and demanding applications. They also offer RoHS compliance and are suited for repeated mating cycles.

Q: Where can I use these connectors?

A: These connectors are ideal for battery pack wiring, LED strip installations, remote control vehicles, PCB assemblies, and a wide range of electronic DIY projects requiring efficient 5-pin wire-to-board connections.

Q: What is the maximum current and voltage this connector can handle?

A: This JST connector supports a maximum of 5A current and 250V AC/DC voltage, making it suitable for a broad spectrum of low to moderate power applications.

Q: When should I consider customizing the cable length?

A: Customizing the cable length is advisable when your specific project requires a connection distance different from the standard 150 mm, ensuring a tidy and efficient layout.

Q: How many times can I disconnect and reconnect these connectors without compromising performance?

A: The connectors are rated for at least 30 reliable mating cycles, ensuring long-lasting connections even with moderate handling in everyday use.

Q: What safety and material standards do these connectors meet?

A: The assembly features materials compliant with RoHS regulations, boasts flame resistance per UL94V-0, and includes high-quality copper and nylon components for strong, safe connections.
