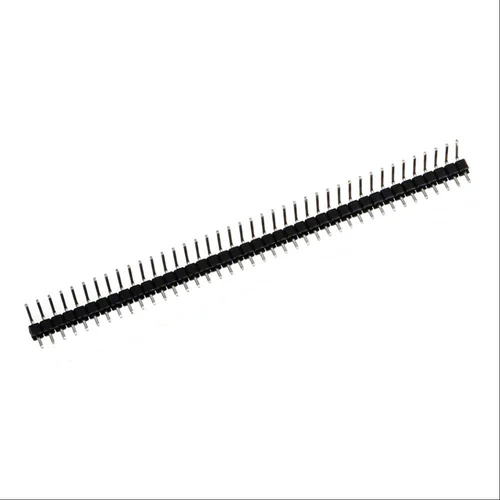

2.54 MM SINGLE ROW MALE RIGHT ANGLE PIN HEADER

Send Inquiry

Request To Call Back

2.54 MM SINGLE ROW MALE RIGHT ANGLE PIN HEADER

Price 10 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

2.54 MM SINGLE ROW MALE RIGHT ANGLE PIN HEADER Specification

Temperature
-40C to +105C

Material
Pin: Brass/Copper Alloy, Plating: Gold or Tin over Nickel

Capacity
Varies Based on Circuit (Typically Signal Level)

Connector
Right Angle Male Pin Header

Application
PCB Board, Electrical & Electronic Connections, Prototyping

Voltage Rating
250V AC/DC

Connector Type
PIN Header (Right Angle, Single Row)

Male End Type
Right Angle Male Pin

Flame Resistance Level
UL 94V-0

Number of Conductor
Single Row

Length
Custom/Varies (Standard: 6mm to 36mm)

Color
Black (Insulator)

Insulation
PBT/PA66 (UL 94V-0 Rated)

ROW
Single

RoHS Compliance
Yes

Insulation Resistance
1000 M Min at 500V DC

Current Rating
3A Max per pin

Pitch
2.54 mm

Contact Resistance
20 m Max

Number of Pins
2 to 40 (Custom available)

Mounting Type
Through Hole

Insertion Force
200g per pin

Withdrawal Force
30g per pin

Durability
300 cycles

2.54 MM SINGLE ROW MALE RIGHT ANGLE PIN HEADER Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 2.54 MM SINGLE ROW MALE RIGHT ANGLE PIN HEADER

Size	2.54 mm
Number Of Pins	AS PER ODER
Color	BLACK
Circuit	YES
Material	PLASTIC
Application	BERG CONNECTOR
brand	IMPORTED
Connector Type	BERG STRIP
Minimum Order Quantity	100 Piece

2.54MM SINGLE ROW MALE RIGHT ANGLE PIN HEADER

Applications:
- Commonly used in computer hardware, such as connecting motherboard components.
- Suitable for wire-to-board and board-to-board connections.
Advantages:
- Reliable electrical connection.
- Easy to use and solder onto printed circuit boards (PCBs).
- Available in various pin counts and configurations to suit different needs.

Trusted Connectivity for PCB Design

Engineered to deliver stable signal connections, this right angle single row pin header ensures reliability in prototyping and finished product assemblies. Its through-hole mounting and 2.54 mm pitch make it a standard choice for integration into diverse circuit designs, supporting from 2 to 40 pins based on your project's needs.

Robust Construction, Flexible Applications

With insulation materials rated UL 94V-0 for flame resistance and pins made from quality brass/copper alloy, this connector stands up to rigorous use. The gold or tin over nickel plating enhances conductivity and resists corrosion, guaranteeing longevity for applications in harsh environments or demanding electronic projects.

FAQ's of 2.54 MM SINGLE ROW MALE RIGHT ANGLE PIN HEADER:

Q: How do I mount the 2.54 mm single row right angle pin header onto my PCB?

A: You can easily mount the pin header using the through-hole process. Align the pins with the corresponding holes on your PCB and solder each pin securely in place, ensuring reliable electrical connections.

Q: What are the available pin configurations for this header?

A: This pin header is customizable and is available from 2 up to 40 pins in a single row, accommodating the requirements of various circuits and layouts. Custom lengths can be specified as needed.

Q: When should I choose a right angle pin header over a straight header?

A: Right angle pin headers are recommended when you need to connect PCBs at a 90-degree angle or provide a horizontal connection, saving vertical space and improving accessibility for specific installation constraints.

Q: Where is this connector most commonly used?

A: This header is widely used in electronic and electrical applications such as PCB board assembly, prototyping, signal transmission, and consumer electronic products, thanks to its standard pitch and robust performance.

Q: What benefits does the gold or tin plating supply to the pins?

A: Gold or tin plating over nickel ensures excellent conductivity, resists oxidation, and supports repeated connections and disconnections, which prolongs the connector's dependable life in electronic circuits.

Q: How durable is this pin header across its operational lifespan?

A: The connector is rated for a minimum of 300 cycles, meaning it can withstand numerous insertions and withdrawals while maintaining consistent contact resistance and signal integrity.
