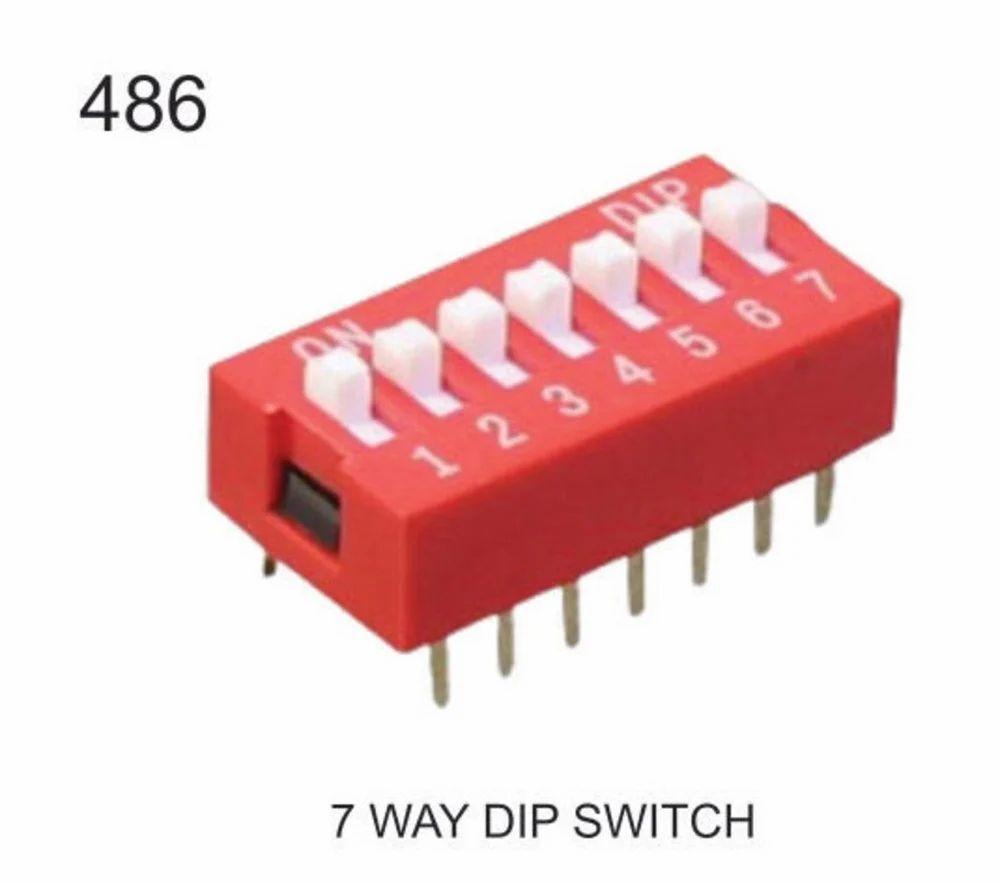

7 WAY DIP SWITCH

Price 7 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

7 WAY DIP SWITCH Specification

Material
Plastic housing, brass contacts

Max. Voltage
24V DC Volt (V)

Stoke
Momentary/Toggle (on/off)

Size
~18mm (L) 6mm (W) 5mm (H)

Color
Red housing, white actuators

7 WAY DIP SWITCH Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 7 WAY DIP SWITCH

Number of Positions	2
Current Rating	5A
Voltage Rating	STANDRED
ROHS Compliance	No
Part Number	DIP06
Mounting Type	DIP
Switch Type	DIP
Minimum Order Quantity	25 Piece

DIP switch, short for Dual In-line Package switch, offers a compact and versatile solution for configuring electronic circuits.
This 7 Way DIP SPST Switch is the simplest type of switch in which a single toggle either connects or disconnects a single terminal from other

Precision Engineering for Versatile Applications

This 7 Way DIP Switch is engineered with precision to accommodate versatile circuit designs. Its compact footprint and dual stoke optionmomentary or togglemake it suitable for customization in ATE, consumer electronics, and industrial systems. The high-quality plastic housing and durable brass contacts ensure long-lasting performance.

Reliable Connectivity and Simple Installation

The combination of red housing and white actuators aids visual identification, facilitating error-free manual operation. Designed for straightforward PCB mounting, the switchs brass contacts ensure stable connections, while the compact size conserves valuable board space in densely populated electronic assemblies.

FAQs of 7 WAY DIP SWITCH:

Q: How do I operate the 7 Way DIP Switch with momentary and toggle stoke options?

A: You can use each of the seven positions individually by sliding the white actuator. Choose the momentary stoke for temporary on/off signals or the toggle stoke for maintained on/off selection, depending on your circuit requirements.

Q: What types of devices or circuits can this DIP switch be used with?

A: This switch is suitable for any low-voltage (up to 24V DC) electronics requiring manual configuration, such as address setting, feature selection, or option control in consumer electronics, industrial devices, or automation systems.

Q: When should I select a DIP switch with momentary versus toggle stoke?

A: Choose the momentary stoke if you require a temporary input, such as resetting or pulse signaling. Opt for toggle if you need to maintain an on/off setting, ideal for configuration or mode selection in electronic assemblies.

Q: Where is this 7 Way DIP Switch commonly installed?

A: It is typically mounted on printed circuit boards within equipment such as controllers, embedded systems, and electronic devices, wherever manual configuration or address selection is necessary.

Q: What is the process for mounting and wiring the DIP switch?

A: Mount the switch onto the PCB by aligning the contact pins in designated holes and soldering them securely. Ensure the supply voltage does not exceed 24V DC and verify the actuator positions match your configuration requirements.

Q: What are the main benefits of choosing this DIP switch variant?

A: Key benefits include easy manual configuration, reliability through high-quality brass contacts, visual clarity with red housing and white actuators, and versatility due to size and selectable momentary/toggle options.
