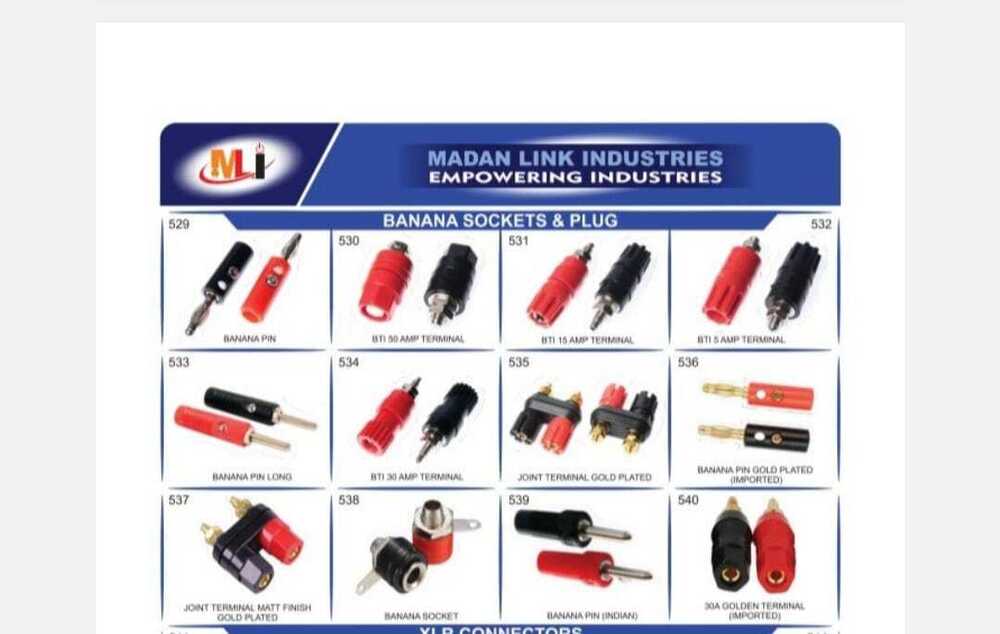

BANANA PIN (INDIAN)

Price 5 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

BANANA PIN (INDIAN) Specification

Cable Diameter
2-4 mm

Thickness
Standard

Sealed
NO

Surface Treatment
Gold Plated

Product Type
Banana Pin

Material
Brass with Gold Plating

Application
Used for connecting wires in instruments & devices

Contact Resistance
5 m

Insulation Resistance
>1000 M at 500V DC

Diameter
4 mm

Terminal Socket
Brass

Style
Indian Standard

Fittings
Panel Mount / PCB Mount

Rated Voltage
Up to 250 V

Weight
Approx 5 grams each

Color
Gold Plated

BANANA PIN (INDIAN) Trade Information

Minimum Order Quantity
1000 Pieces

Main Domestic Market
All India

About BANANA PIN (INDIAN)

Type	BANANA MALE PLUG
Plug Size	4MM
Material	BRASS
Usage/Application	banana plugs are frequently used to terminate patch cords for electronic test equipment
Color	RED & BLACK
Brand	IMPORTED
Contact	BRASS
Minimum Order Quantity	1000 Piece

4 mm banana plug connector is a single-wire electrical connector used for joining wires to electronic equipment. MX banana plugs are frequently used to terminate patch cords for electronic test equipment. MX banana plugs are also used as the plugs on the cables connecting the amplifier to the loudspeakers in a hi-fi sound system.

Superior Electrical Performance

Designed with brass and finished in gold plating, this banana pin ensures optimal conductivity and reduced contact resistance. The pins cylindrical shape enhances its fit and compatibility with a range of connectors, making it ideal for electrical and electronic devices.

Versatile Mounting Options

Accommodating both panel mount and PCB mount configurations, this banana pin adapts to various assembly requirements. Its standard 4 mm diameter and support for cable diameters of 2-4 mm make it highly versatile for diverse connection needs in instrumentation.

Durable and Corrosion Resistant

Reliability is guaranteed with a glossy, corrosion-resistant surface, allowing the pin to operate effectively in temperatures from -20C to +80C. The gold-plated brass construction extends its lifespan and ensures stable connections, even in demanding environments.

FAQs of BANANA PIN (INDIAN):

Q: How is the Banana Pin (Indian) installed in devices or panels?

A: Installation is straightforwardthis banana pin supports both panel mount and PCB mount fittings, enabling secure attachment either directly onto panels or onto printed circuit boards, depending on your application needs.

Q: What distinguishes this Banana Pin from other types of connectors?

A: The key distinctions include its gold-plated brass construction, ensuring excellent conductivity and corrosion resistance, along with compatibility with Indian-standard terminals. The pins cylindrical shape and glossy finish also provide reliable contact and visual appeal.

Q: When should I use a Banana Pin (Indian) in my instrumentation projects?

A: Use this pin whenever you require a secure, low-resistance electrical connection, particularly for testing equipment, measuring instruments, and devices operating up to 250V and 10 Amps, with wires ranging from 2-4 mm in diameter.

Q: Where can this Banana Pin be used effectively?

A: This pin is suitable for applications requiring panel or PCB mountingcommonly found in laboratories, testing apparatus, industrial control equipment, and consumer devices in line with Indian standards.

Q: What is the process for ensuring a secure cable connection with this pin?

A: Select a cable with a 2-4 mm diameter, insert it fully into the pins terminal socket (made of brass), then tighten or solder it for maximum electrical contact and insulation resistance, exceeding 1000 M at 500V DC.

Q: What are the benefits of the gold-plated finish on this Banana Pin?

A: The gold-plated surface not only enhances corrosion resistance but also improves connectivity by minimizing contact resistance (5 m), ensuring long-term reliable operation even in fluctuating environments.

Q: How does the Banana Pin maintain performance in extreme temperatures?

A: The materials and finish are selected for resilience, allowing reliable operation from -20C up to +80C. The pin remains stable and corrosion free, suitable for both standard and demanding industrial conditions.
