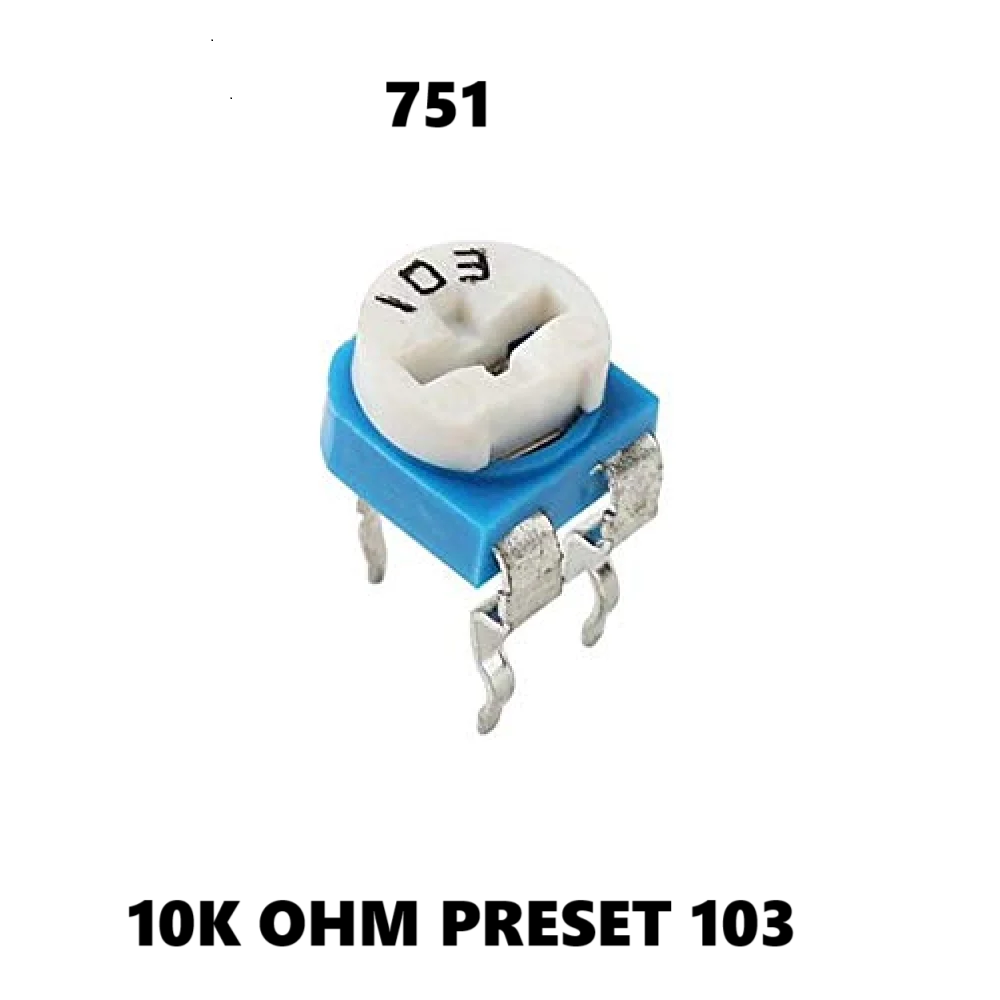

10 K OHM PRESET 103

Price 1.92 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

10 K OHM PRESET 103 Specification

Mounting Type
PCB Mount

Operating Temperature
-25C to +70C

Shape
Rectangular

Surface Finish
Matte

Overheating Protection
NO

Humidity %
Max. 95% RH

Connector Type
Pin Type

Insulation Material
Ceramic

Efficiency
Passive, Not Applicable

IP Rating
Not Rated

Feature
Adjustable Resistance, High Precision

Product Type
Preset Potentiometer

Application
Electronic Circuits, Calibration

Protection Level
Standard

Frequency (MHz)
DC to few MHz

Rated Voltage
50 VDC

Energy Consumption
Passive Component, Negligible

Output Type
Variable Resistance

Color
Blue

Dimension (L*W*H)
Approx. 6.8mm x 4.8mm x 8.5mm

Weight
Approx. 0.5 g

Size
103 (10 K Ohm)

Input Voltage
Max. 50V

Phase
Single

No Of Poles
3

Material
Ceramic, Carbon

Connection Type
Through Hole

Resistance Value
10 K Ohm (103)

Lead Pitch
2.54 mm

Tolerance
20%

Storage Temperature
-40C to +85C

Adjustment Type
Top Adjust

RoHS Compliant
Yes

Life Cycle
200 Cycles (Min.)

Contact Material
Phosphor Bronze

Dielectric Strength
500 VAC/Min

10 K OHM PRESET 103 Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 10 K OHM PRESET 103

Resistance Values	10 K
Usage/Application	Electronic Appliances
Brand	NO
Resistance Range	10K
Material	PLASTIC
Color	WHITE/BLUE
Part Number	PT07
Minimum Order Quantity	100

Applications: Used in electronic circuits for calibration, tuning, and adjustment
Usage: Ideal for setting reference voltages, adjusting signal levels, and other precision applications
Durability: Long lifespan with reliable performance over time
Compatibility: Suitable for use in a variety of electronic devices and projects
Packaging: Available in single units or bulk packaging for larger projects

Precise Calibration and Adjustment

The 10 K OHM PRESET 103 allows for easy, top-adjustable resistance settings, making it essential for the calibration and fine-tuning of electronic circuits. Its design ensures reliability across varying frequencies and offers long-lasting performance, making it a dependable choice in both prototyping and final product applications.

Durable Construction for Consistent Performance

Constructed from ceramic and carbon materials with phosphor bronze contacts, this preset is engineered for durability and long-term dependability. Its matte surface finish, combined with a wide storage and operating temperature range, ensures stability in demanding conditions and high humidity environments.

FAQs of 10 K OHM PRESET 103:

Q: How do I adjust the resistance value on the 10 K OHM PRESET 103?

A: You can adjust the resistance by turning the top screw-type adjuster with a suitable tool, such as a small flat-head screwdriver, while monitoring the circuit. Always do this with power off to ensure safety and precision.

Q: What are the main applications for the 10 K OHM PRESET 103?

A: This preset is widely used for precise calibration and tuning in electronic circuits, such as oscillators, amplifiers, sensor interfaces, and other devices where variable resistance is required.

Q: When should I use a preset resistor like this instead of a fixed resistor?

A: Consider using a preset resistor during prototyping or in applications where circuits may need periodic adjustment to maintain optimal performance, such as in calibration or trimming tasks.

Q: Where can I mount the 10 K OHM PRESET 103 within a circuit?

A: The component is designed for PCB (Printed Circuit Board) mounting using its through-hole pins with a 2.54 mm lead pitch, making it compatible with standard board layouts.

Q: What benefits does the ceramic and phosphor bronze construction offer?

A: Ceramic insulation ensures excellent thermal stability and electrical isolation, while phosphor bronze contacts provide robust electrical connections and enhanced resistance to wear, ensuring a long operational life.

Q: How does the preset perform under different environmental conditions?

A: With an operating temperature range from -25C to +70C, storage range from -40C to +85C, and tolerance for up to 95% humidity, the preset remains stable in diverse and challenging environments.

Q: What is the process for integrating the 10 K OHM PRESET 103 into a new electronic design?

A: Simply solder the through-hole pins onto the PCB at the specified 2.54 mm pitch. Ensure the circuit layout accommodates the components size (approx. 6.8mm x 4.8mm x 8.5mm) and maximum voltage (50 VDC) for optimal performance.
