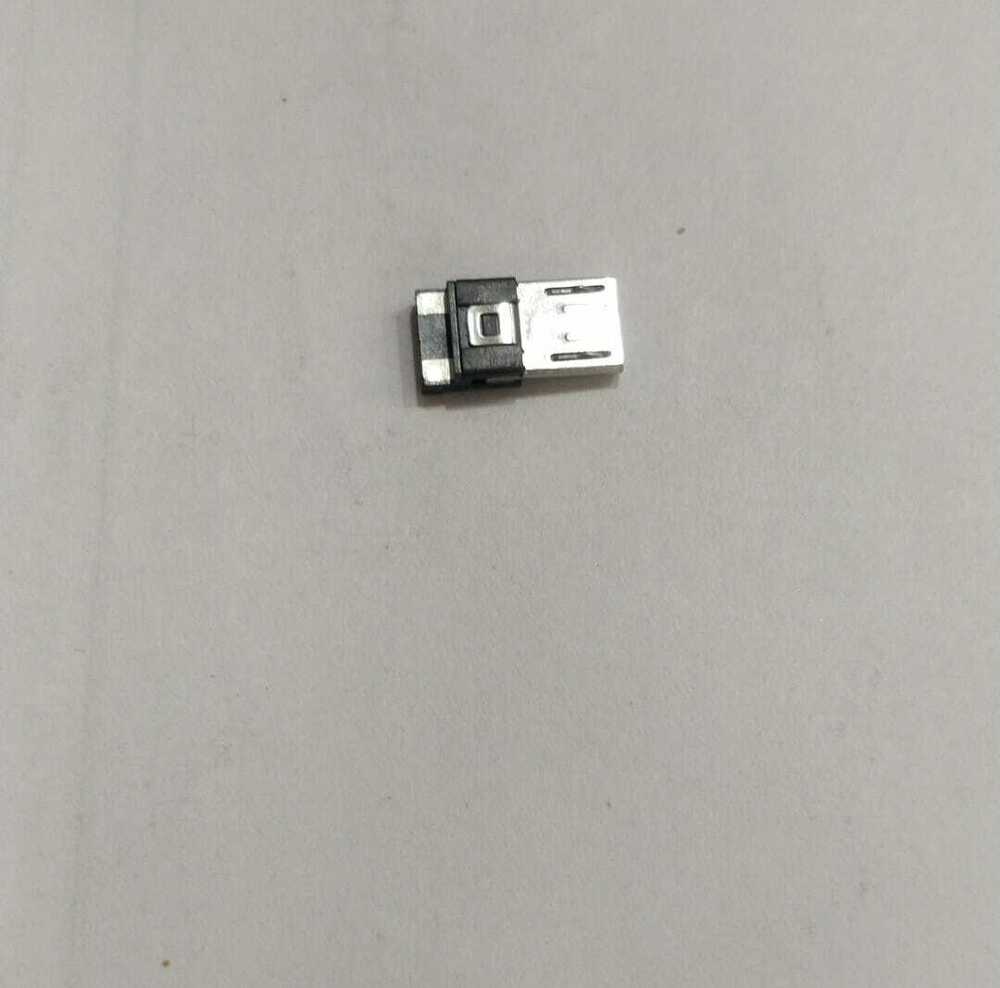

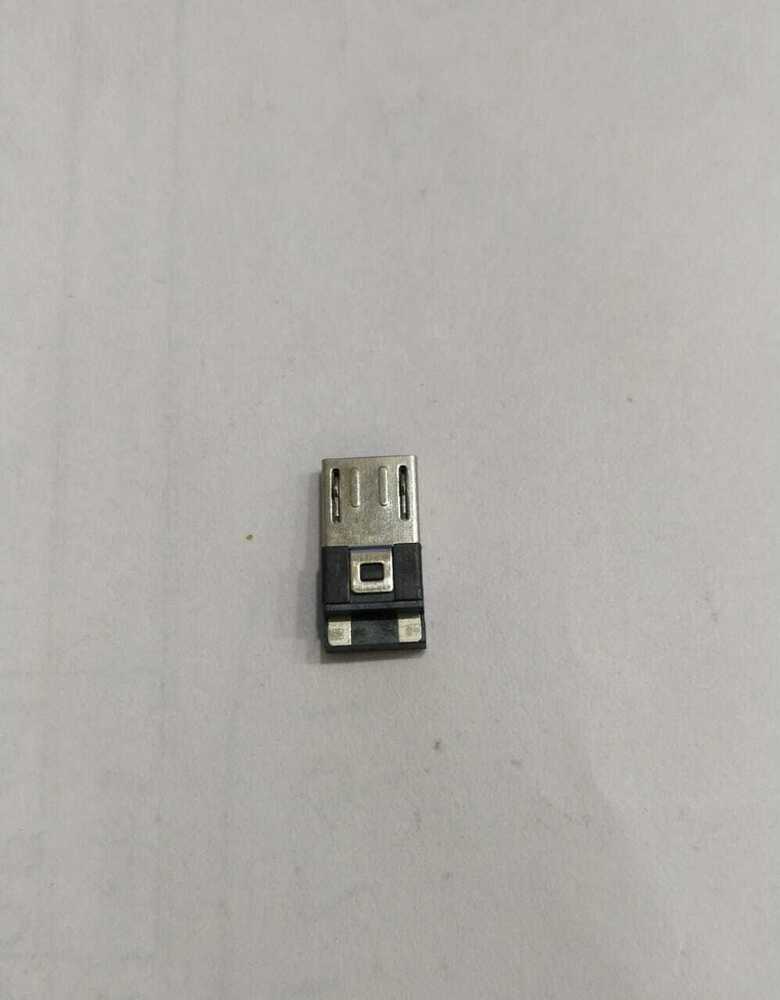

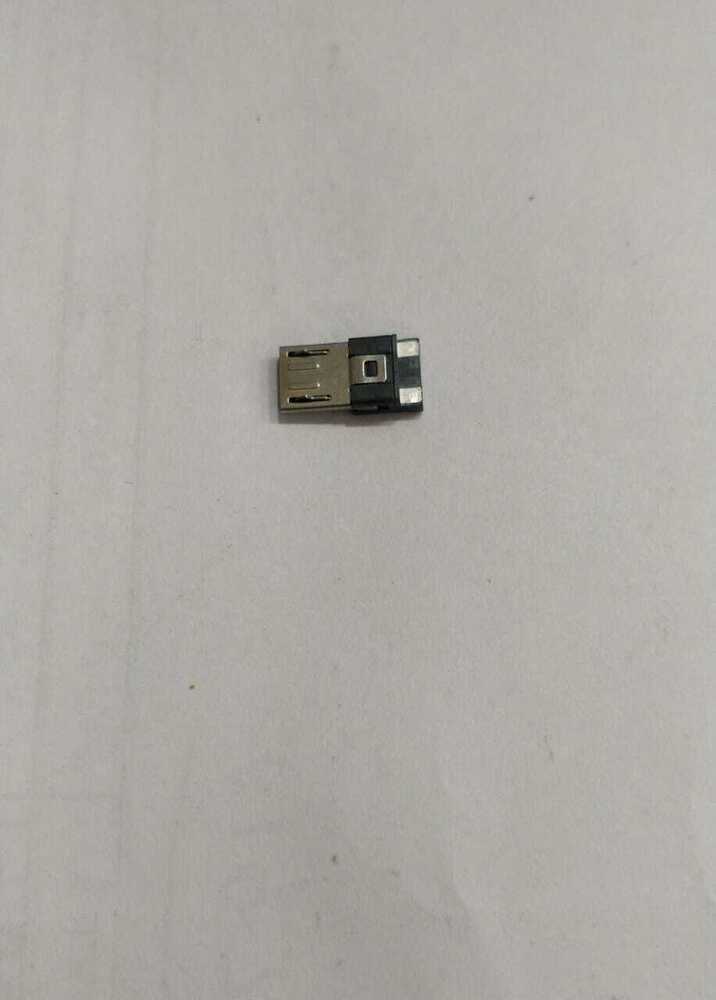

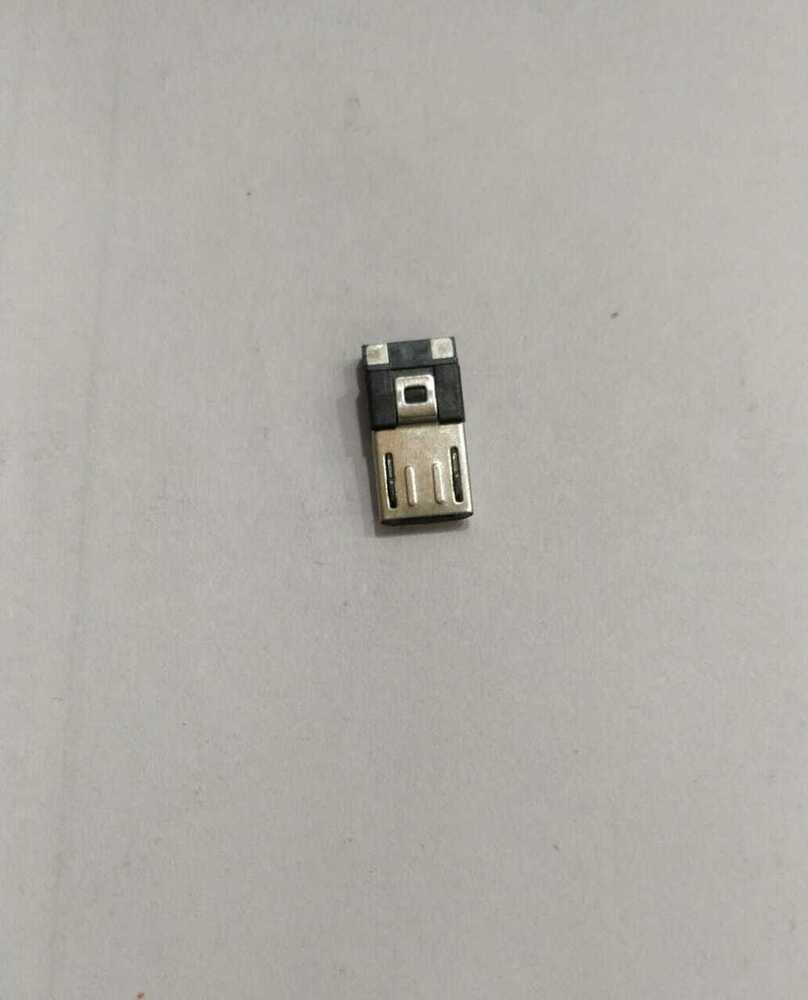

TYPE-MICRO USB 2 PIN MOULDING

Price 40 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

TYPE-MICRO USB 2 PIN MOULDING Specification

Capacity
Up to 2.4A current

Connector
Micro USB Type B male

Male End Type
Micro USB Type B moulded

Female End Type
Exposed wire (no connector)

Application
Data transfer, charging

Voltage Rating
30V DC

Pairs
1 Pair

Temperature
-20C to +80C

Connector Type
Micro USB 2 Pin

Material
Copper (conductors), PVC (jacket & insulation)

Length
Customizable (Standard: 1 meter)

Insulation
PVC Insulated

Color
Black

Wire Gauge
28 AWG (Data), 24 AWG (Power)

Cable Type
2 core, round cable

Sheild
No shield

Outer Diameter
3.5 mm

Number of Conductor
2

Flame Resistance Level
UL 94V-0

Jacket Material
PVC

Cable Length
1 meter (or customized)

Moulding Type
Injection moulded, strain relief

Insulation Resistance
> 5 M/km (DC 500V)

Storage Humidity
80% RH

Contact Plating
Nickel plated

Conductor Resistance
70 /km

Lead Time
7-15 days depending on quantity

RoHS Compliance
Yes

Durability
5000+ insertion/removal cycles

Compatible Devices
Mobile phones, power banks, MP3 players, development boards

Impedance
Approximately 90 Ohms (differential pair)

TYPE-MICRO USB 2 PIN MOULDING Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About TYPE-MICRO USB 2 PIN MOULDING

Number Of Ports Pins	1
Network Type	AS PER ODER
Usage/Application	MOBILE ETC
Dimensions	AS PER DISPLAY
Size/Dimension	AS PER DISPLAY
Minimum Order Quantity	100 Piece

Data Transfer: Connecting peripherals such as keyboards, mice, and storage devices to computers.
Charging: Powering and charging devices like smartphones, tablets, and other portable electronics.
Peripheral Connectivity: Connecting devices like printers, cameras, and external hard drives.
Audio/Video Transmission: Connecting devices like monitors and projectors with appropriate adapters.
Power Delivery: Providing power to devices through standards like USB Power Delivery (USB PD).

Injection Moulded with Enhanced Durability

Each cable is crafted using advanced injection moulding techniques, featuring robust strain relief to minimize wear and tear during frequent use. The nickel-plated Micro USB Type B connector provides reliable connectivity and resists corrosion, ensuring long-term performance for charging or data transfer. Built for 5,000+ plug cycles, this cable meets rigorous durability standards, making it a practical choice for a variety of devices.

Designed for Versatile Compatibility

This Micro USB 2 Pin cable supports a wide range of devices including mobile phones, power banks, MP3 players, and development boards. Its two-conductor, round cable design enables both power delivery (up to 2.4A) and data transfer. The exposed wire female end allows easy integration into custom projects or repairs. Its PVC insulation and customizable length offer flexibility for industrial, commercial, or personal use.

Safety and Compliance at the Forefront

RoHS compliant and tested for flame resistance under UL 94V-0 standards, this cable delivers both safety and reliability. The insulation and conductor properties ensure high resistance to electrical leakage and maintain stable performance across a temperature range of -20C to +80C. Its construction, featuring copper conductors and a robust PVC jacket, protects against environmental factors in storage and everyday use.

FAQs of TYPE-MICRO USB 2 PIN MOULDING:

Q: How is the TYPE-MICRO USB 2 Pin Moulding cable typically used?

A: This cable is ideal for data transfer and charging of mobile phones, power banks, MP3 players, and development boards. The exposed wire end makes it suitable for custom electronic projects and repairs where a female connector may not be necessary.

Q: What are the main benefits of the injection moulded design with strain relief?

A: The injection moulded construction with integrated strain relief increases durability and minimizes stress at connection points. This design helps withstand more than 5,000 insertion/removal cycles, ensuring longevity and reliable performance in repeated use scenarios.

Q: When can I expect delivery after placing an order, and is cable length customization available?

A: The standard lead time is 7 to 15 days, depending on order quantity. Length customization is available, with the standard offering being 1 meter, but other lengths can be specified to meet your project requirements.

Q: Where can this cable be effectively utilized?

A: This cable is widely applicable in OEM manufacturing, electronic repair, DIY electronics, and development board setups. Its robust build and versatile design make it suitable for environments requiring reliable connectivity and easy wire termination.

Q: How does the cable ensure electrical safety and data integrity?

A: It features high insulation resistance (>5 M/km at DC 500V), low conductor resistance (70 /km), flame resistance rating of UL 94V-0, and maintains an approximate impedance of 90 Ohms for signal integrity during data transfer. Its RoHS compliance highlights its adherence to safety and environmental standards.

Q: What are the advantages of the exposed wire end on the female side?

A: The exposed wire end allows greater flexibility in installations, enabling easy soldering to PCBs or direct integration into custom circuitry, making it an excellent choice for prototype development or permanent device installations.
