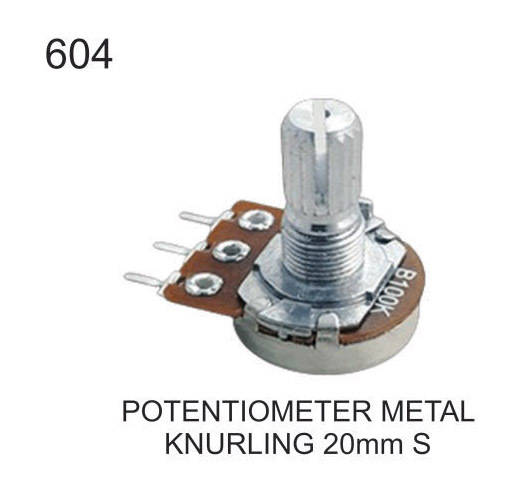

Potentiometer Metal Knurling 20 MM S

Price 20 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Potentiometer Metal Knurling 20 MM S Specification

Overheating Protection
NO

Humidity %
85% RH

Insulation Material
Plastic Dielectric

Efficiency
High

Mounting Type
Panel Mount

Shape
Round

IP Rating
IP40

Operating Temperature
-10C to +60C

Surface Finish
Chrome Plated Metal

Feature
Knurled Shaft, Robust Design, Smooth Rotation

Connector Type
Solder Terminal

Product Type
Rotary Potentiometer

Application
Volume Control, Electronic Circuits, Audio Equipment

Protection Level
IP40

Frequency (MHz)
DC to Low Frequency AC

Rated Voltage
250 V

Energy Consumption
Passive Device (Negligible)

Output Type
Analog Variable Resistance

Color
Silver, Black

Dimension (L*W*H)
20 mm Diameter x 15 mm Height (Approx.)

Weight
15 g

Phase
Single Phase

Input Voltage
Up to 250 V

Size
20 mm

No Of Poles
Single

Material
Metal, Plastic

Connection Type
Solder Lug

Potentiometer Metal Knurling 20 MM S Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Potentiometer Metal Knurling 20 MM S

Material	Stainless Steel
Power Rating	0.5 W
Resistance Values	100 K
Resistance Value	100k Ohm
Usage/Application	Electronic Appliances
I am interested in	Linear Potentiometer
Brand	IMPORTED
Voltage	AS PER USE
Color	AS PER PHOTO
Rated Power	STNADARD
Size/Dimension	AS PER DISPLAY
Type	TONE VOLUME
Minimum Order Quantity	2000 Piece

Specification: Full Resistance: 250k ohm B Type Shaft Length: Approx.15mm Shaft Diameter:Approx. 4mm Shaft Thread diameter:Approx. 8mm Base Diameter: Approx.15mm Whole Length: Approx.30mm

Superior Build and Precision Control

Crafted with a rugged metal and plastic body, this potentiometer features a finely knurled shaft for enhanced grip and optimal handling. Its robust design ensures stability and precision during adjustment, while the chrome-plated surface provides durability against wear. Reliable tolerance and minimal contact resistance assure consistent performance in sensitive applications such as audio equipment and electronic circuitry.

Long-lasting Performance and Versatility

With a mechanical life of 15,000 cycles and electrical life of 10,000 cycles, this potentiometer stands out for its longevity. Its wide operating temperature range (-10C to +60C) and protection level of IP40 make it suitable for varied environments. Users benefit from its high efficiency, low-profile design, and compatibility with standard solder lug connections, ensuring ease of integration into multiple electronic setups.

FAQs of Potentiometer Metal Knurling 20 MM S:

Q: How do I install the Potentiometer Metal Knurling 20 MM S in electronic circuits?

A: To install, panel mount the potentiometer using its round base, and connect the wires to its solder lug terminals. The knurled shaft allows for easy adjustment. Ensure proper alignment and secure solder joints for reliable operation within your circuit.

Q: What are the main applications of this potentiometer?

A: This potentiometer is widely used in volume control, audio equipment, and electronic circuits that require precise analog variable resistance. Its robust construction also makes it suitable for both industrial and commercial electronic devices.

Q: When should I consider replacing the potentiometer?

A: You should consider replacement if you notice erratic resistance values, difficulty in turning the shaft, or after reaching the rated mechanical life (15,000 cycles) or electrical life (10,000 cycles) to maintain optimal circuit performance.

Q: Where can this potentiometer be used effectively regarding environmental conditions?

A: It can be used in indoor environments with temperatures ranging from -10C to +60C and humidity up to 85% RH. However, it is not recommended for areas exposed to high dust, moisture, or direct water spray due to its IP40 protection rating.

Q: What is the process for adjusting resistance with this potentiometer?

A: Rotate the knurled shaft to change the resistance value. The analog output varies smoothly across a 300 10 rotation, allowing fine control over the connected electronic circuits voltage or current.

Q: What are the key benefits of using this potentiometer model?

A: Key benefits include smooth and stable rotation, high mechanical and electrical endurance, efficient passive operation, and straightforward integration thanks to its standard panel mount and solder terminals. Its RoHS compliance ensures environmental safety.
