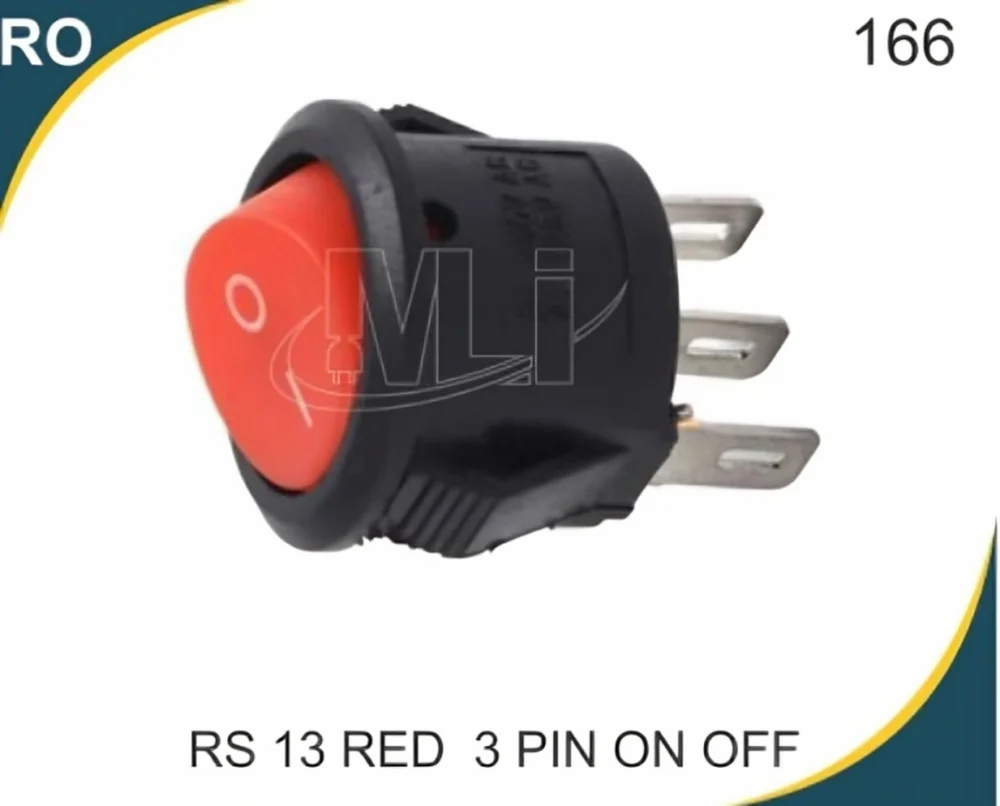

Rocker switch 3 pin on off red iron copper leg

Send Inquiry

Request To Call Back

Rocker switch 3 pin on off red iron copper leg

Name: Rocker switch 3 pin on off red iron copper leg
Brand: Madan Link Industries
Price: 6.0 INR
Availability: InStock

Price 6.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Rocker switch 3 pin on off red iron copper leg Specification

Response Time
Instant

Temperature Range
-25C to +85C

Automation Grade
Manual

Max. Current
Current Rating: 6A 10A (250V AC) Ampere (amp)

Rated Voltage
250V AC

Number of Module
Single

Circuit Type
SPST (Single Pole Single Throw)

Protection Level
IP20

Mechanical Life
10,000 cycles

Finish Type
Matte

Product Type
Rocker Switch

Material
Plastic housing, Iron copper leg

Insulation Resistance
100M at 500V DC

Contact Resistance
50m

Max. Voltage
250V AC

Operating Temperature
-25C to +85C

Stoke
On-Off

Warranty
Yes

Size
Approximately 21mm x 15mm

Usage & Applications
Industrial

Color
Red

Weight
Approx. 6g

Rated Current
Current Rating: 6A 10A (250V AC) Volt (v)

Mounting Type
Panel Mount

Current Rating
6A 10A (250V AC)

No Of Poles
Single Pole

Flame Retardant Level
UL 94V-0

Applications
Industrial, Home Appliances, Power Supplies

Terminal Type
3 Pin

Power
1500W max at 250V AC

Switch Function
ON-OFF

Panel Cutout
Approx. 19mm x 13mm

LED Indicator
No

Dielectric Strength
1500V AC for 1 minute

Leg Material
Iron and Copper

About Rocker switch 3 pin on off red iron copper leg

ROUND ROCKER SWITCH 3-PIN ON/OFF (NON-ILLUMINATED)

Arobust and reliableround rocker switch designed forbasic SPST (Single Pole Single Throw) power control, featuring avibrant red actuatorfor easy identification.

Key Features:

3-Pin ON/OFF Operation
Non-Illuminated Pure mechanical switching (no LED/lighting)
Round Rocker Design Comfortable thumb press with tactile feedback
Durable Construction Thermoplastic housing

Technical Specifications:

Type: SPST (ON-OFF)
Current Rating: 6A10A (250V AC)
Terminals: 3-pin
Material: Flame-retardant plastic
Mounting: Standard panel cutout

Applications:

Household appliances(fans, mixers)
Power tools & industrial controls
Automotive auxiliary circuits
DIY electronics projects

Simple and cost-effectivefor basic power control
Secure 3-pin connectionfor stable performance
Ergonomic round shapefor easy operation

Ideal for projects requiring a no-frills, durable ON/OFF switch!

Robust Design for Demanding Applications

Built to withstand heavy-duty usage, this rocker switch features iron and copper legs for optimal conductivity and a plastic housing rated UL 94V-0 for flame retardancy. Its suitable for both industrial machinery and home appliance panels, ensuring long-term reliability.

Simple Panel Mount Installation

The switch is designed for straightforward panel mounting with a standard cutout of approximately 19mm x 13mm. Its lightweight (approx. 6g) and compact dimensions allow for easy integration into control panels, without requiring complex tools or procedures.

Exceptional Performance and Safety

Rated for currents of 6A and 10A at 250V AC, this switch can handle high-power loads up to 1500W. It offers excellent insulation resistance (100M at 500V DC) and high dielectric strength, providing dependable safety and durability in various environments.

FAQs of Rocker switch 3 pin on off red iron copper leg:

Q: How do I install the Rocker Switch 3 Pin ON-OFF on my panel?

A: To install, create a panel cutout of approximately 19mm x 13mm, insert the switch into the cutout, and connect the iron and copper legs to your circuit using standard terminal connectors. Ensure the orientation matches your ON-OFF requirements.

Q: What applications are suitable for this rocker switch?

A: This switch is ideal for industrial equipment, home appliances, and power supply units. It supports manual control for devices requiring ON-OFF switching and is designed to handle currents of 6A or 10A at up to 250V AC.

Q: What benefits does the UL 94V-0 flame retardant rating offer?

A: The UL 94V-0 rating ensures the switchs plastic housing resists ignition and prevents the spread of flames, significantly enhancing safety for applications in both industrial and residential settings.

Q: When should I consider using a switch without an LED indicator?

A: Choose a switch without an LED indicator when you want to minimize energy use, reduce component complexity, or when visual indication of ON-OFF status is unnecessary for your application.

Q: Where can I source this rocker switch in India?

A: This product is available through multiple channels in India, including distributors, exporters, importers, manufacturers, and traders specializing in electrical components.

Q: What is the mechanical life expectancy of this switch?

A: The rocker switch is rated for a mechanical life of at least 10,000 cycles, meaning it can be operated reliably for thousands of ON-OFF actions before needing replacement.

Q: How does the IP20 protection level impact usage?

A: IP20 protection means the switch is safeguarded against solid objects greater than 12mm but is not waterproof. It is ideal for indoor environments where exposure to high humidity or direct water contact is minimal.
