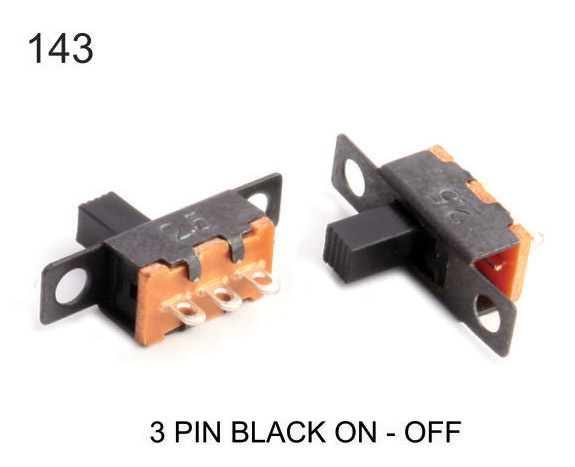

Slide Switch Black 3 Pin On Off

Price 2.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Slide Switch Black 3 Pin On Off Specification

Rated Voltage
250V AC Volt (V)

Number of Module
1

Protection Level
IP20

Finish Type
Black Matt

Temperature Range
-25 C to +85 C Celsius (oC)

Response Time
Instant Seconds

Mechanical Life
>10,000 cycles Months

Circuit Type
Single Pole Single Throw (SPST)

Automation Grade
Manual

Max. Current
3A Ampere (amp)

Product Type
Slide Switch (ON-OFF)

Power Rating
-25 C to +85 C

Insulation Resistance
100M at 500V DC

Contact Resistance
50m Ohm ()

Max. Voltage
250V AC Volt (V)

Stoke
2-3 mm

Warranty
No Warranty

Size
Approx. 19mm x 6mm x 13mm

Usage & Applications
Toy and Electronics components

Operating Temperature
-25 C to +85 C Celsius (oC)

Color
Black

Cable Type
On off Slide Switch

Weight
Approx. 1 grams Grams (g)

Display Type
No display type

Material
metal case

Mounting Type
Through Hole

Current Rating
3A

No Of Poles
3 Pole

Lever Travel
Short stroke

Contact Material
Silver-plated copper

RoHS Compliance
Yes

Panel Cut-Out
Fits standard PCB slot

Dielectric Strength
AC 1000V for 1 min

Switching Operation
ON-OFF

Vibration Resistance
10-55Hz, 1.5mm double amplitude

Terminal Type
3-Pin solder lugs

Actuator Type
Sliding

Humidity Resistance
Up to 95% relative humidity

Slide Switch Black 3 Pin On Off Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About Slide Switch Black 3 Pin On Off

Experience the venerable reliability of the 3 PIN BLACK SLIDE SWITCH ON-OFF, available for a limited time when you buy online. This optimum choice features a polished black matt finish, ensuring professional integration with PCB designs. Its robust plastic housing and silver-plated copper contacts deliver fresh performance with instantaneous response. Designed for manual automation, it boasts RoHS compliance, withstands high humidity and vibration, and supports a mechanical life exceeding 10,000 cycles. With a 3A current rating, IP20 protection, and precise short stroke lever travel, this switch is ideal for diverse applications where durability is paramount.

Applications and Direction Of Use

The 3 PIN BLACK SLIDE SWITCH ON-OFF is commonly used in electronic circuits, DIY projects, and industrial control panels as a single pole single throw (SPST) switch. Its manual slide actuator provides simple ON-OFF operation. For best results, solder the 3-pin terminal lugs onto a PCB slot, ensuring the switch is securely mounted. Slide the actuator gently along the short stroke to toggle power instantly. Suitable for both professional and hobbyist environments.

Main Export Markets, Packaging & Delivery

This switch finds main export markets in Asia, Europe, and North America. Order completion is seamless, and goods transport ensures protection through reliable packaging details, with switches securely boxed to prevent damage. The product is dispatched from Indian FOB ports, facilitating punctual delivery worldwide. With efficient logistics and careful handling, buyers benefit from prompt distribution to their desired locations, making large or small orders easy to manage and track.

FAQs of 3 PIN BLACK SLIDE SWITCH ON-OFF:

Q: How do I install the 3 PIN BLACK SLIDE SWITCH ON-OFF on my PCB?

A: You need to mount the switch through the designated PCB slot and solder the three terminal lugs securely to achieve stable electrical connections.

Q: What materials are used in the construction of this slide switch?

A: The switch features a plastic housing, copper alloy contacts with a silver-plated finish, ensuring durability and optimum electrical conductivity.

Q: Where can this switch be primarily used?

A: It is suitable for use in electronic circuits, industrial panels, and DIY projects where ON-OFF manual switching is required.

Q: What is the shipping process for export orders?

A: After order completion, goods are carefully packed and dispatched from Indian FOB ports, ensuring safe and timely transport to international markets.

Q: What benefit does the RoHS compliance offer for this product?

A: RoHS compliance assures that this switch is manufactured without hazardous substances, making it environmentally safe and suitable for global applications.
