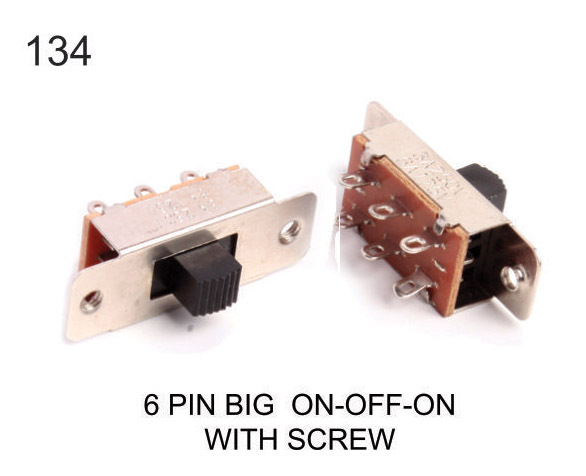

Slide switch With Screw 6 Pin On Off On

Price 2.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Slide switch With Screw 6 Pin On Off On Specification

Response Time
Instant Seconds

Automation Grade
Manual

Temperature Range
-25 C to +85 C Celsius (oC)

Mechanical Life
10,000 cycles minimum Months

Max. Current
3A Ampere (amp)

Rated Voltage
125V AC / 250V AC Volt (V)

Finish Type
Nickel Plated

Protection Level
IP20

Circuit Type
ON-OFF-ON

Number of Module
6

Product Type
6 Pin ON-OFF-ON Slide Switch with Screw

Power Rating
-25 C to +85 C

Insulation Resistance
100M at 500V DC

Contact Resistance
30m Ohm ()

Max. Voltage
250V AC Volt (V)

Warranty
No Warranty

Stoke
3 Position Slide (ON-OFF-ON)

Usage & Applications
This miniature slide switch is commonly used in low voltage low current electronic devise where a simple on on or on off selection is required

Size
Approx. 20mm x 6mm x 13mm

Cable Type
NO CABLE TYPE

Operating Temperature
-20 TO +85 Celsius (oC)

Color
Black/Silver

Weight
Approx. 5 grams Grams (g)

Display Type
no display typw

Material
metal case

Mounting Type
Panel Mount with Screw

Current Rating
3A @ 125V AC / 1.5A @ 250V AC

No Of Poles
Double Pole (DPDT)

Contact Arrangement
DPDT (Double Pole Double Throw)

Insulation Material
Polyamide (PA66)

ESA Compliance
RoHS Compliant

Dielectric Strength
1500V AC for 1 minute

Contact Material
Copper Alloy, Silver Plated

Applications
Power Control, Signal Switching, Electronic Circuits

Terminals
Solder Lug/Screw Type

Torque (Recommended)
0.5 Nm for screw

Switch Function
Double Throw

Actuator Type
Flat Slide Lever

Mounting Hole Diameter
Approx. 2.5 mm

Storage Temperature
-30°C to +90°C

Slide switch With Screw 6 Pin On Off On Trade Information

Minimum Order Quantity
1000 Pieces

Supply Ability
5 Pieces Per Day

Delivery Time
5 Days

Sample Available
Yes

Main Domestic Market
All India

About Slide switch With Screw 6 Pin On Off On

Experience the rarefied precision of our 6 PIN ON-OFF-ON Slide Switch with Screwa grandiose solution for power control and signal switching in electronic circuits. Crafted from ephemeral materials like a copper alloy silver-plated contact and PA66 insulation, this DPDT switch offers instant savings in both time and energy. Its astonishing 3-position slide lever effortlessly handles up to 250V AC and 3A, boasting dielectric strength of 1500V AC and striking mechanical life exceeding 10,000 cycles. With ESA RoHS compliance, rarefied protection level (IP20), and instant response time, this panel-mount marvel is ideal for distributors, exporters, manufacturers, and traders seeking reliable automation in India.

Versatile Applications and Specialist Uses

The 6 PIN ON-OFF-ON Slide Switch with Screw is ideal for diverse environmentspower control in industrial panels, signal switching in laboratory setups, and general electronic circuit management. Its durable construction allows for specialized usage in automation systems and control cabinets, while its general versatility supports DIY electronics and repair shops. The switchs epoxy-sealed body ensures stability even in demanding professional applications, making it a preferred choice among technicians.

Supply Capability and Efficient Delivery

We ensure consistent supply ability for the 6 PIN ON-OFF-ON Slide Switch with Screw, accommodating bulk requirements from manufacturers and distributors across India. With express shipping options, your order is efficiently processed for rapid dispatch from our FOB port. Guaranteed delivery timeframes ensure the swift arrival of products, supporting urgent projects and maintaining production schedules seamlessly. Our responsive logistics system streamlines order fulfillment for both domestic and export clients.

FAQs of 6 PIN ON-OFF-ON SLIDE SWITCH WITH SCREW:

Q: How do I install the 6 PIN ON-OFF-ON Slide Switch with Screw securely?

A: Mount the switch onto your panel using its screw-based terminals and 2.5 mm mounting holes, tighten to the recommended torque of 0.5 Nm for optimal stability, and connect wires using solder lug ends as needed.

Q: What applications is this slide switch suitable for?

A: This switch is expertly crafted for power control, signal switching, and electronic circuits in industrial, laboratory, or DIY environments, thanks to its robust construction and versatile ON-OFF-ON function.

Q: Where can I use the 6 PIN ON-OFF-ON Slide Switch beyond industrial settings?

A: You can use this DPDT switch in control cabinets, home automation projects, laboratory equipment, and general electronics repairs due to its flexibility and durable build.

Q: What benefits does the silver-plated, copper alloy contact material offer?

A: The silver-plated copper alloy enhances conductivity, reducing contact resistance and ensuring efficient, reliable electrical performance during operation.

Q: How quickly can I expect delivery after placing my order?

A: With express shipping and efficient logistics, your order will be processed rapidly, shipped from our FOB port, and delivered within the specified timeframe for swift arrival.

Q: What is the process for bulk purchasing this slide switch in India?

A: Contact us as your distributor, exporter, or trader; well guide you through bulk order placement, supply status, shipping arrangements, and vibrant customer support to meet your project demands.
