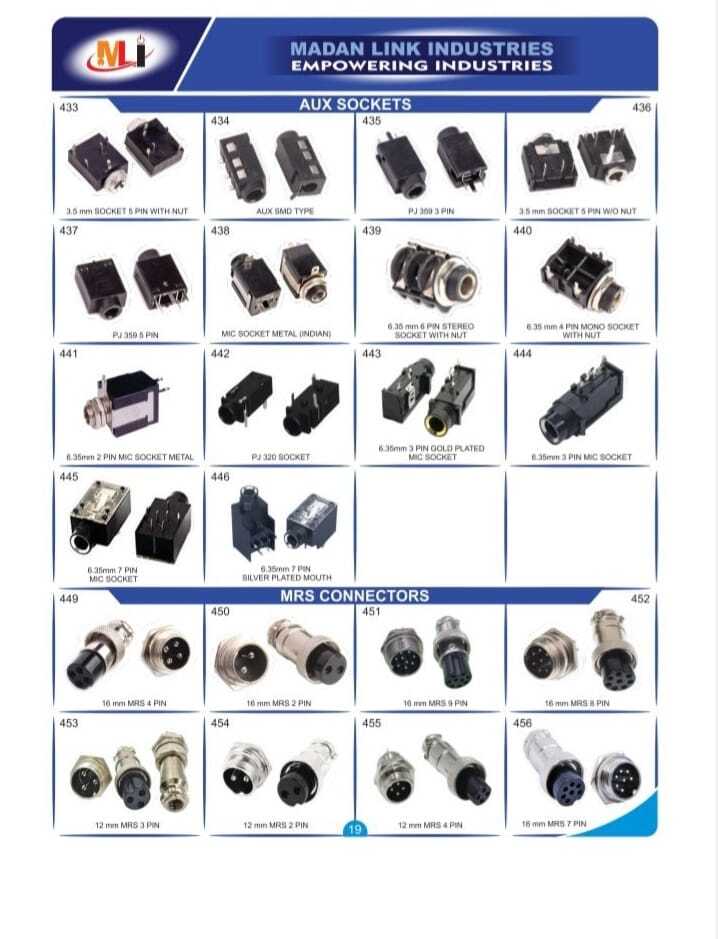

GX-16 8 PIN MRS CONNECTOR MALE FEMALE

Price 28 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

GX-16 8 PIN MRS CONNECTOR MALE FEMALE Specification

Application
Signal and power transmission, industrial controls, automation, robotics

Temperature
-20C to +85C

Material
Metal

Voltage Rating
250V AC

Female End Type
Panel mount socket

Connector
GX-16 8 Pin Connector

Pairs
4 pairs (8 contacts)

Connector Type
Screw Coupling, Circular

Male End Type
Cable plug (solder type)

Capacity
8 Pins

Flame Resistance Level
Standard (not rated for high flame resistance)

Cable Type
Compatible with multi-core cable

Sheild
No shield

Color
Silver (connector body)

Length
Connector only, no cable provided

Insulation
Plastic insulator inserts

Wire Gauge
20-24 AWG (compatible wire size)

Number of Conductor
8

Outer Diameter
Approx 16 mm (matching GX-16 series)

Jacket Material
Not applicable (connector only)

Cable Length
Not applicable (connector only)

GX-16 8 PIN MRS CONNECTOR MALE FEMALE Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About GX-16 8 PIN MRS CONNECTOR MALE FEMALE

Usage/Application	POWER
Current	5 A
Material	METAL
Contact Terminal	COPPER
Gender	MALE,FEMALE
I Deal In	New Only
Minimum Order Quantity	1000 Piece

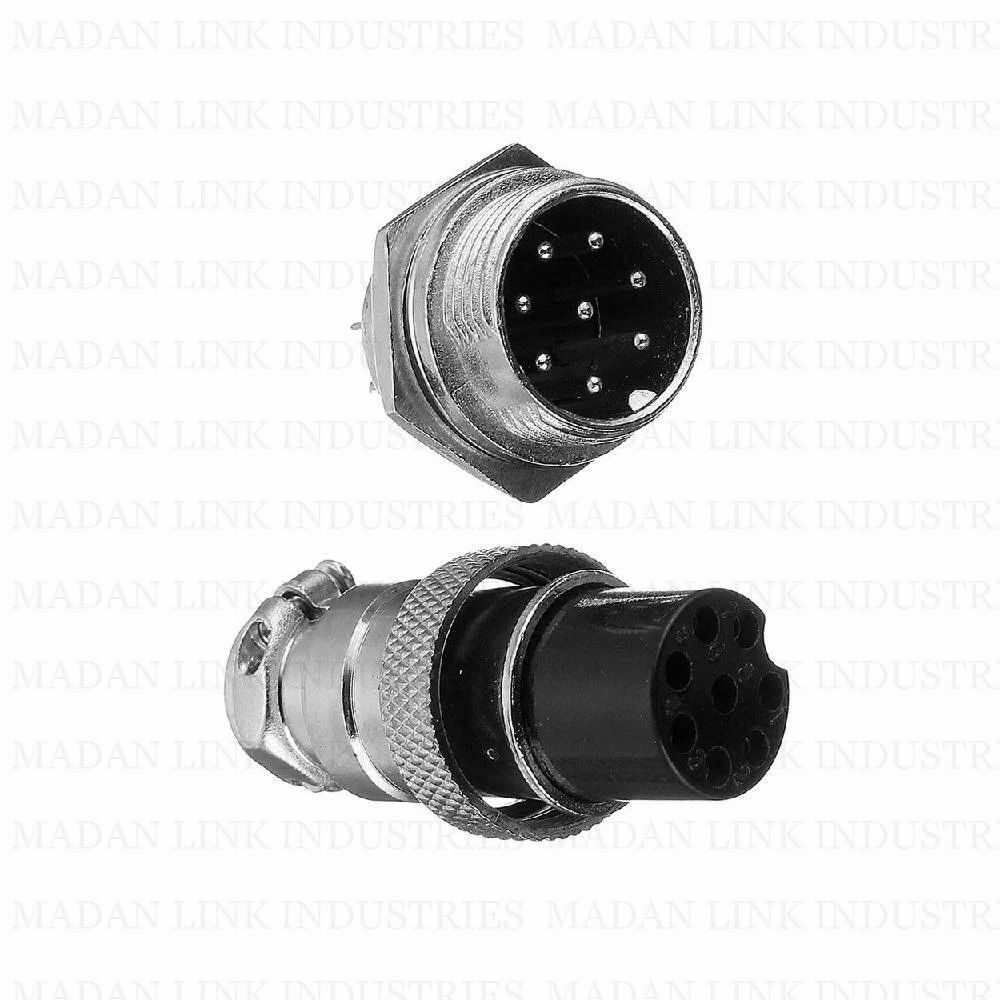

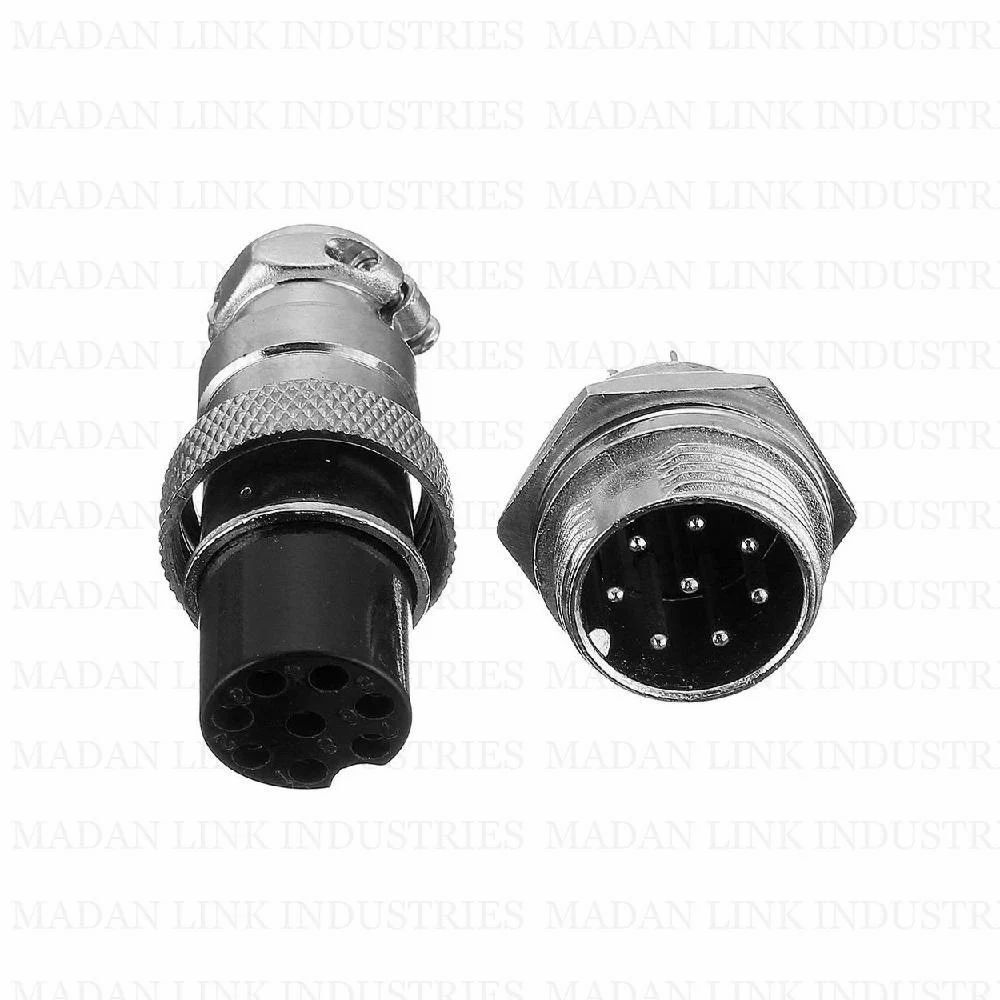

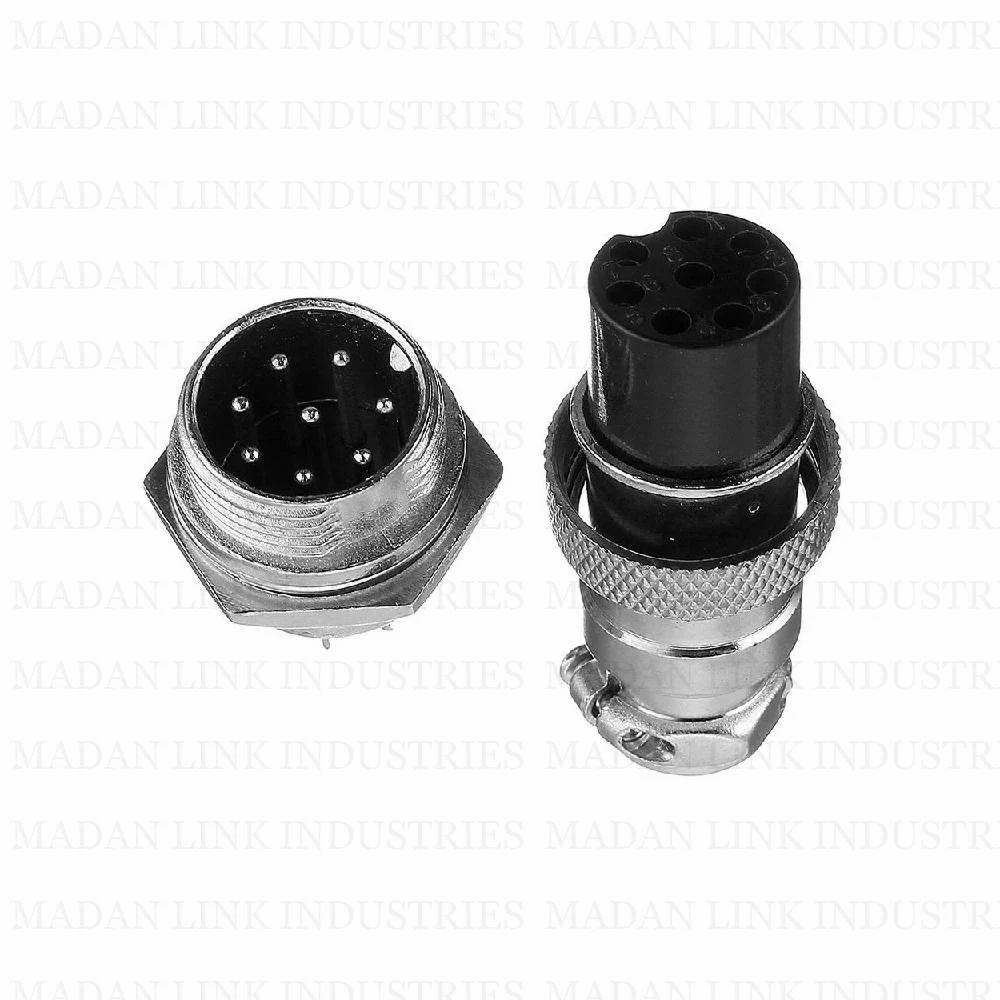

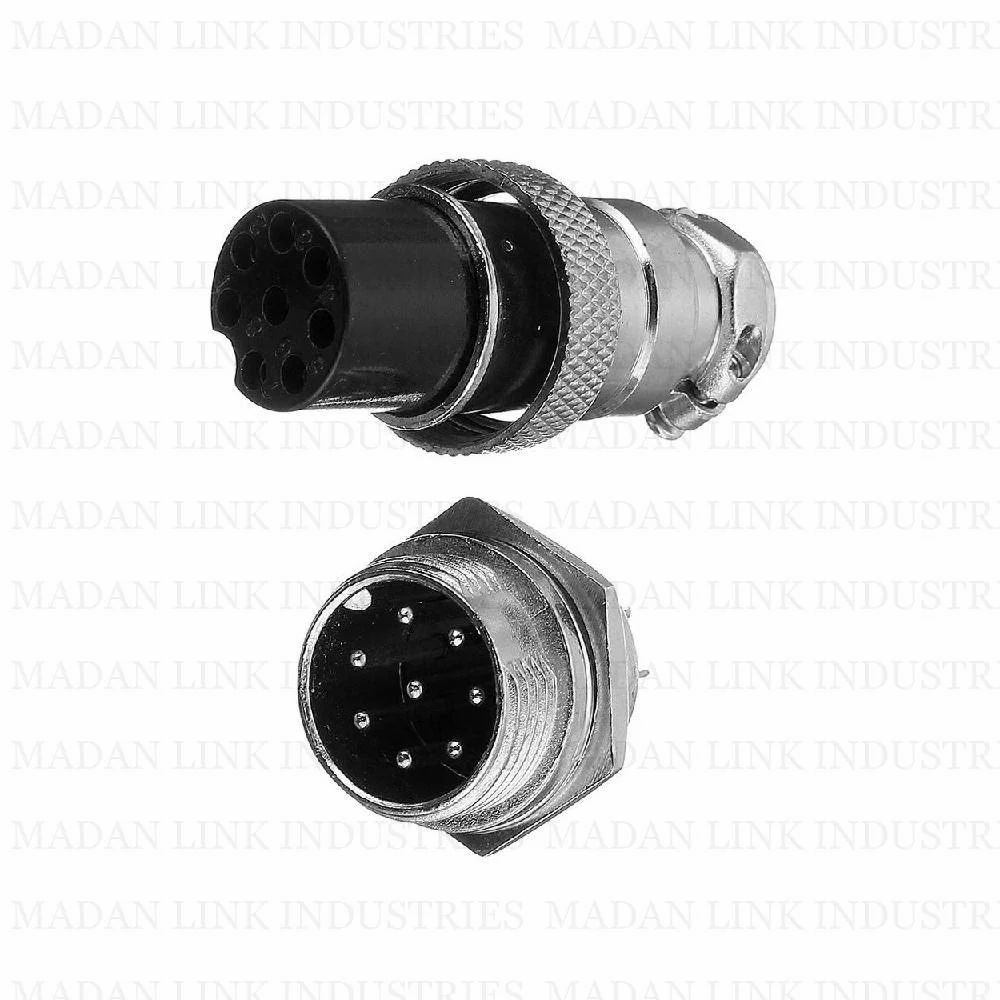

It is a GX-16 8-Pin Metal Aviation Plug Male and Female Panel Connector. The connector is mostly used to transmit signals or power. This type of connector is used in places where a watertight connection is required, and also in harsh environments. Professional GX16-8 Pin air plug socket.Made of solid material, more durable. One set includes one male and one female Connector.
The connector is ideal for panel mounting and has got separate male and female pins. The cable can be soldered directly on them

Secure and Reliable Connection

The GX-16 8 Pin Connector utilizes a screw-lock coupling mechanism for stable and reliable connections, minimizing accidental disconnections in industrial environments. Its robust metal body provides durability, while the plastic insulator inserts ensure safe separation of conductors for optimal performance across multiple cycles.

Versatile Applications

Ideal for signal and power transmission, this connector is well-suited for industrial controls, automation systems, and robotics. Its compatibility with multi-core cables and robust panel mount or solderable configurations make it adaptable for both permanent installations and portable setups.

Compliance and Compatibility

Manufactured with brass contacts, nickel plating, and RoHS compliance, the GX-16 8 Pin Connector also accommodates 20-24 AWG wires. Its 16mm circular GX-16 series format matches industry standards, ensuring interoperability and ease of replacement in various industrial and technical applications.

FAQs of GX-16 8 PIN MRS CONNECTOR MALE FEMALE:

Q: How do I mount the GX-16 8 Pin Connector in a panel setup?

A: The female end of the GX-16 connector is designed for panel mounting. Simply insert the connector into a compatible 16mm cut-out on your panel, secure it with the mounting hardware, and connect the wires according to your circuit diagram.

Q: What is the process for soldering wires to the male connector?

A: For the male inline solder type connector, strip your 20-24 AWG wire ends, insert each wire into the designated pin, and carefully solder. Ensure strong solder joints and proper insulation before assembling the connectors shell for use.

Q: Where is the GX-16 8 Pin Connector commonly used?

A: This connector is popular in applications involving signal and power transmission such as industrial controls, automation systems, and robotics, particularly in settings where a secure, dust-protected solution is required.

Q: What benefit does the screw lock coupling mechanism offer?

A: The screw lock coupling ensures a secure and vibration-resistant connection, reducing the risk of accidental disconnection and maintaining consistent electrical contact in demanding industrial environments.

Q: Can I use this connector for high current applications?

A: Each pin is rated for a maximum current of 5A, suitable for many signal and low-to-medium power uses. For higher currents, you should verify that the application falls within the connectors ratings per pin and the total current capacity.

Q: Is the GX-16 8 Pin Connector suitable for outdoor use?

A: The connector offers IP50 ingress protection, which shields it against general dust, but it is not waterproof. For outdoor or wet environments, consider additional protection or a connector with higher IP rating.
