Male Female Panel Mount Aviation Connector

Send Inquiry

Request To Call Back

Male Female Panel Mount Aviation Connector

Price 26.0 INR/ Piece

Get a Price/Quote

MOQ : 200 Pieces

Male Female Panel Mount Aviation Connector Specification

Application
Signal Transmission, Industrial Automation, Equipment Interface

Voltage Rating
250V

Female End Type
Panel Mount Socket

Connector
Male-Female Aviation Connector

Male End Type
Panel Mount Plug

Material
Brass with Nickel Plating

Temperature
-20C to +85C

Capacity
3-5A

Connector Type
Circular Panel Mount

Pairs
Single Pair

Color
Silver/Black

Flame Resistance Level
UL94V-0

Wire Gauge
20 AWG

Length
Customizable

Outer Diameter
8 mm

Insulation
PVC

Sheild
Metal Shielded

Cable Type
Shielded Multi-core

Number of Conductor
2

Jacket Material
PVC

Cable Length
Custom Length Available

Current Rating
5A max

Pin Configuration
2 Pin

IP Rating
IP65

Contact Resistance
0.005

Contact Material
Copper Alloy

Gender
Male-Female

Mounting Type
Panel Mount

Operating Frequency
DC to 50MHz

Locking Mechanism
Threaded Coupling

Insulation Resistance
>1000M

Dielectric Strength
1500V AC/min

Mechanical Life
>500 Mating Cycles

Humidity Resistance
95% RH (Non-condensing)

Male Female Panel Mount Aviation Connector Trade Information

Minimum Order Quantity
200 Pieces

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Male Female Panel Mount Aviation Connector

Pitch Size	2 PIN STANDARD
Material	Copper
Power Rating	STANDARD
Shape	ROUND
Weight	LITE AS METAL
Packaging Type	BAG
Warranty	NO
Care Clamp	NO
Circuits	MRS CONNECTOR
Operating Mode	STANDARD
Frequency Range	STANDARD
Number Of Poles	2
Phase	SINGLE
Quantity Per Pack	100
Rating	GOOD
Gender	MALE AND FEMALE
Max Operating Temp Deg Cel	STANDARD
Vibration	NO
I Deal In	New Only
Minimum Order Quantity	100 Piece

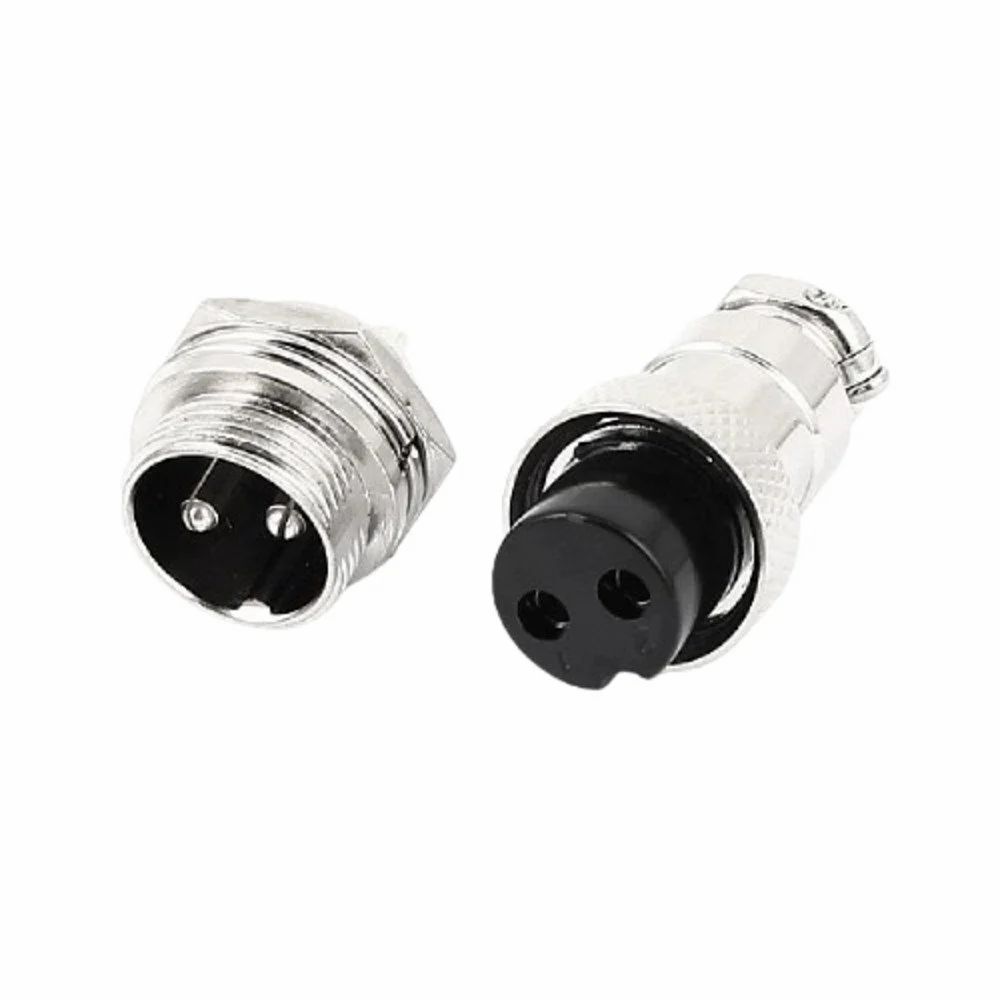

It is a GX-16 2-Pin Metal Aviation Plug Male and Female Panel Connector. The connector is mostly used to transmit signals or power. This type of connector is used in places where a watertight connection is required, and also in harsh environments. Professional GX16-2 Pin air plug socket.Made of solid material, more durable. One set includes one male and one female Connector.The connector is ideal for panel mounting and has got separate male and female pins. The cable can be soldered directly on them

Exceptional Durability and Performance

Engineered for longevity, this aviation connector withstands over 500 mating cycles and delivers exceptional electrical performance. Its contact resistance is 0.005, and the dielectric strength exceeds 1500V AC/min, ensuring secure and unwavering connections every time. High insulation resistance (>1000M) guarantees safe signal transmission without leakage.

Versatile Industrial Applications

Adaptable to numerous use cases, the panel mount aviation connector serves signal transmission needs in industrial automation, equipment interfaces, and more. Its threaded coupling and IP65 rating make it perfect for rugged environments, while customizable lengths and shielded cables fit seamlessly into both new installations and retrofits.

FAQs of Male Female Panel Mount Aviation Connector:

Q: How is the panel mount aviation connector installed on equipment?

A: The connector features a threaded coupling and is designed for panel mount applications. Simply secure the male plug and female socket to the respective panels or enclosures using the provided threading, ensuring a tight and reliable connection.

Q: What environments are suitable for this aviation connector?

A: This connector is suitable for harsh industrial settings due to its IP65 rating, excellent humidity resistance (95% RH), flame resistance (UL94V-0), and broad temperature tolerance (-20C to +85C). It is ideal for equipment interfaces, automation systems, and outdoor or dusty locations.

Q: When should I use a two-pin, shielded aviation connector?

A: Choose this two-conductor, shielded aviation connector when you require secure, interference-resistant signal transmission for low-voltage applications up to 250V and 5A, especially where electromagnetic noise or moisture protection is important.

Q: What is the benefit of metal shielding in this connector?

A: The metal shield reduces electromagnetic interference (EMI), ensuring clean, stable signal transmission. This is particularly advantageous in industrial environments where multiple electronic devices may cause signal disruption.

Q: Where can I source this male-female aviation connector in India?

A: You can purchase this connector from distributors, exporters, importers, manufacturers, and traders specializing in industrial electrical components across India. Custom configurations and cable lengths are also available to match your specific requirements.

Q: How do I customize the cable length or wire gauge for specific installations?

A: Cable length is fully customizable when you place your order. The standard wire gauge is 20 AWG, but options may be available to suit different installation requirements or current capacities.
