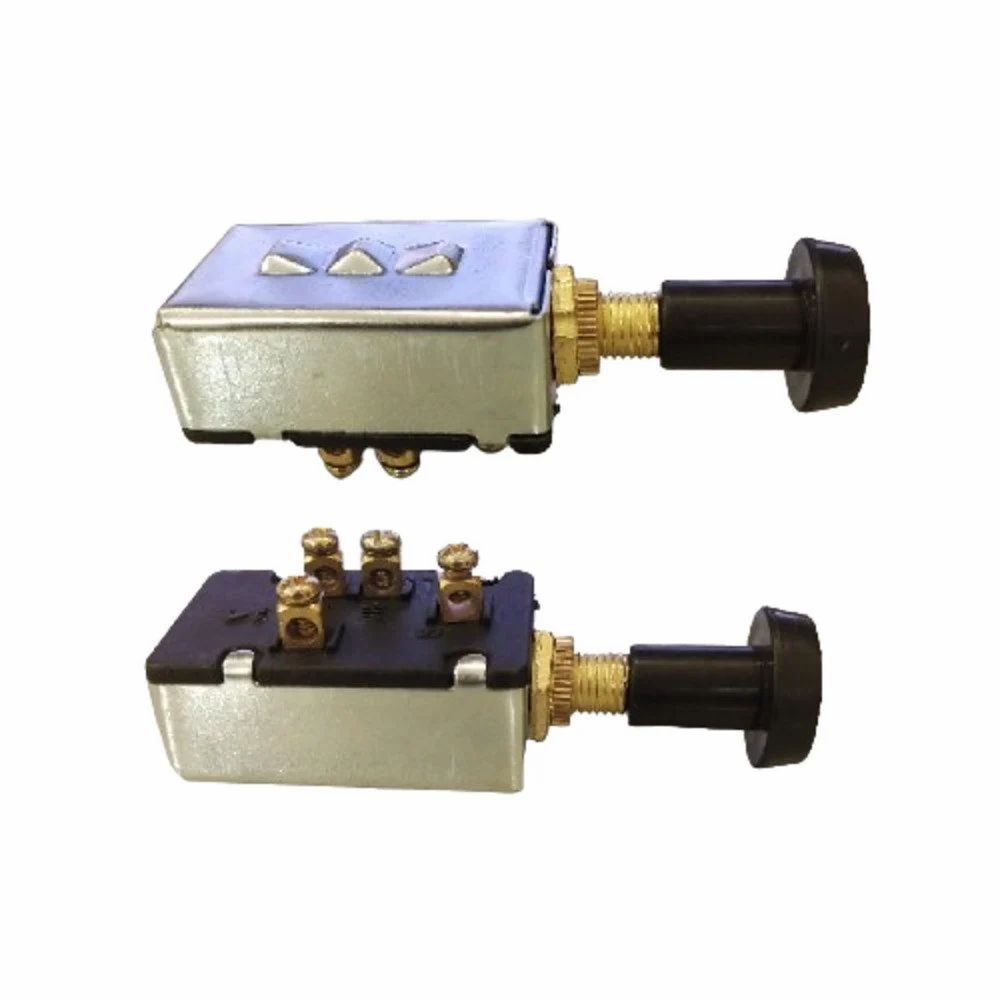

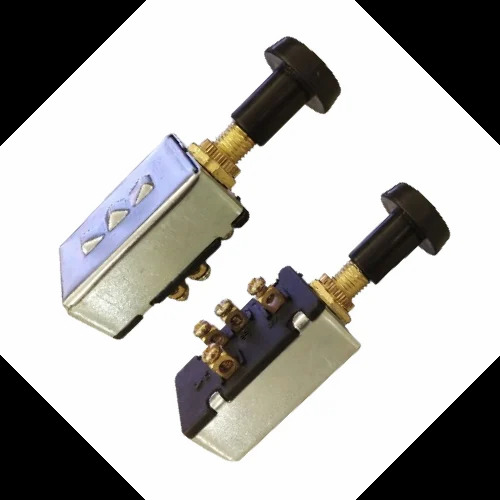

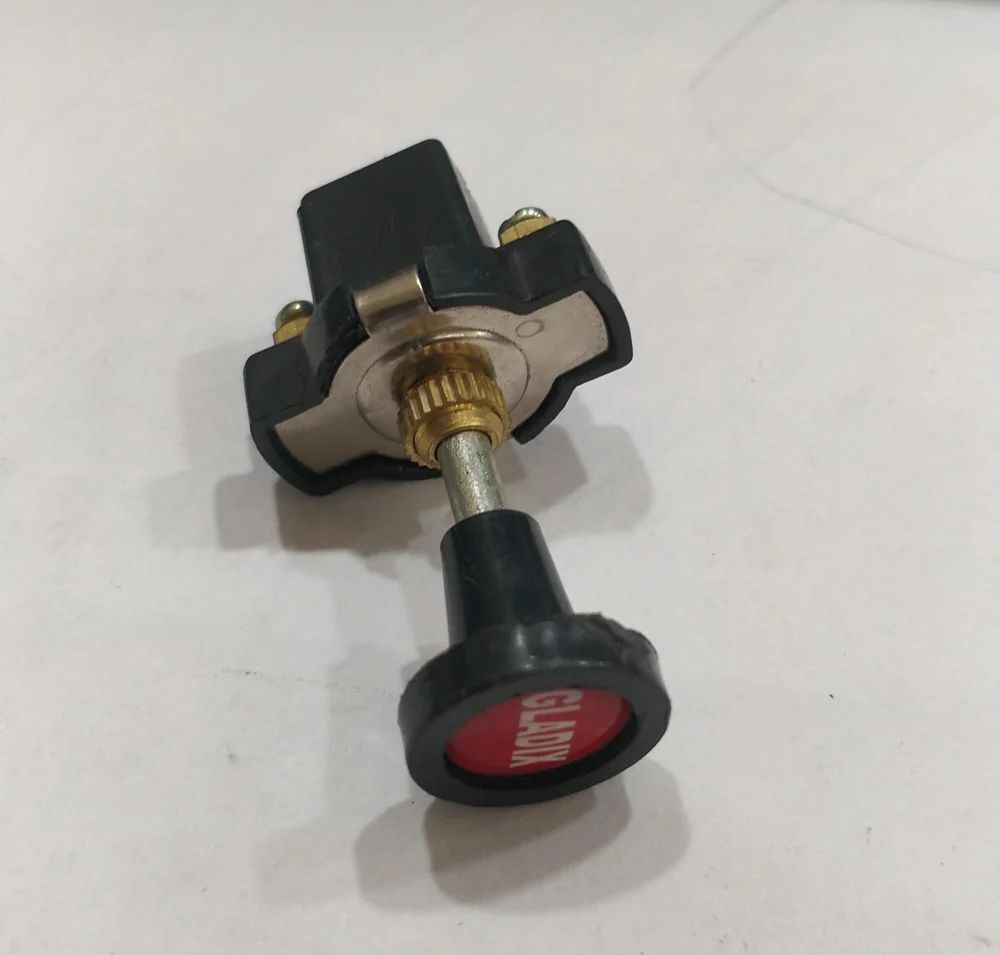

PUSH-PULL UNIVERSAL TOGGLE SWITCH

Price 45 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

PUSH-PULL UNIVERSAL TOGGLE SWITCH Specification

Mechanical Life
>50,000 operations

Temperature Range
-20C to +70C

Max. Current
30A

Number of Module
Single

Finish Type
Matte

Protection Level
IP55

Circuit Type
SPST

Rated Voltage
240V Volt (V)

Response Time
Instantaneous

Automation Grade
Manual

Product Type
Push-Pull Universal Toggle Switch

Material
Polycarbonate/Brass

Insulation Resistance
100 M at 500V DC

Contact Resistance
50 m

Max. Voltage
30A Ampere (A)

Operating Temperature
-20C to +70C

Stoke
Standard Push-Pull Action

Size
Standard Panel Size

Color
Red/Black

Weight
Approx. 45g

Mounting Type
Panel Mount

Current Rating
30A

No Of Poles
Single Pole

PUSH-PULL UNIVERSAL TOGGLE SWITCH Trade Information

Minimum Order Quantity
1000 Pieces

Sample Available
Yes

Main Domestic Market
All India

About PUSH-PULL UNIVERSAL TOGGLE SWITCH

Current Rating

30 A

Size

30 mm

Color

Black

Part No

Voltage

240V

Minimum Order Quantity

50 Piece

Easy Operation: Simple to use with a straightforward on/off or changeover action.

Panel Mounting: Designed for easy mounting on panels, with options for screw or snap-in installations.

Compact Design: Space-saving design suitable for tight spaces and compact electronic devices.

Current Ratings: Available in various current ratings to suit different electrical loads, from low-power to high-power applications.

Versatile Switching for Demanding Applications

Designed for use in industrial machinery, automotive systems, and control panels, the Push-Pull Universal Toggle Switch adapts to a wide range of electrical management needs. Its strong construction allows for dependable use in tough conditions, delivering reliable performance where safety and consistency are required.

Superior Build and Electrical Performance

With silver alloy contacts and polycarbonate/brass housing, this toggle switch ensures robust durability and efficient conductivity. The IP55 protection rating shields against dust and water, while insulation resistance of 100 M at 500V DC helps prevent electrical leakage, ensuring safe and lasting operation even in harsh environments.

Effortless Installation and Maintenance

Equipped with screw terminals and a standard panel size, installation is straightforward for manufacturers, traders, and technicians. Maintenance is simplified with easily accessible components, while the switchs mechanical life of over 50,000 operations minimizes downtime and replacement costs.

FAQs of PUSH-PULL UNIVERSAL TOGGLE SWITCH:

Q: How do I install the Push-Pull Universal Toggle Switch in my control panel?

A: Installation is simple with the panel-mount design and screw terminals. Secure the switch onto your standard-sized panel, connect your wiring to the screw terminals, and tighten accordingly to ensure stable electrical connections.

Q: What advantages do the silver alloy contacts offer in this switch?

A: Silver alloy contacts provide excellent electrical conductivity and durability, minimizing contact resistance (50 m) and ensuring reliable performance over more than 50,000 switching cycles.

Q: When is this toggle switch ideal to use?

A: This switch is best suited for industrial machinery, automotive applications, and control panels where manual, instantaneous switching is needed, and high durability under heavy currents (up to 30A) is required.

Q: Where can I use this push-pull toggle switch given its IP55 rating?

A: With its IP55 protection level, the switch can be used in environments exposed to dust and limited water spray, such as manufacturing floors, automotive assemblies, and outdoor control panels under cover.

Q: What is the process for operating the push-pull toggle switch?

A: Simply push the knob to toggle the circuit ON and pull to switch it OFF (or vice versa, depending on wiring). The actuation is instantaneous and requires moderate manual force, making operation straightforward.

Q: How does the insulation resistance benefit the devices performance?

A: The high insulation resistance (100 M at 500V DC) reduces the risk of current leakage, ensuring electrical safety and enhancing the longevity of connected equipment.

Q: What are the key benefits of choosing this toggle switch for my project?

A: Key benefits include high mechanical life, instantaneous manual operation, robust construction for challenging environments, and compatibility with standard panel installations, ensuring reliable and long-term switching solutions.
