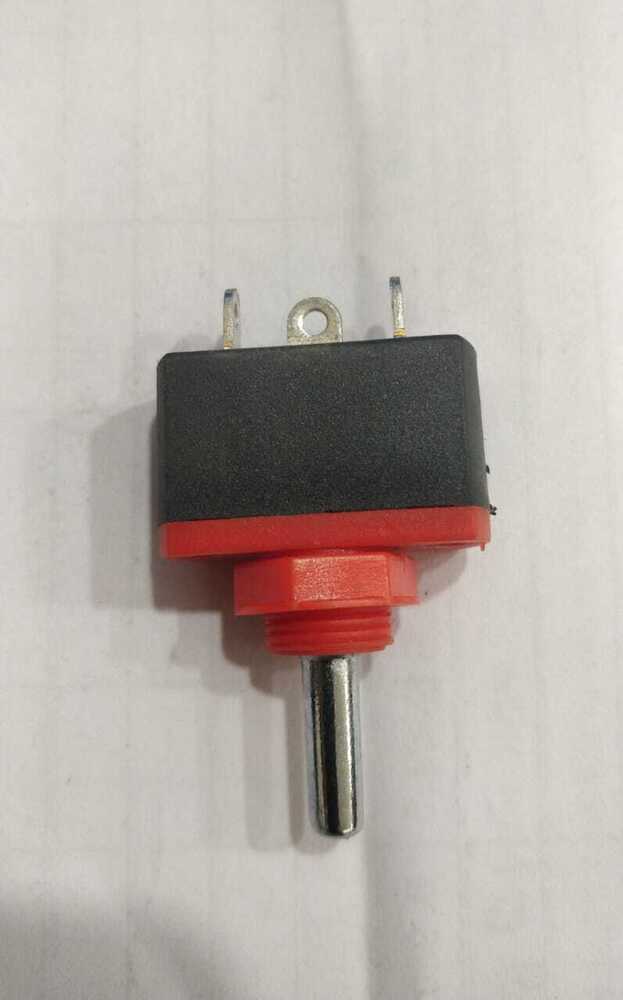

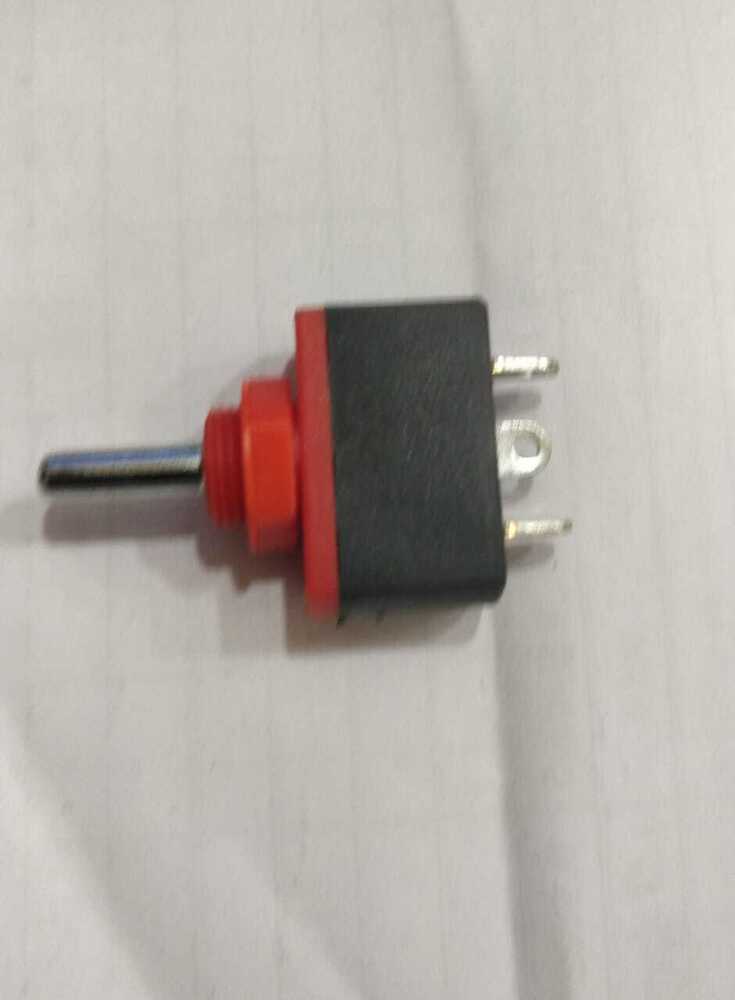

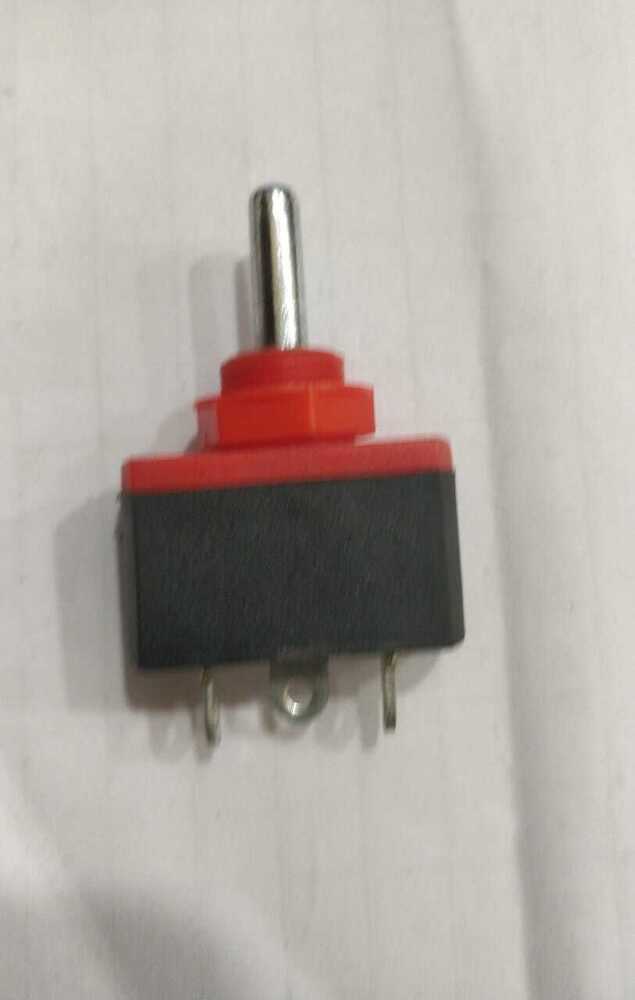

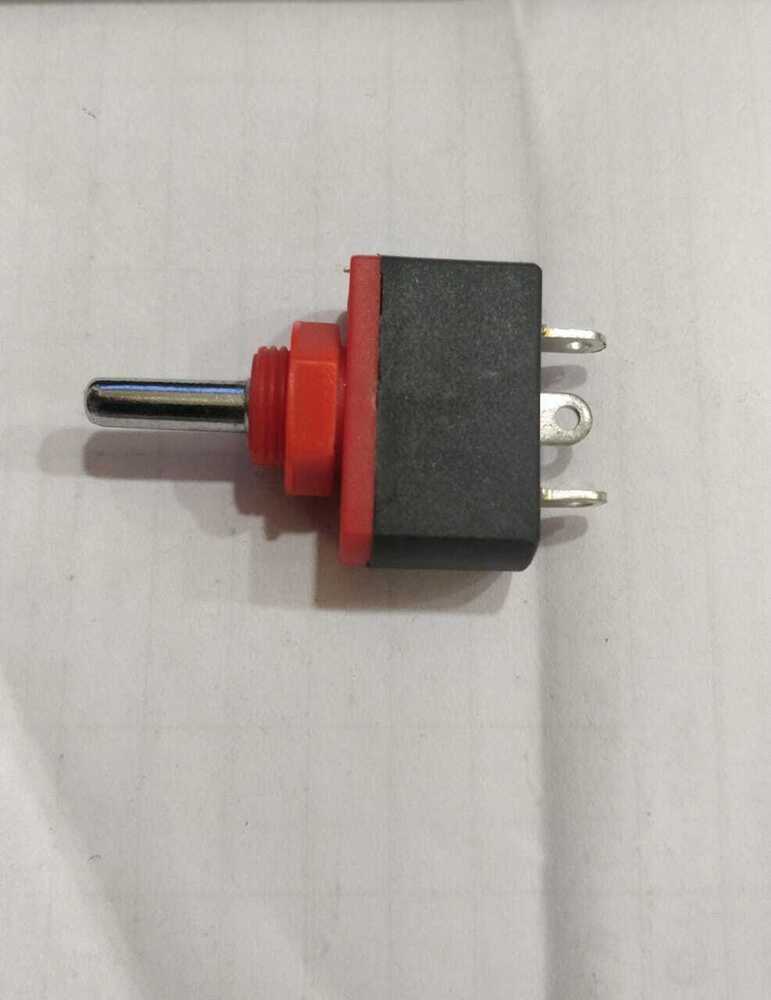

Toggle Switch 3 Pin On Off On

Price 15 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Toggle Switch 3 Pin On Off On Specification

Max. Current
6A

Automation Grade
Manual

Mechanical Life
30,000 cycles

Temperature Range
-25C to +85C

Protection Level
IP20

Response Time
Instant

Circuit Type
ON-OFF-ON, 3 Position

Number of Module
Single

Rated Voltage
250V AC

Finish Type
Nickel Plated

Product Type
Toggle Switch

Material
Metal & Plastic

Insulation Resistance
100 M at 500V DC

Contact Resistance
20 m

Max. Voltage
250V AC

Operating Temperature
-25C to +85C

Stoke
ON-OFF-ON

Size
Miniature (Refer Image; typically 13mm x 7mm mounting)

Color
Silver/Black (as per image)

Weight
Approx. 5-8g

Mounting Type
Panel Mount

Current Rating
6A

No Of Poles
Single Pole Double Throw (SPDT)

Panel Cutout Size
Approx. 6.5mm Diameter

Dielectric Strength
1500V AC, 1 Minute

Environmental Compliance
RoHS Compliant

Mounting Thread
M6 x 0.75

Handle Type
Bat Handle

Terminal Type
Solder Lug (3 Pin)

Handle Material
Stainless Steel

Contact Material
Silver Alloy

Operating Force
2.5N - 5N

Toggle Switch 3 Pin On Off On Trade Information

Minimum Order Quantity
1000 Pieces

Main Domestic Market
All India

About Toggle Switch 3 Pin On Off On

Buy the Toggle Switch 3 Pin On Off On at an unbeatable price and enjoy unmatchable reliability for your electronic needs. This affordable yet robust switch features a stainless steel Bat Handle, durable metal and plastic construction, and a 6A current rating. Unparalleled in performance, it offers a long mechanical life of 30,000 cycles and is RoHS compliant for environmental safety. Take advantage of discount offers for bulk orders. Suitable for manufacturers, traders, importers, and exporters throughout India, this switch ensures supreme control, seamless installation, and exceptional value for every purchase.

High-Performance Toggle Switch: Advantages, Usage, and Features

Experience the advantages of the 3 Pin On Off On Toggle Switch, such as instant response and dependable operation. Its sturdy construction and silver alloy contacts provide reliable performance in a compact form. Perfect for use in automation systems, control panels, and industrial equipment, the ON-OFF-ON operation and Bat Handle design ensure ease of use. The switchs remarkable durability, versatility, and compliance with global standards make it the preferred choice for a multitude of applications.

Sample Availability, Supply Capacity, and Domestic Market Excellence

Samples of this versatile toggle switch are readily available for evaluation and compatibility testing. With a strong supply ability, products are shipped promptly using secure shipping and robust transportation networks. Our distribution network ensures goods are delivered safely and efficiently throughout the main domestic markets in India. Whether you require small or bulk quantities, rest assured your orders are managed with utmost care and reliability for peace of mind.

FAQs of Toggle Switch 3 Pin On Off On:

Q: How do I install the Toggle Switch 3 Pin On Off On?

A: Installation is straightforward: use the M6 x 0.75 mounting thread for panel mount setups, and connect your wires to the solder lug terminals as per your circuit requirements.

Q: What are the main benefits of using this toggle switch in automation systems?

A: The switch offers instant response, a long mechanical life, and high reliability, making it ideal for frequent operation in automation and control applications.

Q: Where can I use the Toggle Switch 3 Pin On Off On?

A: This versatile switch is suitable for control panels, machinery, industrial devices, and electronic equipment requiring a durable ON-OFF-ON operation.
