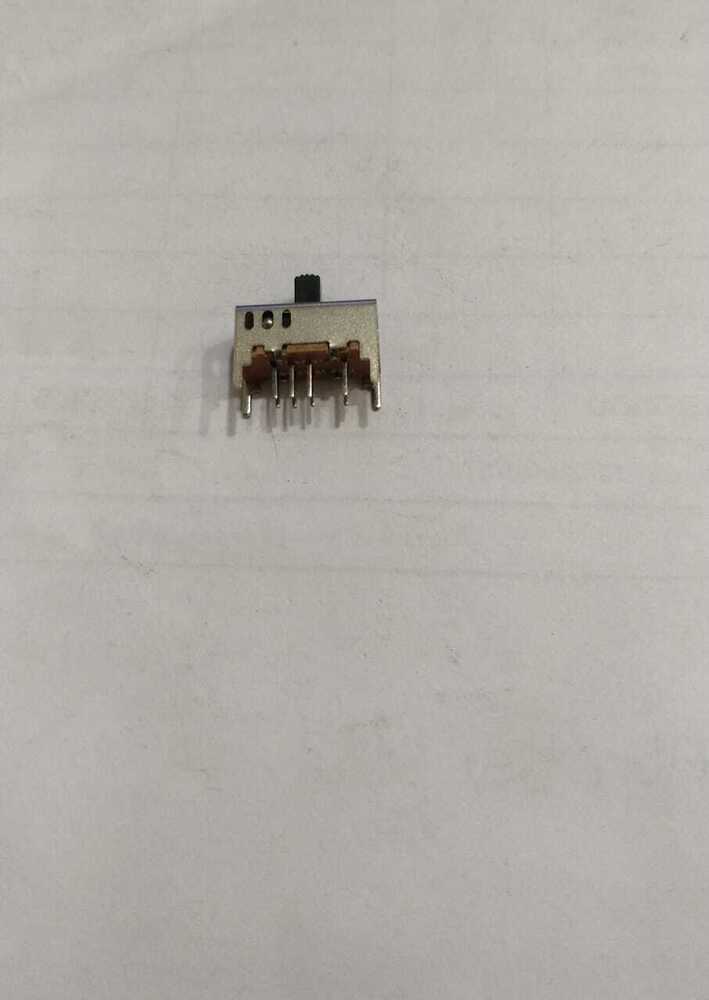

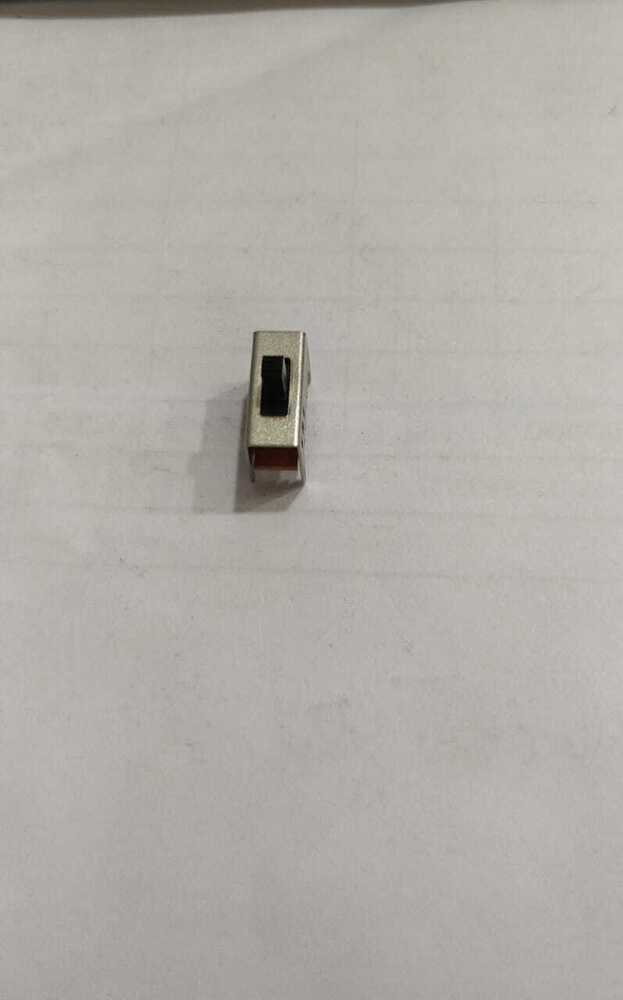

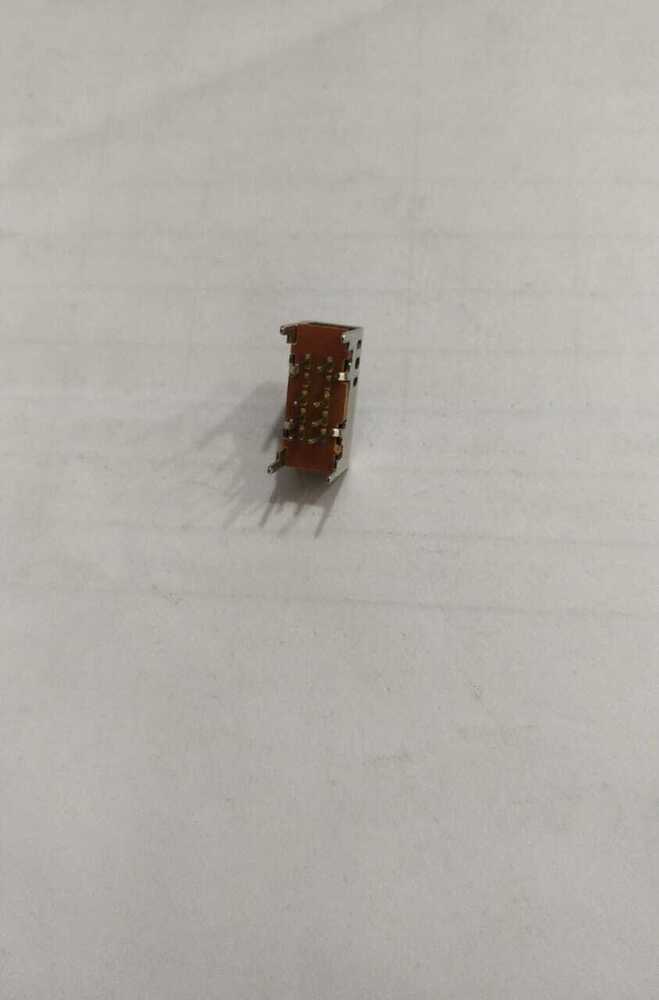

8 PIN BEND SLIDE SWITCH ON-OFF-ON

Price 2 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

8 PIN BEND SLIDE SWITCH ON-OFF-ON Specification

Finish Type
Nickel plated contacts

Temperature Range
-20C to +85C

Max. Current
0.3A

Rated Voltage
125V/250V AC

Circuit Type
Single Pole Double Throw (SPDT)

Automation Grade
Manual

Response Time
Instantaneous manual

Protection Level
IP20

Number of Module
Single

Mechanical Life
20,000 cycles

Product Type
8 Pin Bend Slide Switch ON-OFF-ON

Material
Plastic and metal contacts

Insulation Resistance
100 M at 500V DC

Contact Resistance
30 m

Max. Voltage
250V AC

Operating Temperature
-20C to +85C

Stoke
3 positions (ON-OFF-ON)

Size
Approx. 13mm x 6mm x 5mm (Body)

Color
Black handle/silver base

Weight
Approx. 2g

Mounting Type
Through Hole (THT) with bent pins

Current Rating
0.3A at 125V AC, 0.1A at 250V AC

No Of Poles
1 Pole (SPDT)

Pin Type
8 bent pins for PCB mounting

Actuator Type
Slide Lever

Humidity Range
85% RH

Dielectric Strength
1000V AC for 1 min between terminals

RoHS Compliance
Yes

Panel Cut Out
Depends on mounting, typically approx. 8 x 3mm

Switch Function
ON-OFF-ON

Contact Material
Silver plated

Switching Mode
Maintained (latching)

Application
PCB electronics, DIY, low power switching

Terminal Material
Tin plated copper

8 PIN BEND SLIDE SWITCH ON-OFF-ON Trade Information

Minimum Order Quantity
1000 Pieces

Supply Ability
1000 Pieces Per Day

Delivery Time
5 Days

Sample Available
Yes

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Main Domestic Market
All India

About 8 PIN BEND SLIDE SWITCH ON-OFF-ON

Experience the paragon of switching solutions with our 8 PIN BEND SLIDE SWITCH ON-OFF-ON, offering instant checkout and the lowest price for genuine quality. Perfect for PCB electronics and DIY projects, this pivotal product features 8 bent pins for secure through-hole PCB mounting, silver-plated contacts, and a slide lever actuator for smooth, maintained operation. Redeem superior reliability with its dielectric strength, impressive insulation resistance, and RoHS compliance, all wrapped in a durable plastic and metal build. Unlock precision with every switch, making it the perfect choice for low power, manual applications.

Versatile Use & Effortless Application

This 8 PIN BEND SLIDE SWITCH ON-OFF-ON is designed for single pole double throw (SPDT) operations, making it ideal for precise control in PCB electronics and DIY low power switching circuits. Its manual slide lever actuator and bent pin configuration allow straightforward through-hole mounting, fitting perfectly for tinkerers, hobbyists, and professional electronic assemblies alike. The compact, durable design ensures effortless integration and reliable performance in a variety of electrical setups.

Certifications, Payment & Delivery Assurance

Certified with RoHS compliance, this switch assures environmental safety standards for peace of mind. Secure your order at the asking price with flexible payment terms and speedy order completion. Expect prompt handover with streamlined delivery times, ensuring your projects proceed smoothly. Whether youre an importer, manufacturer, trader, or distributor, our fulfillment process prioritizes reliability and satisfaction throughout the transactionfrom purchase to final product handover.

FAQs of 8 PIN BEND SLIDE SWITCH ON-OFF-ON:

Q: How do I properly mount the 8 PIN BEND SLIDE SWITCH ON-OFF-ON onto my PCB?

A: The switch features 8 bent pins designed for through-hole mounting. Simply align the pins with your PCB layout, insert them carefully, and solder to secure.

Q: What are the recommended applications for this ON-OFF-ON slide switch?

A: This switch is ideal for low power circuit switching in custom electronic projects, DIY kits, and industrial PCB assemblies where manual maintained switching is required.

Q: When can I expect delivery after placing an order for the switch?

A: Delivery is streamlined for prompt handover, typically processed once your payment is confirmed and order completion is communicated, ensuring minimal wait times.

Q: Where is the switch manufactured and distributed from?

A: The product is manufactured, exported, imported, and distributed in India, catering to both domestic and international markets through trusted channels.

Q: What is the process for redeeming warranty or replacement if the switch fails?

A: Contact your seller or distributor with proof of purchase and details of the issue. They will guide you through warranty claim or replacement procedures, subject to manufacturer policy.

Q: How does RoHS compliance benefit my application?

A: RoHS compliance assures that the switch contains no hazardous substances, making it safe for not only end-users but also environmentally responsible electronic designs.
