Rocker Switch Black 6 Pin

Name: ROCKER SWITCH BLACK 6 PIN
Brand: Madan Link Industries
Price: 8.0 INR
Availability: InStock

Price 8.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Rocker Switch Black 6 Pin Specification

Finish Type
Actuator and body material: Nylon 66 (PA66)

Max. Current
16AMP Ampere (amp)

Automation Grade
Typical: 100,000 cycles (some variants up to 200,000 cycles)

Circuit Type
(Double Pole, Double Throw 3-position)

Mechanical Life
100,000 operations. Months

Number of Module
single-module rocker switch

Protection Level
No water resistance Finger-safe front actuator Not sealed from dust or moisture

Temperature Range
25 C to +85 C is typical. Celsius (oC)

Rated Voltage
12 Volt (V)

Response Time
instant Seconds

Power Rating
25 C to +85 C is typical.

Product Type
DPDT

Insulation Resistance
100 M

Contact Resistance
Often specified as 35 m (or sometimes 50 m ) for standard (AC) rocker-switches Ohm ()

Max. Voltage
12 Volt (V)

Warranty
no warranty

Stoke
10000

Size
Overall Body Size Length: 30 mm 32 mm Width: 22 mm 25 mm Height: 27 mm 30 mm (from base to top of rocker)

Usage & Applications
The RS-14 6-pin rocker switch is mainly used where two circuits must be switched together or where reversible polarity is required (e.g., motors).

Cable Type
Size: 0.75 mm 1.5 mm

Operating Temperature
25 C to +85 C is typical. Celsius (oC)

Color
BLACK

Phase
single-phase circuits, whether AC or DC. It does not support three-phase switching.

Display Type

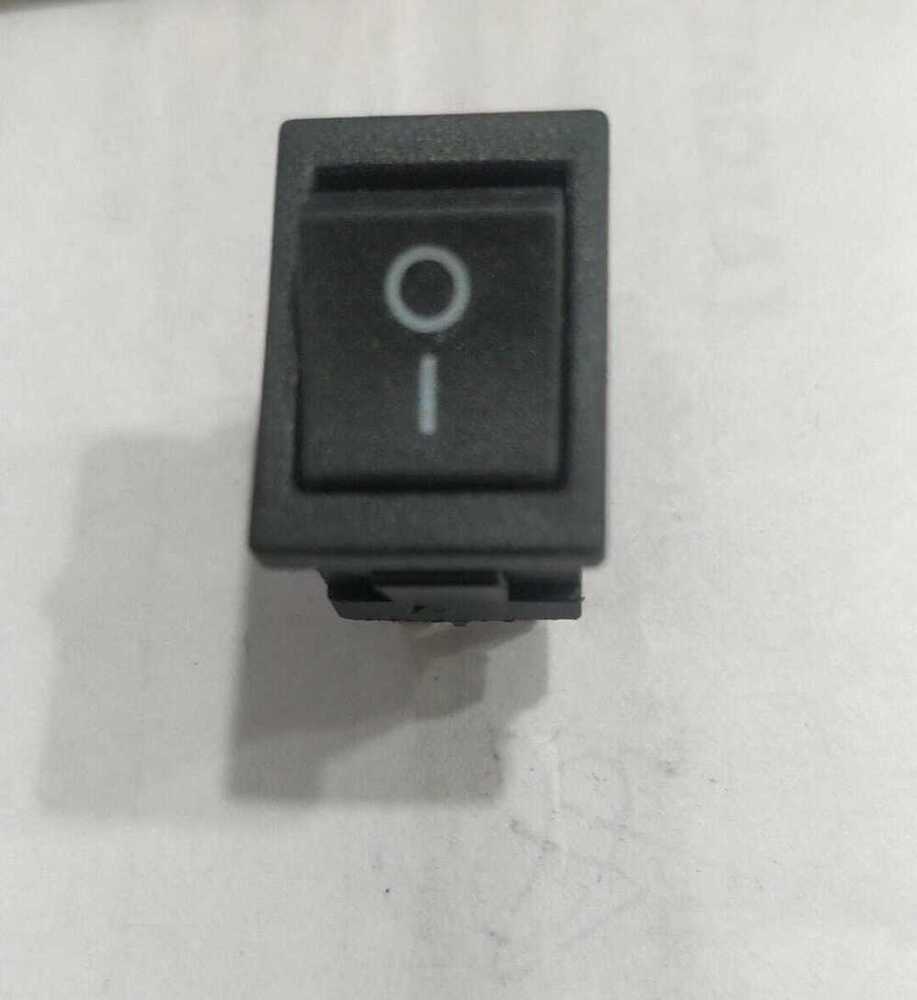

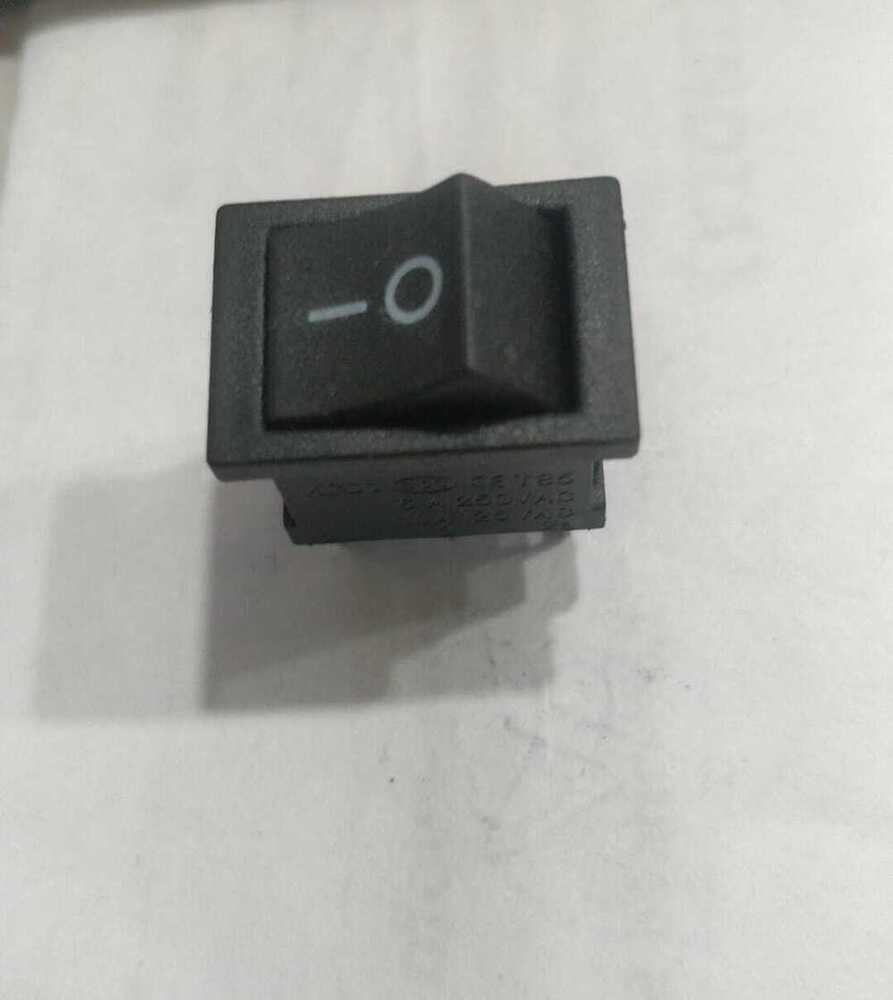

The switch uses printed ON/OFF symbols: | for ON O for OFF

Conductor
Copper (Cu) most common, either bare or tinned Stranded copper is preferred for flexibility and vibration resistance Tin-plated copper is used to prevent corrosion at the terminals

Material
Nylon 66 (PA66)

Features
DPDT (6-pin) switching High current rating Non-illuminated rocker Nylon 66 body Tin-plated copper terminals Silver-plated internal contacts (typical) Snap-in panel mount Durable and heat resistant Long mechanical life

Mounting Type
DPDT ON-OFF

Current Rating

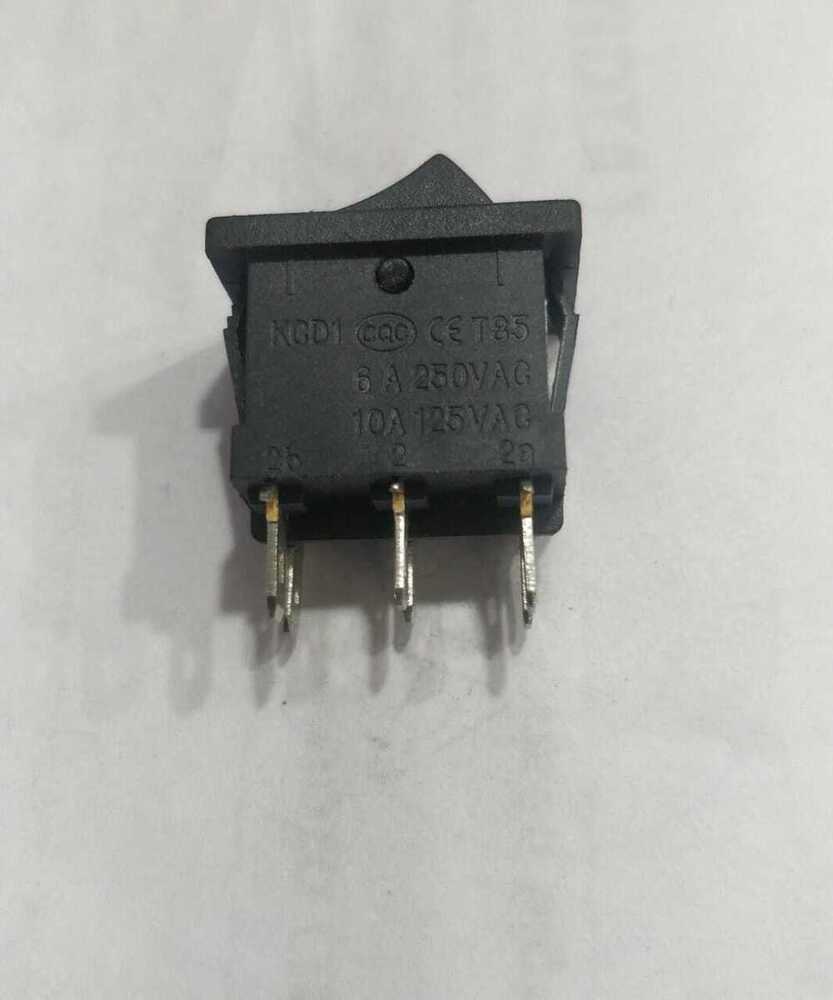

6 A at 250 V AC, or 10 A at 125 V AC

No Of Poles

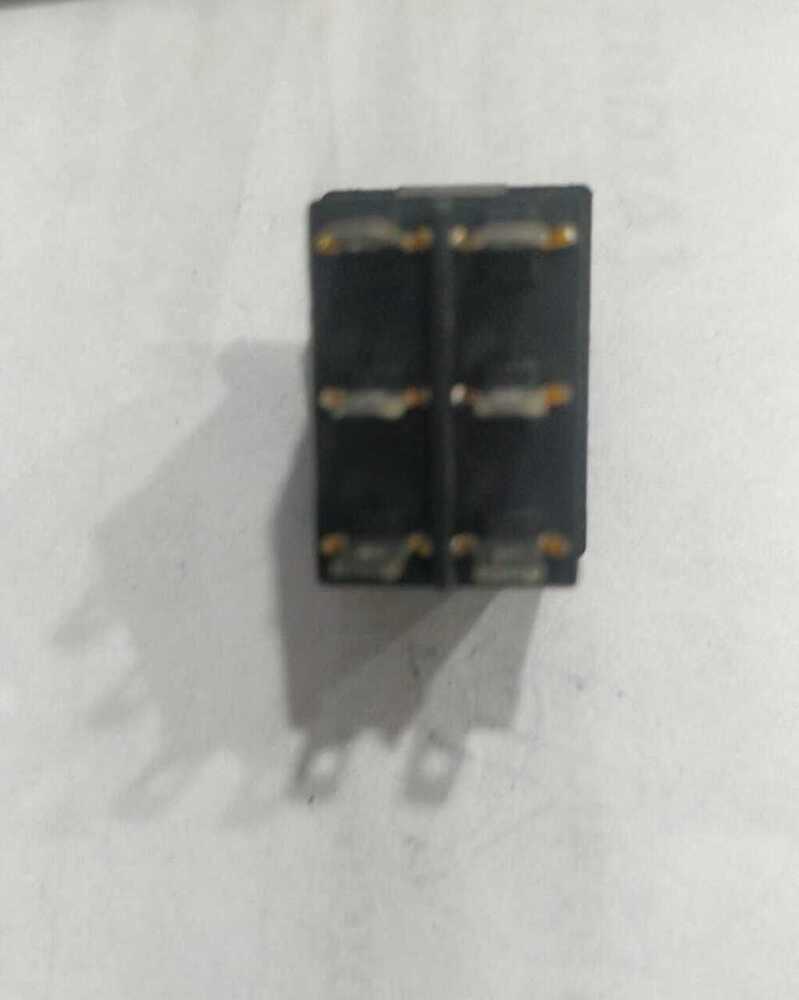

6 pins correspond to 2 poles 3 terminals each:

Rocker Switch Black 6 Pin Trade Information

Minimum Order Quantity
1000 Pieces

Supply Ability
500000 Pieces Per Day

Delivery Time
5 Days

Sample Available
Yes

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Packaging Details
MADAN LINK INDUSTRIES

Main Domestic Market
All India

Rocker Switch Black 6 Pin About

Introducing RS 14 BLACK 6 PIN, a high-quality switch designed for various applications. Made of copper/iron material, this switch has a maximum voltage of 12V and a maximum current of 16AMP. Its switch function is ON/OFF, and it has a DPDT switch throw type. The body is made of plastic, and it is non-illuminated. The switch is also ROHS compliant, ensuring that it is safe and eco-friendly. With a stoke of 100000, this switch is durable and long-lasting. Its micro rocker switch type makes it easy to use. The switch comes in a sleek black color that will complement any design.

Switch Function	ON/OFF
ROHS Compliant	No
Switch Type	Micro Rocker
Power/Voltage	12v
Material/Body	Plastic
Illuminated	Non Illuminated
Switch Throw Type	DPDT
Color	BLACK
Power Supply	16AMP
